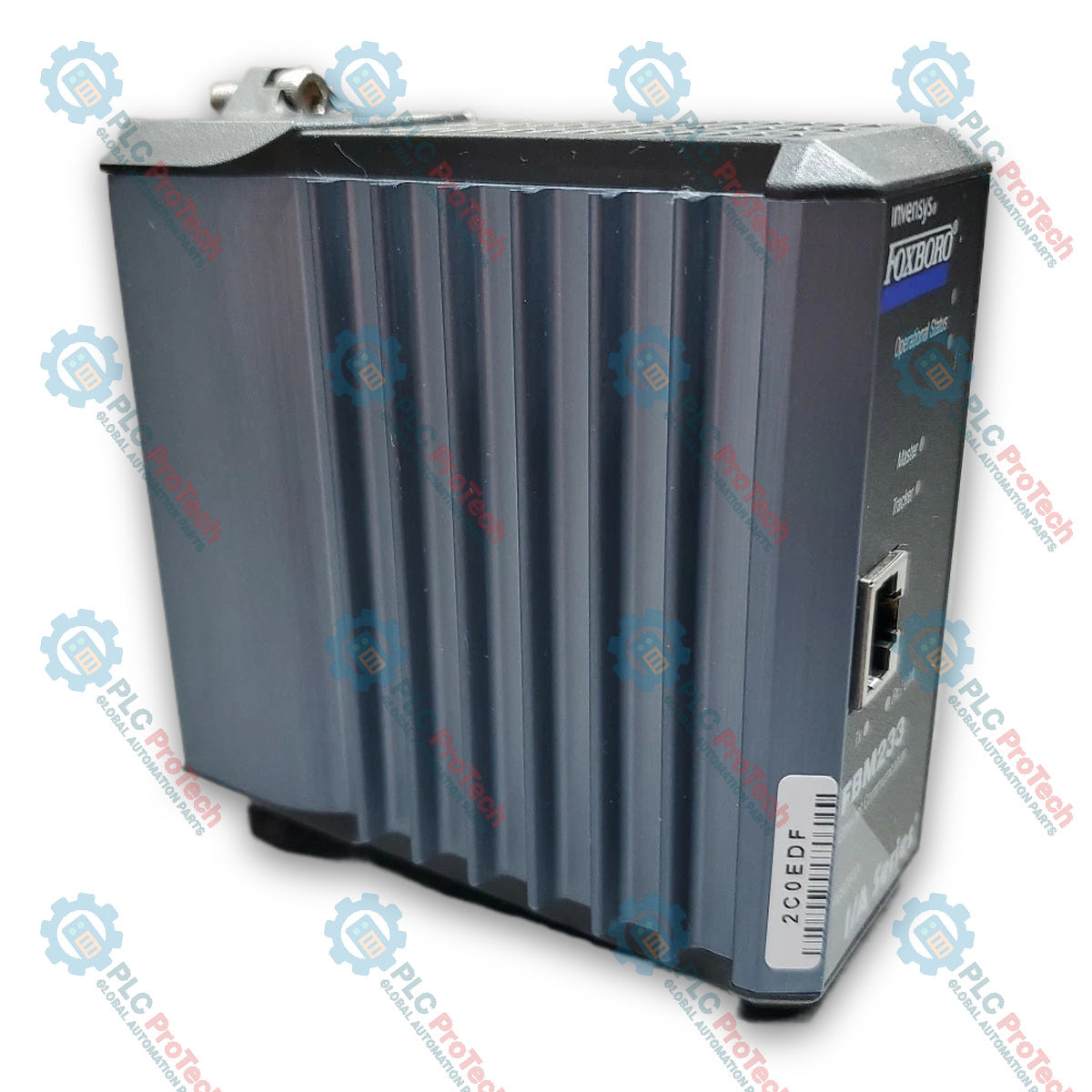

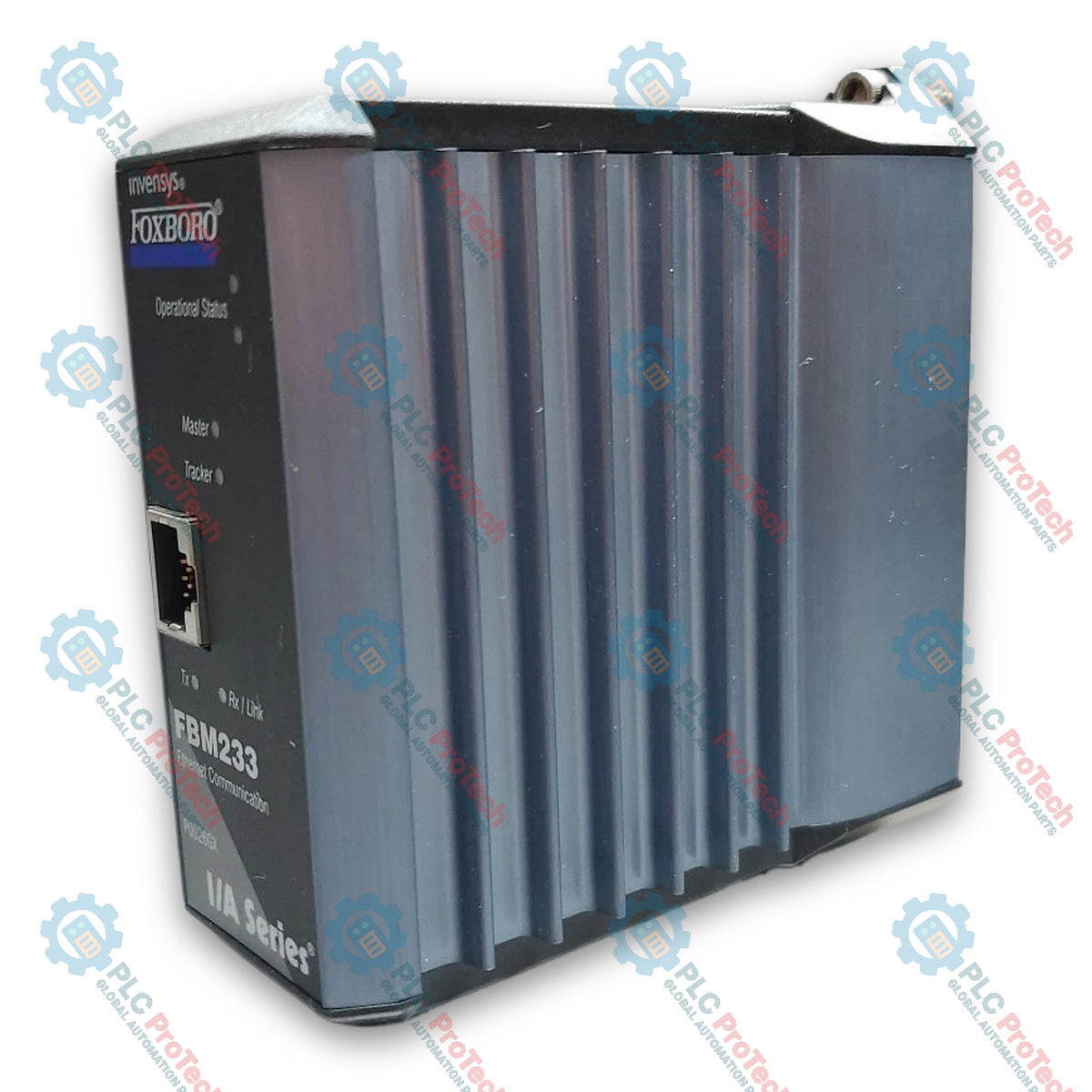

Foxboro FBM233 P0926GX I/A Series Ethernet Field Device System Integrator Module

SKU FBM233 P0926GX

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Foxboro
Product No.: FBM233 P0926GX
Origin France
Product Type: Ethernet Communication Modules
Payment: T/T, Western Union
Weight: 0.284 kg
Dimensions: 4.5 x 11.4 x 10.4 cm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Foxboro FBM233 P0926GX is an Ethernet Field Device System Integrator (FDSI) module designed for providing an Ethernet interface between single or dual-ported field I/O devices and the I/A Series system. The device integrates field device data into an I/A Series control database using Ethernet connectivity and communicates with field devices using configurable, downloadable software I/O drivers over 10 Mbps or 100 Mbps Ethernet network transmission rates. It mounts in a Modular Baseplate, interfacing with the system via a redundant 2 Mbps module Fieldbus to an FCM100Et, FCM100E, or FCP270.

Features

Redundant 10 Mbps or 100 Mbps Ethernet network transmission rate to/from field devices.
Communicates with up to 64 field devices.
I/O software driver is downloadable from a library of available protocols.
Up to 2000 DCI block connections.
Integrates field device data into an I/A Series control database using Ethernet connectivity.
Field mounted.
Suitable for Class G3 (harsh) environments.

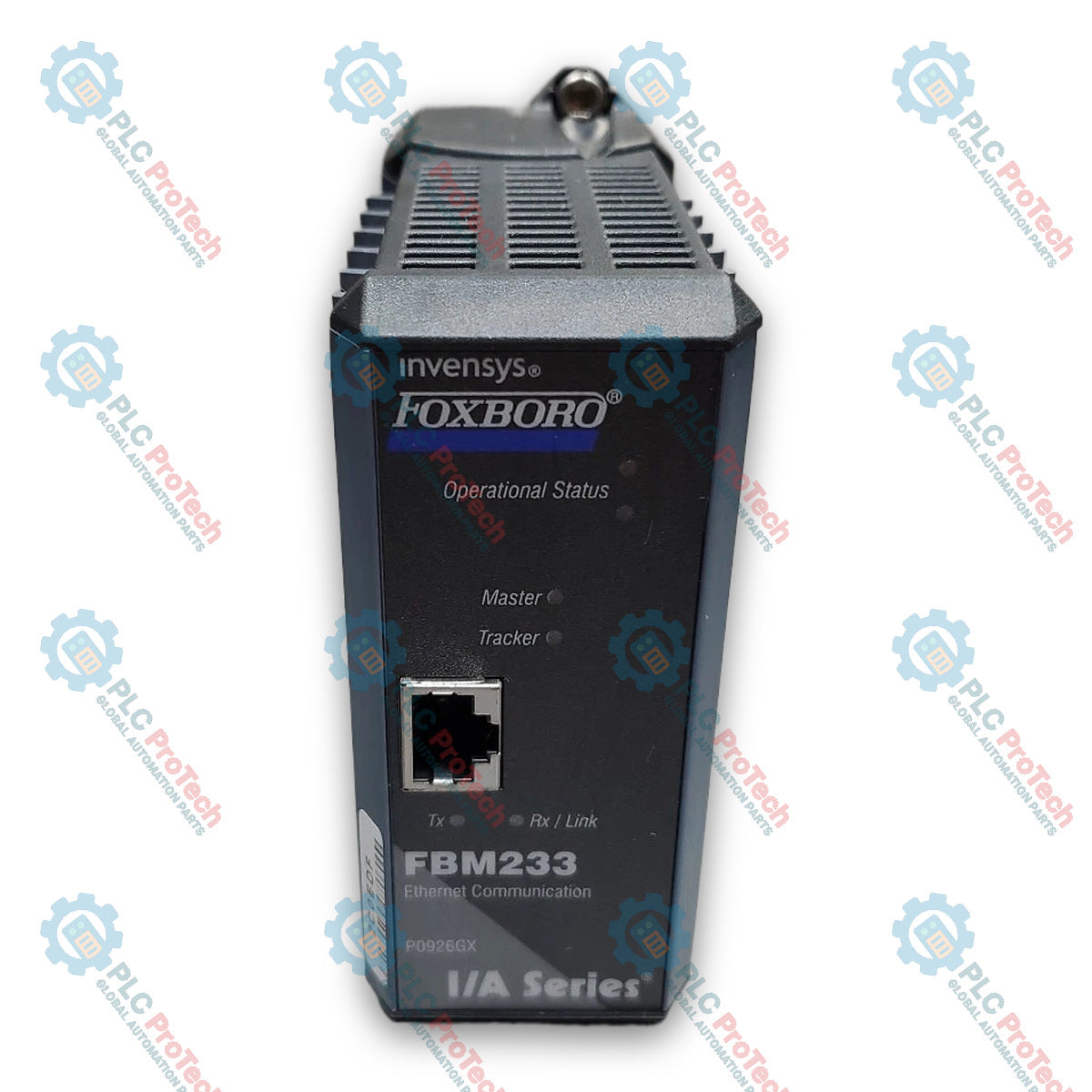

LED visual indicators for operational status, transmit/receive activity, and master/tracker status.

Applications

Field device integration into I/A Series control stations
Industrial Ethernet communication interfacing with third-party PLCs and field devices
Distributed control interface (DCI) data collection and control output handling

Technical Specifications

Parameter	Value
Manufacturer	Foxboro (Invensys)
Part Number	P0926GX
Communication Type	Ethernet
Communication Transmission Rate	10 Mbps or 100 Mbps
Communication Protocol	UDP/IP or TCP/IP
IP Address	Fixed or DHCP
I/O Capacity	Up to 64 devices per FBM233 maximum with up to 2000 DCI connections
Data Types Transferred	2-byte or 4-byte signed or unsigned integers, 4-byte IEEE single-precision floating values, or binary values
Fastest Allowed ECB Block Period	500 msec
Module Fieldbus Communication	Redundant 2 Mbps module Fieldbus via FCM100Et, FCM100E, or FCP270
Input Voltage Range	24 V dc +5%, -10% (Redundant)
Consumption	7 W maximum per module
Heat Dissipation	7 W maximum per module
Operating Temperature	-20 to +70 degC (-4 to +158 degF)
Storage Temperature	-40 to +70 degC (-40 to +158 degF)
Relative Humidity	5 to 95% (noncondensing)
Contamination Class	Class G3 (Harsh) per ISA Standard S71.04
Height	102 mm (4 in), 114 mm (4.5 in) including mounting lugs
Width	45 mm (1.75 in)
Depth	104 mm (4.11 in)
Mass	284 g (10 oz) approximate, per module

Connections/Interfaces

Connector Pin / Port	Function

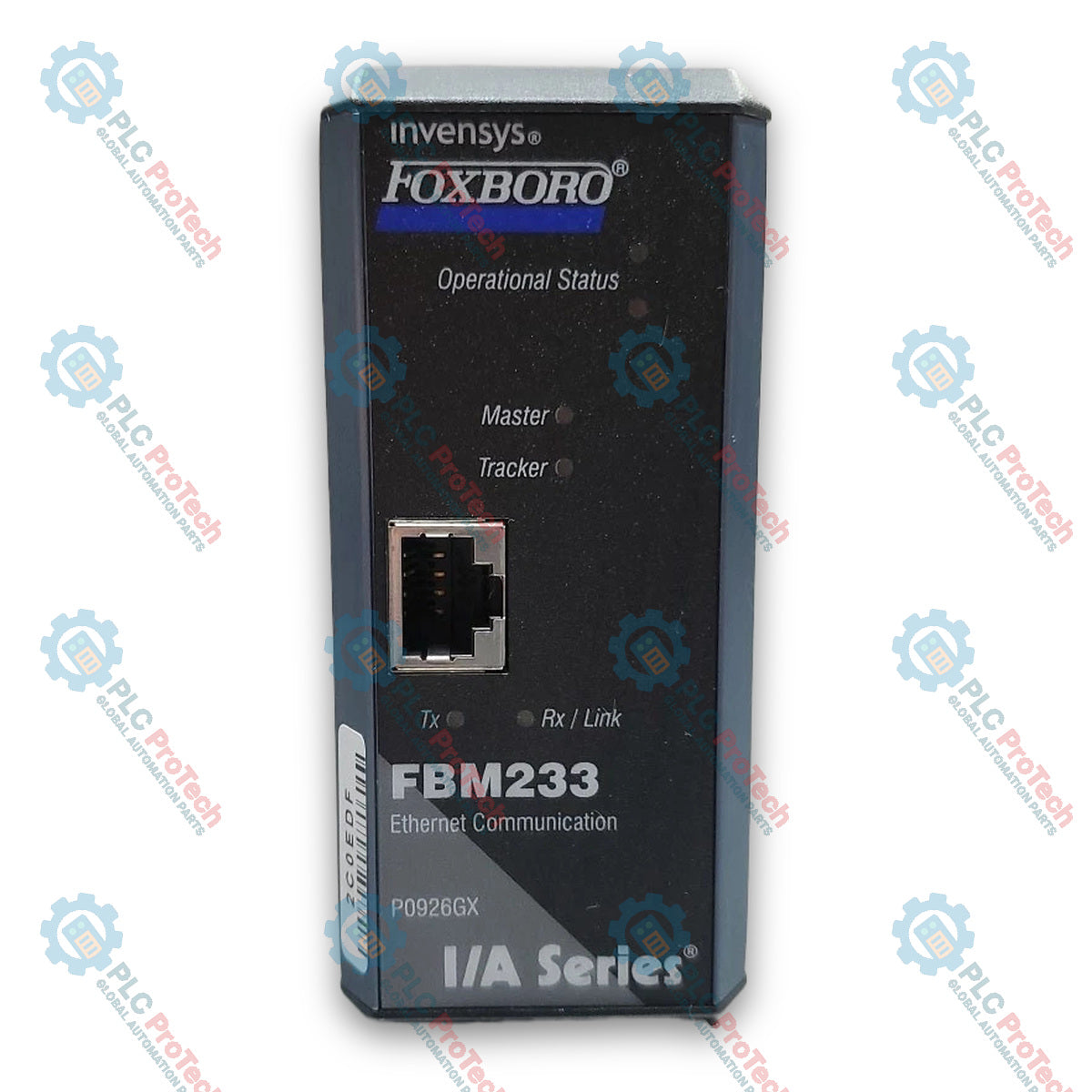

Front RJ-45 Connector	Single 10/100Mbps Ethernet connection to field devices, hubs, or switches

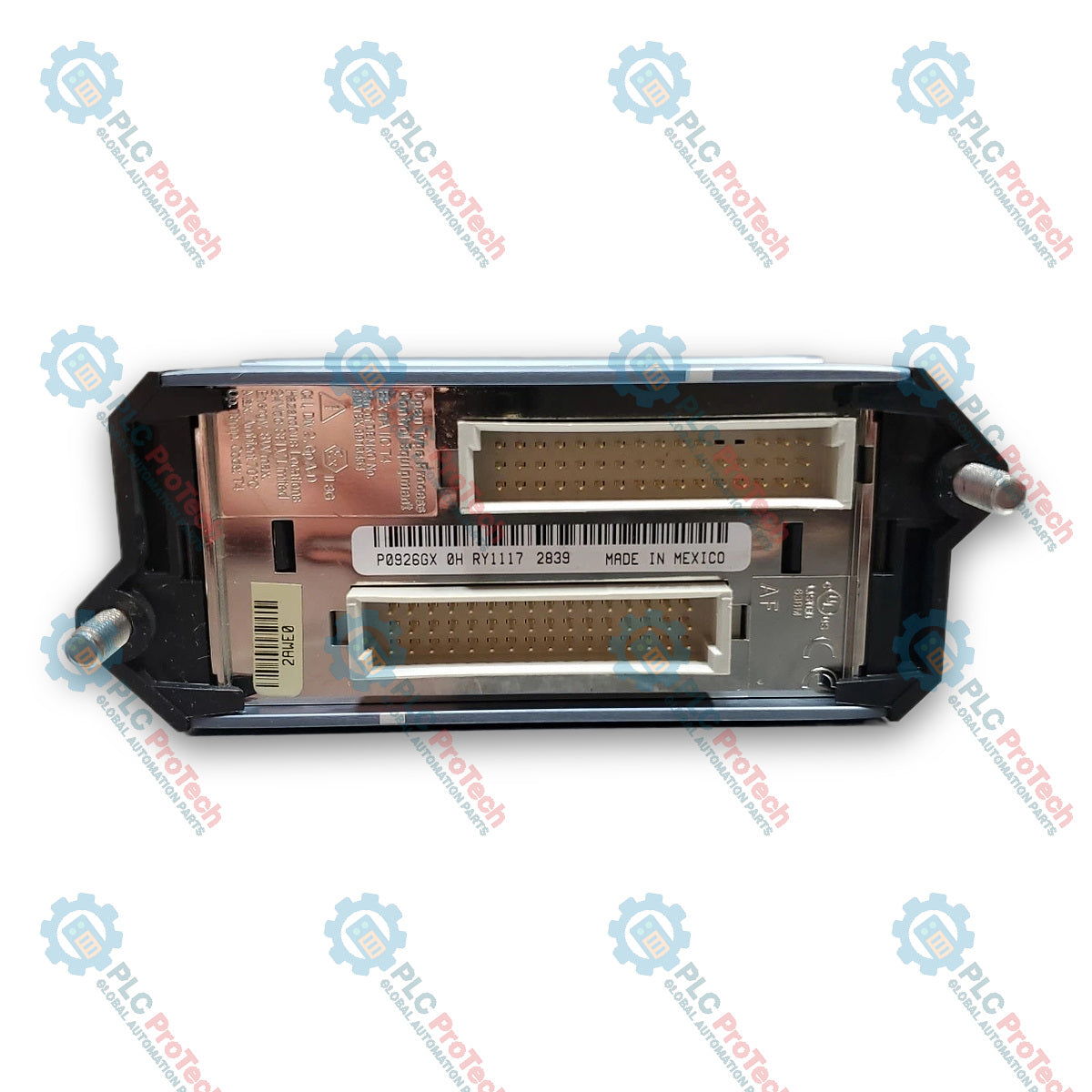

Baseplate Connection	Interfaces to redundant 2 Mbps module Fieldbus and 24 V dc power supplies

Installation Guidelines

Mounting: The module mounts on a Modular Baseplate (DIN rail mounted or 19-inch rack mounted) in horizontal or vertical orientation.
Redundancy Positioning: Redundant module pairs must be located in odd and adjacent even positions on the baseplate (positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8).
Hot Swapping: Module replacement can be executed without upsetting field input or output signals to the paired module and without removing power to other modules on the Modular Baseplate.
Cable Lengths: RJ-45 connections to Ethernet hubs, switches, or devices support cable lengths from 1 m (3.3 ft) up to 100 m (330 ft).

Compliance and Certifications

EMC: European EMC Directive 89/336/EEC, EN 50081-2, EN 50082-2, EN 61326 Annex A, CISPR 11 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Product Safety: UL/UL-C listed for Class I, Groups A-D; Division 2; temperature code T4
ATEX Directive: CENELEC (DEMKO) certified as EEx nA IIC T4 for use in Zone 2 enclosure (Directive 94/9/EC)
European Low Voltage Directive: 73/23/EEC

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How many external field devices can the module communicate with concurrently?

The module communicates with up to 64 field devices over an Ethernet network using downloadable protocol drivers.

Where must redundant module pairs be installed on the modular baseplate?

Redundant modules must occupy odd and adjacent even baseplate slots, specifically positions 1-2, 3-4, 5-6, or 7-8.

What power input voltage does the device require for operation?

The device requires a redundant 24 V dc power input with a tolerance of +5% and -10%.

How many DCI block connections does the module support for control stations?

The device supports up to 2000 Distributed Control Interface block connections for reading or writing data.
