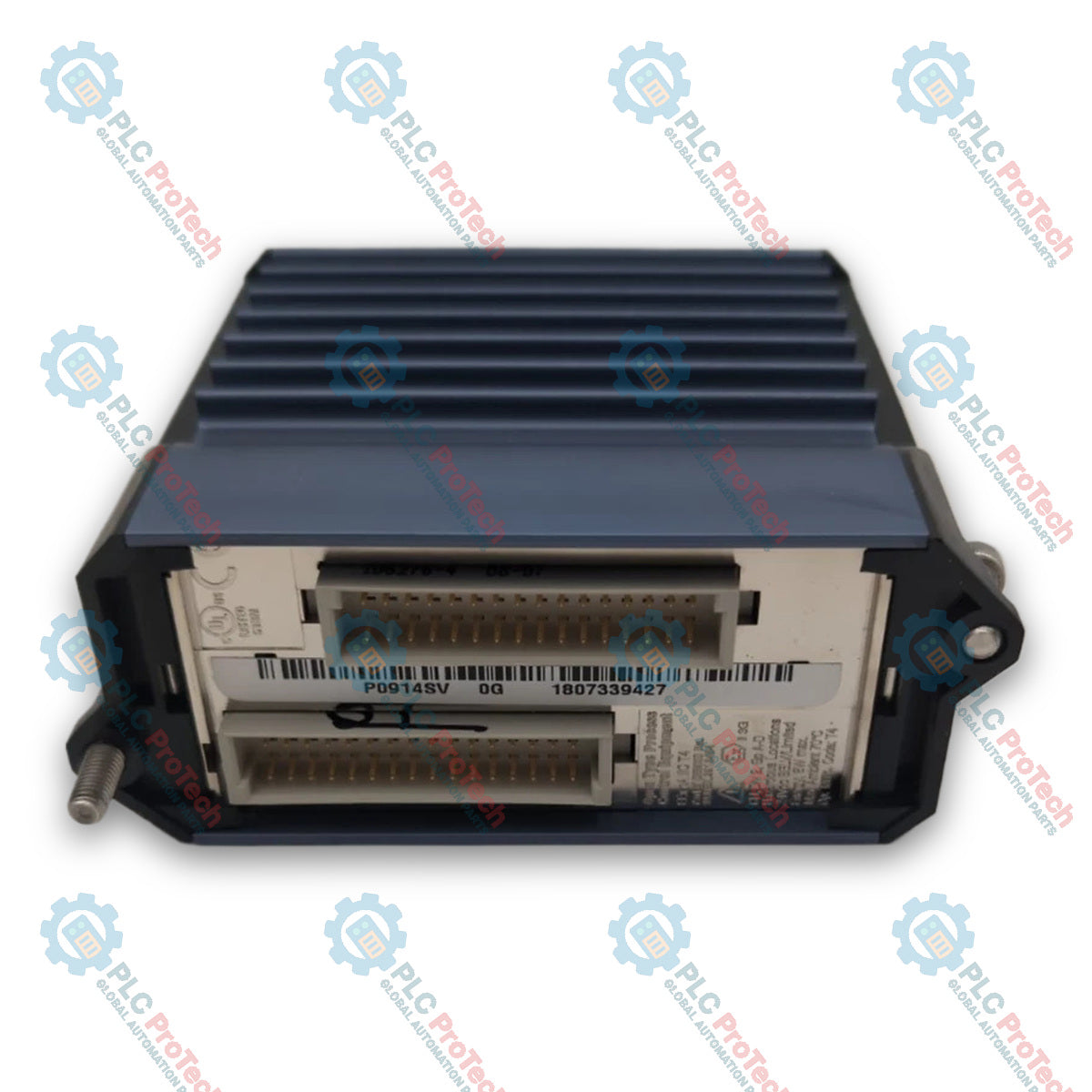

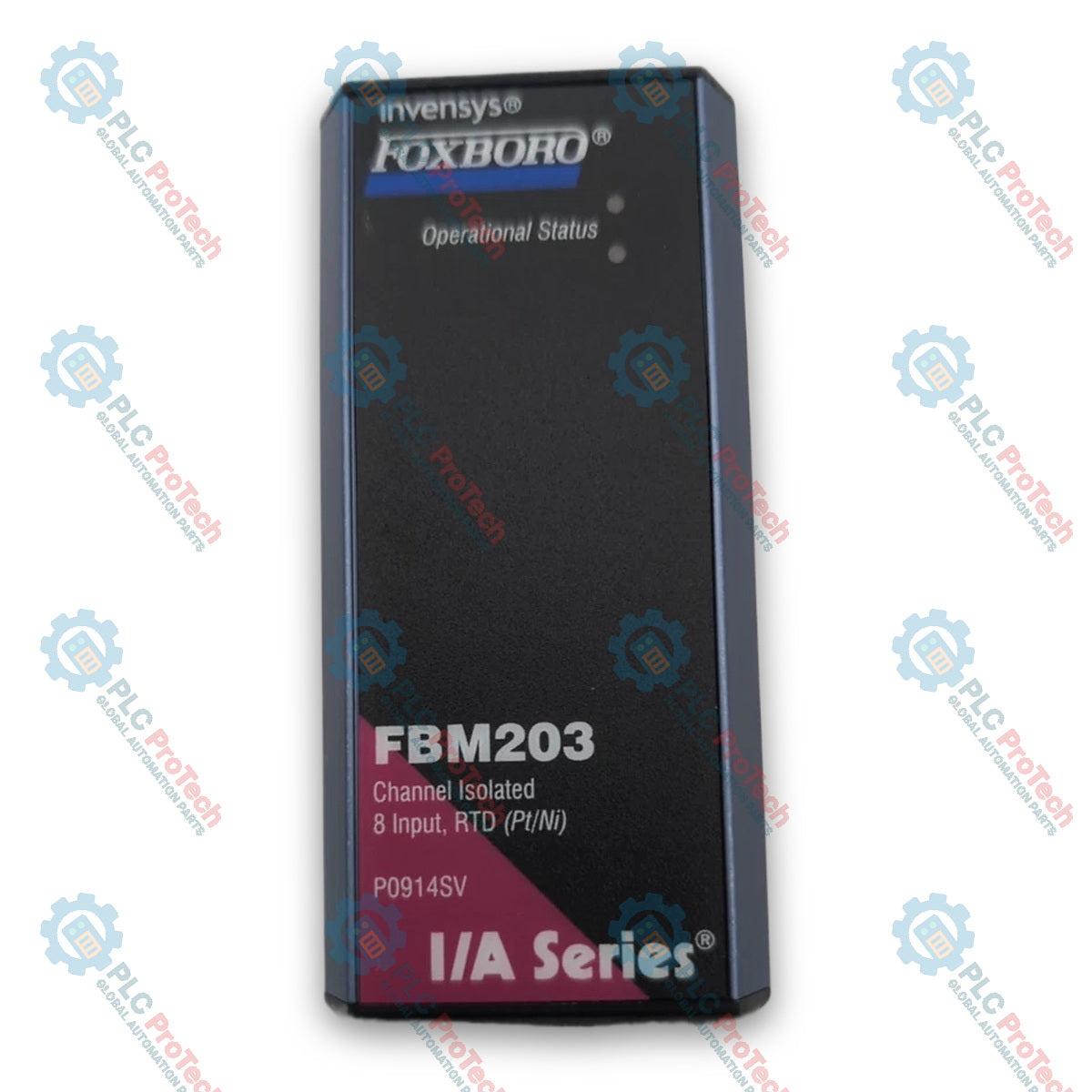

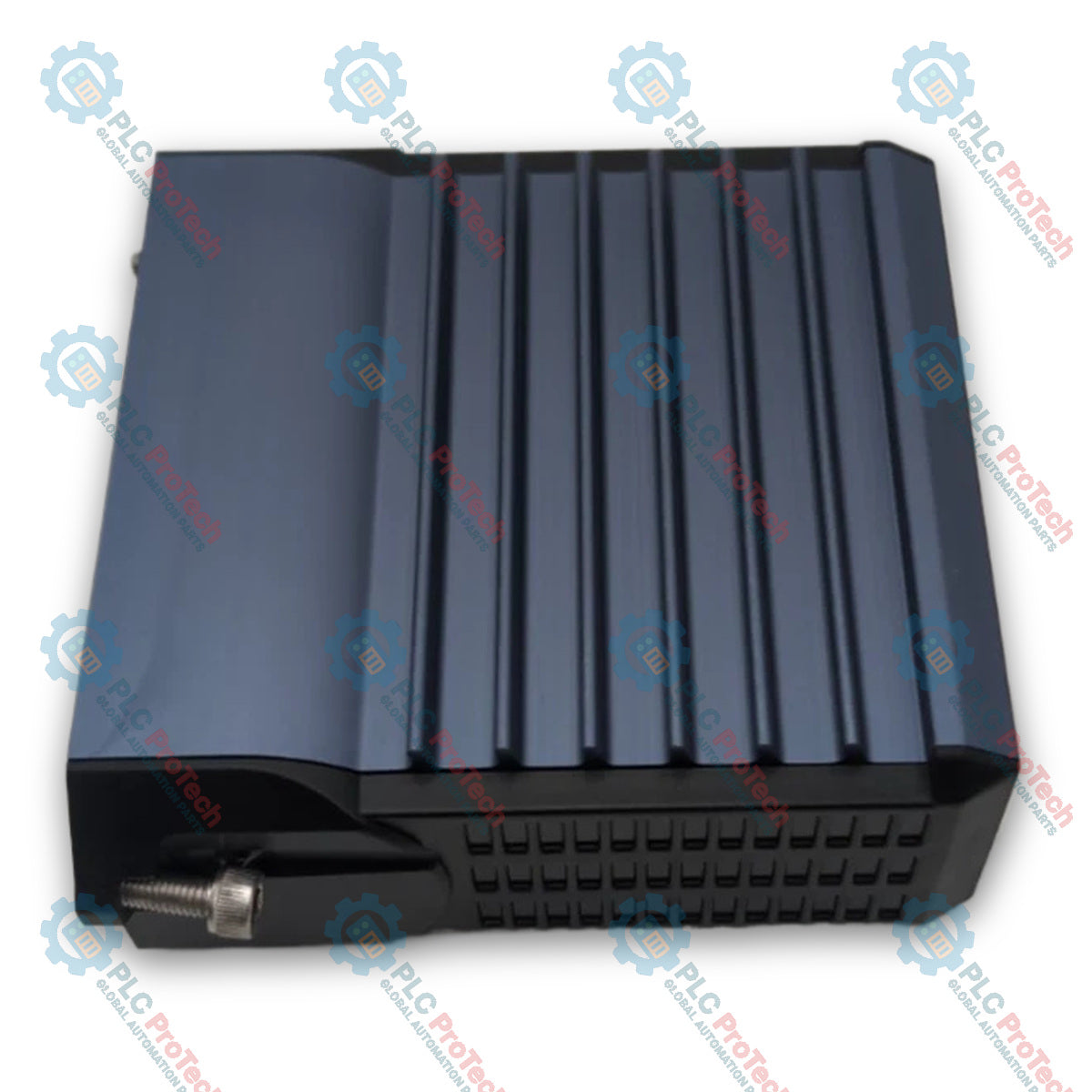

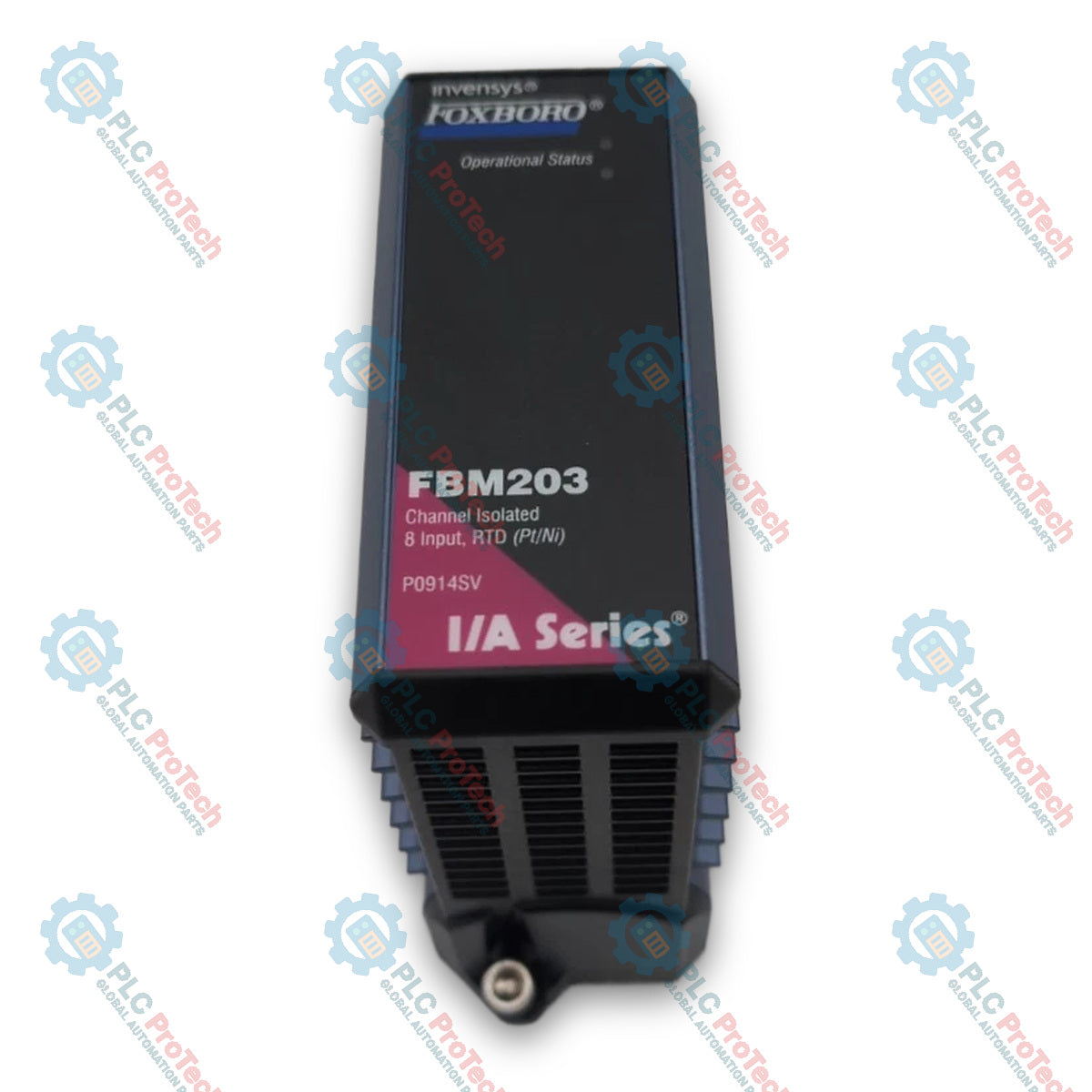

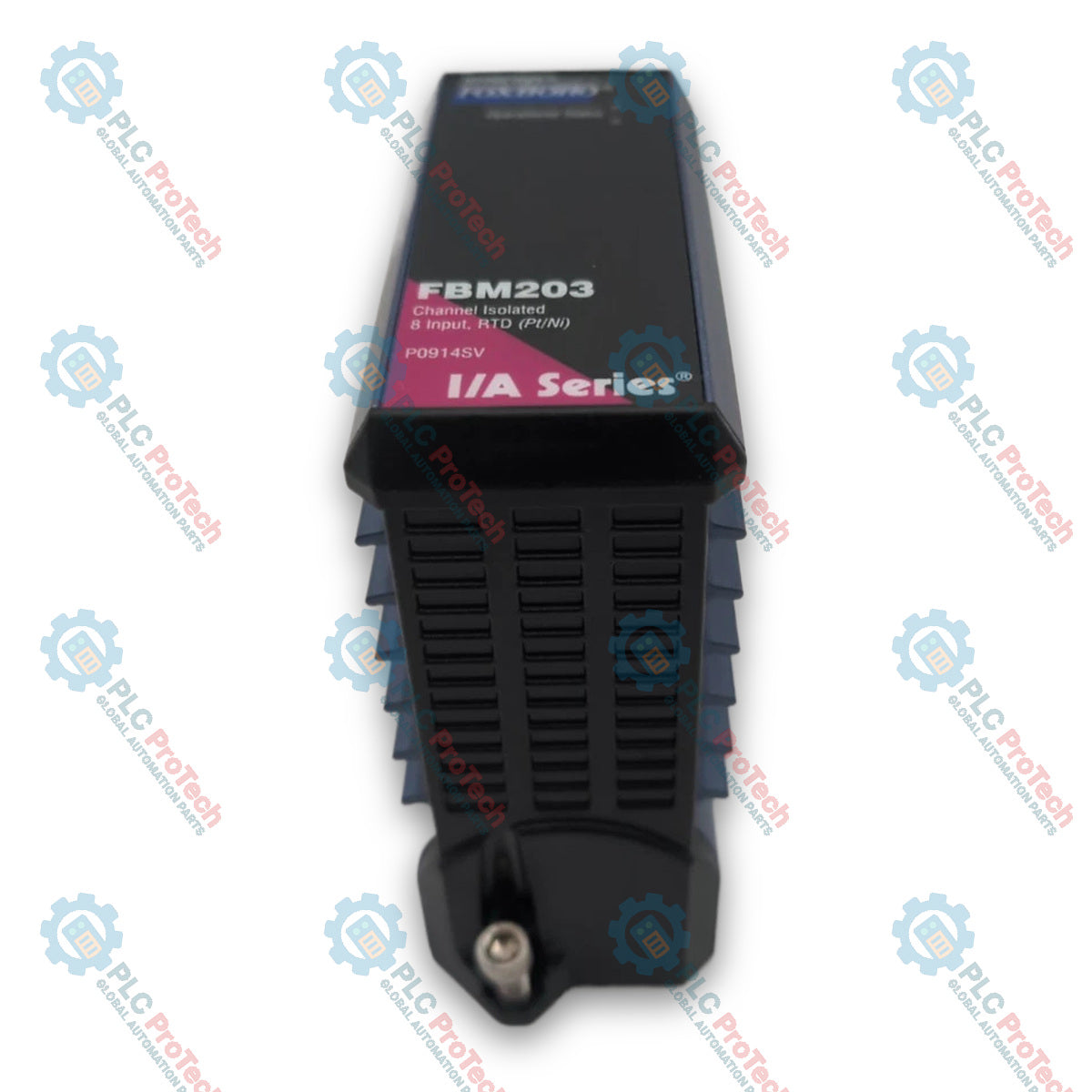

The Foxboro P0914SV FBM203 is an eight-channel resistance temperature detector (RTD) input module designed for process automation systems. The P0914SV accepts 2- or 3-wire RTD sensor inputs within a resistance range of 0 to 320 ohms. Each analog input channel is galvanically isolated from ground and all other channels. The module performs signal conversions to interface electrical input signals from field sensors to a redundant 2 Mbps module fieldbus, executing an analog input application program that provides conversion timing and configurable options for Rate of Change Limits.
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro by Schneider Electric |
| Part Number | P0914SV |
| Model | FBM203 |
| Input Channels | 8 isolated RTD channels |
| Input Range | 0 to 320 ohms (320 ohms = 64000 counts) |
| Sensor Current | 0.19 mA dc nominal |
| Lead Resistance | 50 ohms maximum per lead |
| Analog Accuracy | ±0.03% of span (includes linearity) |
| Temperature Coefficient | ±50 ppm/degC |
| Integration Period | Software configurable |
| Common Mode Rejection | >125 dB at 50 or 60 Hz |
| Normal Mode Rejection | >95 dB at 50 or 60 Hz |
| Input Isolation | Galvanic isolation per channel, 600 V ac for 1 minute |
| Power Requirements | 24 V dc +5%, -10% (Redundant input) |
| Power Consumption | 3 W maximum |
| Heat Dissipation | 3 W maximum |
| Module Weight | 284 g approximate |
| Dimensions (H x W x D) | 102 mm x 45 mm x 104 mm (114 mm height including mounting lugs) |
| Operating Temperature | 0 to +70 degC |
| Storage Temperature | -40 to +70 degC |
| Relative Humidity | 5 to 95% (noncondensing) |
| Altitude | -300 to +3,000 m |
| Environmental Rating | Class G3 (Harsh) per ISA Standard S71.04 |
Global Express Shipping
Returns & Warranty
Manufacturer: Foxboro
Product No.: P0914SV FBM203
Country of origin:France
Product Type: RTD Input Modules
Payment: T/T, Western Union
Weight: 284g
Dimensions: 102 mm x 45 mm x 104 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
