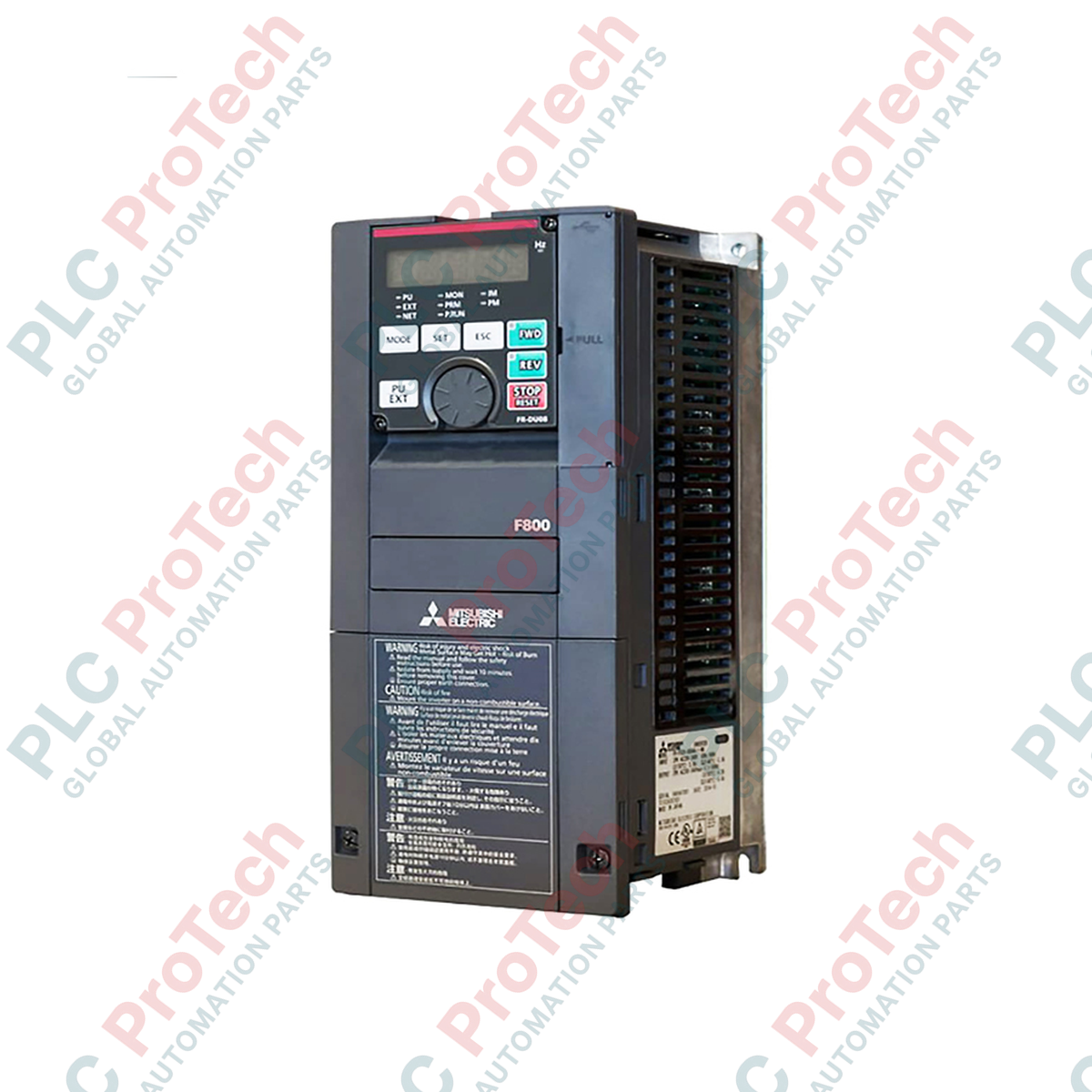

Engineered for heavy-duty fan and pump speed control, the Mitsubishi Electric FR-F840-00380-2-60 is an industrial variable frequency drive (VFD) from the premium FR-F800 Series. Operating within the 400V three-phase class, this inverter delivers a Light Duty (LD) capacity of 18.5 kW. This specific unit features the robust -60 specification, signifying that internal circuit boards are treated with a specialized protective conformal coating and include plated conductors. This added layer of defense prevents degradation in corrosive, humid, or dusty environments, ensuring maximum operational uptime in wastewater treatment facilities, commercial HVAC units, and industrial plant automation panels.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | FR-F840-00380-2-60 |
| Inverter Series | FR-F800 Series |
| Voltage Class | 400V Class (Three-Phase Input) |
| Inverter Capacity (LD) | 18.5 kW |
| Structure Variant | Standard Model |
| Type Code | -2 (CA Variant) |
| Environmental Protection | Conformal Board Coating and Plated Conductor (-60 Spec) |
| Net Weight | 8.3 kg |
| Shipping Weight (Calculated) | 10.0 kg |
| Terminal Designation | Functional Assignment |
|---|---|
| R/L1, S/L2, T/L3 | Three-phase AC power input (400V class) |
| U, V, W | Three-phase AC output connections to the induction motor |
| P/+, PR | Connections for optional external brake resistor configurations |
| Control Terminals | Standard analog voltage/current inputs, digital inputs, and fault relay outputs |
When migrating legacy systems from the older FR-F740 series, parameter mappings can be transferred using FR Configurator2 software. However, please note that physical dimensions and wiring terminal layouts differ slightly. Ensure that panel backplate drill patterns are verified before mechanical mounting.
The FR-F840-00380-2-60 is rated primarily for Light Duty (LD) application profiles (variable torque loads). If applying this drive to constant torque loads, such as heavy positive displacement pumps or conveyor drives, you must derate the continuous current output or transition to the FR-A840 series to prevent overcurrent trip events (E.OC1 to E.OC3) during startup acceleration.
Ensure that the built-in EMC filter is configured correctly for your local earthing system. When installing this unit on an IT (ungrounded) network or an asymmetric earthed system, disconnect the internal EMC filter grounding jumper to prevent high-frequency leakage currents from tripping upstream ground fault protective devices.
