Description

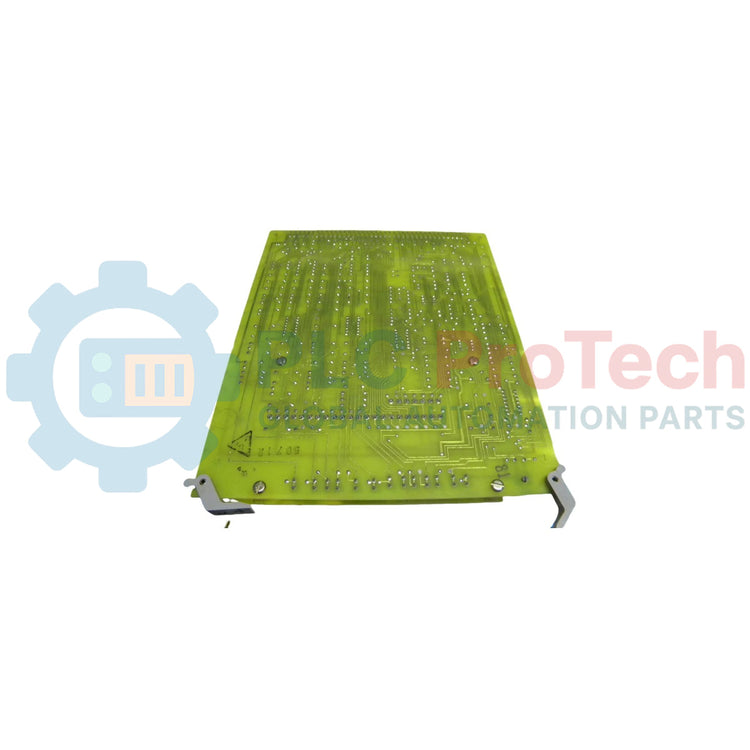

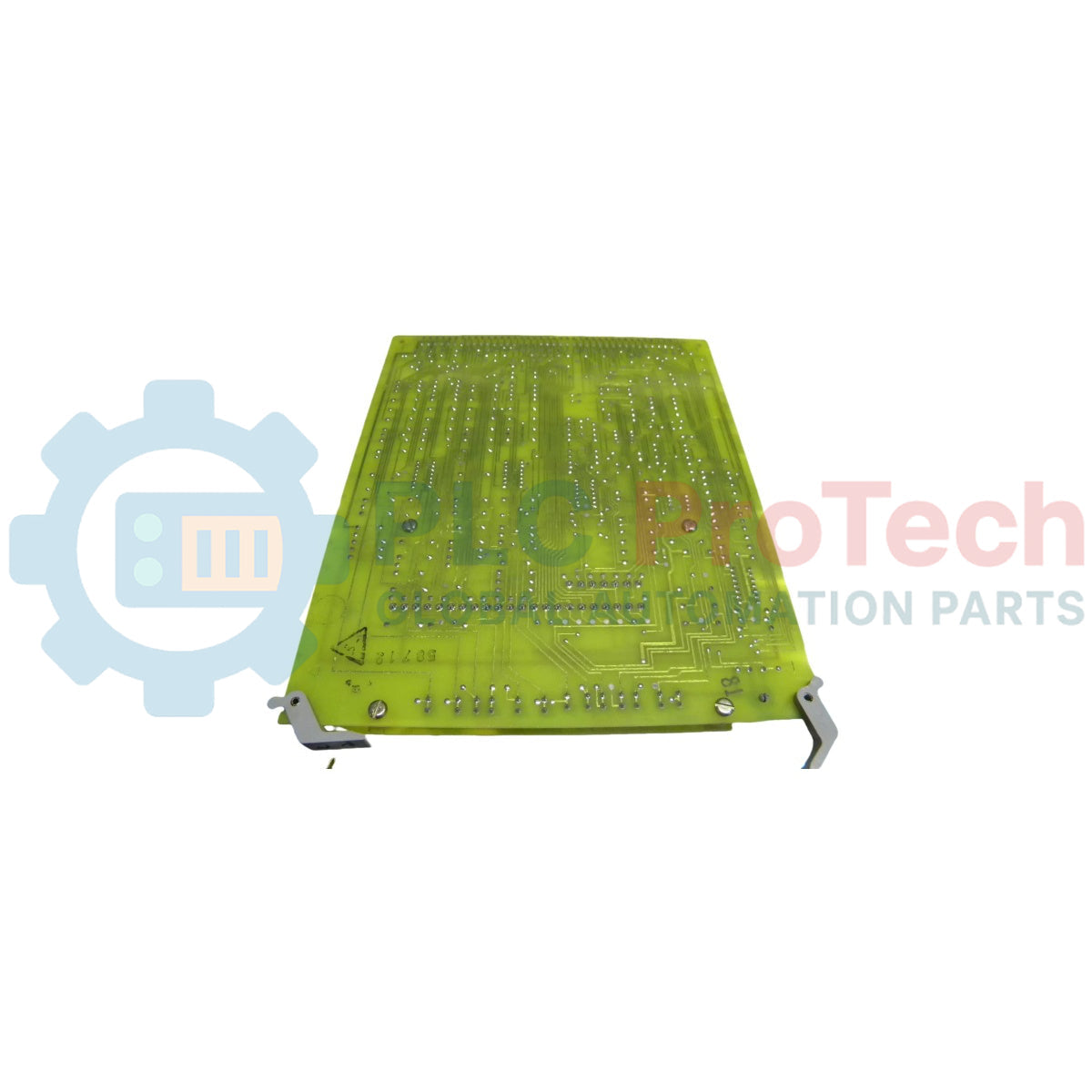

The DS3800NOAA1F1D operates as a specialized motherboard assembly engineered for the Mark IV Speedtronic turbine control platform. This operational amplifier board scales signal monitoring capacities during automated sequence routines, including turbine startup, cooldown, and shutdown phases.

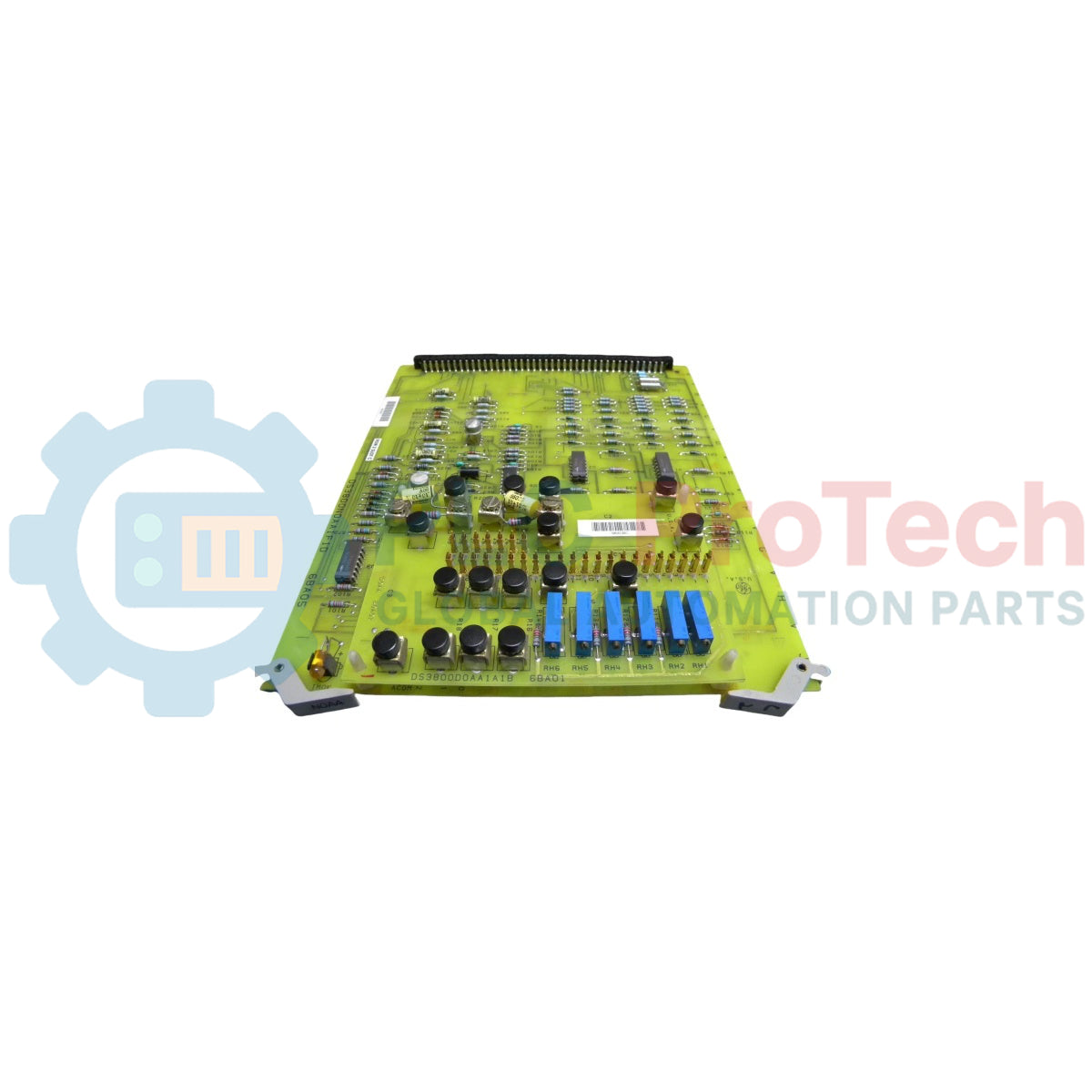

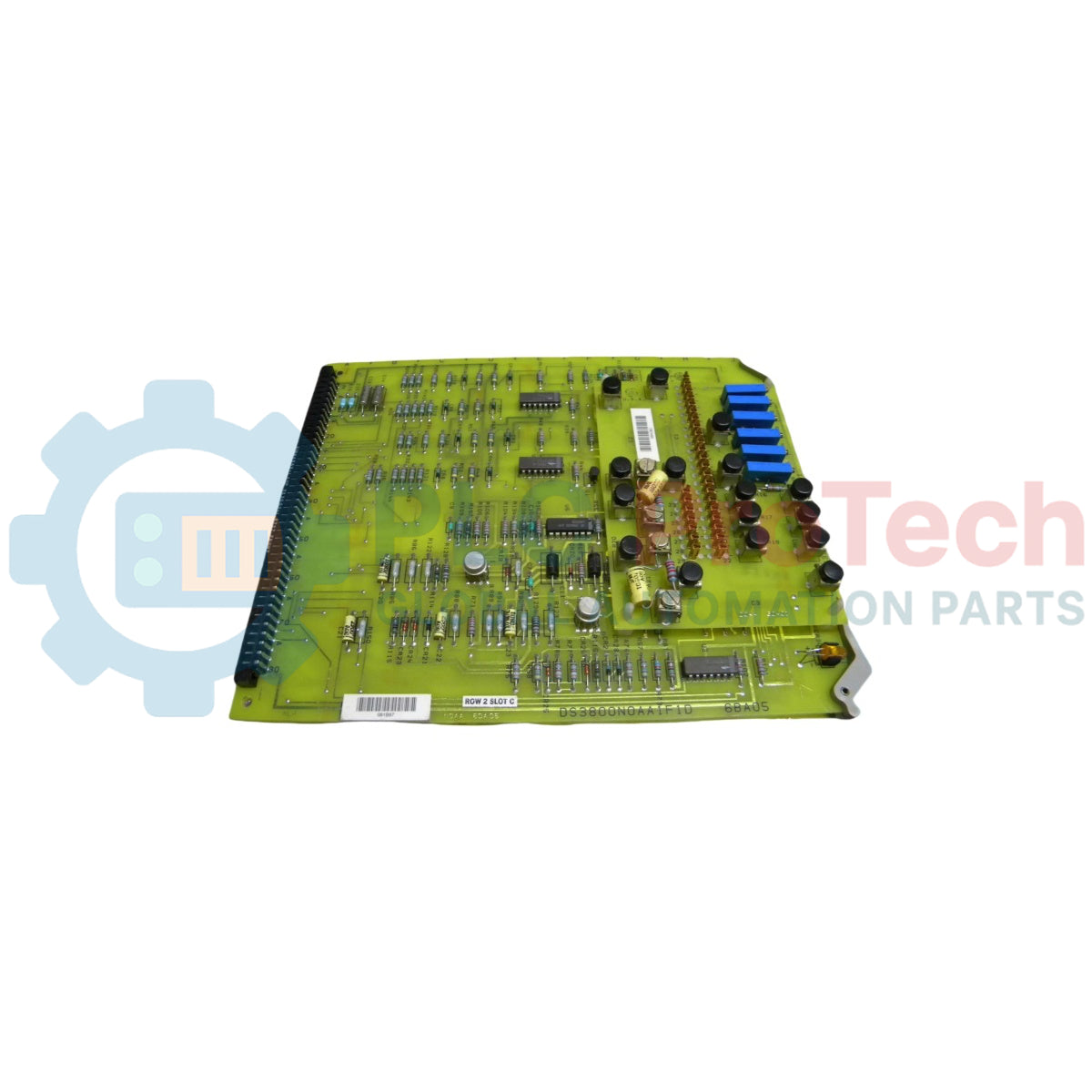

The structural framework of the DS3800NOAA1F1D processes vital environmental and fuel parameters by monitoring air, fuel, and water emissions loops. It acts as the primary host baseboard for the smaller auxiliary DS3800DOAA daughterboard, which interfaces via twenty-nine board-to-board connector pins to add multiple tuning potentiometers and quick-connect screw mounts. Onboard signal conditioning relies on six integrated circuits containing low-power, low-offset voltage quad comparators and dual operational amplifiers alongside a single transistor, resistors, capacitors, and steering diodes. Built with factory-drilled corner mounting slots and an alignment-marked upper edge, the assembly integrates a single amber diagnostic LED, thirteen dedicated test points, and one heavy-duty PCB mating connector to establish low-latency analog monitoring trunks.

Features

• Dual Board Expansion Core: Acts as a solid motherboard accepting an auxiliary DS3800DOAA board via 29 specialized interconnect pins.
• Low-Offset Signal Conditioning: Utilizes low-power quad comparators and dual operational amplifiers to maintain signal fidelity across processing lines.
• Integrated Insertion Levers: Features factory-installed extractor clips on the right corners to provide lever points during slot maintenance.
• Local Loop Diagnostics: Equipped with 13 built-in hardware test points and an amber status LED to facilitate real-time fault mapping.

Applications

• Automated Turbine Sequence Tracking: Deployed inside Speedtronic panels to condition feedback variables during automated startup, shutdown, and cooldown steps.
• Environmental Emission Monitoring: Tracks and normalizes parameter metrics originating from exhaust air, turbine fuel, and water injection loops.
• Analog Signal Comparison Loops: Operates within legacy industrial control networks requiring precise, low-drift operational amplifier thresholds.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Bus Voltage De-energization: Confirm total power suppression across the entire control panel rack housing before touching or adjusting internal circuit card groups.
• Electrostatic Grounding Setup: Technicians must utilize a verified, grounded ESD anti-static wrist strap to safeguard the onboard low-offset comparators against catastrophic dielectric breakdown.
• Auxiliary Card Attachment: Align and press the 29 connection pins of the auxiliary DS3800DOAA board firmly into the motherboard slots before sliding the structural unit into the panel slot.
• Levered Channel Seating: Guide the card via the alignment-marked upper edge into the card guide tracks, using the right-side extractor clips to secure complete seating into the mating receptacle.
