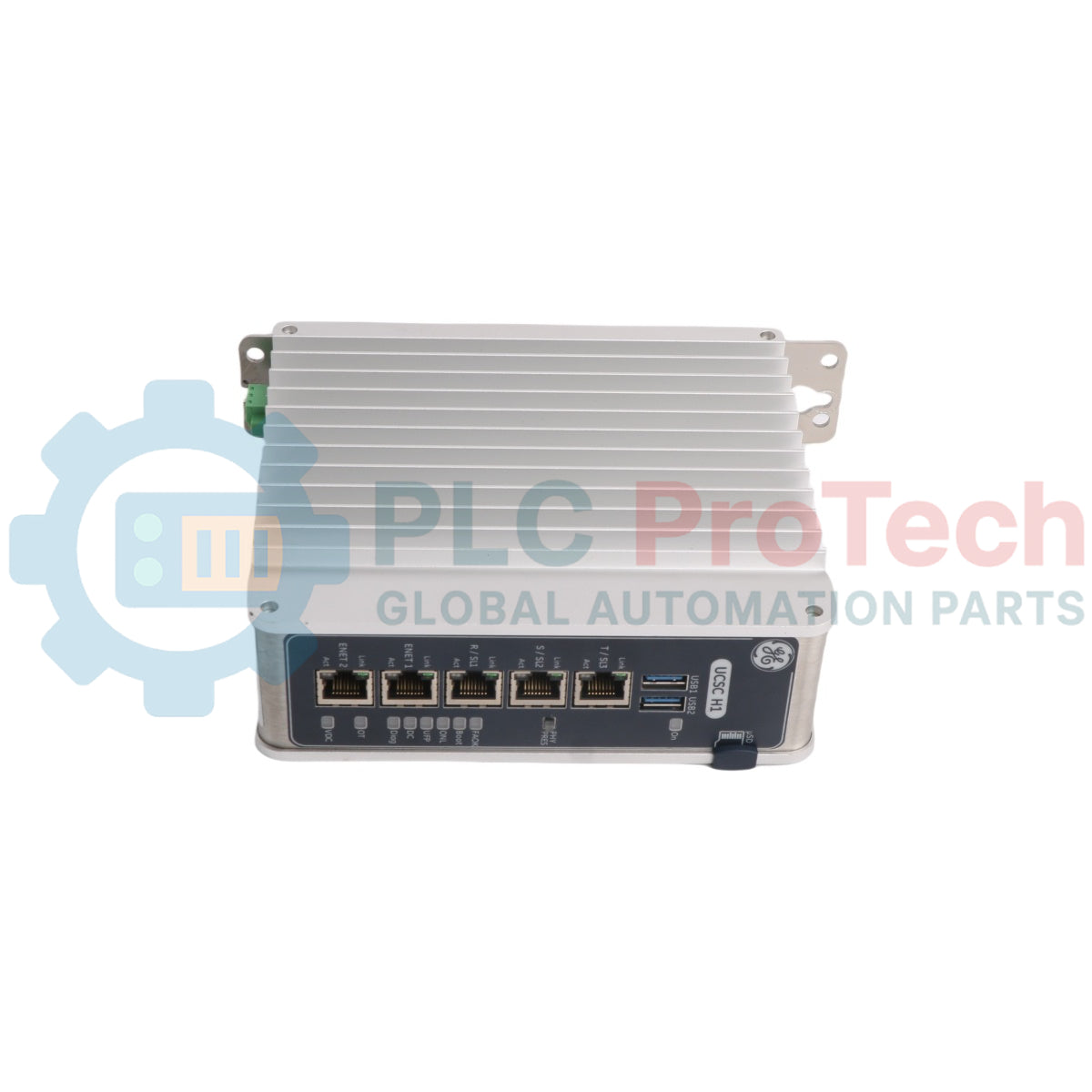

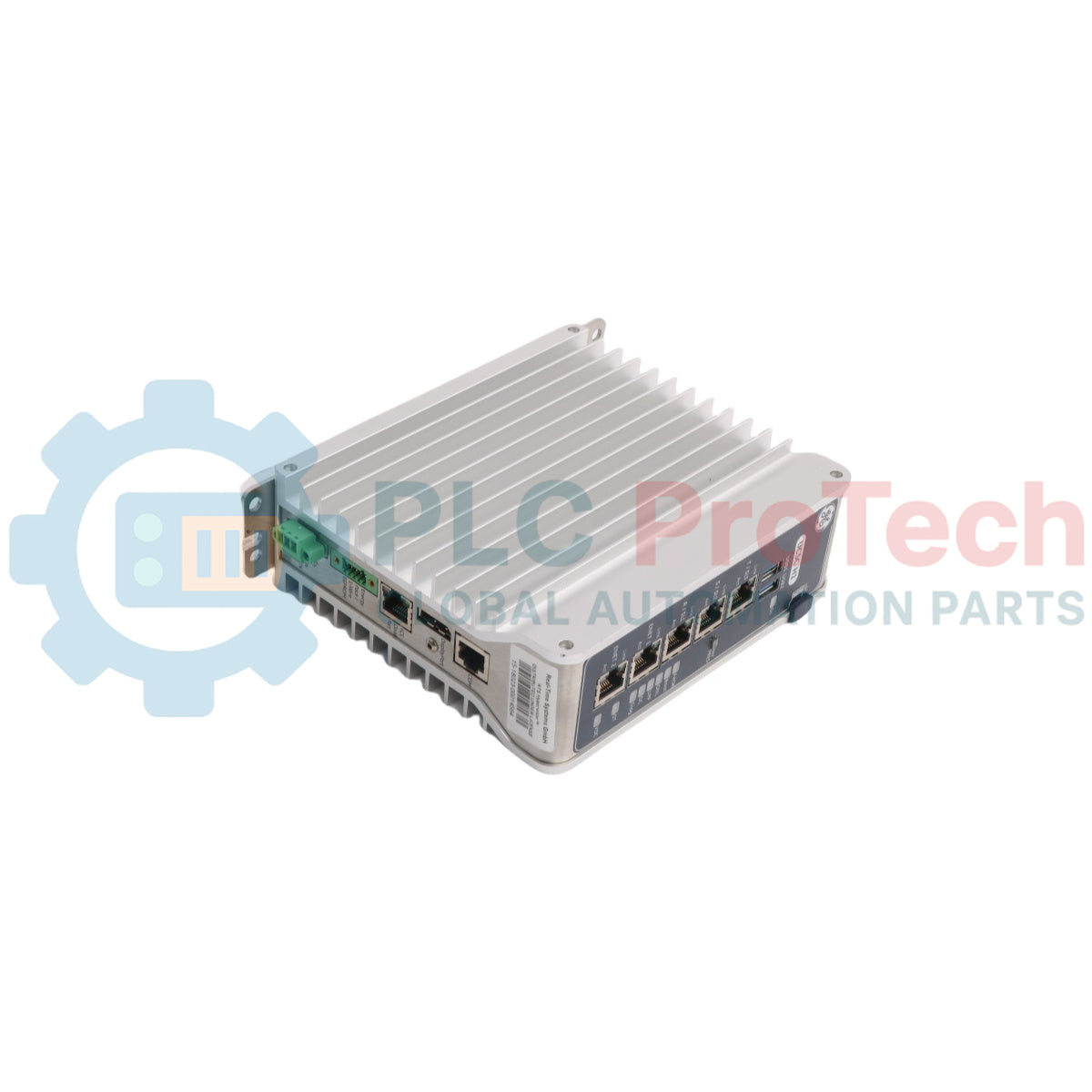

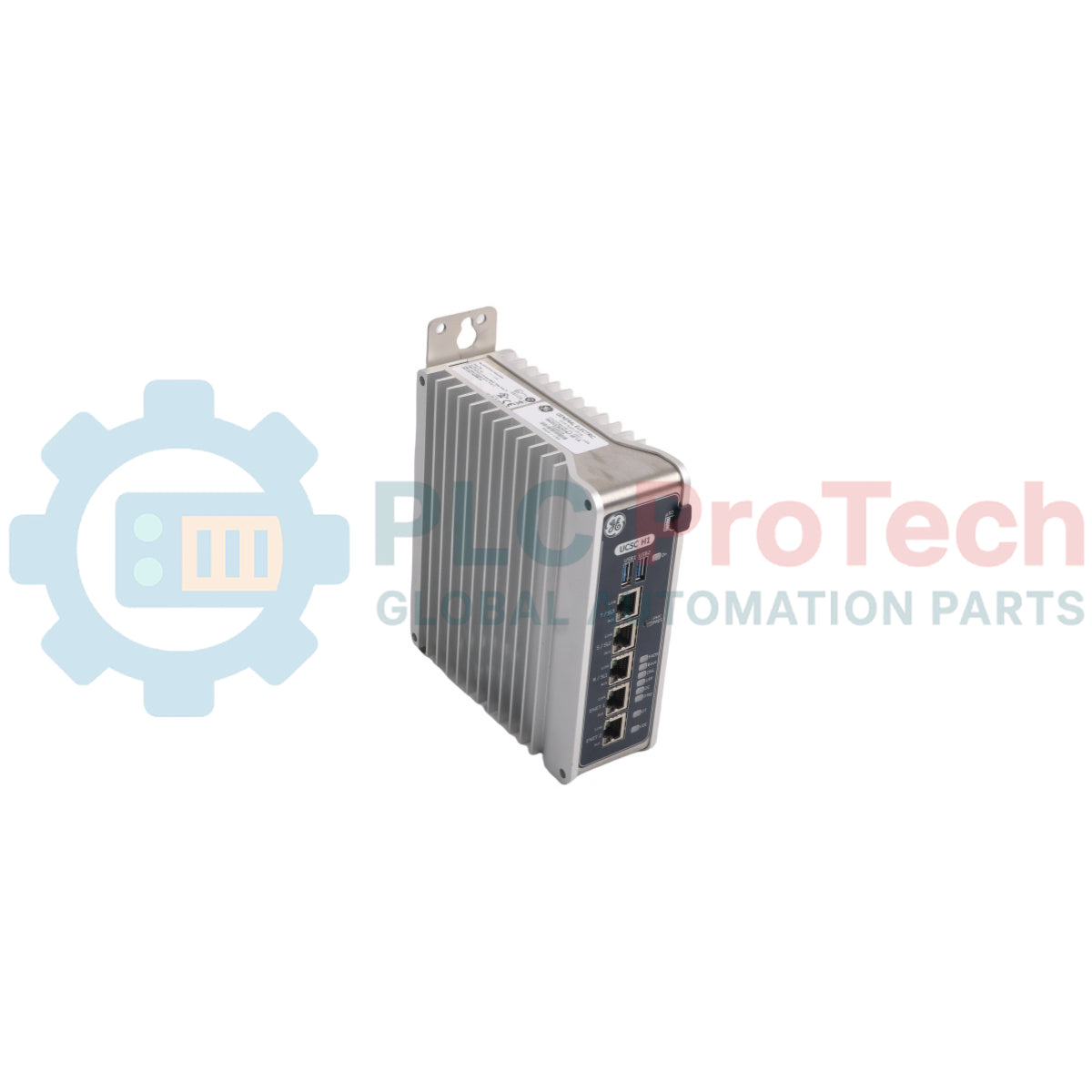

The IS420UCSCH2A is a stand-alone, dual-core controller manufactured by GE Vernova for the Mark VIe control system. This module is designed to run application-specific control system logic for high-reliability turbine control and Distributed Control System (DCS) applications in gas, steam, and combined-cycle power plants. The IS420UCSCH2A utilizes a real-time, multi-tasking QNX Neutrino operating system to deliver deterministic execution of critical application code. Unlike traditional controllers that host local I/O on a backplane, this unit communicates with distributed I/O packs across a dedicated, high-speed Ethernet network known as the IONet, ensuring zero loss of single-point application inputs during individual unit maintenance or repair.
| Parameter | Specification |
|---|---|
| Manufacturer | GE Vernova |
| Model / Part Number | IS420UCSCH2A |
| Product Series | Mark VIe |
| Processor Type | AMD GX-216HC GE216HHBJ23JB |
| CPU Frequency | 1.6 GHz |
| CPU Cores | 2 |
| Mark VIe Dedicated Cores | 2 |
| L2 Cache Memory | 2 M |
| Operating System (OS) | QNX Version 6.5 or 7.1 |
| PROFINET Support | No |
| Total Ethernet Ports | 6 (100 MB Fast Ethernet) |
| Console Port Interface | RJ-45 (Adaptor sold separately) |
| Additional Port Interfaces | USB 2.0 x2 |
| Non-Redundant Power Input Connection | 1-Bottom |
| Maximum Power Consumption | 31 W |
| Minimum Voltage Input | 18 VDC |
| Nominal Voltage Input | 24 / 28 VDC |
| Maximum Voltage Input | 30 VDC |
| System Memory Type | DDR3-1066 |
| System Memory Size | 2 GB |
| Error-Correcting Code (ECC) Memory | Yes |
| Flash Storage Capacity | 40 GB SSD PSLC (16 GB allocated/used) |
| NVRAM Capabilities | ControlST V07.05 and higher supports 6139 non-volatile program variables, 338 forces, and 128 totalizers |
| Chassis Width | 55 mm |
| Chassis Depth (Excl. Bracket) | 150 mm |
| Chassis Height (Excl. Bracket) | 168 mm |
| Mounting Bracket Dimensions | 42 mm (Width) x 204 mm (Height) x 2 mm (Thickness) |
| Operating Temperature Range | -40 degC to +70 degC |
| Storage Temperature Range | -40 degC to +85 degC |
| Maximum Operating Altitude | 1000 m Nominal |
| Cooling Method | Convection cooling |
| Reverse Polarity Protection | Provided up to maximum structural limits |
| Surge Protection / Fuse Rating | Non-replaceable 4 A 125 VDC rated fuse; Nominal melting: 26 A squared seconds |
| Relative Humidity Limits | 5% to 95% non-condensing |
| Weight | 1,327 g (46.8 oz) |
| Country of Origin | United States / United States Public Records |
