Description

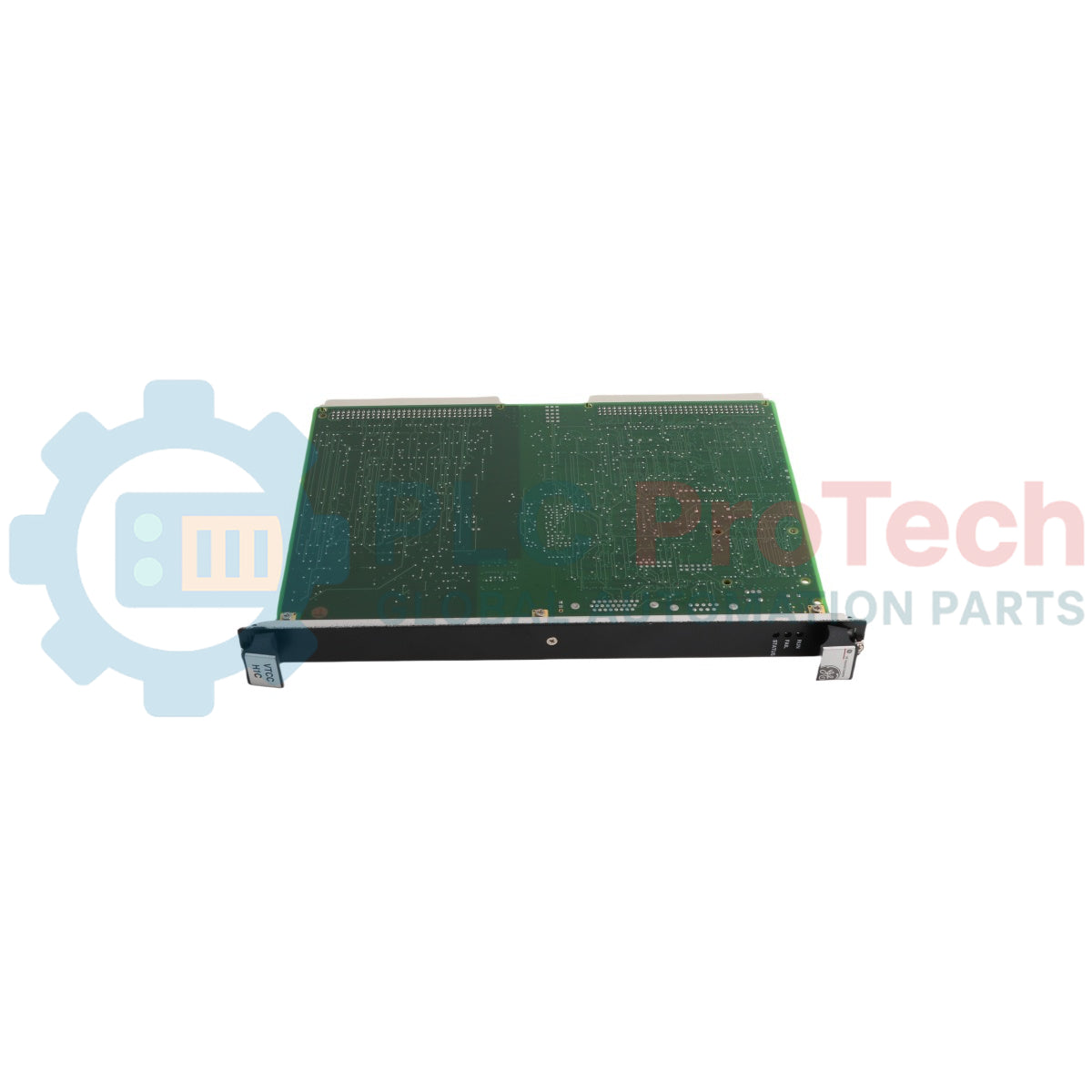

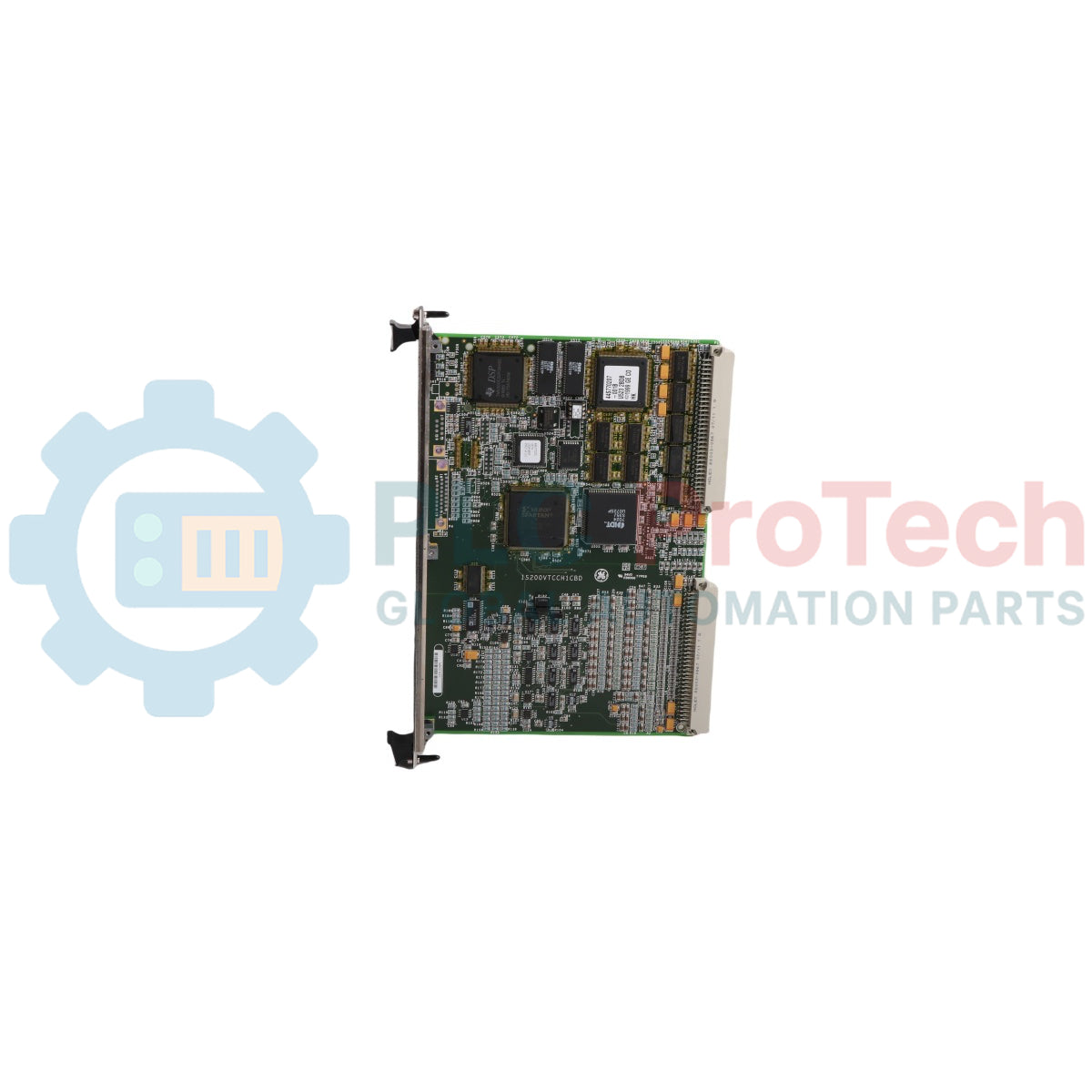

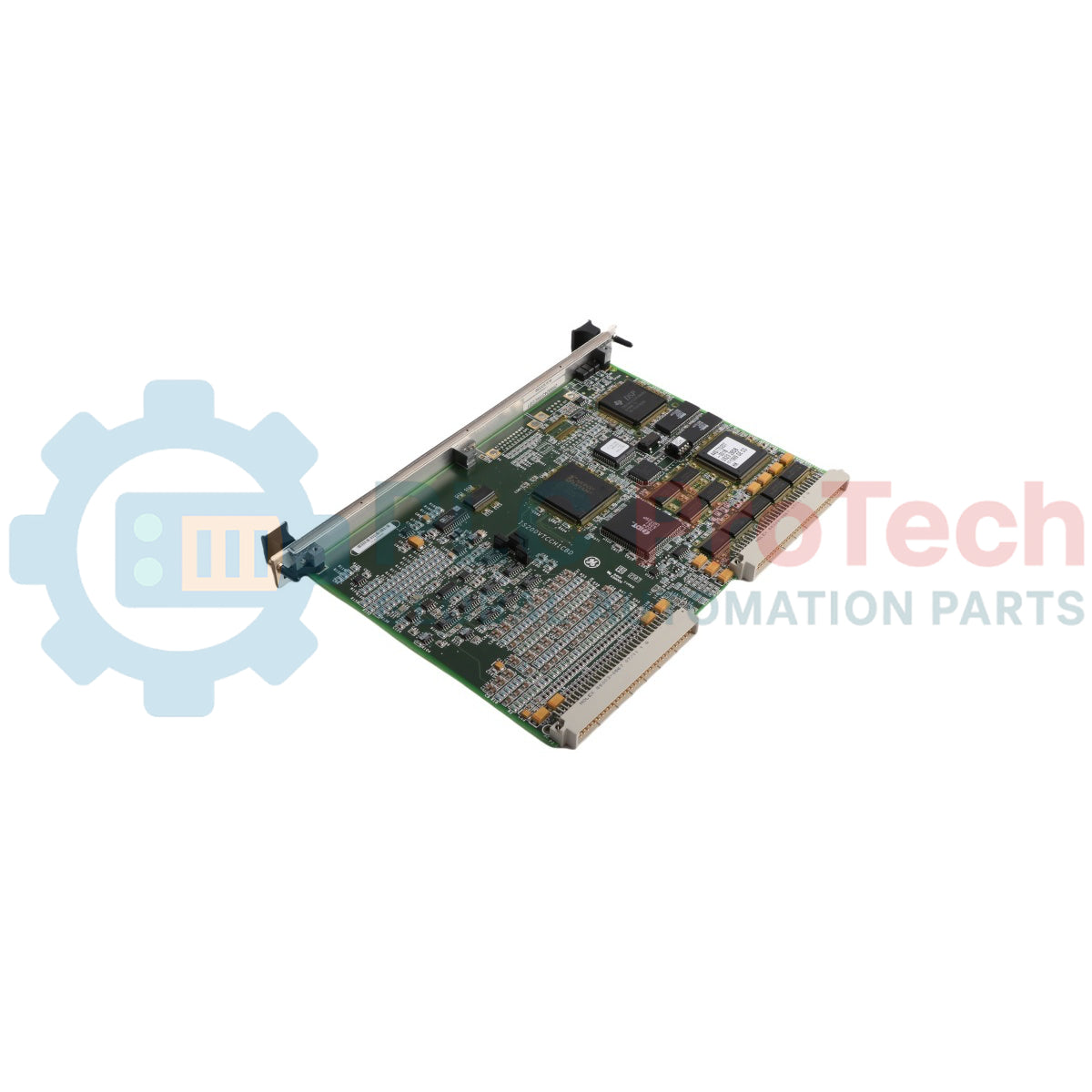

The IS200VTCCH1CBD functions as a high-density thermocouple input card manufactured by General Electric as part of the Mark VI Speedtronic turbine control platform. This single-slot VME rack module acquires and conditions up to twenty-four independent thermocouple inputs when paired alongside external terminal boards, such as the TBTC or DTTC modules. Engineered to provide reliable thermal monitoring across power generation equipment, the IS200VTCCH1CBD natively processes E, J, K, S, and T type thermocouples, as well as low-voltage millivolt inputs spanning a precise operational range of -8 mV to +45 mV.

Designed to fulfill strict industrial processing parameters, the board architecture handles heavy computation local to the card through a high-performance components array, including Xilinx Spartan XCS30 field-programmable gate arrays (FPGAs), Dual-port SRAM, CMOS Static RAM, and dedicated digital signal processors (DSPs). The IS200VTCCH1CBD interfaces with the central control module backplane to stream digitized thermal parameters into the system's voting layers, ensuring fault-tolerant tracking within simplex or high-availability Triple Modular Redundant (TMR) gas and steam turbine configurations.

Features

• Expanded Thermocouple Interfacing: Connects up to twenty-four multi-type thermocouple sensors using external TBTC or DTTC termination assemblies.
• Broad Sensor Curve Compatibility: Supports comprehensive calibration matrices for standard industrial E, J, K, S, and T type sensors alongside raw millivolt signal tracking.
• Advanced Processing Architecture: Configured with specialized onboard processing hardware, including a Xilinx Spartan XCS30 FPGA, high-speed DSPs, Dual-port SRAM, and CMOS Static RAM.
• Comprehensive Array Layout: Populated with an intensive layout consisting of hundreds of resistors and capacitors, integrated circuit chips, diodes, test points, and nineteen inductor coils/beads (L1-L19).
• Front Panel Visual Diagnostics: Outfitted with a screw-secured metal faceplate that incorporates green (RUN), red (FAIL), and orange (STATUS) monitoring LEDs.
• Robust Card Edge Communication: Equipped with six connection interfaces (P1-P6), which include two physical VME backplane pins (P1/P2) and four trace-etched board surface connectors.

Applications

• Mark VI Speedtronic steam and gas turbine exhaust gas temperature (EGT) monitoring
• Multi-channel thermal profiling for bearing, stator, and auxiliary turbine compartments
• High-density millivolt sensor signal routing and isolation within power plant systems

Technical Specifications

Installation Guidelines

• VME Backplane Insertion: Align the card edge carefully with the designated rack guide rails. Press firmly to engage the rear P1 and P2 connectors into the VME backplane framework, then hand-tighten the upper and lower faceplate screws.
• External Interface Cabling: Terminate field thermocouple wires to the corresponding TBTC or DTTC terminal blocks before linking the blocks to the IS200VTCCH1CBD using the trace-etched P3-P6 connector slots.
• Static Discharge Precautions: Always handle the board by its metal faceplate or outer plastic edge within a designated ESD safe zone to avoid static discharge damage to the high-density RAM and DSP microchips.
