General Electric

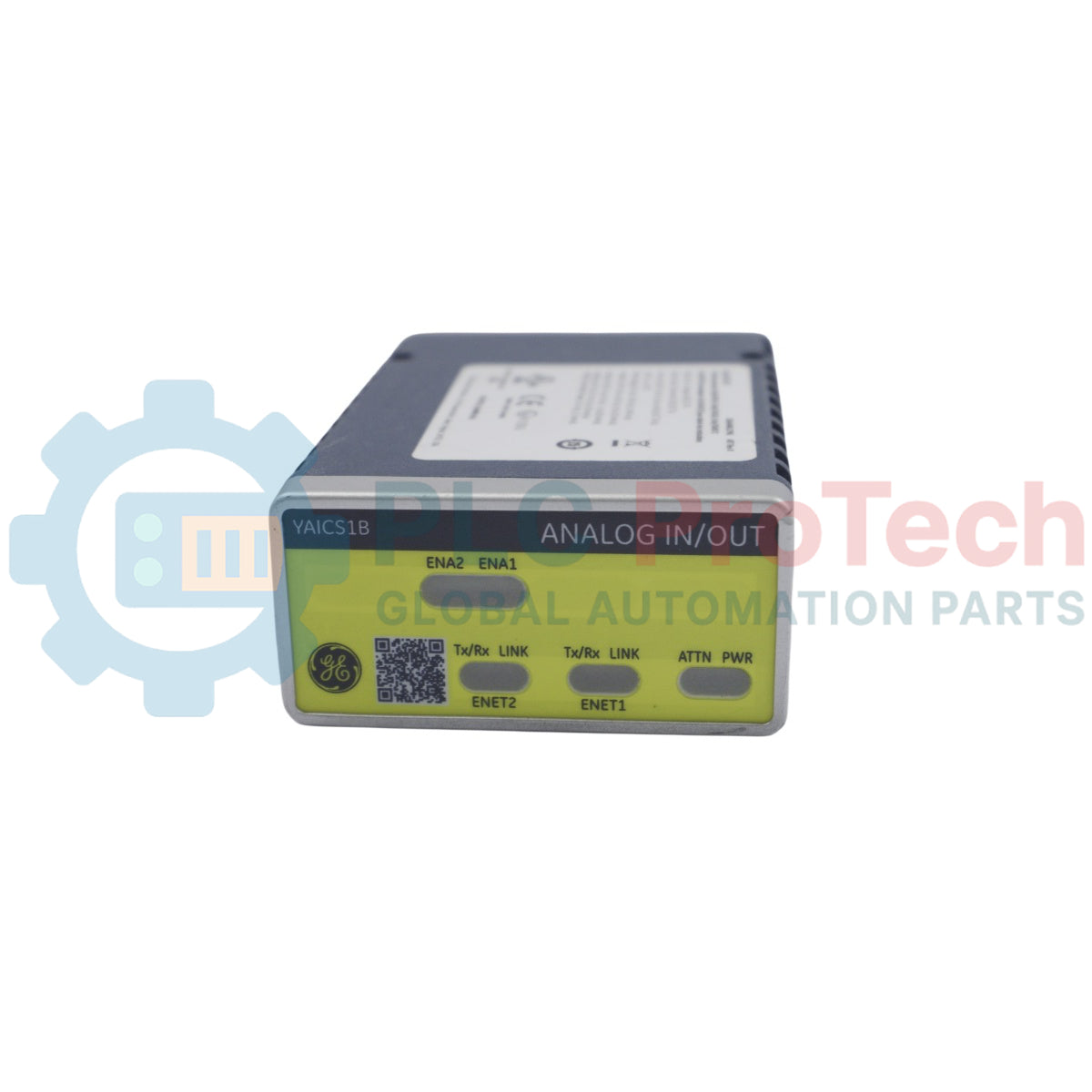

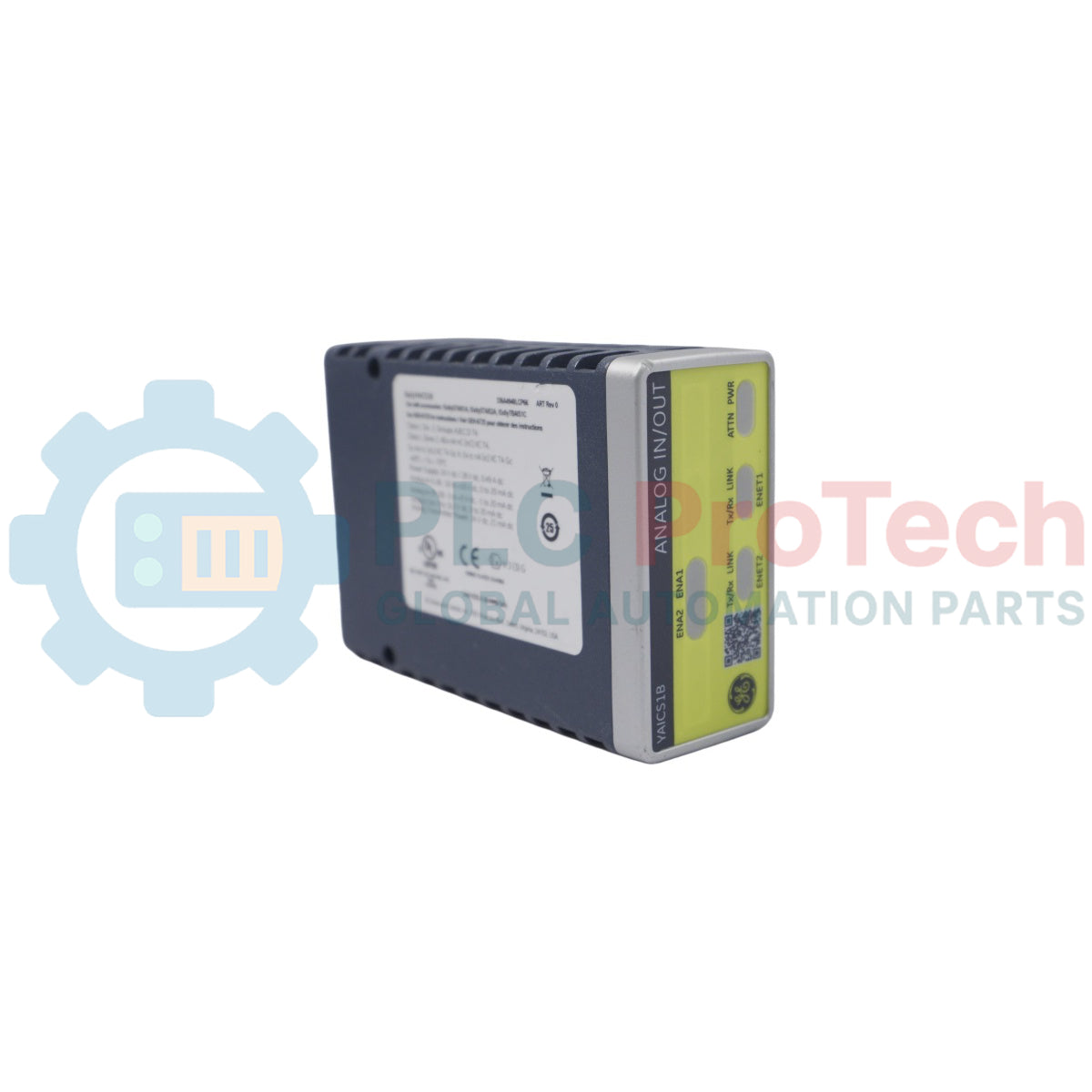

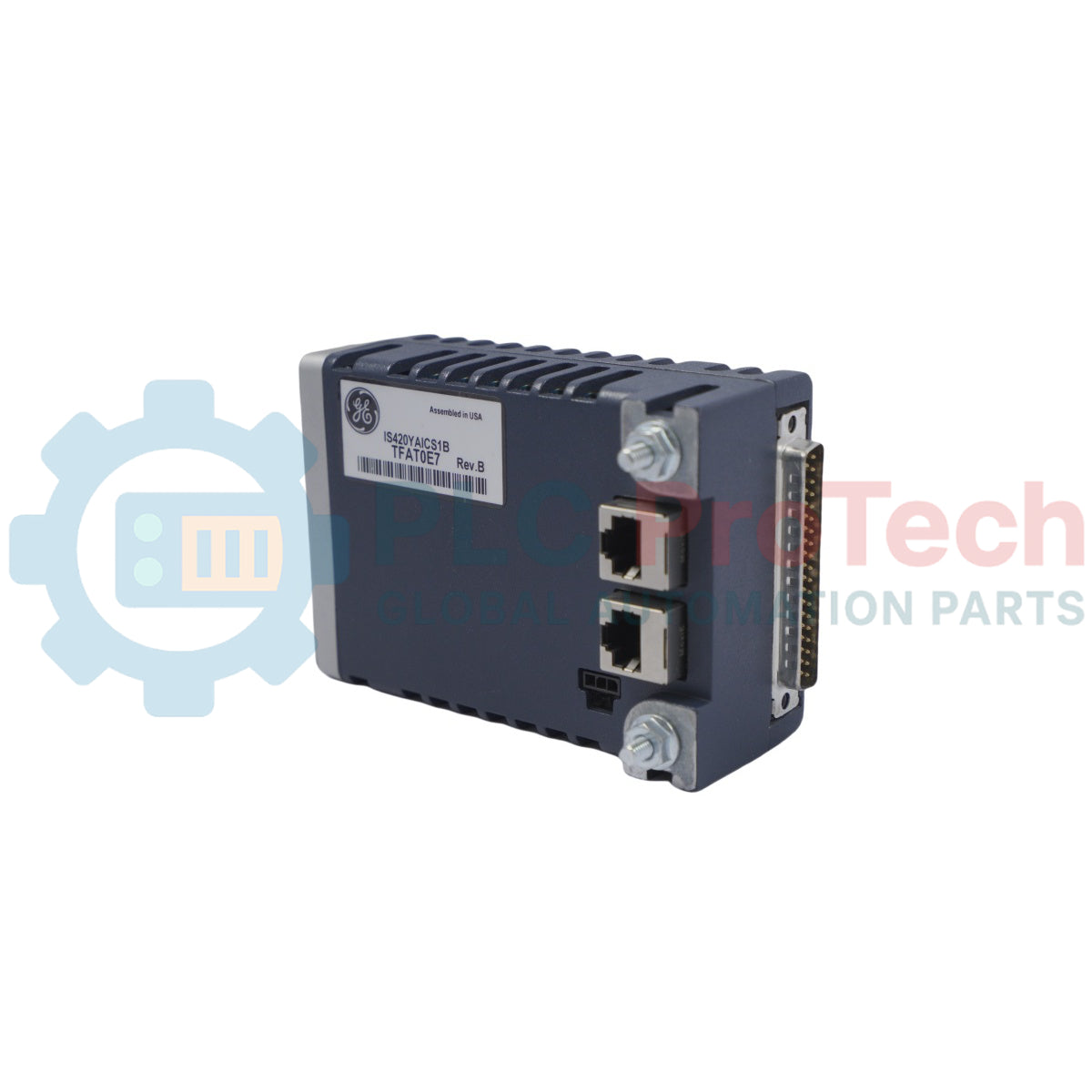

General Electric IS420YAICS1B Mark VIe Analog I/O Pack

SKU IS420YAICS1B

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: General Electric
  • Product No.: IS420YAICS1B
  • Origin United States
  • Product Type: Analog I/O Pack
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.68 kg
  • Dimensions: H 3.25 in x W 1.65 in x D 4.78 in
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Input Output Packs Mark VIe
Quantità
Call sales Contact

Product Description

GE IS420YAICS1B is an Analog I/O Pack designed for integration with Mark VIe and Mark VIeS control systems. The pack interfaces between a terminal analog I/O board and up to two Ethernet networks while supporting ten analog input channels. It incorporates a common processor board and a dedicated data acquisition board, with diagnostic fault detection executed through the acquisition circuitry. The unit supports simplex and TMR architectures and is compatible with TBAIS1C and STAIS2A terminal boards for turbine control applications in gas, steam, and wind power installations.

Features

  • Analog I/O Pack for Mark VIe and Mark VIeS control platforms
  • Interfaces between terminal analog I/O boards and Ethernet networks
  • Supports up to ten analog input channels
  • Two channels configurable as plus or minus 1 mA or 4-20 mA current inputs
  • Eight channels configurable as plus or minus 5 V, plus or minus 10 V, or 4-20 mA current loop inputs
  • Dual RJ45 Ethernet communication ports
  • Dedicated processor board and data acquisition board architecture
  • 16-bit ADC input conversion resolution
  • Power-up self-diagnostics for flash memory, RAM, processor hardware, and Ethernet ports
  • Continuous monitoring of internal power supplies
  • Compatible with simplex and TMR redundancy architectures

Applications

  • Gas turbine control systems
  • Steam turbine control systems
  • Wind turbine automation systems
  • Power generation facilities
  • Analog process signal acquisition
  • Plant instrumentation monitoring
  • Turbine protection and control architectures
  • Redundant control system deployments requiring TMR architecture

Technical Specifications

Manufacturer General Electric
Product Series Mark VIe / Mark VIeS
Part Number IS420YAICS1B
Functional Abbreviation YAIC
Processor Board BPPC
Power Consumption 5.3 Watts Typical
Input Converter Resolution 16-bit ADC
Supported Analog Inputs 10 Channels Maximum
Ethernet Ports Dual RJ45
Compatible Terminal Boards TBAIS1C, STAIS2A
Redundancy Configuration Simplex or TMR
ControlST Version V06.01 and Later
Compatible Firmware V05.01 or Later
Ambient Temperature Range -40 to 158 degF
Dimensions H 3.25 in x W 1.65 in x D 4.78 in
Technical Manual GEH-6855 Volume I and II
Country of Origin United States
Shipping Weight (Calculated) 1.5 lb
Package Dimensions (Calculated) 8 x 6 x 4 in

Installation Guidelines

CRITICAL WARNING
De-energize the Mark VIe rack, associated terminal board circuits, and all connected field instrumentation before installation or replacement. Verify lockout and tagout procedures are complete. Never insert or remove the I/O pack while system power is present. Confirm that all TMR packs installed on the same terminal board are identical hardware versions before commissioning.
1 Inspect the pack housing, RJ45 ports, and backplane connector for mechanical damage before installation.
2 Verify compatibility with the installed TBAIS1C or STAIS2A terminal board and confirm firmware requirements.
3 Seat the pack fully into the terminal board assembly and verify positive connector engagement without side loading.
4 Connect both Ethernet ports according to the control network architecture and verify network integrity.
5 Apply power and review diagnostic indicators, self-test results, and ControlST status before returning the unit to service.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How many analog inputs are supported?
The pack supports up to ten analog input channels.
Which terminal boards are compatible?
The supported terminal boards are TBAIS1C and STAIS2A.
Does the pack support TMR architectures?
Yes. The unit supports both simplex and TMR configurations.
What diagnostic functions are included?
The pack performs startup self-tests and continuously monitors internal power supplies.
Which software versions are supported?
ControlST V06.01 and later with firmware V05.01 or later.
