HIMA HIMatrix F2 DO 8 01 Safety-Related Remote I/O Module

SKU F2DO801

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: HIMA
Product No.: F2DO801
Origin Germany
Product Type: Safety-Related Remote I/O Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1.3 kg
Dimensions: 114 mm x 207 mm x 86 mm (H x W x D without plug)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The HIMA F2 DO 8 01 (also designated as F2DO801) is a compact, safety-related remote I/O unit housed in a metal enclosure and featuring 8 safety-related relay outputs. Designed for safety shutdown applications up to SIL 3, the F2 DO 8 01 extends the I/O capacity of HIMax and HIMatrix controllers over safeethernet communication.

Each output channel on the F2 DO 8 01 (F2DO801) incorporates two safety relays with forcibly guided contacts and one standard relay, providing potential-free normally open contact operation. The module operates on 24 VDC power and features an integrated 2-port Ethernet switch for network integration.

Features

HIMA F2 DO 8 01 (F2DO801) contains 8 safety-related relay outputs with potential-free normally open contacts.
Integrated Ethernet switch with two RJ-45 ports supporting safeethernet communication at 10/100 Mbit/s.
Relay outputs feature forcibly guided safety contacts and individual internal 3.15 A fuses.
Compatible with SILworX (OS version 7 and beyond) and ELOP II Factory (OS versions prior to 7).

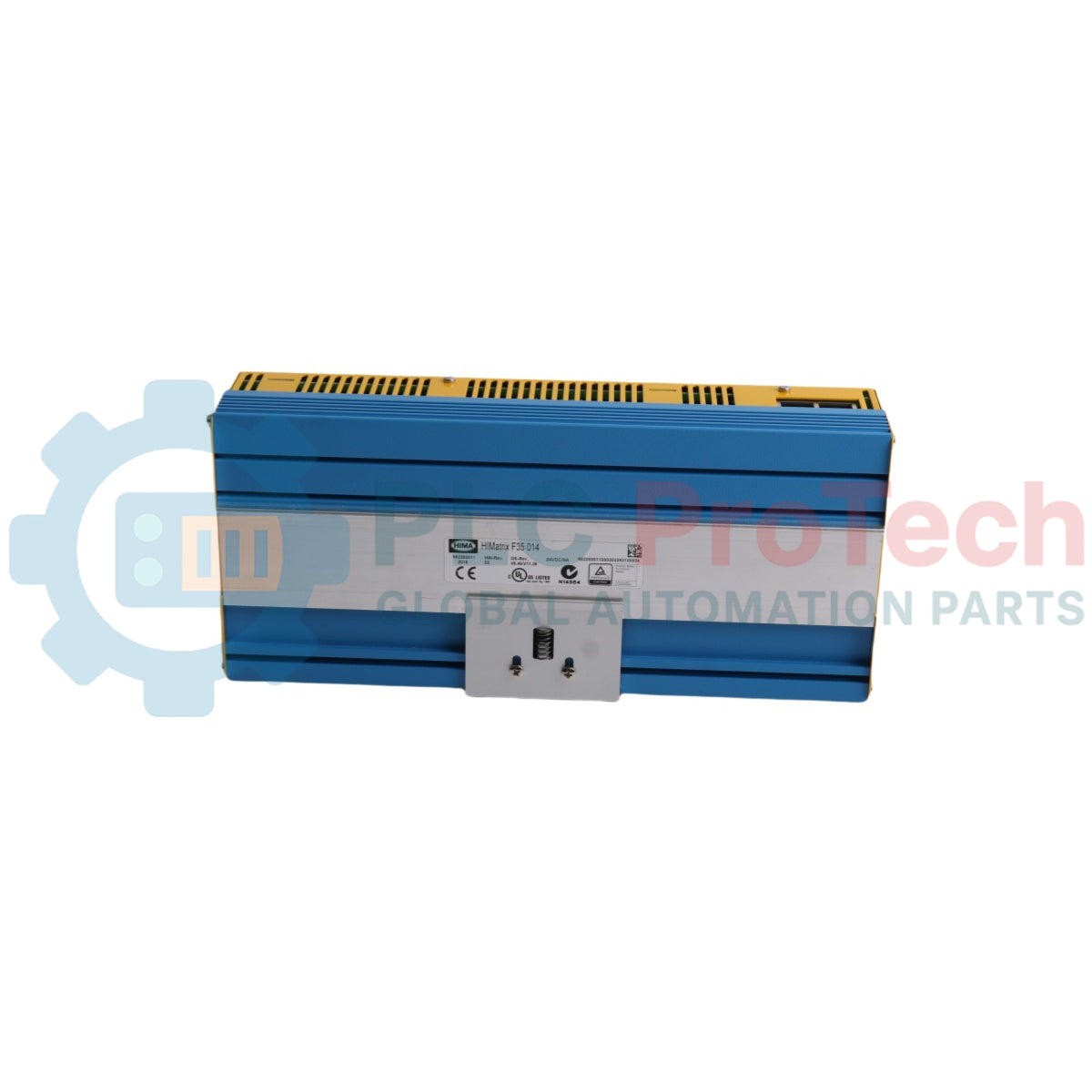

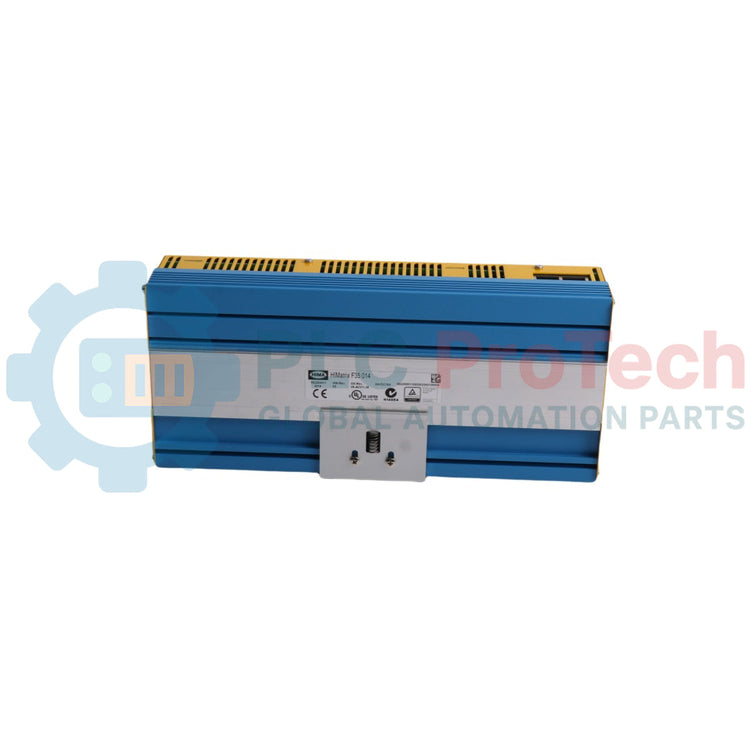

Compact metal enclosure designed for 35 mm DIN rail mounting with IP20 protection class.
Certified for installation in Ex-Zone 2 hazardous locations.
Onboard diagnostic LED indicators for power supply, processor status, communication, and individual output channels.

Applications

Safety shutdown systems in process automation
Remote I/O expansion for HIMax and HIMatrix safety controllers
Hazardous area control applications requiring Ex-Zone 2 compliance

Ordering Information

Designation	Description	Part No.
F2 DO 8 01	Remote I/O with 8 relay outputs up to 250 VAC / 250 VDC, operating temperature 0...+60 degC, for ELOP II Factory programming tool	98 2200407
F2 DO 8 01 SILworX	Remote I/O with 8 relay outputs up to 250 VAC / 250 VDC, operating temperature 0...+60 degC, for SILworX programming tool	98 2200481

Technical Specifications

Parameter	Specification
Manufacturer	HIMA Paul Hildebrandt GmbH + Co KG
Response Time	>= 20 ms
Ethernet Interfaces	2 x RJ-45, 10/100BaseT (100 Mbit/s) with integrated switch
Operating Voltage	24 VDC (-15%...+20%, w_ss <= 15%) from SELV/PELV power supply
Current Input	max. 0.6 A
External Fuse	10 A time-lag
Back-up Battery	None
Operating Temperature	0 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Type of Protection	IP20
Dimensions (without plug)	Width: 207 mm, Height: 114 mm, Depth: 86 mm
Weight	1.3 kg
Relay Types per Channel	2 safety relays with forcibly guided contacts, 1 standard relay
Number of Relay Outputs	8 potential-free normally open contacts
Switching Voltage	>= 5 V, <= 250 VAC / 250 VDC
Switching Current	>= 10 mA, <= 3 A (internally fused with 3.15 A, breaking capacity 100 A)
AC Switching Capacity (UL)	250 VAC at 6 A
AC Switching Capacity (TUV)	max. 250 VA (cos phi >= 0.5) / max. 625 VA (cos phi = 1) at max. 250 VAC
DC Switching Capacity (UL)	24 VDC at 1 A with ohmic load
DC Switching Capacity (TUV)	up to 30 VDC: max. 90 W (3.5 A); up to 70 VDC: max. 22 W (0.315 A); up to 127 VDC: max. 25 W (0.25 A); up to 250 VDC: max. 40 W (0.16 A)
Contact Material	Silver alloy
Switching Time	approx. 30 ms
Reset Time	approx. 10 ms
Bounce Time	approx. 15 ms
Mechanical Life	>= 3 x 10^6 switching operations
Electrical Life	>= 2.5 x 10^5 switching operations at ohmic full load (<= 0.1 ops/sec)

Connections/Interfaces

Connector Pin	Function
Terminal 1	DO1 Contact 1, terminal A
Terminal 2	DO1 Contact 1, terminal B
Terminal 3	DO2 Contact 2, terminal A
Terminal 4	DO2 Contact 2, terminal B
Terminal 5	DO3 Contact 3, terminal A
Terminal 6	DO3 Contact 3, terminal B
Terminal 7	DO4 Contact 4, terminal A
Terminal 8	DO4 Contact 4, terminal B
Terminal 9	DO5 Contact 5, terminal A
Terminal 10	DO5 Contact 5, terminal B
Terminal 11	DO6 Contact 6, terminal A
Terminal 12	DO6 Contact 6, terminal B
Terminal 13	DO7 Contact 7, terminal A
Terminal 14	DO7 Contact 7, terminal B
Terminal 15	DO8 Contact 8, terminal A
Terminal 16	DO8 Contact 8, terminal B

Installation Guidelines

Mount the module on a standard 35 mm DIN rail within a protective enclosure.
Provide 24 VDC power from a SELV or PELV power supply unit with safe isolation according to IEC 61131-2, protected by an external 10 A time-lag fuse.
For Ex-Zone 2 installations, mount inside an enclosure achieving at least IP54 protection according to EN 60529 and capable of dissipating heat (power dissipation 18 W to 46 W).
When connecting DC switching voltages, fit an external fuse rated for the maximum permissible current in the contact circuit.
Use double or reinforced insulated cabling when switching voltages higher than SELV or PELV.
Ensure electrostatic discharge protective measures are observed, including using an ESD wrist strap during installation or replacement.

Compliance and Certifications

CE: EMC, ATEX Zone 2 (Directive 94/9/EC)
TUV: IEC 61508 Parts 1-7:2000 up to SIL 3, IEC 61511:2004, EN 954-1:1996 up to Cat. 4
TUV ATEX: 94/9/EG, EN 1127-1, EN 61508
UL: ANSI/UL 508, NFPA 70 - Industrial Control Equipment, CSA C22.2 No.142, UL 1998, NFPA 79, IEC 61508
FM Approvals: Class I, DIV 2, Groups A, B, C and D; Class 3600; Class 3611; Class 3810; CSA C22.2 No 142; CSA C22.2 No 213

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the module?

The module operates as a safety-related remote I/O unit that expands the output capabilities of HIMax and HIMatrix controllers over safeethernet using 8 digital relay channels.

What operating voltage is required to power the device?

The device requires a nominal operating voltage of 24 VDC (-15%...+20%) from a power supply unit with safe isolation meeting SELV or PELV standards.

What safety integrity levels is the communication module certified for?

The module is certified by TÜV for safety-related applications up to SIL 3 according to IEC 61508 and IEC 61511, Category 4 according to EN 954-1, and PL e according to EN ISO 13849-1.

What happens to the outputs if a fault is detected in the unit?

If a faulty signal or internal fault is detected, the affected channel or all digital output channels switch to the safe de-energized state, and the FAULT LED is activated.
