Description

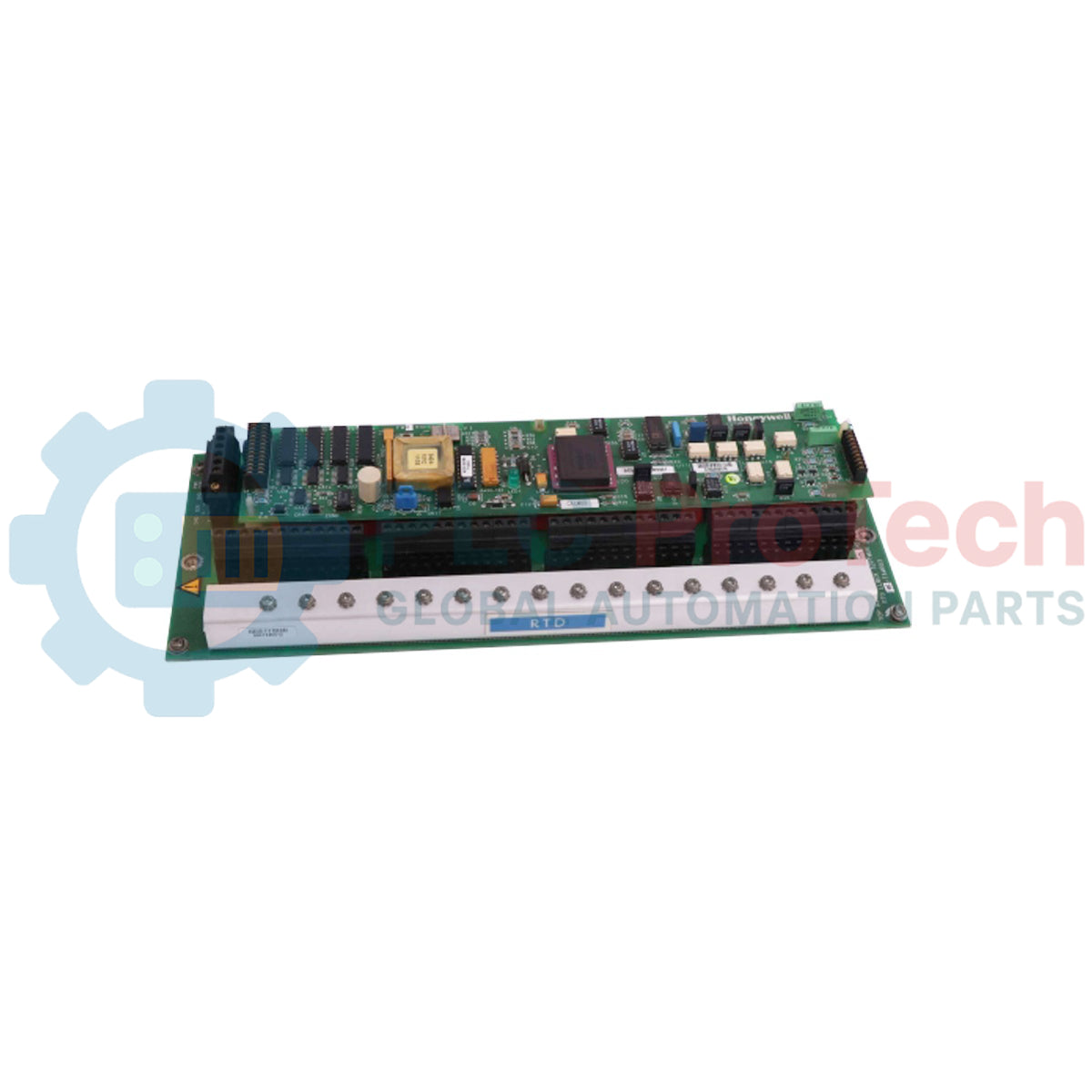

Designed for continuous monitoring of combustible gases, the 05704-A-0144 functions as a high-density, four-channel catalytic input control card within the Honeywell System 57 rack enclosure. This module interfaces directly with up to four catalytic gas detection sensors, processing analog bridge signals to provide precise gas concentration readings, configurable alarm thresholds, and system fault alerts.

Operating on a constant current sensor drive, this control card ensures stable sensor performance over varying cable lengths. It features comprehensive electronic adjustments for bridge balancing and signal gain, eliminating the need for manual potentiometer adjustments. The module integrates seamlessly with industrial safety systems, programmable logic controllers (PLCs), and distributed control systems (DCS) to provide reliable hazard monitoring in demanding industrial environments.

Features

• Four independent catalytic sensor channels in a single card width, maximizing rack space efficiency.
• Constant current sensor drive with electronic adjustment capabilities.
• Built-in protection against field wiring short circuits and open circuits.
• Electronic bridge balance and signal gain adjustment via configuration interface.
• Dedicated diagnostics for prompt fault identification, including single-bead sensor failure.
• Clear front-panel LED status indication for active channel status, alarm conditions, and system faults.

Applications

• Oil and gas exploration, production, and refining facilities.
• Chemical and petrochemical processing plants.
• Wastewater treatment plants and sludge processing areas.
• Power generation facilities and combustion turbine enclosures.
• Industrial manufacturing and solvent storage areas.

Technical Specifications

Installation Guidelines

To ensure safe and reliable operation of the 05704-A-0144 control card, adhere to the following installation standards:

• Verify that the host System 57 rack is powered down before inserting or removing the card to prevent transient electrical damage.
• Verify the specific sensor drive current requirements prior to connecting field sensors. Applying incorrect current parameters may permanently damage catalytic sensor beads.
• Run field cabling in dedicated, grounded conduits separate from high-voltage AC power lines to minimize electromagnetic interference.
• Terminate shielding at the controller rack end to establish a single-point ground, preventing ground loop noise from degrading analog sensor signals.
