Description

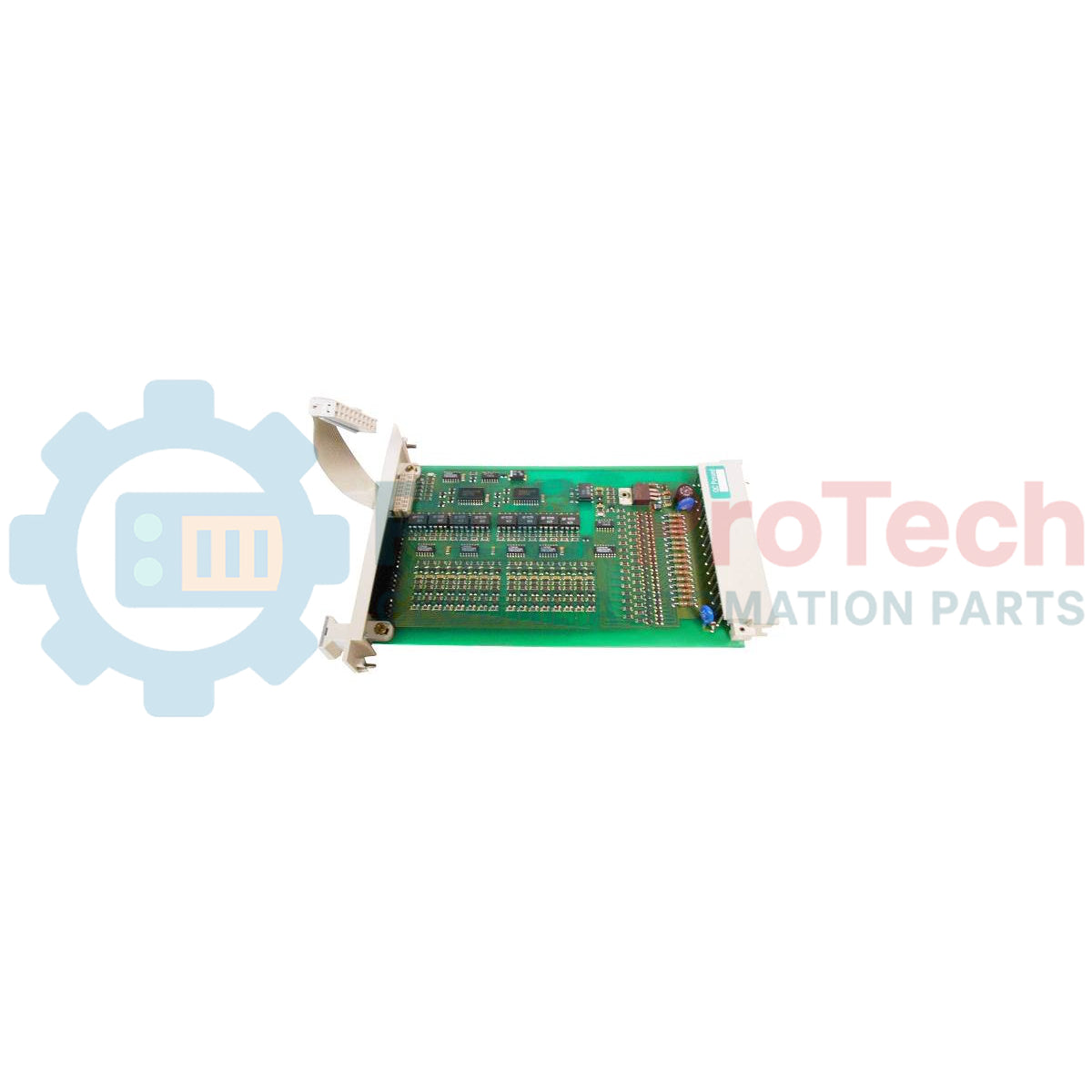

The Honeywell 10101/2/1 is a high-reliability FSC (Fail-Safe Controller) Digital Input Module designed for safety-critical industrial applications. This module features 16 input channels operating at 24 Vdc, specifically engineered to ensure functional safety by verifying both logic '0' and logic '1' signal states. Certified by CE, TUV, and UL, the 10101/2/1 is built for environments where system integrity and fail-safe operation are mandatory, such as emergency shutdown (ESD) systems.

Features

• High-Integrity Safety: Designed for fail-safe operation with thorough testing for logic-level signal accuracy and crosstalk prevention.
• 16-Channel Density: Provides efficient monitoring of multiple field devices in a compact 4 TE, 3 HE form factor.
• Regulatory Compliance: Fully approved for safety-critical deployment with TUV, UL, and CE certifications.
• Robust Signal Thresholds: Precise detection thresholds (HIGH > 15 Vdc, LOW < 9 Vdc) to ensure reliable state recognition and noise immunity.

Technical Specifications

Installation Guidelines

• Module Placement: The module requires a standard 4 HP, 3U slot. Ensure the rack backplane is powered down before insertion to prevent electrical transients.
• Environmental Considerations: Due to the module's safety-critical nature, ensure the cabinet environment meets industrial standards to prevent signal degradation.
• Wiring and Interference: Use shielded cabling to minimize noise. The module includes internal crosstalk protection, but best practices dictate separating input wiring from high-voltage AC paths.
• Configuration: Ensure the FSC software version is 3.00 or higher to maintain full compatibility and functionality with the module.
• Testing: Perform a loop check after installation to verify the module correctly receives and processes both logic '0' and logic '1' signals from field sensors.
