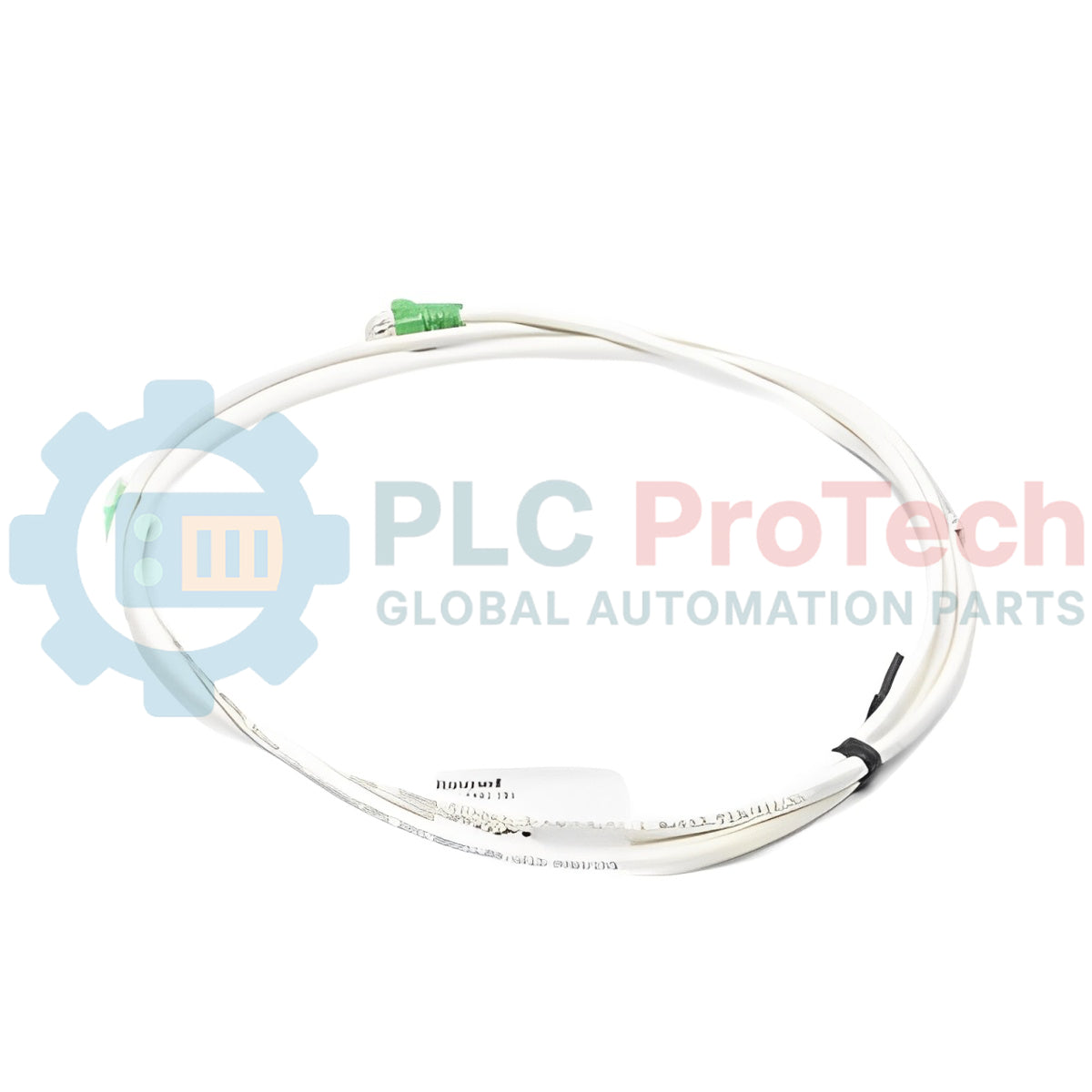

Honeywell 51305980-284 Experion PKS 100-Base-T Ethernet Cable

SKU 51305980-284

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Honeywell
Product No.: 51305980-284
Origin United States
Product Type: Industrial Network Cables
Payment: T/T, Western Union
Weight: 2.0 kg
Dimensions: 25.0 x 20.0 x 3.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Serving as a critical high-reliability link within industrial control topologies, the Honeywell 51305980-284 establishes dependable 100-Base-T Ethernet connectivity for Experion PKS and Fault Tolerant Ethernet (FTE) architectures. This premium industrial patch cable is specifically engineered to handle the continuous environmental demands of DCS and PLC control rooms, mitigating data loss from EMI or mechanical stress. With its 84-inch length and highly visible green boot design, it simplifies cabinet routing and aids field technicians in maintaining precise network channel division.

Features

FTE Compatibility: Specifically designed to meet the electrical and mechanical tolerances required by Honeywell Fault Tolerant Ethernet configurations.
Color-Coded Diagnostic Boots: High-visibility green boot connectors prevent cross-connection errors during live maintenance and commissioning.
Industrial Strain Relief: Heavy-duty molded boot protects termination points from tension, vibration, and bend radius violations.
Optimized Cabinet Length: 84-inch (2.13-meter) design minimizes cable slack, maintaining a neat layout inside tightly packed control enclosures.
Rugged Outer Jacket: Designed to withstand the thermal environments of closed control cabinets without degrading.

Applications

Fault Tolerant Ethernet (FTE): Establishing redundant network paths (Channel B) from FTE bridge modules to network switches.
Experion PKS Cabinet Bridging: Interconnecting controllers, regional control nodes, and switch infrastructure.
DCS Maintenance: Straightforward replacement of degraded communication links during hot-swap network procedures.

Technical Specifications

Manufacturer	Honeywell
Part Number	51305980-284
Network Standard	100-Base-T (Fast Ethernet)
Cable Length	84 inches (2.13 meters)
Connector Type	RJ45 Male-to-Male
Boot Identification	Green Boot (Molded Strain Relief)
Shielding	High-performance twisted pair (UTP/STP specifications optimized for FTE switches)
Country of Origin	United States
Shipping Weight (Calculated)	0.35 kg
Package Dimensions (Calculated)	25.0 x 20.0 x 3.0 cm

Empirical Engineering Insights

Alternative Models & Compatibility

Honeywell FTE network architectures strictly enforce color-coded paths to simplify troubleshooting. Standard networks pair yellow boot cables (typically for LAN A) with green boot cables (such as this 51305980-284 for LAN B). Substituting standard commercial patch cables of arbitrary colors voids standard tracing practices and can lead to cabling cross-overs during emergency outages.

Application Pitfalls & Engineering Notes

While 100-Base-T cabling is robust, running communication cables parallel to high-voltage, high-frequency AC drive lines inside the cabinet can induce packet jitter or FTE link drops. Always maintain standard physical separation barriers of at least 100 mm from power lines within cable trays.

Commissioning & Wiring Tips

When replacing an active FTE link, first verify the status of the redundant channel on the Experion System Status Display (SSD). Ensure that the counterpart channel is fully green (healthy) before disconnecting the degraded green-booted 51305980-284 cable to prevent triggering a dual-link communication loss.

Installation Guidelines

CRITICAL WARNING

Never force RJ45 connectors into ports with excessive pressure, which indicates misaligned pins or dirt within the port. Ensure the clip clicks firmly into place to guarantee continuous connectivity under vibrational load.

1 Inspect both RJ45 connector ends for shipping damage, ensuring the latch mechanism and copper contacts are clear of debris.

2 Route the cable along communication wireways, strictly avoiding sharp bends that violate the cable's minimum static bend radius.

3 Insert the connector into the designated Connection B Ethernet port on the node until an audible click confirms positive locking.

4 Verify immediate Link/Activity LED indication at the device interface and monitor the Experion diagnostics tool for a healthy status.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What does the green boot signify on the Honeywell 51305980-284?

In Fault Tolerant Ethernet (FTE) architectures, the green boot is used to designate the secondary (Channel B) connection path, helping to visually isolate redundant lines from primary (Channel A) yellow-boot lines.

What is the physical length of the 51305980-284 ethernet cable?

The cable measures exactly 84 inches (approximately 2.13 meters), which is engineered for neat intra-cabinet and panel patching.

Can I use this cable in high-vibration control environments?

Yes. This cable is equipped with industrial-grade molded strain relief boots to prevent internal conductor breakage and contact wear under physical vibration.
