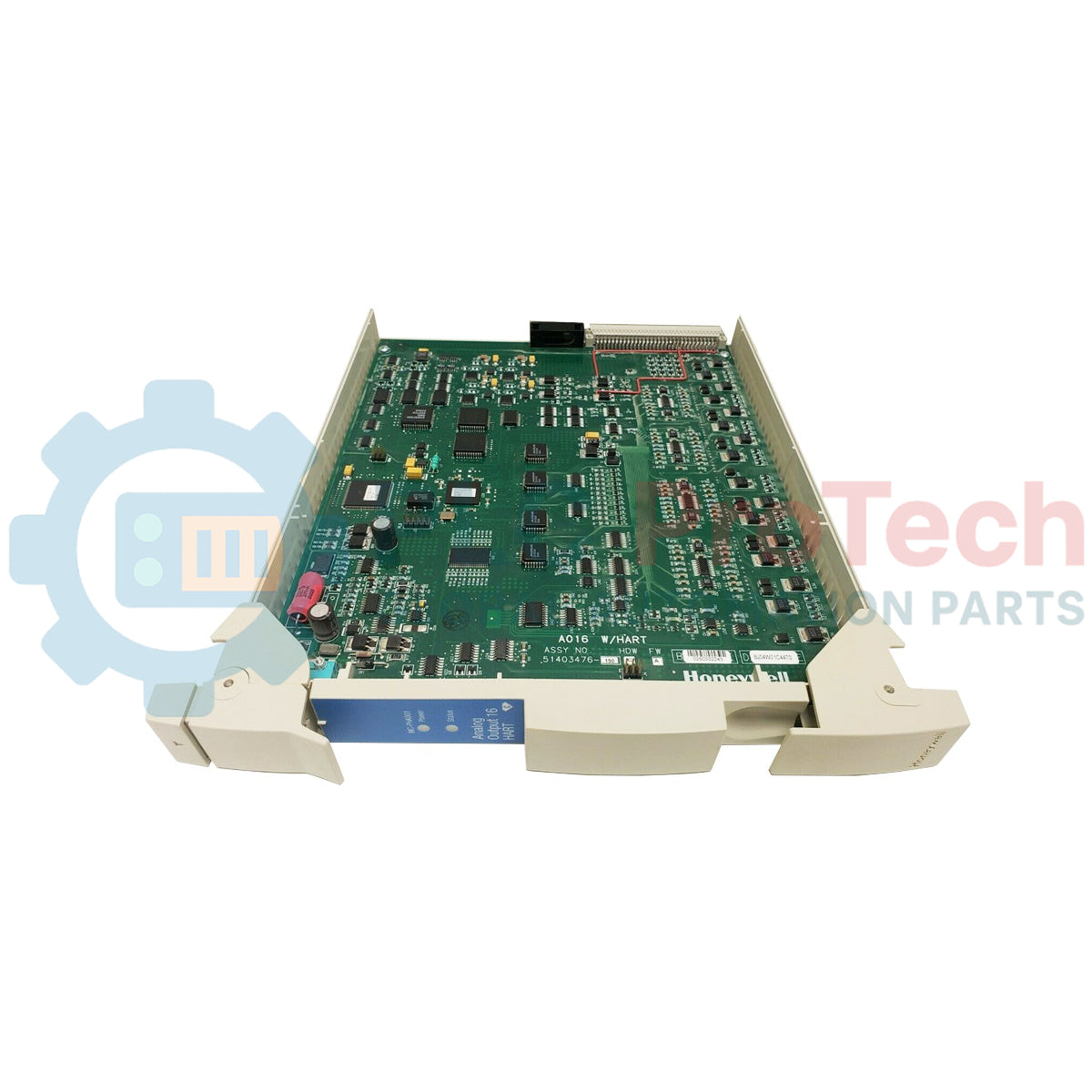

Designed to process high-density field loops within Honeywell Experion PKS and TDC 3000 process environments, the Honeywell 51403476-150 MC-PHA001 manages up to 16 channels of analog outputs with embedded HART digital communication. This module links field control elements such as valve positioners and actuator drives to the Process Manager (PMIO) card file, allowing both standard 4-to-20 mA current regulation and full pass-through of instrument diagnostic variables over the modulation loop.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Part Number | 51403476-150 |
| Model Reference | MC-PHA001 |
| Number of Channels | 16 Analog Outputs |
| Signal Range | 4 to 20 mA (current loop) |
| Protocol Compatibility | HART (FSK modulation) |
| System Integration | Experion PKS / TDC 3000 Process Manager I/O (PMIO) |
| Coating Specification | Conformal coating (Class G3 compliance) |
| Shipping Weight (Calculated) | 2.0 kg |
| Package Dimensions (Calculated) | 310 mm x 180 mm x 60 mm |
| Interface Element | Functional Assignment |
|---|---|
| Primary Connector | 50-pin dual-row male pin connector for Field Termination Assembly (FTA) cable |
| Chassis Grounding | Backplane grounding bracket alignment screws |
The MC-PHA001 (51403476-150) is the conformally coated successor to non-coated analog output modules. It is physically compatible with standard 16-channel PMIO card slots but requires a HART-compatible Field Termination Assembly (such as MU-THA011 or MC-THA111) to maintain path integrity for high-frequency HART signals. If you are replacing a standard non-HART output card, verify that your field wiring does not include inline capacitive filters, which degrade FSK communications.
Ensure the total loop resistance (including line resistance and the field device impedance) is within the module's driving capability, typically 250 to 750 Ohms when HART communication is active. Lower load impedances can weaken the HART carrier signal, while excessive resistance will prevent the loop from achieving full 20 mA saturation.
Use only original Honeywell 50-pin shielded control cables to connect the module to the FTA. Terminate the cable shields strictly at the FTA ground bar, avoiding ground loops. When assigning channels, distribute inductive loads (like heavy-duty solenoid positioners) away from sensitive analog measurement loops to isolate transient electrical noise.
CRITICAL WARNING:
Disconnect all hazardous external loop power sources before engaging with field wiring terminals. Observe rigorous ESD safety practices and wear a grounded wrist strap when handling internal PMIO cards to avoid irreversible electrostatic discharge damage to components.
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: 51403476-150
Country of origin:United States
Product Type: Analog Output Modules
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 310 mm x 180 mm x 60 mm
Shipping port: Xiamen
Warranty: 12 months
