Description

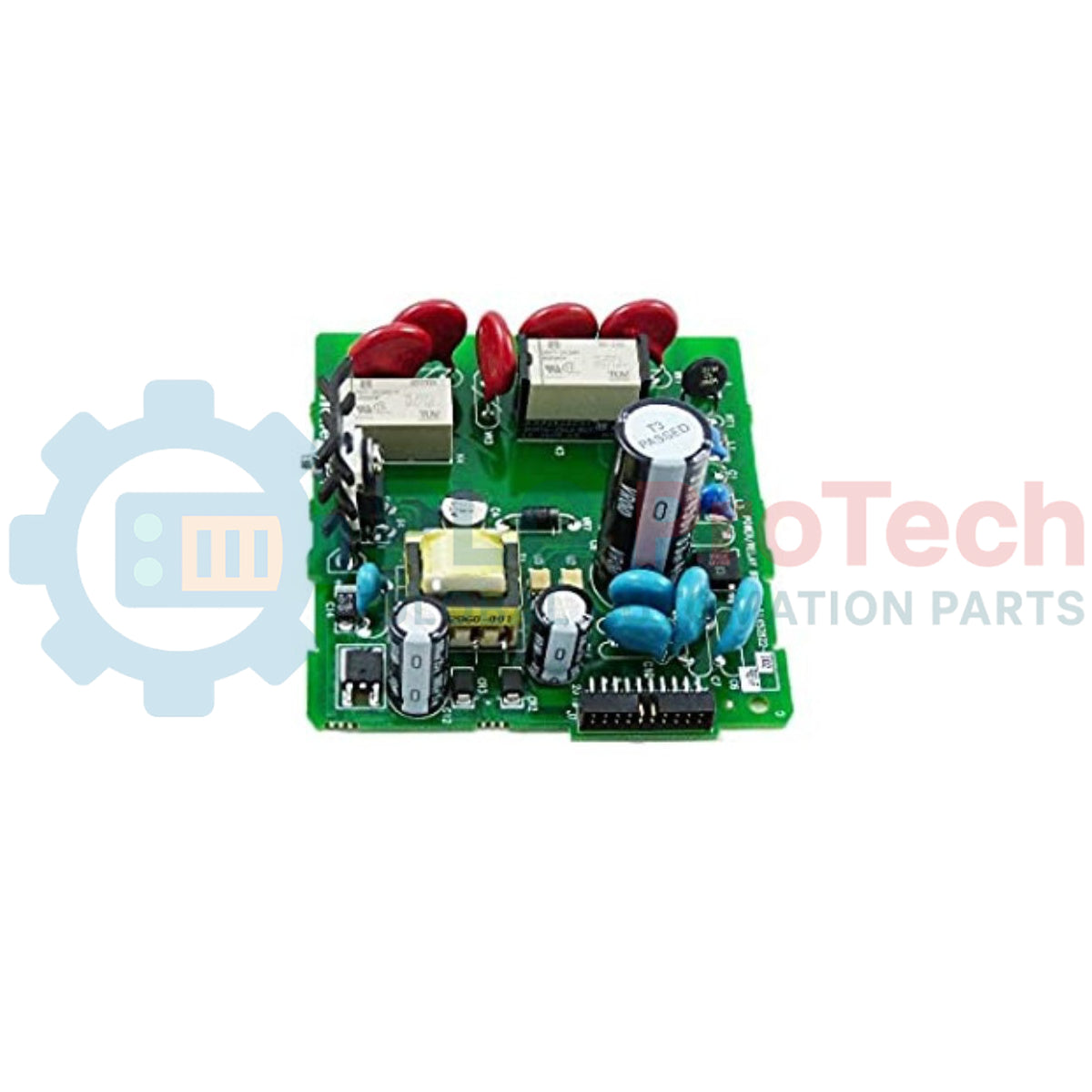

Designed for integration into compatible industrial process controllers, the Honeywell 51452822-502 serves as a robust Power/Output Printed Wiring Assembly (PWA). This hardware component incorporates power regulation circuitry alongside two electromechanical (E-M) relays, enabling reliable load switching and power management within demanding process control environments.

Operating over a wide input voltage range of 90 to 264 Vac, this assembly ensures consistent power distribution and discrete output control. The onboard electromechanical relays allow for a direct interface with external process equipment, indicating lamps, alarms, or low-power actuators without requiring external isolation barriers in standard configurations.

Features

• Dual integrated electromechanical relay outputs for reliable physical switching operations.
• Wide universal AC input voltage range supporting global utility standards (90 to 264 Vac).
• Robust Printed Wiring Assembly (PWA) design engineered for long-term industrial duty cycles.
• Direct replacement board architecture for compatible Honeywell industrial instrumentation.

Applications

• Industrial process control systems and loop controllers.
• Direct control of low-power solenoids, contactors, and actuators.
• Alarm and status indication systems in control panels.
• Power distribution and interface management inside instrumentation enclosures.

Technical Specifications

Installation Guidelines

To ensure safe and reliable operation of the Honeywell 51452822-502, observe the following engineering instructions:

• Electrostatic Discharge (ESD) Protection: This module contains sensitive electronic components. Always wear an approved ESD wrist strap grounded to the chassis when handling or installing the card.
• Power Isolation: Ensure all incoming AC power lines (90-264 Vac) are completely de-energized and locked out before attempting to install or remove the assembly.
• Mounting: Secure the printed wiring assembly firmly into its designated slots within the controller housing to maintain proper mechanical alignment and electrical contact.
• Conductor Routing: Route high-voltage AC input lines and relay load wiring away from low-voltage signal lines to minimize electromagnetic interference.
