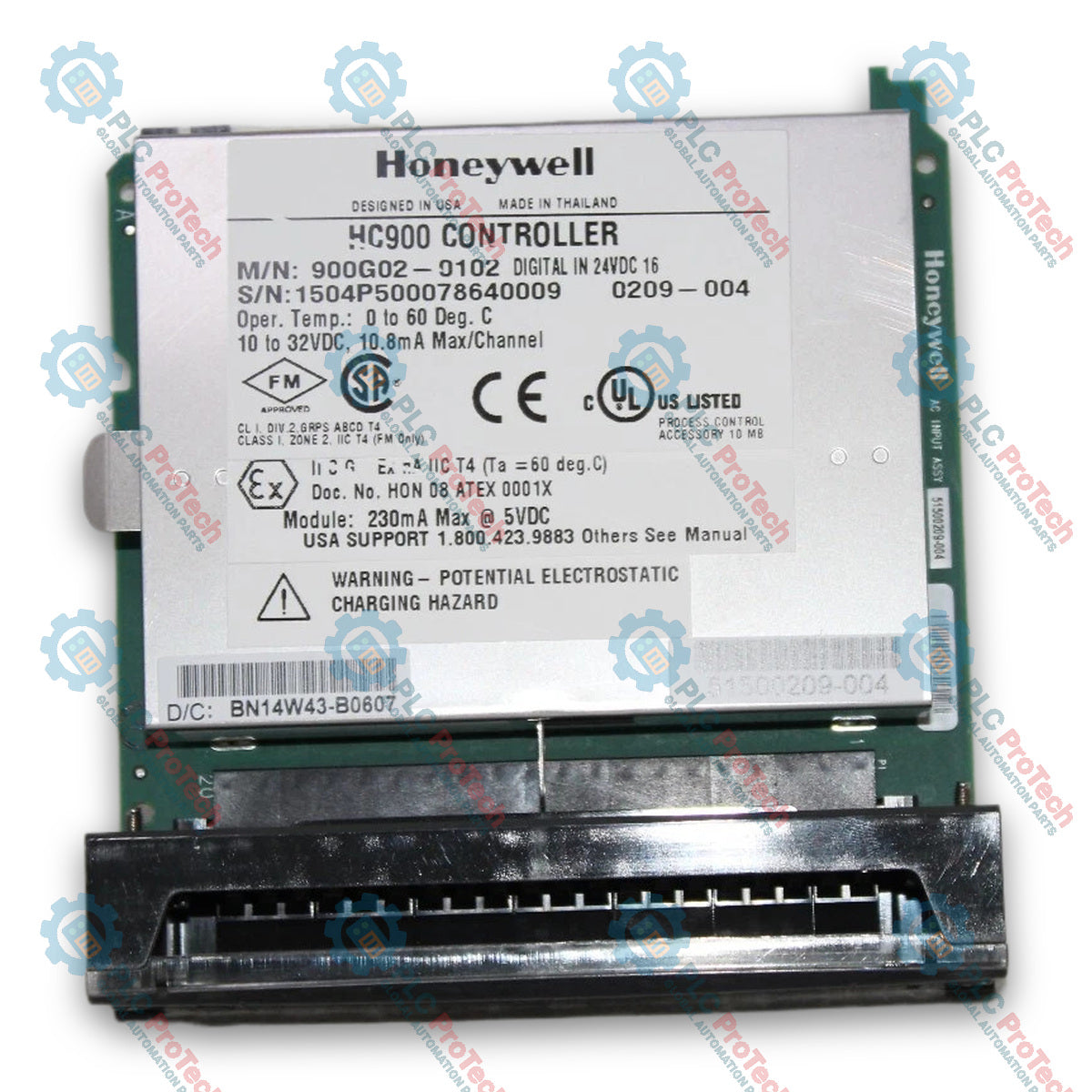

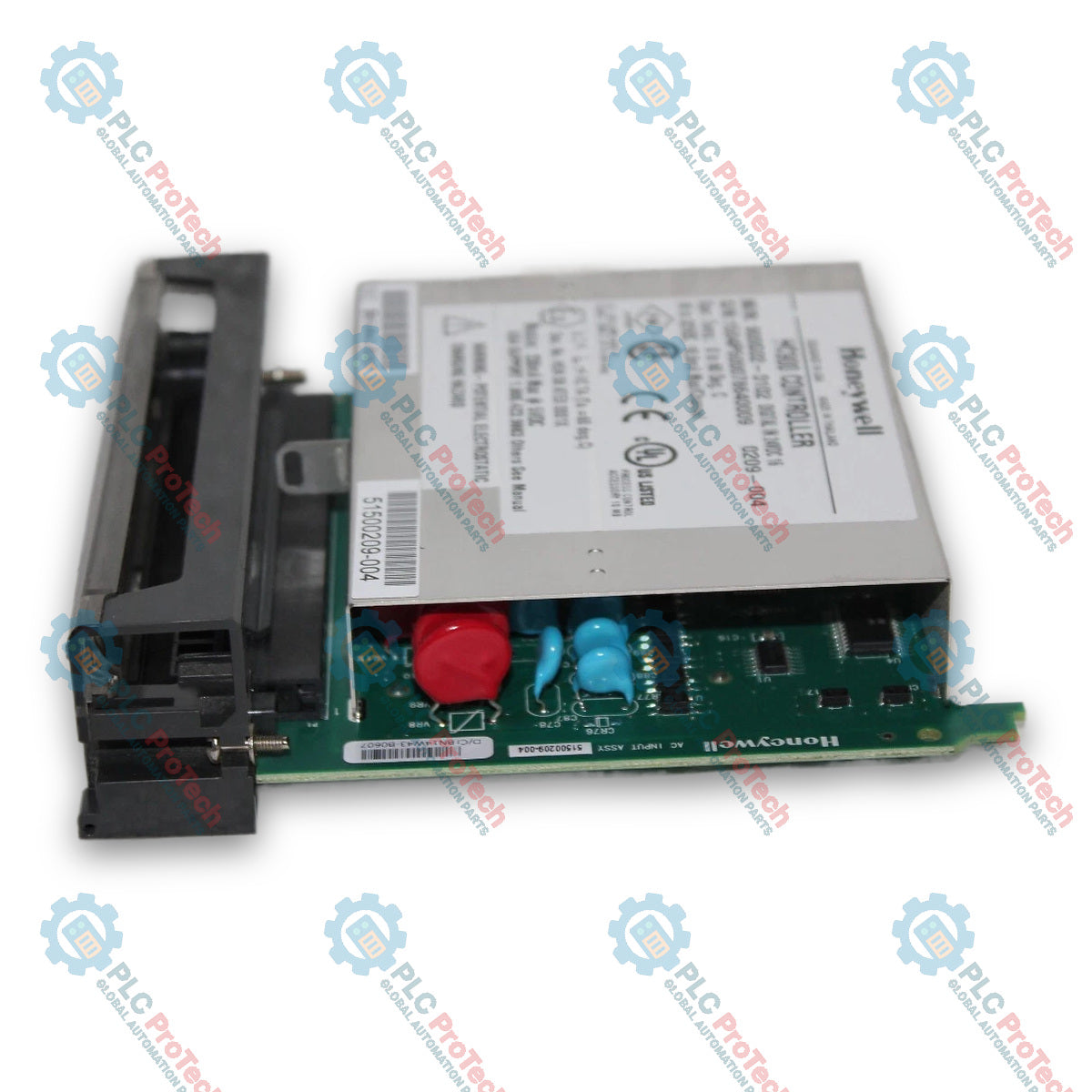

The Honeywell 900G02-0102 is a 16-channel 24 VDC digital input module designed for the ControlEdge HC900 controller system. It interfaces discrete field signals with the system rack, delivering signal processing and galvanic isolation between chassis ground and input channels.

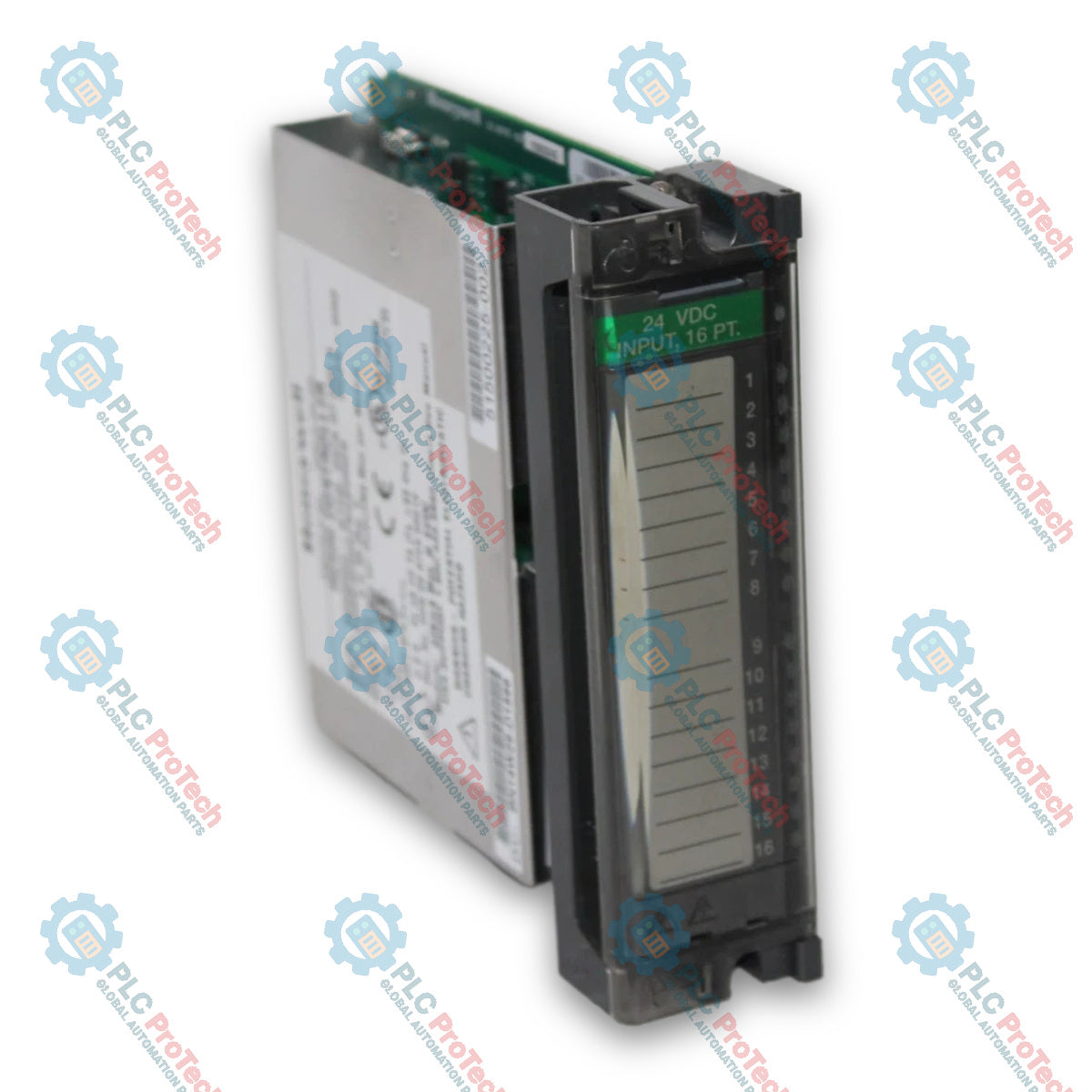

Each channel on the 900G02-0102 digital input module monitors discrete state changes from field devices and reports channel status to the ControlEdge HC900 CPU or scanner module. An onboard microprocessor conducts parallel signal processing per module to maintain high-speed execution across backplane racks. The device features front-panel LEDs for channel and module diagnostics and interfaces with detachable Euro or Barrier terminal blocks or Remote Termination Panels.
| Part Number | Description | SIL Compatible |
|---|---|---|
| 900G02-0102 | Digital Input, 24 VDC (16 channel) | No |
| 900G02-0202 | Digital Input, 24 VDC (16 channel) - SIL | Yes |
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 900G02-0102 |
| Series | ControlEdge HC900 |
| Module Type | Digital Input Module |
| Channels | 16 |
| Input Signal | 24 VDC |
| Isolation | Galvanic isolation (chassis to input) |
| Signal Processing | Dedicated microprocessor per module |
| SIL Capability | Non-SIL (SIL Compatible: No) |
| System Compatibility | ControlEdge HC900 Controller / Scanner Racks |
| Interface Component | Description / Specification |
|---|---|
| Terminal Block Options | Euro style (900TEK-0001) or Barrier style (900TBK-0001) |
| Remote Termination Panel | Compatible with RTP (900RTS-0001) via low voltage cable |
| Module Jumpers | Internal jumpers for input circuit configuration |
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: 900G02-0102
Country of origin:United States
Product Type: Digital Input Modules
Payment: T/T, Western Union
Weight: 250g
Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
