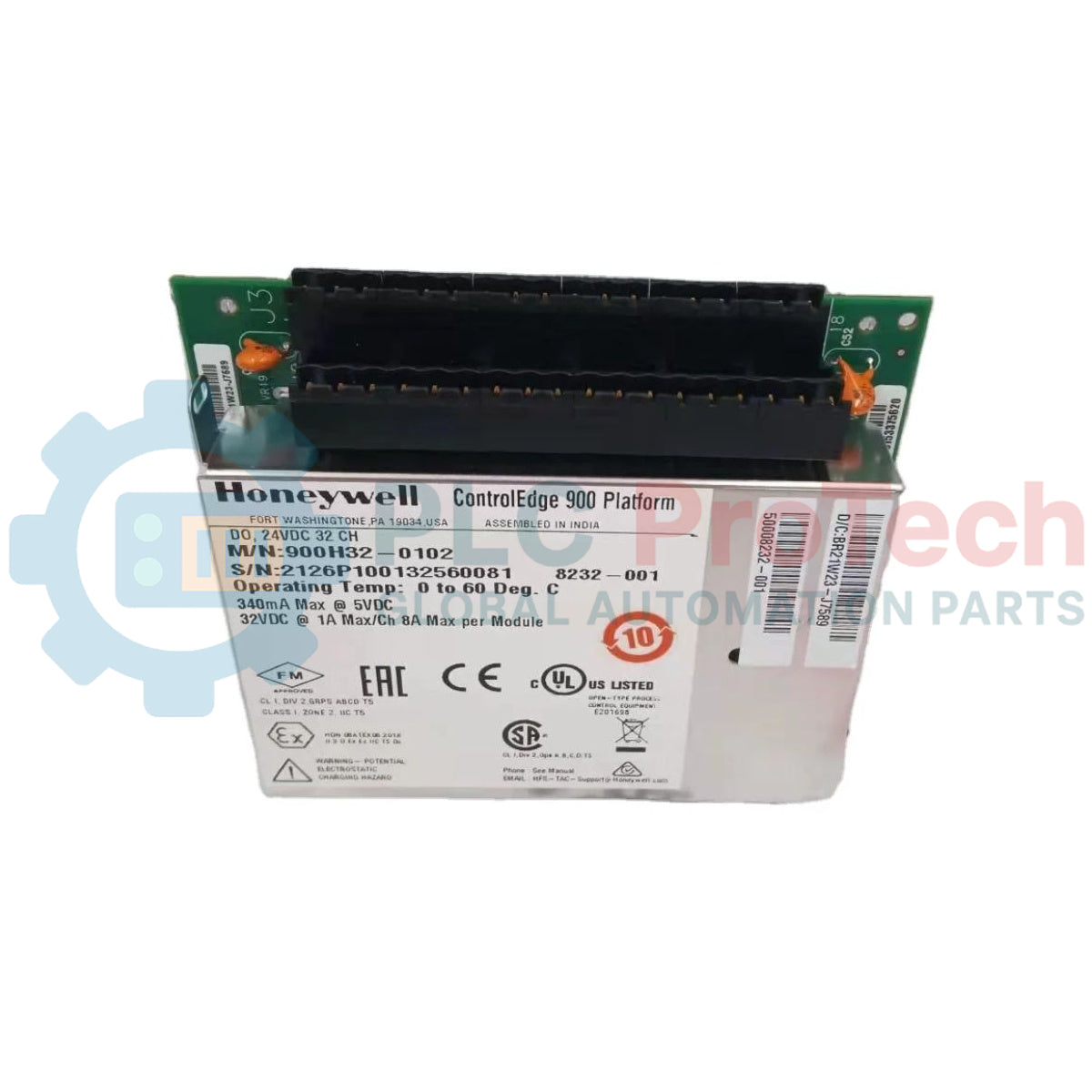

Honeywell 900H32-0102 Digital Output Module

SKU 900H32-0102

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: 900H32-0102
  • Origin United States
  • Product Type: Digital Output Modules
  • Payment: T/T, Western Union
  • Weight: 0.18 kg
  • Dimensions: 137mm H x 35.6mm W 5.4” H* x 1.4” W
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Output Modules
Quantità
Call sales Contact

Product Description

Description

Engineered for high-density signal distribution in process automation networks, the Honeywell 900H32-0102 functions as a premium 32-channel digital output module. This module provides current-sourcing (high-side) outputs designed to actuate external loads such as solenoids, relays, contactors, and indicators. Operating within a flexible voltage range of 10.5 to 32 VDC, it ensures precise switching control for demanding industrial systems.

The 32 channels are organized into two galvanically isolated groups of 16, providing robust electrical separation and preventing noise propagation across the controller backplane. For enhanced hardware reliability, the unit integrates active current limiting protection configured across four distinct groups of eight channels. This intelligent protection system allows individual channels to recover automatically once a fault condition is removed, eliminating the need to cycle system power.

Features

  • Provides 32 high-side, current-sourcing digital output channels.
  • Features two isolated groups of 16 channels to ensure electrical safety and noise immunity.
  • Equipped with onboard active current limiting, organized into four groups of eight channels.
  • Supports automatic recovery from fault states without requiring a module power cycle.
  • Delivers extremely low ON-state voltage drop of just 0.15 VDC at 0.5 A load.
  • Supports resistive and light inductive loads common in control panels.

Applications

  • Process control automation in oil, gas, and petrochemical facilities.
  • Solenoid valve and industrial actuator control in water treatment plants.
  • Remote terminal unit (RTU) digital signal amplification.
  • Burner management systems and industrial combustion control.

Technical Specifications

Manufacturer Honeywell
Part Number/Model 900H32-0102
Module Type Digital Output Module
Number of Outputs 32 channels (current sourcing, high side)
Operating Voltage 10.5 to 32 VDC
Peak Voltage 32 VDC
Galvanic Isolation 2 groups of 16 outputs
ON Voltage Drop 0.15 VDC @ 0.5 A load
Overload Protection Active Current Limiting (4 groups of 8 channels)
Maximum Load Current (Resistive) 0.5 A per point, 6 A max per channel group, 12 A max per module
Maximum Load Current (Incandescent) 0.25 A per point (5 mH max)
Dimensions 137mm H x 35.6mm W (5.4 in H x 1.4 in W)
Weight 0.18 kg

Installation Guidelines

  • Always power down the controller rack before inserting or removing the output module.
  • Note that outputs 17 through 32 are restricted and cannot be used for Time Proportioning Output (TPO), Position Proportioning Output (PPO), or Three Position Step Output (TPSC) applications.
  • Ensure field wiring is properly routed and isolated by group to maintain the specified galvanic protection.
  • Verify that external load current draws do not exceed the 0.5 A per point or 6 A per group thresholds.
