Product Overview

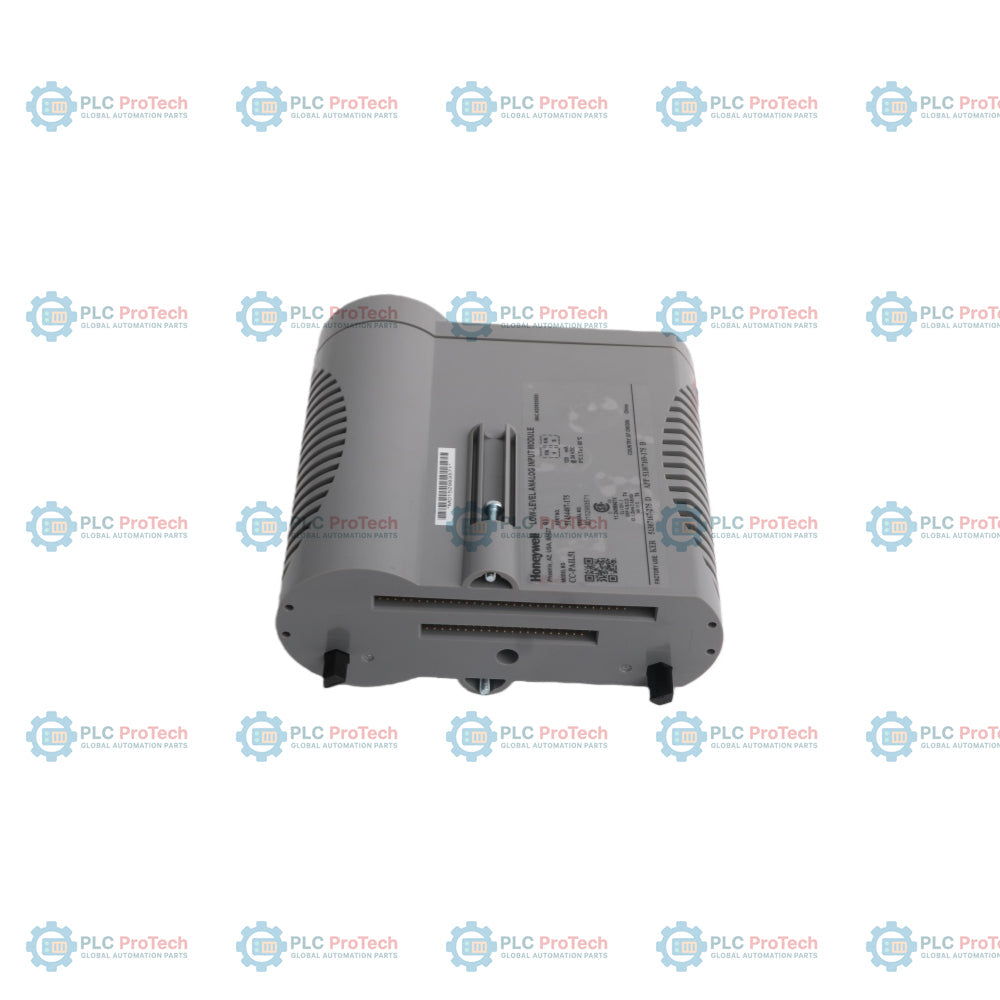

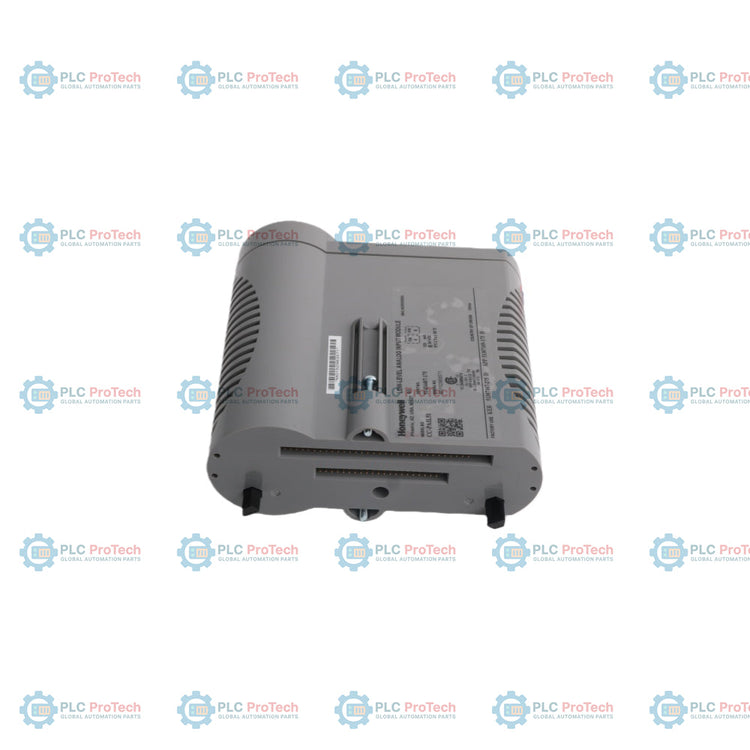

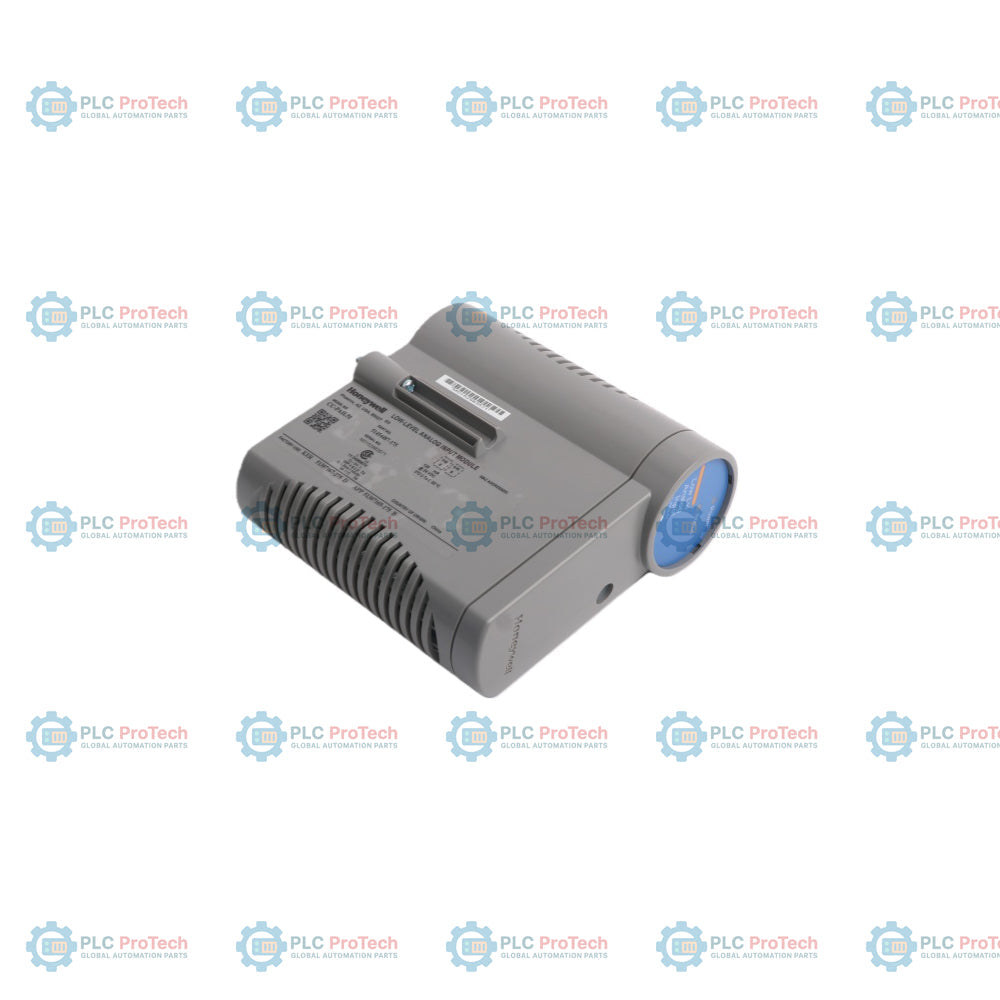

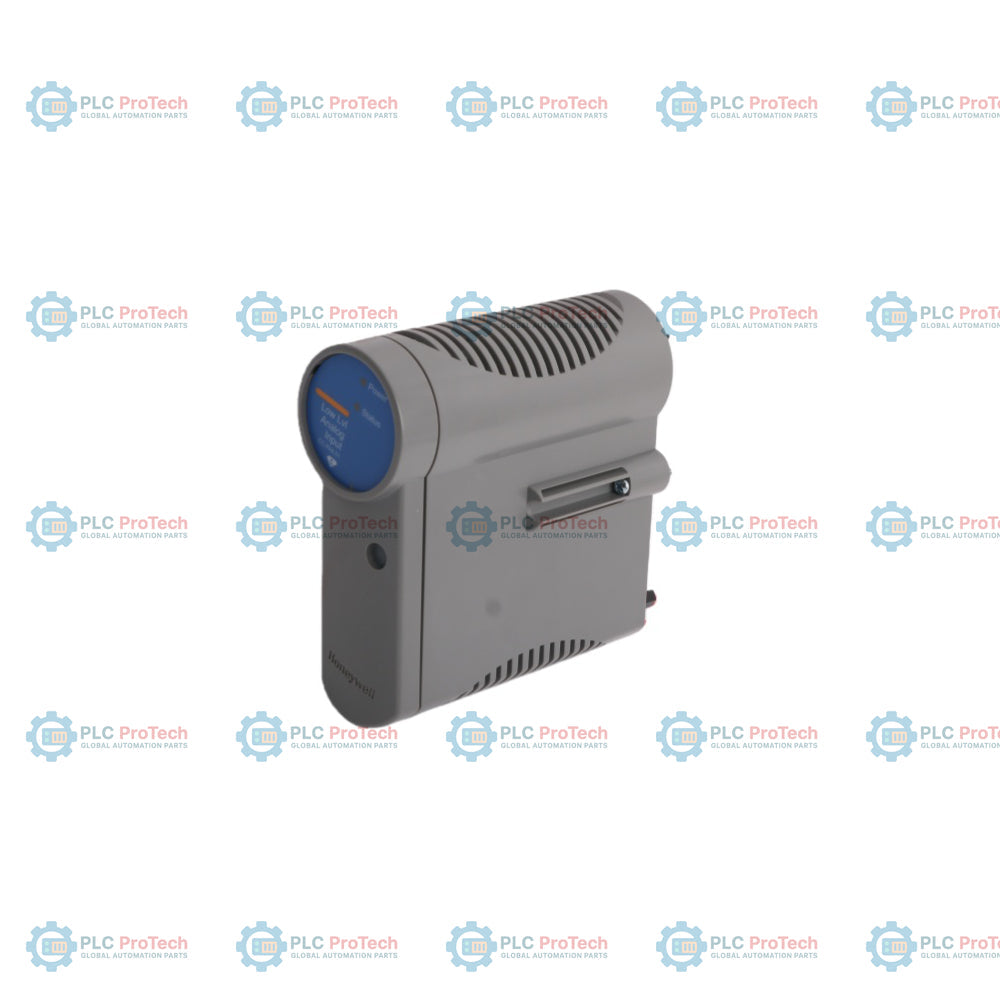

The CC-PAIL51 (CCPAIL51) stands as a high-performance temperature sensing solution within the Honeywell Experion Series-C Mark II I/O family. Specifically engineered for mission-critical thermal monitoring in industries such as hydrocarbon processing and power generation, this Low Level Analog Input (LLAI) module provides high-density support for 16 RTD and Thermocouple (TC) circuits. The module’s core value lies in its high-integrity data qualification; it features a fixed 1-second PV scanning rate coupled with advanced Open Thermocouple Detection (OTD) protection. By automatically setting Process Variables to "Not a Number" (NAN) upon sensor failure, the CC-PAIL51 prevents erratic control loop responses, effectively reducing plant risk and minimizing expensive unscheduled maintenance caused by instrument degradation.

Technical Configuration

The CC-PAIL51 hardware is optimized for signal stability and thermal management within high-density cabinet environments.

• Comprehensive Sensor Library: Native linearization for a broad spectrum of sensors, including Platinum (100 ohm), Nickel (120 ohm), and Copper (10/50 ohm) RTDs, as well as ANSI Type J, K, E, T, B, S, and R thermocouples.
• Total Galvanic Isolation: Provides robust 16-channel isolation, including channel-to-channel, channel-to-DCS backplane, and channel-to-power common, shielding sensitive measurements from ground loop interference.
• Diagnostic Precision: The 1-second update cycle includes a mandatory OTD check before PV propagation. If sensor resistance exceeds 1500 ohms, the system triggers a guaranteed trip to protect control integrity.
• Series-C Mark II Innovation: Utilizes the "tilted" module design for superior heat dissipation and features a vertical mounting profile to streamline high-density field wiring entry.

Technical Specifications

Technical FAQs

How does the CC-PAIL51 prevent "false" control actions during a sensor break?

The module utilizes a "sample and hold" OTD cycle. If an open sensor is detected, the Process Variable is set to NAN (Not a Number) and a soft failure is reported. This ensures no invalid data is propagated to the controller, preventing inappropriate PID responses.

What are the specific IOTA options for this module?

The CC-PAIL51 typically resides on the DC-TAIL51 IOTA, which is a 9-inch (228 mm) assembly for non-redundant applications.

Does the module support millivolt-only inputs without linearization?

Yes, the module supports standard millivolt types ranging from -20 to +100 millivolts, allowing it to interface with specialized non-standard sensing devices.

Engineering & Installation Guide

• Cold Junction Compensation (CJC): All thermocouple inputs are automatically compensated using a CJC device located on the IOTA. To ensure accuracy, avoid installing the IOTA near high-heat components that could create localized thermal gradients across the termination assembly.
• RTD Wiring Integrity: For RTD sensors, lead resistance must be strictly managed (maximum 15 ohms). Use high-quality shielded 3-wire or 4-wire cabling to maintain the 120 dB Common Mode Rejection Ratio (CMRR) and prevent noise from distorting low-level temperature signals.
• Surge Protection: The module features integrated surge protection per EN 61000-4-5 (1 kV line-to-line, 2 kV line-to-ground). For outdoor sensor runs or environments with high lightning risk, external primary surge arrestors are still recommended to protect the IOTA electronics.
