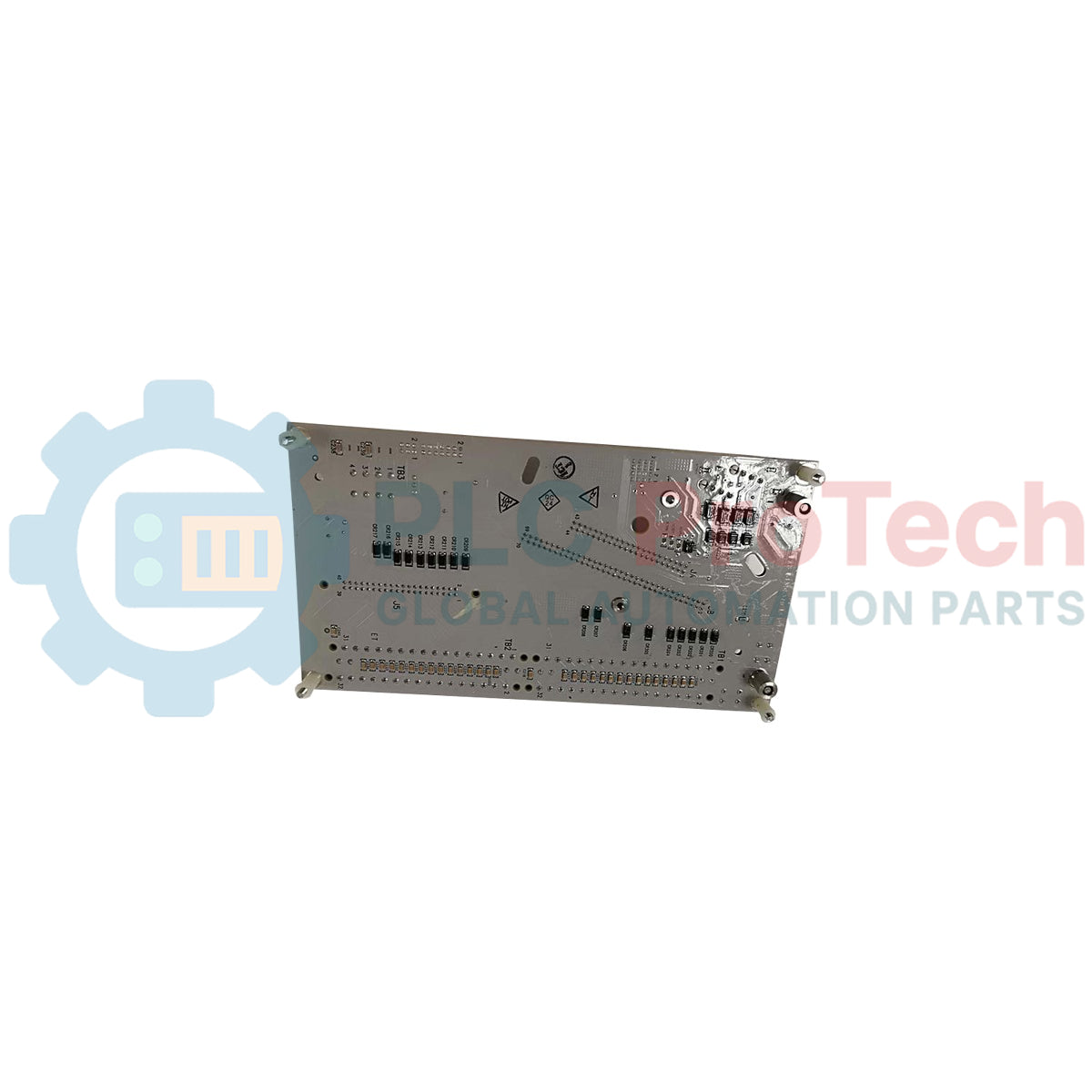

Designed to facilitate reliable field wiring connections within the Experion PKS Series C architecture, the Honeywell CC-TAID11 serves as a specialized Input Output Termination Assembly (IOTA) for redundant differential analog input channels. This assembly provides the physical mounting platform and electrical interface for dual (redundant) Series C Analog Input Modules, routing 16 differential field signals safely to the active and standby controller modules. By supporting a 16-channel differential configuration, the CC-TAID11 ensures superior common-mode noise rejection and signal integrity for critical process control loops in harsh electromagnetic environments.
| Manufacturer | Honeywell |
| Model / Article Number | CC-TAID11 |
| Series | Series C I/O |
| Module Type | Input Output Termination Assembly (IOTA) |
| Channel Capacity | 16 Channels (Differential) |
| Redundancy | Yes (Supports dual redundant I/O modules) |
| Terminals | Screw compression type |
| Country of Origin | United States / OEM Determined |
| Shipping Weight (Calculated) | 5.0 kg |
The CC-TAID11 redundant IOTA is specifically paired with Honeywell redundant differential analog input modules (such as the CC-PAIH01). Do not attempt to mount single-ended modules to this board, as signal routing and ground references differ significantly. If non-redundant architecture is specified for your loop, refer to the CC-TAID01 simplex equivalent.
When routing differential inputs, verify that common-mode voltage limits between the channel reference and the system ground do not exceed Honeywell OEM specifications. High common-mode offsets, often caused by poor field ground reference differences, can drive the differential instrumentation amplifier into saturation, resulting in flatlined 20.8 mA or 3.8 mA fault readings on the control console.
Ensure field cable shields are terminated cleanly at the designated shield grounding bars provided in the Series C cabinet. Do not daisy-chain shield wires across multiple channels on the CC-TAID11 screw terminals, as this introduces ground loop currents and compromises the high-frequency noise immunity of the differential input circuitry.
Disconnect all main power sources feeding the Series C carrier assembly before installing or removing the CC-TAID11 IOTA. Failure to de-energize the system may cause transient electrical arcs, potentially damaging the sensitive integrated circuits of adjacent online I/O modules and controllers.
Mount the CC-TAID11 onto the designated channel of the Series C carrier channel assembly using the integrated mounting screws.
Connect the redundant I/O link cable assemblies to the appropriate carrier backplane connector interface.
Terminate the 16 differential field signal pairs into the screw terminal blocks, ensuring strict polarity matching (+ and - terminals) per the loop drawings.
Mount the two Series C Analog Input Modules firmly into the IOTA sockets until the locking mechanisms click into place.
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: CC-TAID11
Country of origin:United States
Product Type: Distributed Control System Components
Payment: T/T, Western Union
Weight: 5000g
Shipping port: Xiamen
Warranty: 12 months
