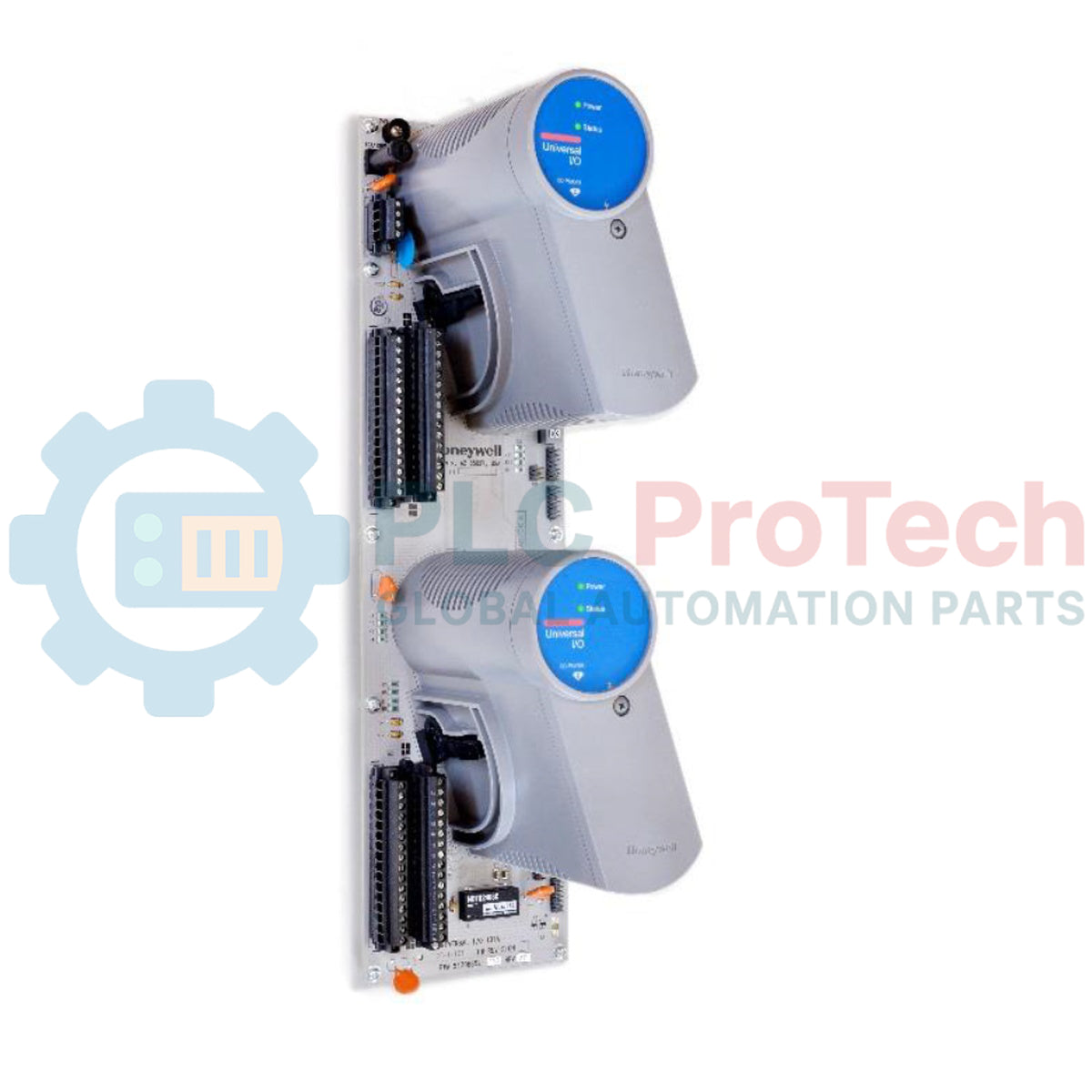

Designed to facilitate redundant physical terminations for Series C Universal Input Output (UIO) modules, the Honeywell CC-TUIO41 acts as the critical field wiring interface within Experion PKS architectures. This Input Output Termination Assembly (IOTA) is engineered with conformal coating to withstand challenging environmental conditions, ensuring high-availability operational uptime by supporting dual-redundant active UIO cards.
By integrating field-side terminations directly with system-level control connections, the Honeywell CC-TUIO41 minimizes wire routing complexity while preserving signal integrity. Its structural layout allows engineers to easily run commissioning diagnostic sweeps and execute system maintenance on redundant channels without disturbing live field loops.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Honeywell |
| Model / Article Number | CC-TUIO41 |
| System Series | Experion PKS Series C |
| Interface Type | Universal Input Output (UIO) Redundant IOTA |
| Channel Support | 32 Channels |
| Coating Specification | Conformal Coating (ISA G3 Compliant) |
| Redundancy Support | Dual Active/Standby Module Capacity |
| Operating Temperature Range | 0 degC to 60 degC |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Country of Origin | United States |
| Shipping Weight (Calculated) | 2.00 kg |
The Honeywell CC-TUIO41 serves as the redundant termination counterpart to the CC-TUIO11 (non-redundant IOTA). While both support 32 channels of Universal Input Output, the CC-TUIO41 requires a wider physical footprint on the Series C mounting carrier to accommodate the redundant pairing of CC-PUIO31 or CC-PUIO01 modules. Ensure carrier slot allocation planning accounts for this extended physical layout.
When designing enclosed panels for the CC-TUIO41, monitor internal ambient heat dissipation. Operating dual active redundant modules generates higher thermal loads than non-redundant assemblies. Maintain adequate vertical clearance above and below the carrier channel, ensuring that cabinet temperatures do not exceed the 60 degC threshold to preserve the integrity of both the electronic components and the conformal coating.
Prior to inserting modules onto the CC-TUIO41, verify all field loop parameters (such as supply loop ratings) match the configurations of the corresponding UIO channels in Experion PKS. When hot-swapping a module, verify the status LEDs on the partner module indicate a healthy, primary state before removing the target hardware to prevent control bumps or communication dropouts.
Mount the CC-TUIO41 IOTA assembly directly onto the Series C carrier channel, securing all physical locking mechanisms.
Connect the dedicated system chassis ground terminal on the IOTA to the local cabinet copper ground bus bar.
Terminate the 32 field instrument wiring pairs to the screw terminal blocks following the verified loop diagrams.
Insert both redundant Series C Universal I/O modules into their respective board sockets until fully seated and locked.
Restore system power and configure redundant sync options within the Experion Control Builder console.
