Product Overview

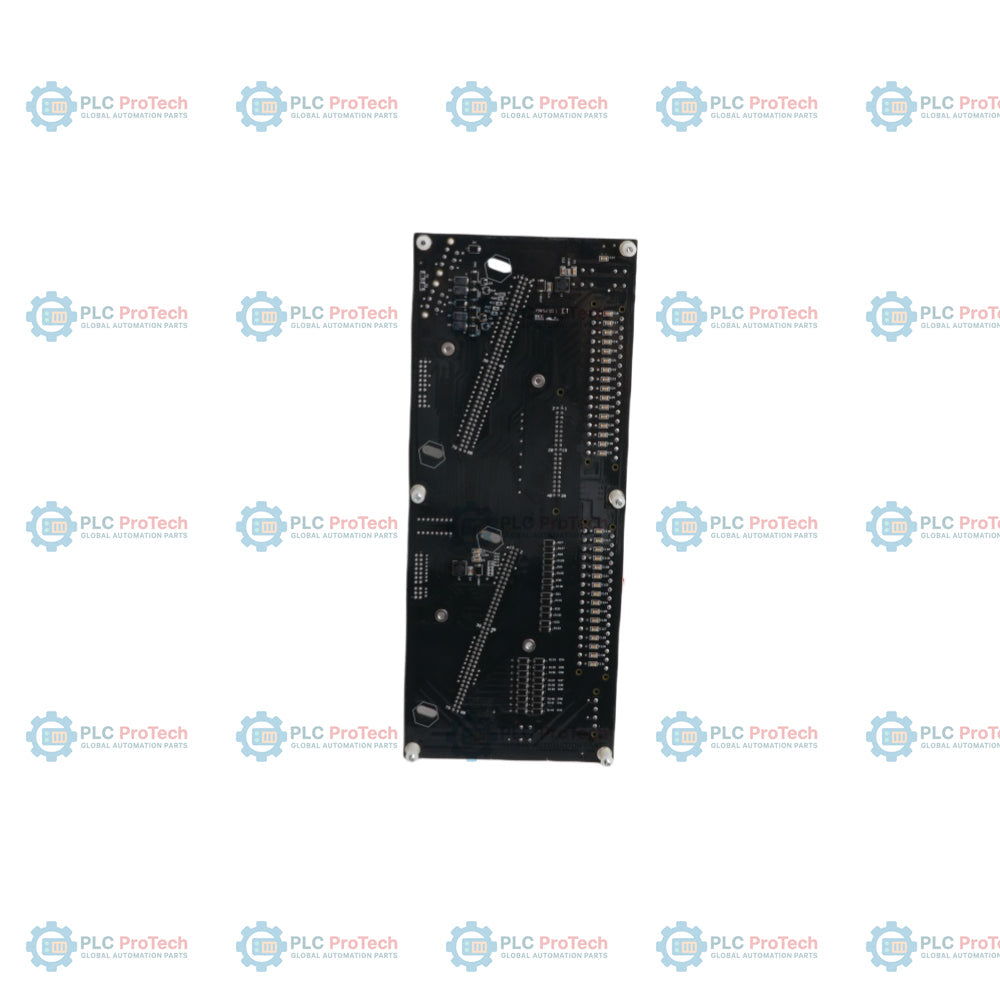

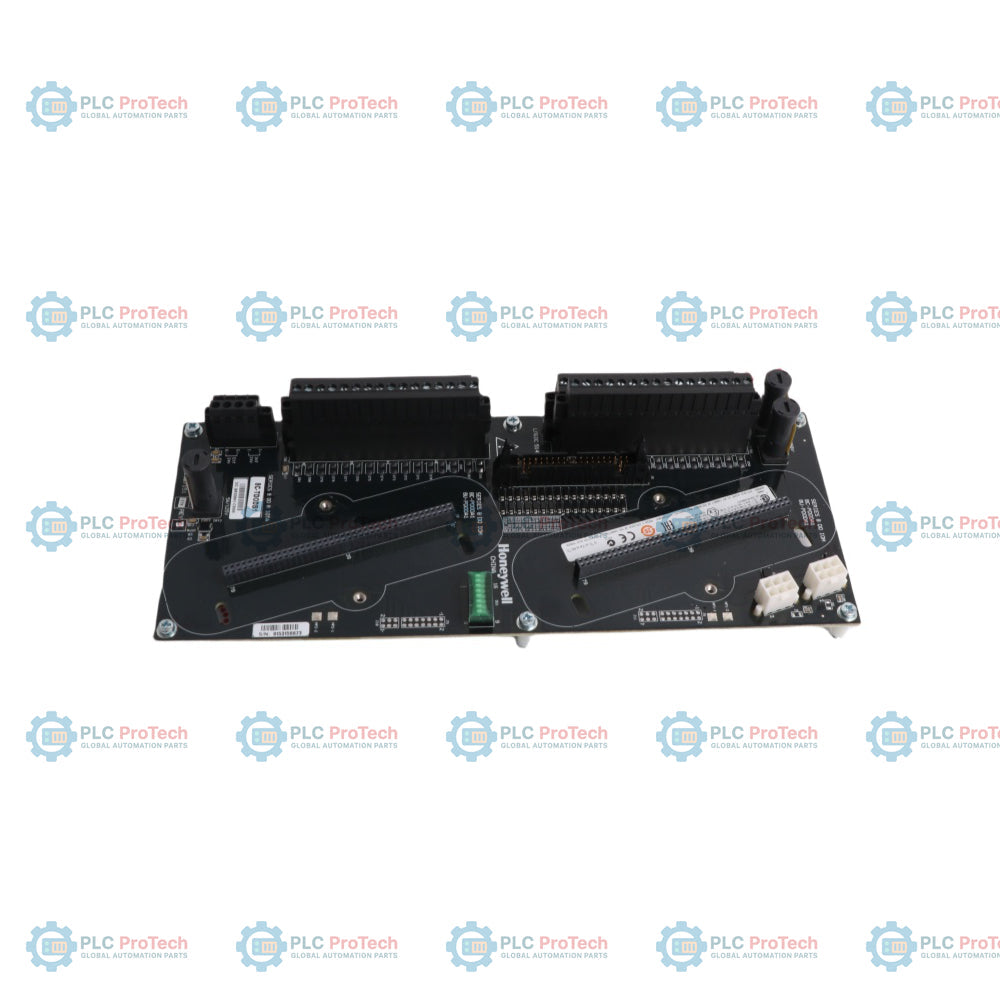

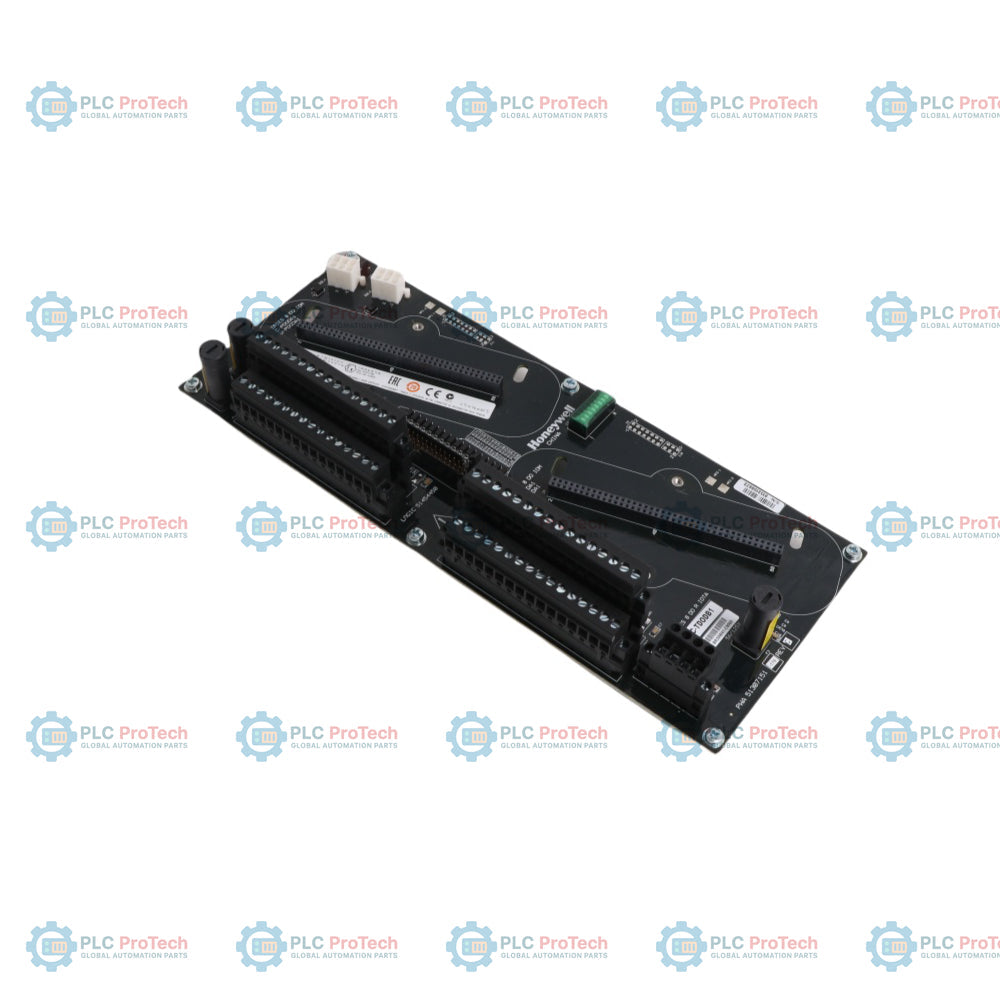

The Honeywell 8C-TDODB1 (8CTDODB1) is a high-availability Digital Output Termination Assembly (IOTA) designed for the Experion PKS Series 8 I/O platform. This "Redundant" IOTA is a critical infrastructure component that allows two 8C-PDODA1 Digital Output modules to operate in a 1-out-of-2 (1oo2) configuration. In this setup, the primary and secondary modules work in tandem; if the primary module fails, the secondary module takes over control of the field devices instantaneously without a "bump" in the process. The 8C-TDODB1 is primarily utilized in sectors requiring mission-critical safety and uptime, such as Emergency Shutdown (ESD) systems, turbine trip circuits, and critical solenoid header controls in chemical and power plants.

Technical Configuration

The 8C-TDODB1 is engineered to provide a robust physical and electrical foundation for redundant digital control.

• Redundant Module Support: Features two dedicated slots for Digital Output modules, managing the synchronization and load-sharing logic between the two units.

• 32-Channel Density: Supports up to 32 individual digital output channels, typically used for driving 24 VDC solenoids, relays, or indicator lamps.

• G3 Conformal Coating: Factory-treated with a protective layer to ensure long-term reliability in environments with high humidity or corrosive gas concentrations (conforming to ISA G3 standards).

• Vertical I/O Design: Utilizes the Series 8 vertical mounting format, which promotes natural airflow for cooling and reduces the overall footprint within the control cabinet.

• Integrated Blown Fuse Detection: Provides circuit protection and diagnostic feedback to the C300 controller, allowing operators to identify field-side wiring faults or short circuits immediately.

Technical Specifications

Technical FAQs

Can I use only one module on the 8C-TDODB1 IOTA?Yes. While the 8C-TDODB1 is designed for redundancy, it can operate with a single module. However, the system will report a "Redundancy Lost" alarm until the second module is installed and synchronized.

What is the difference between 8C-TDODA1 and 8C-TDODB1?The 8C-TDODA1 is a "Single" IOTA, supporting only one module with no hardware redundancy. The 8C-TDODB1 is the "Redundant" version, featuring two module slots for high-availability applications.

Does this IOTA provide power to the field solenoids?The IOTA distributes 24 VDC power from the cabinet busbar to the outputs. However, the total current capacity is limited per channel. For high-current solenoids, interposing relays should be used to protect the IOTA circuitry.

Engineering & Installation Guide

• Redundancy Cable Installation: Ensure the redundancy link between the two modules is securely seated. Without this link, the modules cannot synchronize their internal states, leading to independent operation and potential control conflicts.

• Field Wiring Termination: When wiring the 32 channels, use ferrules to prevent stray wire strands from causing short circuits between adjacent terminals. Given the high density of the 8C-TDODB1, cable management and clear labeling are essential for future troubleshooting.

• Grounding Requirements: The IOTA must be bonded to the instrument earth bar via the carrier's grounding system. Proper grounding is vital for the correct operation of the blown-fuse detection circuitry and to prevent electromagnetic noise from affecting the I/O Link communication.
