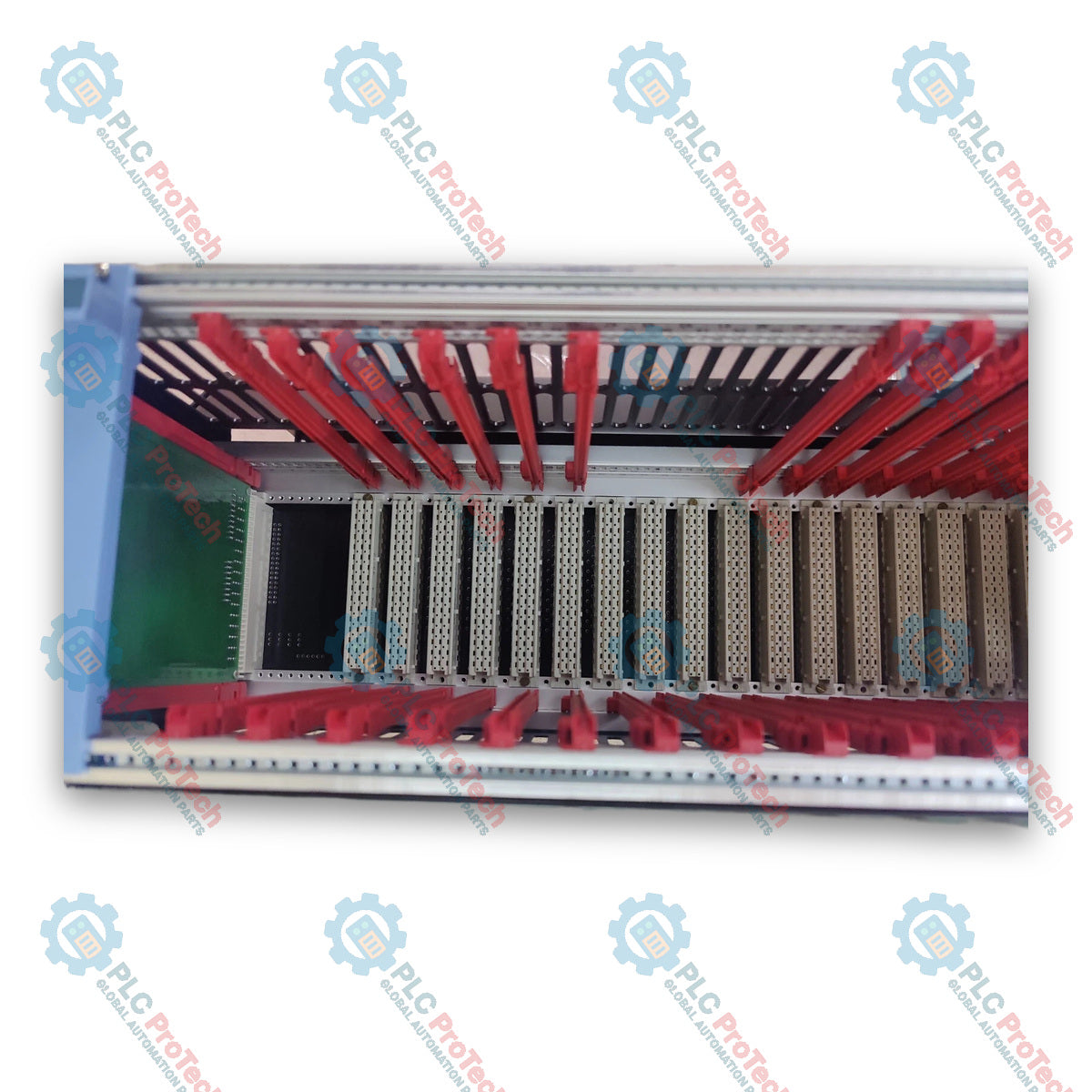

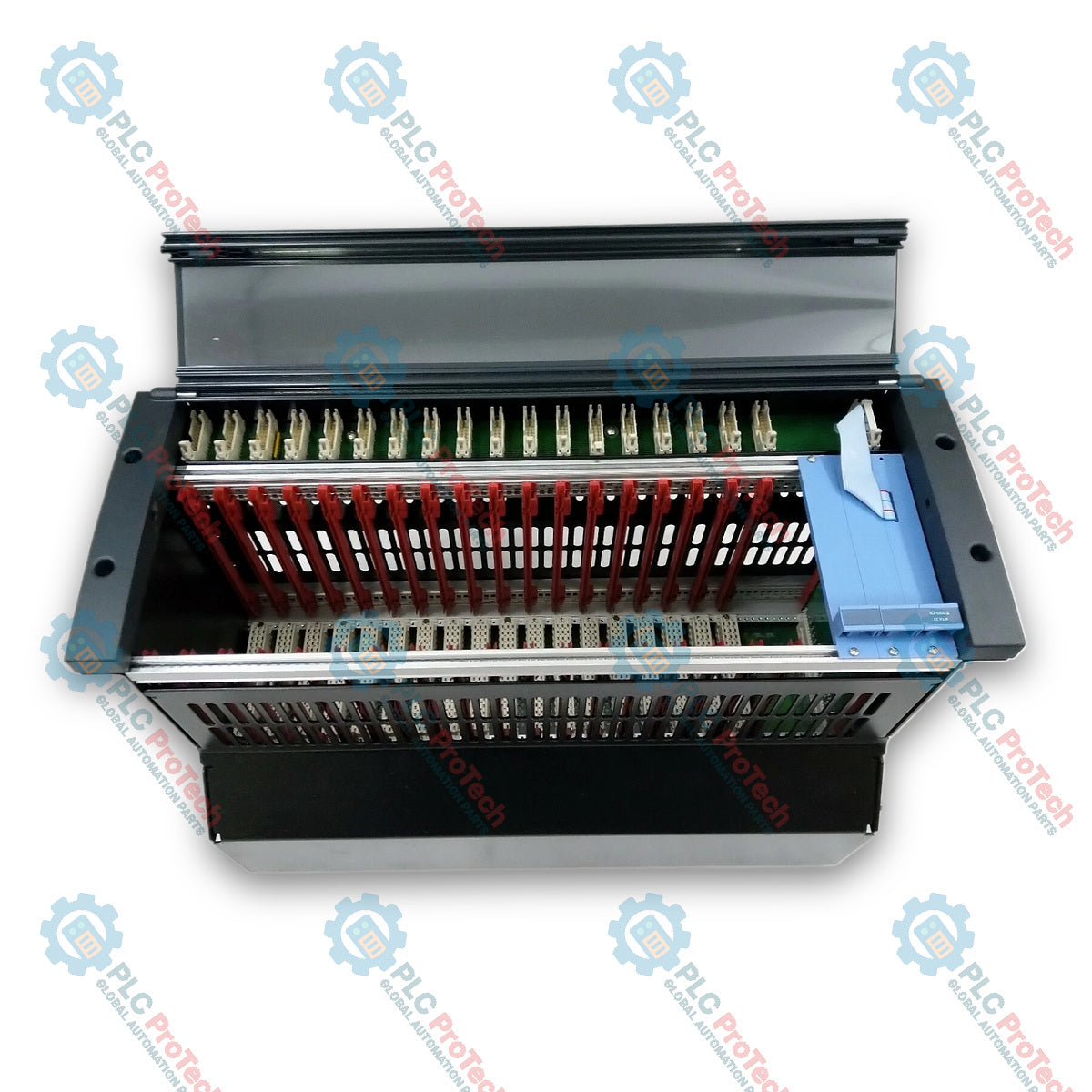

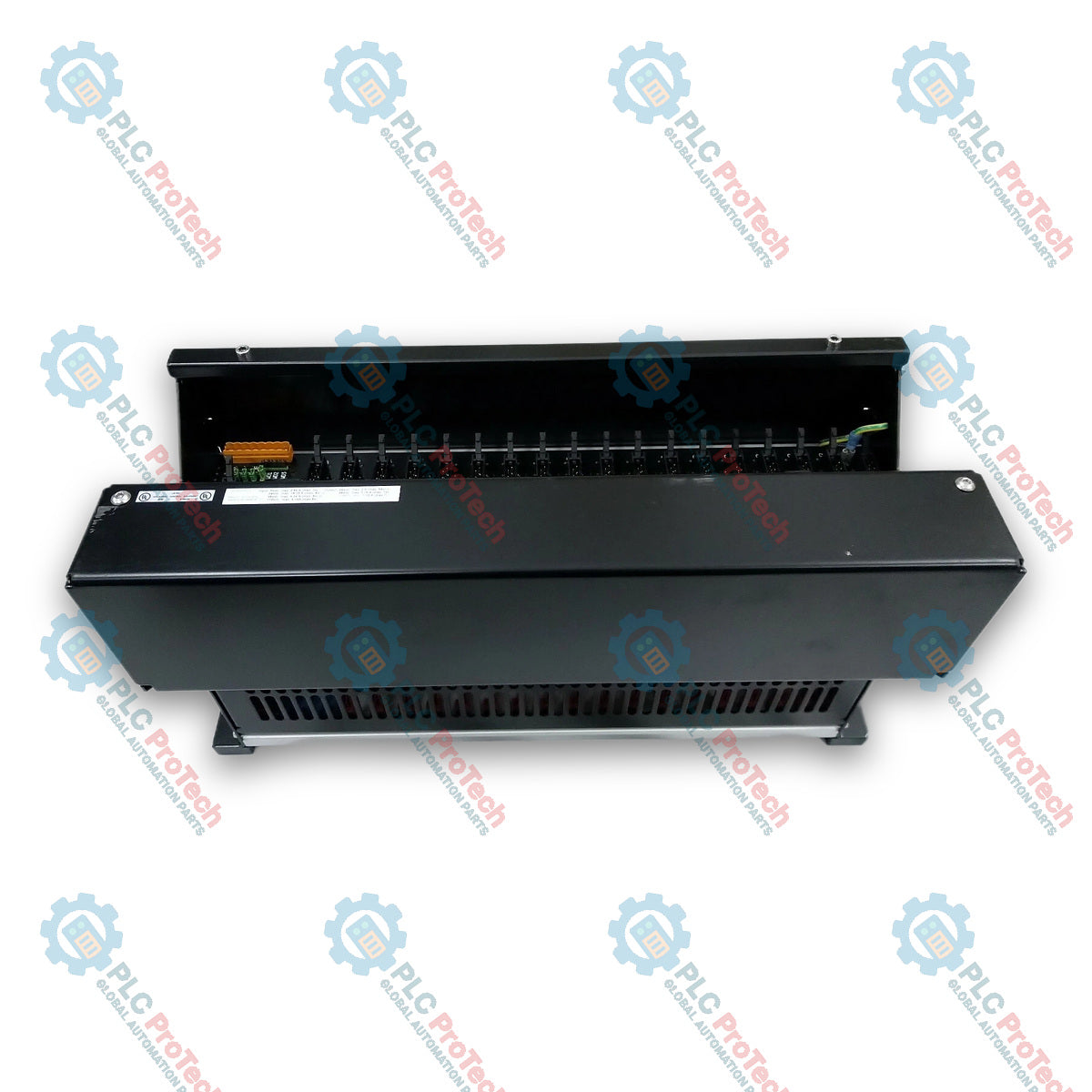

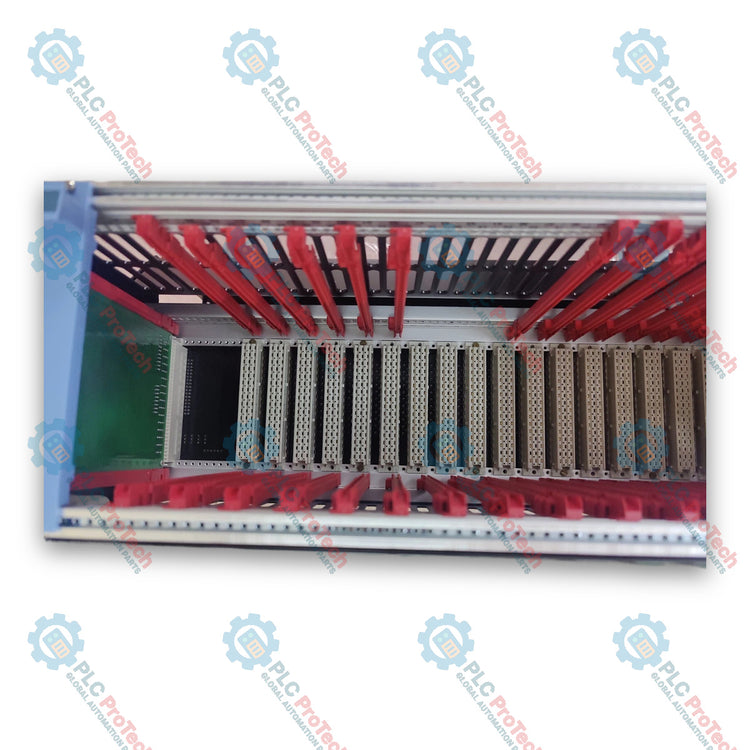

The Honeywell FC-IOCHAS-0001S is a single I/O chassis designed for process safety, emergency shutdown (ESD), and critical control applications in industrial environments. Constructed to accommodate Safety Manager I/O modules and associated bus components, the assembly features a 19-inch rack-mountable form factor with integrated backplane interconnects, key coding positions, and power distribution interfaces for process automation architectures.

Features

• Designed for single Safety Manager controller configurations requiring dedicated I/O expansion.
• Equipped with backplane connectors featuring SOURIAU 5159 mechanical key coding pin positions to prevent module misplacement.
• Provides integrated bus printed circuit board (PCB) routing for internal 5 Vdc logic power distribution and watchdog signals.
• Incorporates card connector slots for standard input, output, and special-function modules.
• Features robust mechanical mounting design compatible with standard 19-inch cabinet frames and swing frame structures.

Applications

• Safety Instrumented Systems (SIS)
• Emergency Shutdown Systems (ESD)
• Fire and Gas Detection Systems (F&G)
• Burner Management Systems (BMS) and Boiler Protection
• Critical Process Control in Chemical, Petrochemical, and Energy Plants

Technical Specifications

Installation Guidelines

• Cabinet Mount: Install the chassis securely inside a standard cabinet or 180-degree swing frame using appropriate captive nuts and mounting hardware.
• Module Keying: Ensure that all backplane chassis pin positions are properly populated with SOURIAU 5159 coding pins matching the intended I/O module type prior to card insertion.
• Power & Logic Connections: Verify proper termination of the 5 Vdc supply line, 24 Vdc power bus, and watchdog signal lines via dedicated distribution boards.
• Grounding: Connect the chassis frame directly to the cabinet safety earth bar using approved earthing straps.
• Ventilation: Maintain unobstructed vertical airflow across all installed card slots to ensure operation within specified thermal limits.

Compliance and Certifications

• IEC 61508 / IEC 61511: Functional safety up to SIL 3
• IEC 61010-1 / IEC 61131-2: Safety requirements and equipment specifications for programmable controllers
• IEC 61000-6-2 / IEC 61326-3-1: Immunity for industrial and safety-related systems
• UL 508 / UL 508A: Standard for Industrial Control Equipment / Industrial Control Panels
• CSA C22.2 No. 142: Process Control Equipment
• FM3600 / FM 3611: Class I, Division 2, Groups A, B, C & D hazardous location compliance
