Description

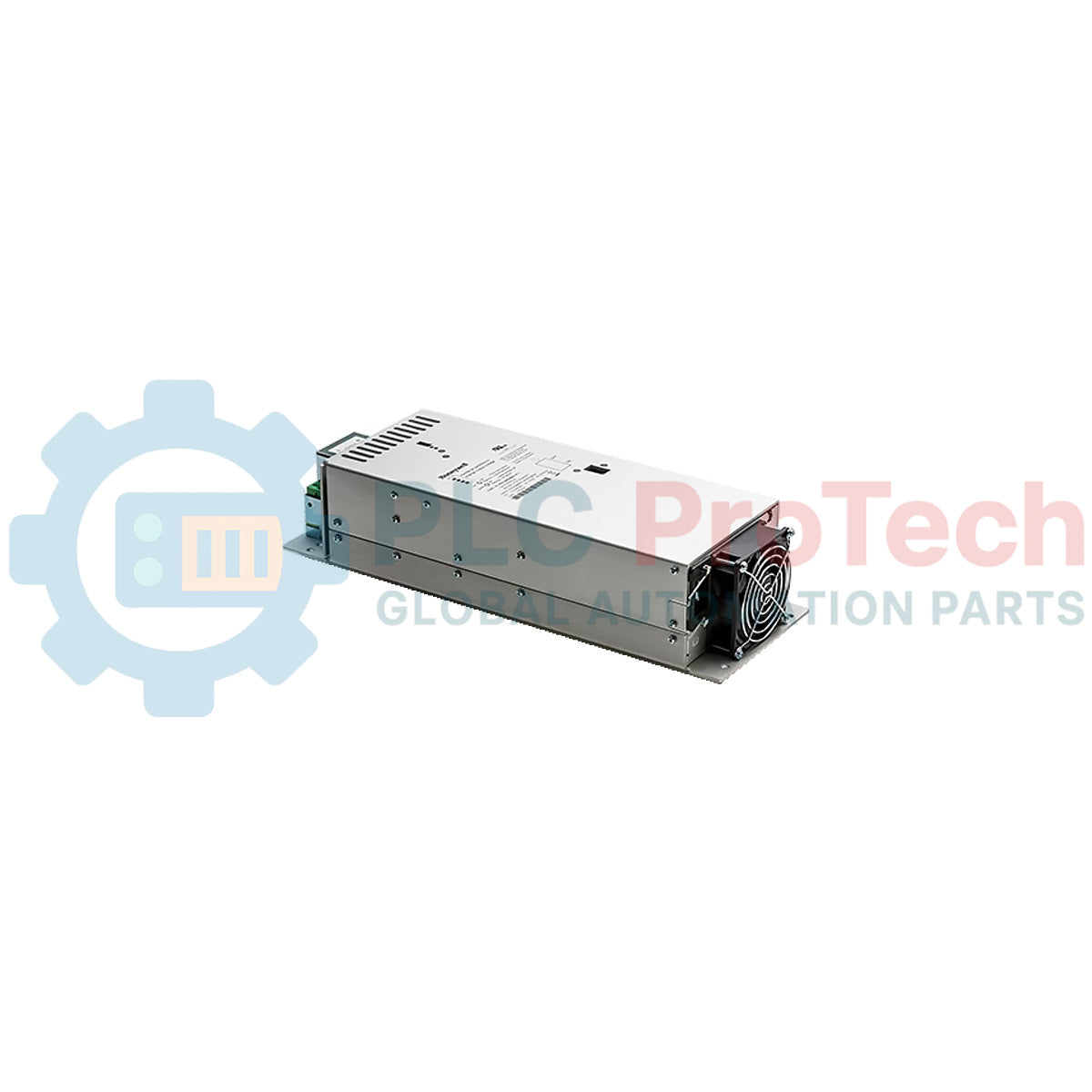

Delivering stable, high-capacity system power directly to critical safety control nodes, the Honeywell FC-PSU-UNl2450U is a heavy-duty power supply unit engineered for seamless integration within the Safety Manager and Fail Safe Control (FSC) architectures. This chassis-mounted module converts incoming utility AC power into highly filtered, low-noise DC output to drive safety-critical processors, I/O racks, and field transmitters without interruption. Built to satisfy the rigid uptime requirements of Safety Integrity Level (SIL) environments, this unit features robust internal diagnostic provisions and excellent line regulation to protect delicate downstream electronics from industrial grid fluctuations.

Features

• Dual-Input Auto-Ranging: Supports standard nominal industrial grid inputs of 110 VAC or 240 VAC at 50/60 Hz.
• High-Current Capacity: Continuous 43 Amp output capability at 25 VDC designed for dense I/O field distributions and heavy load requirements.
• Industrial-Grade Heat Dissipation: Designed with robust heat sinks for optimal passive thermal management inside enclosed control cabinets.
• Fault Isolation: Engineered to prevent downstream faults from propagating back to the primary power source.
• System Integration: Native mechanical and electrical design ensures slide-in alignment with standard Honeywell Safety Manager chassis rails.

Applications

• Emergency Shutdown (ESD) Systems
• Fire and Gas (F&G) Detection Systems
• Burner Management Systems (BMS)
• Critical Process Safety Loops in petrochemical, refining, and power generation facilities

Technical Specifications

Alternative Models & Compatibility

This module serves as a direct drop-in replacement for earlier legacy revisions within corresponding Honeywell safety frames. When hot-swapping or running this power supply in parallel (redundant) configurations, verify that all paralleled units share identical firmware suffixes and calibration parameters to maintain proper load-sharing balance across the system backplane.

Application Pitfalls & Engineering Notes

Due to the heavy 43 A continuous current rating of this module, thermal management is a critical factor. When mounted inside unventilated, non-air-conditioned enclosures, local hot spots may develop. Always preserve the manufacturer-specified vertical clearance gaps below and above the module rack to facilitate natural convective airflow. Avoid mixing older-generation linear supplies with this switch-mode module in the same local power segment without checking the backplane isolation configuration.

Commissioning & Wiring Tips

Ensure all input supply connections are crimped with high-quality insulated lugs rated for high vibration environments. To minimize line drop over the high-current 25 VDC output run, use appropriately sized copper conductors calculated for the full 43 A load over the total loop distance. Always measure the output termination voltage at the farthest chassis terminal block under maximum load conditions to verify that terminal line-drop does not fall below the system tolerance threshold.
