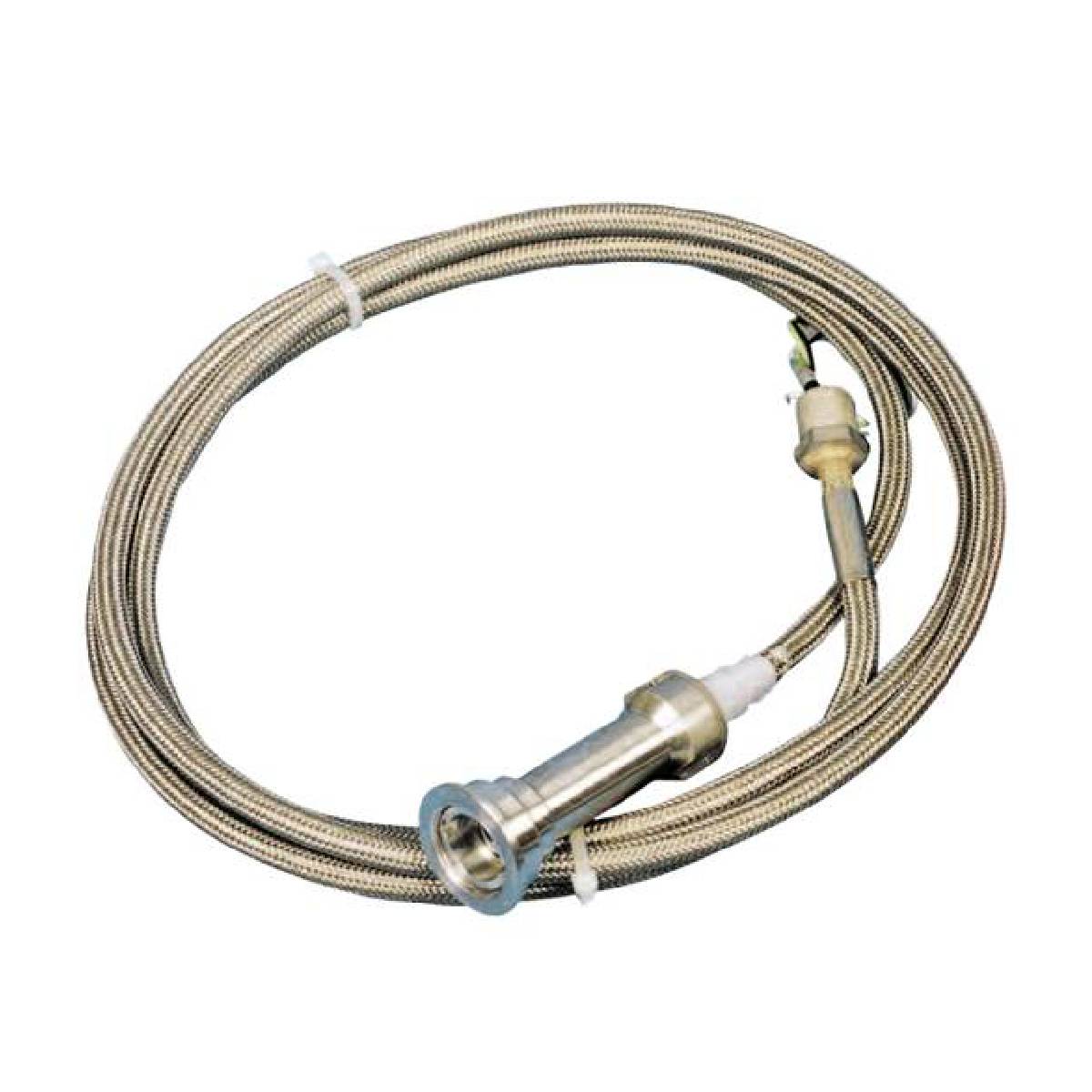

The Honeywell LG1093AC05 is an industrial ultraviolet flame sensor designed for flame monitoring in gas turbine installations. Operating as part of the Honeywell LG/EG flame monitoring system, the LG1093AC05 detects ultraviolet radiation emitted by hydrocarbon flames to signal flame or no-flame conditions. It incorporates a Geiger Mueller-type phototube sensor tolerant to black body radiation and solar blind across the 180 to 260 nm spectrum. Designed with a 1.73-inch O.D. mounting flange and a 24-foot (7.3 m) two-conductor armored cable, the unit interfaces directly with compatible EG1033 amplifier modules up to an operating distance of 1000 feet (330 m).
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | LG1093AC05 |
| Sensor Type | Geiger Mueller-type phototube |
| Wavelength Range | 180 to 260 nm (1800 to 2600 angstroms) |
| Mounting Interface | 1.73 inch O.D. by 0.14 inch wide flange |
| Cable Type | Two-conductor armored cable |
| Cable Length | 24 ft (7.3 m) |
| Operating Temperature Range | -40 degC to 176 degC (-40 degF to +350 degF) |
| Window Pressure Rating | 6.3 psig (428 mbar) |
| Flame Detect Time | Typical 0.1 sec (max 1.0 sec) |
| Flame Loss Detect Time | 0.2 sec max |
| Maximum Transmission Distance | Up to 1000 ft (330 m) sensor to amplifier |
| MTBF | 10,000 hours |
| Shelf Life | Two-year |
| Compatible Amplifiers | EG1033AA, EG1033AB, EG1033AC, EG1033AD |
| Shipping Weight | 3 Kg |
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: LG1093AC05
Country of origin:United States
Product Type: Flame Detector
Payment: T/T, Western Union
Weight: 3000g
Dimensions: 300 x 300 x 100 mm
Shipping port: Xiamen
Warranty: 12 months
The Honeywell LG1093AC05 is an industrial ultraviolet flame sensor designed for flame monitoring in gas turbine installations. Operating as part of the Honeywell LG/EG flame monitoring system, the LG1093AC05 detects ultraviolet radiation emitted by hydrocarbon flames to signal flame or no-flame conditions. It incorporates a Geiger Mueller-type phototube sensor tolerant to black body radiation and solar blind across the 180 to 260 nm spectrum. Designed with a 1.73-inch O.D. mounting flange and a 24-foot (7.3 m) two-conductor armored cable, the unit interfaces directly with compatible EG1033 amplifier modules up to an operating distance of 1000 feet (330 m).
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | LG1093AC05 |
| Sensor Type | Geiger Mueller-type phototube |
| Wavelength Range | 180 to 260 nm (1800 to 2600 angstroms) |
| Mounting Interface | 1.73 inch O.D. by 0.14 inch wide flange |
| Cable Type | Two-conductor armored cable |
| Cable Length | 24 ft (7.3 m) |
| Operating Temperature Range | -40 degC to 176 degC (-40 degF to +350 degF) |
| Window Pressure Rating | 6.3 psig (428 mbar) |
| Flame Detect Time | Typical 0.1 sec (max 1.0 sec) |
| Flame Loss Detect Time | 0.2 sec max |
| Maximum Transmission Distance | Up to 1000 ft (330 m) sensor to amplifier |
| MTBF | 10,000 hours |
| Shelf Life | Two-year |
| Compatible Amplifiers | EG1033AA, EG1033AB, EG1033AC, EG1033AD |
| Shipping Weight | 3 Kg |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Country of origin |
United States
|
