Description

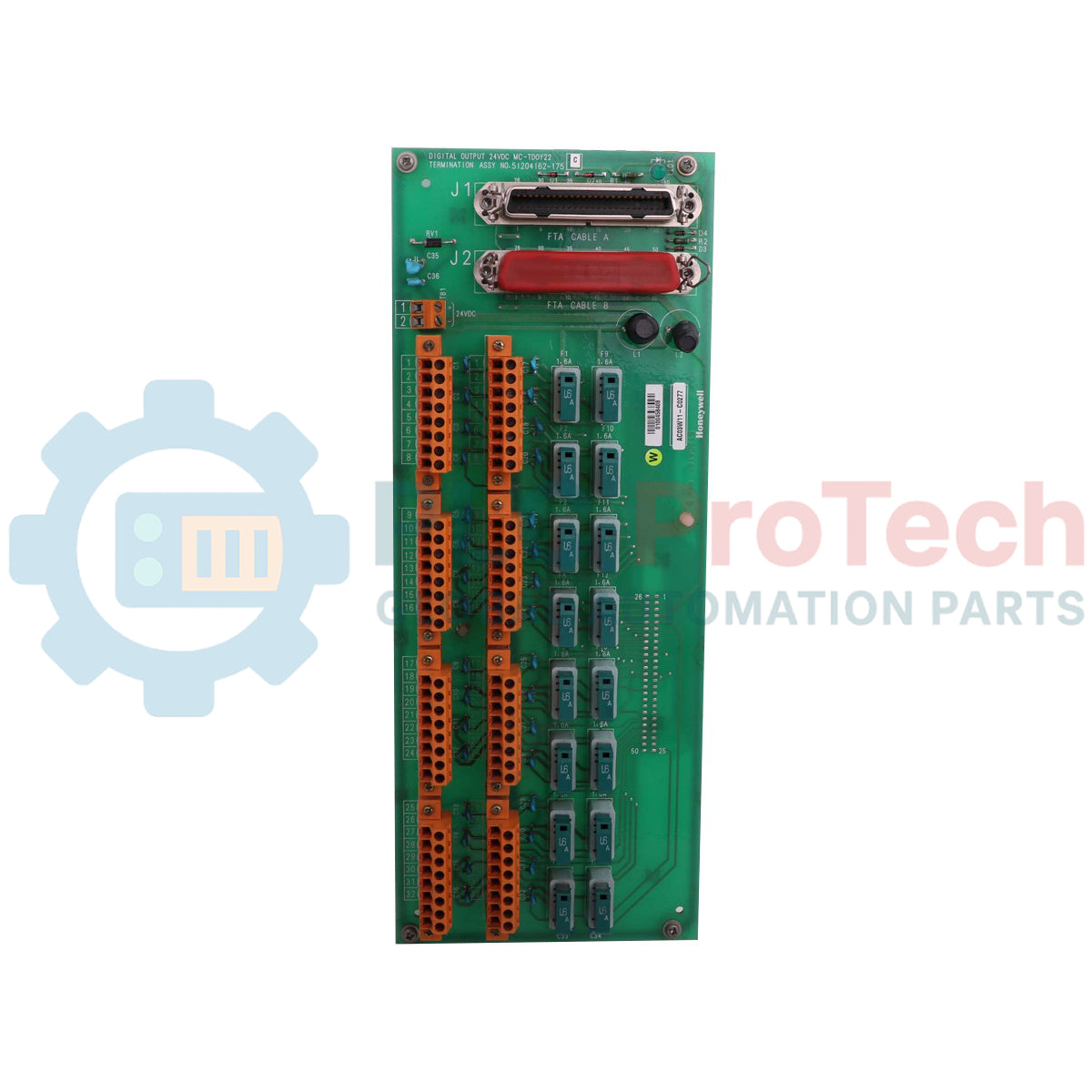

The MC-TDOY22 is a high-density processing component engineered for execution within Honeywell Experion PKS / TDC 3000 distributed control system frameworks. Operating as a dedicated Digital Output Field Termination Assembly (FTA), this hardware assembly manages a 32-channel signal matrix to safely interface controller logic with diverse field equipment, such as external relays, solenoid valves, and indicator lamps.

The module incorporates an advanced open-collector NPN transistor architecture designed for current-sinking operations across a 24 VDC baseline infrastructure. To protect delicate system logic from high-voltage field disturbances, the card utilizes comprehensive photo-coupler galvanic isolation loops. To support highly volatile processing zones, this individual device features a premium conformally coated protective layer (MC-model designation) to shield the circuitry from environmental degradation, airborne moisture, and corrosive chemical tracking.

The hardware layout is optimized for high-availability infrastructures, supporting both single-rack deployments and fully redundant secondary mirroring topologies. For correct baseline operation and parameter synchronization, the assembly must be used exclusively in physical combination with the MU-PDOY22 digital output module block.

Features

• High-Density 32-Channel Matrix: Supports up to 32 independent output channels on a single module, optimizing cabinet real estate and layout density.
• Open-Collector Current Sinking: Employs NPN transistors rated for a 15 to 30 VDC load voltage range, ensuring reliable and deterministic switching execution.
• Photo-Coupler Galvanic Isolation: Enforces strict optical barrier separation up to 30 VAC / ±42.4 VDC maximum relative to common lines to insulate logic states from field noise.
• Conformal Coating Protection: Factory-treated board surface safeguards electrical paths against localized atmospheric impurities and industrial contaminants.
• Flexible Redundant Architecture: Engineered to handle dual-channel physical mapping to maintain continuous control loops during active component swaps.

Applications

• Interfacing digital outputs from Experion PKS / TDC 3000 systems to field actuation loops.
• Solenoid valve coil actuation and safety-interlocked fuel gas valve handling lines.
• Control element switching in offshore oil platforms, chemical plants, and water treatment operations.

System Compatibility

The electrical interface layout limits physical and logical pairing to the following approved systemic combinations:

• Approved Hardware Module: Must be used exclusively alongside the MU-PDOY22 digital output block.
• Model Variants: Features direct operational alignment with the uncoated counterpart designated under model number MU-PDOY22.

Technical Specifications

Installation Guidelines

• Complete Power Source Isolation: Prior to installing the module onto the cabinet mounting rack, completely isolate and lock out all 24 VDC auxiliary power lines and external field load voltage paths feeding the distribution terminal strips. Ensure zero electrical potential is verified at the terminal linkages before clipping the board onto its tracking.
• Continuous ESD Grounding Protocol: This high-density assembly integrates low-power solid-state transistors susceptible to performance degradation from static charge transfers. Maintenance personnel must wear a properly verified anti-static wrist strap connected to a solid earth ground during all handling operations.
• Fusing Integrity and Line Balancing: Verify that the 1.6 A protection fuses are firmly seated within their designated compression holder channels (mapped at 1 fuse per 2 points). Do not exceed the structural current thresholds of 0.5 A per channel or 5.0 A cumulative across the entire 32-channel network to avoid thermal stress or premature fuse degradation.
• Redundant Cable Tracking Alignment: For dual-channel redundant automation loops, ensure that the communication cabling assemblies linking back to the primary and secondary MU-PDOY22 module lines are securely locked into the interface headers, with retention screws tightened uniformly.
