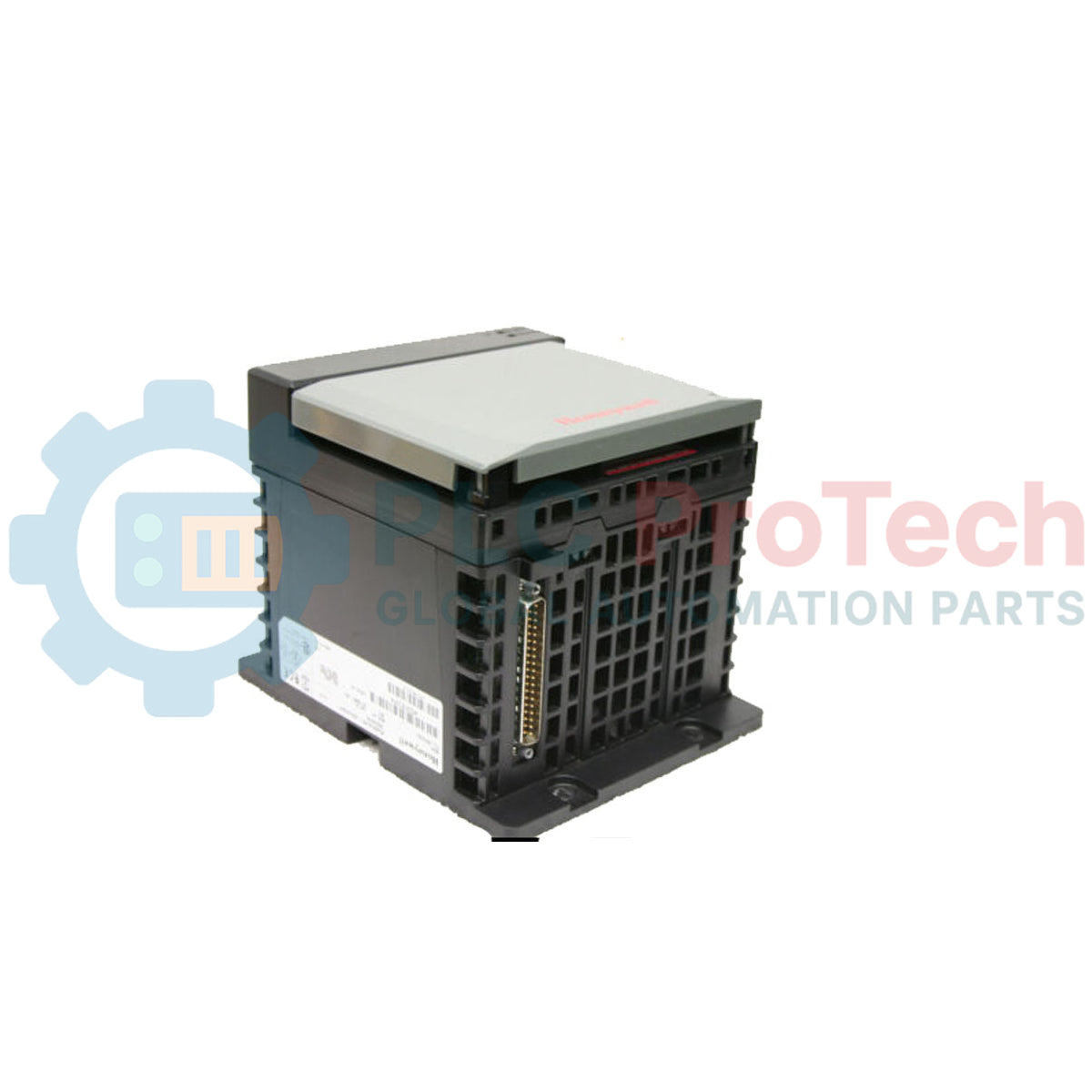

Providing continuous system-level power diagnostics and hot-swappable fault tolerance, the Honeywell TC-RPCXX1 serves as a high-reliability redundant power supply module engineered for industrial control environments. This robust hardware solution integrates seamlessly into Honeywell control system architectures to deliver clean, regulated power directly to critical controllers and input/output backplanes. Designed with active load-sharing and dual-diode auctioning circuitry, the TC-RPCXX1 ensures that a single supply failure does not disrupt process operations, making it essential for high-availability process automation networks.
| Manufacturer | Honeywell |
| Model / Article Number | TC-RPCXX1 |
| Product Type | Redundant Power Supply Module |
| Input Voltage Range | 85 - 265 VAC |
| Frequency Range | 47 - 63 Hz |
| Maximum Inrush Current | 20 A |
| Input Power Rating | 110 VA (Estimated) |
| Cooling Method | Natural convection |
| Shipping Weight (Calculated) | 3.0 kg (6.6 lbs) |
| Package Dimensions (Calculated) | 280 x 180 x 120 mm |
The TC-RPCXX1 module is directly compatible with redundant power carrier bases designed for Honeywell control systems. When replacing legacy non-redundant installations, ensure that the active backplane supports dual diode-Ored supply configurations. Always verify firmware-level diagnostics match current controller revisions, as older systems may display spurious warning alarms during live hotswap cycles if the carrier board configuration mismatch is present.
A common issue encountered in field environments is the failure of natural convection when these power modules are crowded into high-density panels. Although rated for standard industrial temperatures, maintaining vertical clearance is critical. Avoid placing heat-generating components directly beneath the TC-RPCXX1 chassis. Operating the unit continuously at high ambient levels without active air circulation can reduce the lifespan of internal high-temperature electrolytic filtering capacitors.
For absolute high-availability redundancy, route the incoming AC power lines from two separate, independent UPS sources (e.g., Line A and Line B). Ensure that the frame ground (FG) lug is bonded directly to a low-impedance master ground bus. Running parallel AC lines in separate conduits is highly recommended to eliminate the risk of single-point cable failures disrupting both power input lines simultaneously.
CRITICAL WARNING: HIGH VOLTAGE
Do not attempt physical installation, wiring modification, or live replacement of the redundant power system without verifying that all feeder breakers are locked and tagged out (LOTO). Internal components retain high capacitive charge even after primary AC isolation. Wait at least five (5) minutes after disconnecting power before handling internal terminal assemblies.
