Description

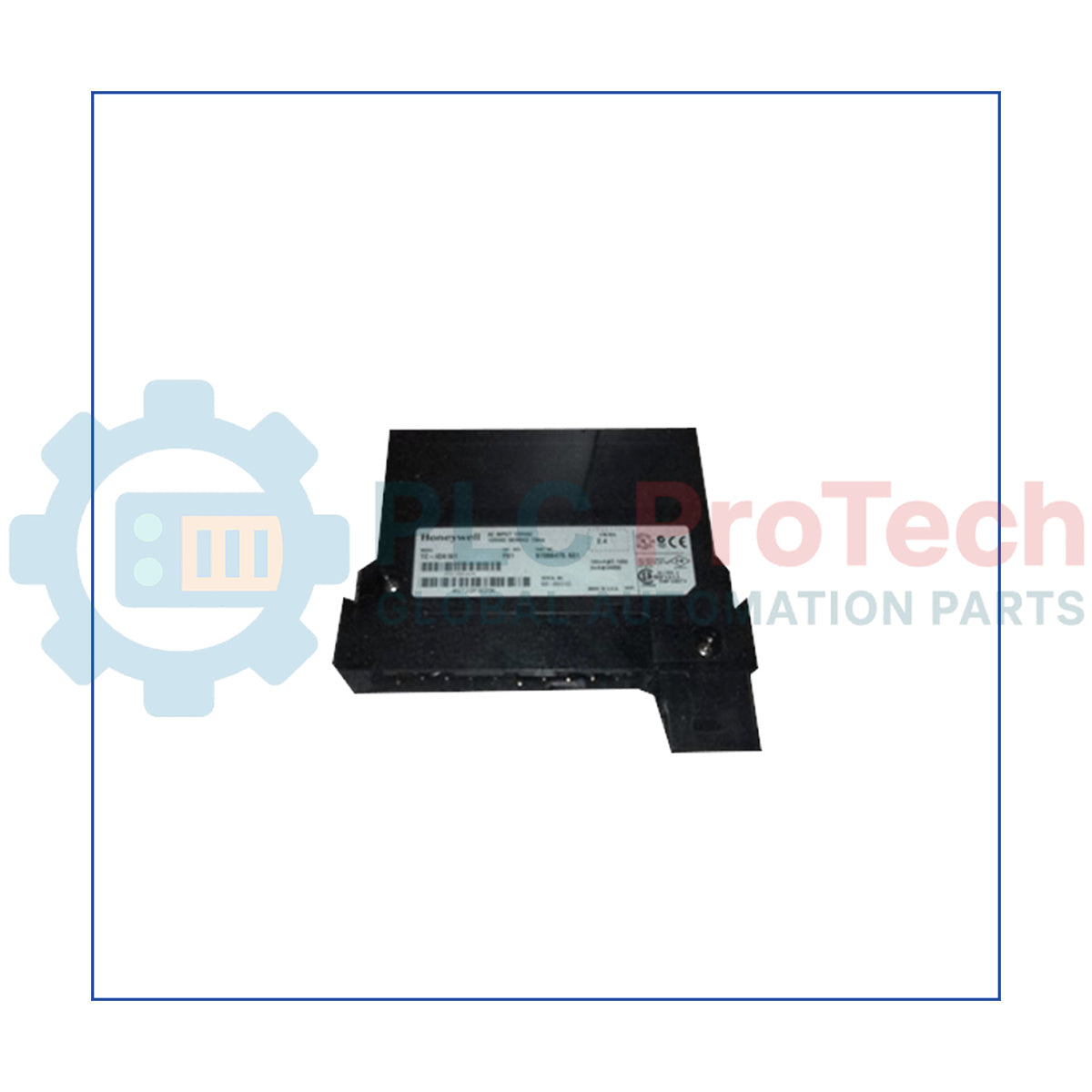

The TK-OAH061 functions as a high-density analog signal routing interface within the Honeywell Experion PKS C200 controller chassis. This module provides six galvanically isolated current channels to drive external field components based on internal processing logic from the controller. It converts digital controller values into standard current loops to precisely modulate regulatory hardware such as control valve positioners, variable speed drive references, actuators, and industrial dosing pumps.

Operating across a flexible current span, the hardware maintains distinct signal isolation to prevent ground loops and shield processing logic from field-side electrical interference. Each output loop incorporates embedded overload protection and current limiting mechanisms to ensure high continuous loop uptime. The module's engineering structure facilitates real-time deterministic updates across all active loops, supporting stable closed-loop control applications across critical process manufacturing facilities.

Features

• Galvanically Isolated Channels: Protects internal backplane electronics and microprocessors by eliminating ground loop noise between channels and system components.
• Onboard Overvoltage Protection: Safely handles continuous voltage faults at room temperature without compromising the integrity of adjacent signal loops.
• Electronically Limited Output: Automatically restricts output current during short-circuit faults to safeguard field wiring and terminations.
• High-Resolution Conversion: Delivers fine granularity over the operational current band to ensure precise process valve modulating capabilities.

Applications

• Variable frequency drive speed reference modulation and remote setpoint transmission.
• Proportional control for electronic valve actuators, dampers, and positioners.
• Interface connections to strip chart recorders, local panel indicators, and continuous dosing sub-systems.

Technical Specifications

The specifications listed below are derived from official engineering reference documentation for the Honeywell module family, including image_3bb1ec.png:

Installation Guidelines

• Chassis Alignment: Match the module circuit board with the top and bottom tracking guides of the designated C200 chassis slot, pressing firmly until the retention latches snap engaged.
• Terminal Block Attachment: Use the specified TC-TBNH 20-position terminal block for field wiring terminations, ensuring screws are fully tightened to eliminate intermittent resistive contacts.
• Loop Load Verifications: Confirm total loop resistance does not exceed 500 ohms under standard operating layouts, or implement alternate approved field terminations if driving up to 1000 ohm loads.
• Signal Cable Routing: Run low-voltage current loop wiring in dedicated conduits isolated from high-voltage motor starters, switchgear, and power lines to reduce RFI/EMI interference.

FAQ

What is the update rate for the output channels on this module?

The module updates all six analog output channels simultaneously within a fixed update interval of 25 milliseconds.

How does the card protect its internal circuits if a field wire shorts out?

The module features integrated short-circuit protection that electronically limits the output current to 21 mA or less, preventing component damage.

Is an external terminal base needed to connect field instrumentation wires?

Yes, field instrumentation wires terminate directly into a compatible TC-TBNH 20-position terminal block assembly mapped to the module front interface.

Can this module drive a 4-20 mA control loop device?

Yes, the hardware delivers an output current range of 0 to 21.0 mA, making it fully compatible with standard industrial 4-20 mA control devices.
