ICS Triplex

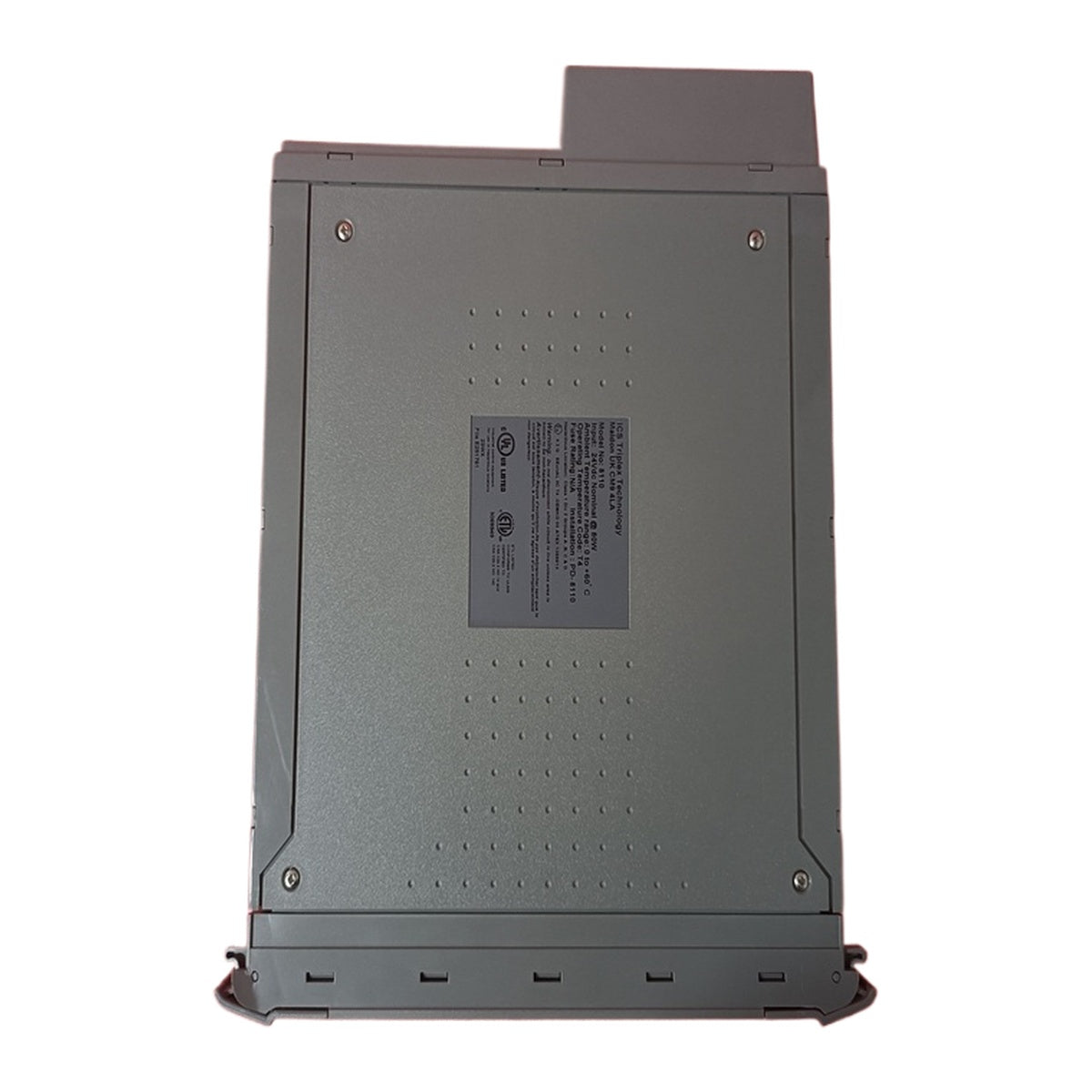

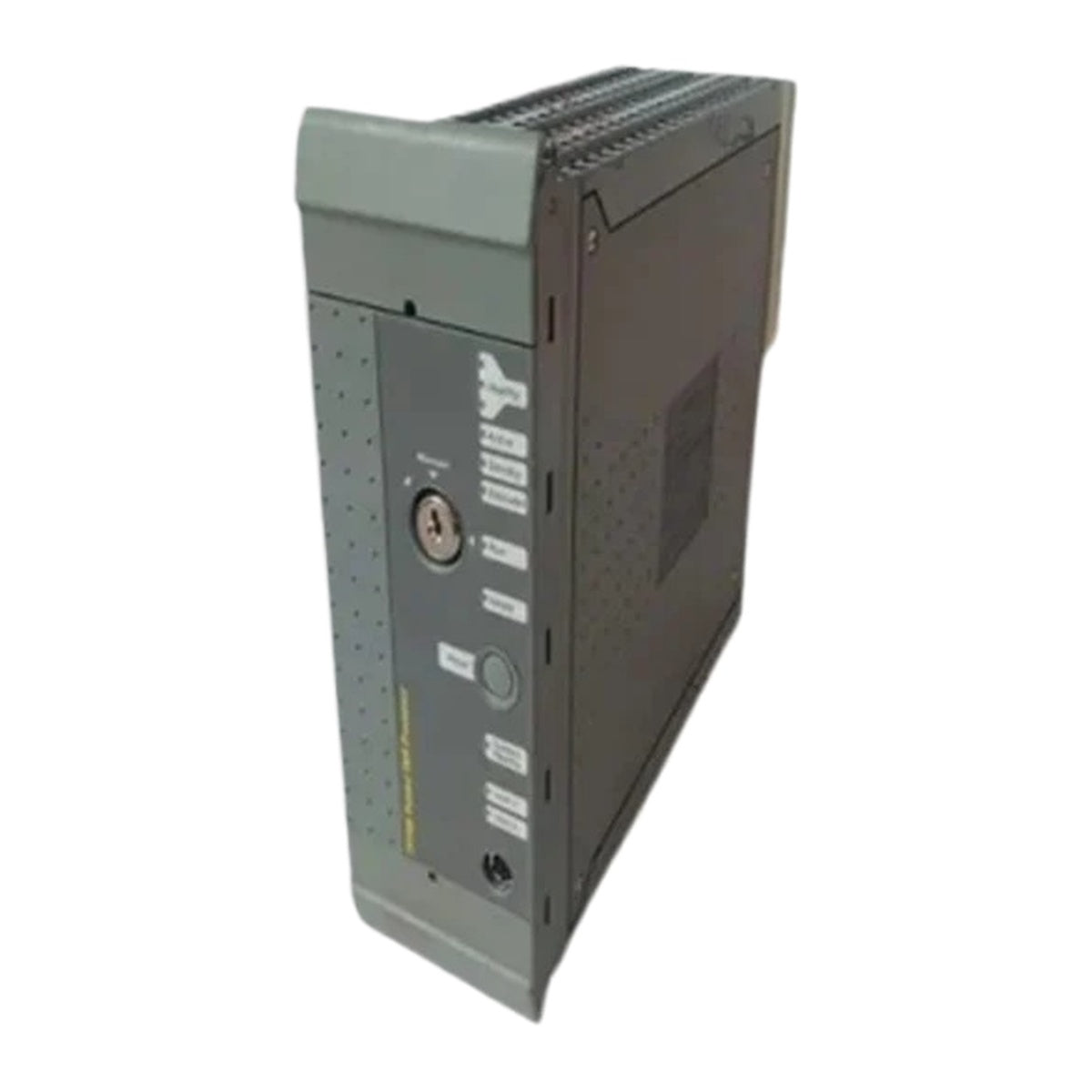

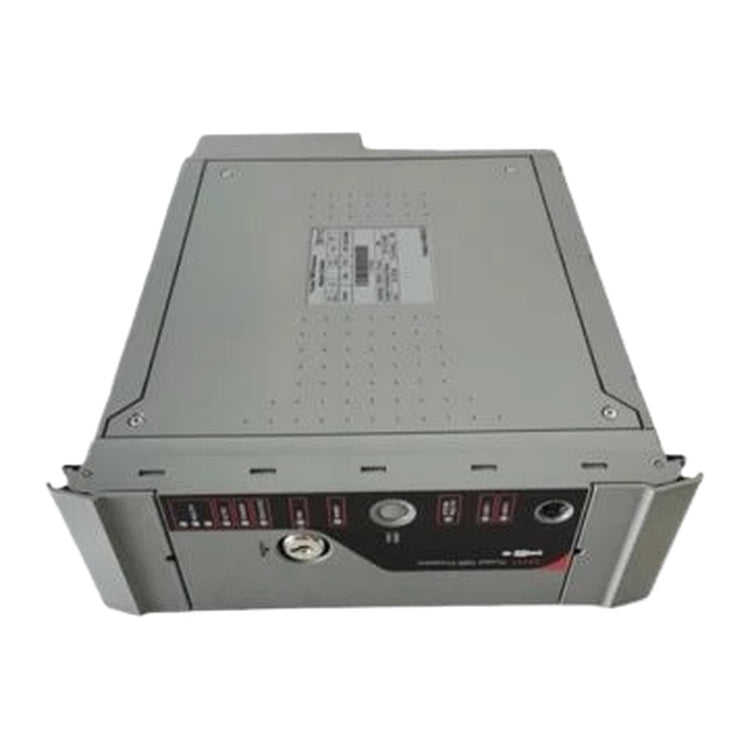

ICS Triplex T8110 Trusted TMR Processor Module

SKU T8110

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ICS Triplex
Product No.: T8110
Origin United States
Product Type: Processor Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 2.94 kg
Dimensions: 266 mm x 93 mm x 303 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The ICS Triplex T8110 is a main processing component designed for high-integrity automation and safety applications within a Trusted system. The ICS Triplex T8110 provides overall system control and monitoring facilities while processing input and output data received from various analogue and digital I/O modules across a triplicated Inter-Module Communications Bus. Utilizing a Triple Modular Redundant architecture operating in a lock-step configuration, it is suitable for critical industrial applications including fire and gas control, emergency shutdown, monitoring and control, and turbine control.

Features

Triple Modular Redundant (TMR), fault-tolerant (3-2-0) operation.
Hardware Implemented Fault Tolerant (HIFT) architecture.
Dedicated hardware and software test regimes for fast fault recognition and response times.
Automatic fault handling without nuisance alarming.
Time-stamped fault historian.
Hot replacement capability without the need to re-load programs.
Full suite of IEC 61131-3 programming languages.
Front panel status indicators displaying module health and operational state.
Front panel RS232 serial diagnostics port for system monitoring, configuration, and programming.
Active and Standby processor fault and failure relay contacts.

Applications

Fire and Gas Control Systems
Emergency Shutdown (ESD) Systems
Critical Process Monitoring and Control
Turbine Control Systems

Technical Specifications

Parameter	Specification
Manufacturer	ICS Triplex / Rockwell Automation
Voltage Range	20 Vdc to 32 Vdc
Maximum Load	80 W
Heat Dissipation	80 W
Compatible Chassis	T8100
Processor Clock	100 MHz
Memory Type and Size (DRAM)	16 MB EDO 60 ns
Memory Type and Size (EPROM)	512 kB
Memory Type and Size (FLASH)	2 MB
Memory Type and Size (NVRAM)	128 kB
Retained Variable Storage	4 KB
SOE Buffer Size	1000 events (transferred to CI buffer of 4000 events)
I/O Interface	Triple redundant Inter-Module Bus
Operating Temperature	0 degC to 60 degC
Non-operating Temperature	-25 degC to 70 degC
Relative Humidity	10% to 95%, non-condensing
Dimensions (H x W x D)	266 mm x 93 mm x 303 mm
Weight	2.94 kg

Connections/Interfaces

Connector Pin	Function
PL1-A2	Fault relay (NC)
PL1-A4	Fault relay (common)
PL1-A6	Fault relay (NO)
PL1-A10	5V D
PL1-A12	DATA_OUT
PL1-A14	ENABLE
PL1-A16	DATA_IN
PL1-A18	CLK
PL1-A20	0V
PL1-A22	Chassis GND
PL1-A24	Chassis GND
PL1-A26	Chassis GND
PL1-A28	24 V PSU 1 LV Warning Shutdown
PL1-A30	24 V PSU 2 LV Warning Shutdown
PL1-A32	24 V Return
PL1-C2	DIAG_RTN
PL1-C4	DIAG_IN_1
PL1-C6	0 V Port 1
PL1-C8	Serial Port 1 B
PL1-C10	Serial Port 1 A
PL1-C12	0V Port 2
PL1-C14	Serial Port 2 B TX
PL1-C16	Serial Port 2 A TX
PL1-C18	Serial Port 2 B RX/TX
PL1-C20	Serial Port 2 A RX/TX
PL1-C22	0 V Port 3
PL1-C24	Serial Port 3 B TX
PL1-C26	Serial Port 3 A TX
PL1-C28	Serial Port 3 B RX/TX
PL1-C30	Serial Port 3 A RX/TX
PL1-C32	24 V Return
PL1-E2	Failed relay (NC)
PL1-E4	Failed relay (common)
PL1-E6	Failed relay (NO)
PL1-E10	IRIG-B122+
PL1-E12	IRIG-B122-
PL1-E18	IRIG-B002-
PL1-E20	IRIG-B002+
PL1-E22	Chassis GND
PL1-E24	Chassis GND
PL1-E26	Chassis GND
PL1-E28	24V PSU 1 Fail
PL1-E30	24V PSU 2 Fail
PL1-E32	24V Return

Installation Guidelines

Inspection: Visually inspect the module housing and rear I/O connector pins for damage or bending prior to installation. Do not attempt to straighten bent pins.
ESD Precautions: Static handling precautions must be observed. Avoid touching exposed connector pins and do not dismantle the module housing.
Module Insertion: Open the ejector tabs fully using the release key, insert the module carefully into the designated slot, and press on the top and bottom fascia until seated. Close ejector tabs to lock in place.
Active/Standby Transfer Safety: Under no circumstances remove a module indicating Active mode. Removal of an active module may result in system shutdown or default states being adopted.

Compliance and Certifications

TÜV Certified IEC 61508 SIL 3

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What architecture is used in the module?

The module utilizes a Triple Modular Redundant (TMR) architecture with a Hardware Implemented Fault Tolerant (HIFT) clock system operating in a lock-step configuration.

What is the operating temperature range for the device?

The operating temperature range for the device is from 0 degC to 60 degC.

What memory types are integrated into the processor module?

The module includes 16 MB DRAM, 512 kB EPROM, 2 MB FLASH, and 128 kB NVRAM.

Does the processor support hot swapping?

Yes, the module supports hot replacement without needing to re-load programs, provided proper installation guidelines and active/standby procedures are followed.
