ICS Triplex

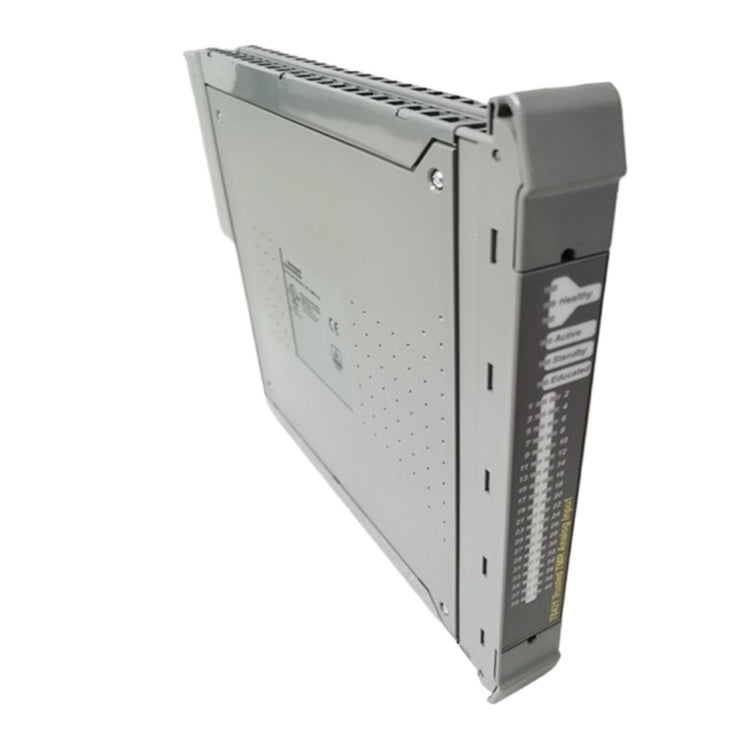

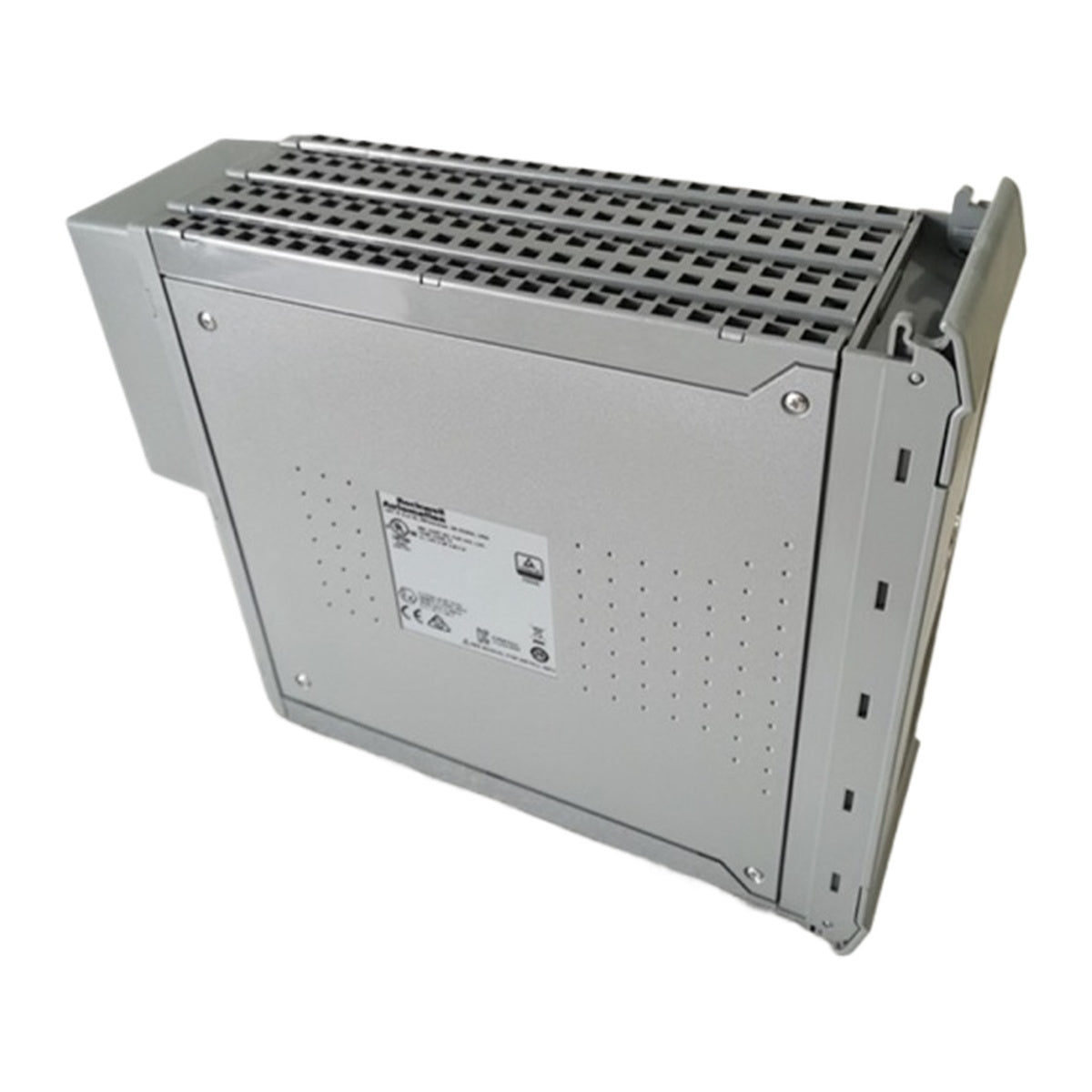

ICS Triplex T8402 Trusted Dual 24 Vdc Digital Input Module - 60 Channel

SKU T8402

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ICS Triplex
Product No.: T8402
Origin United States
Product Type: Digital Input Module
Payment: T/T, Western Union
Weight: 1.16 kg
Dimensions: 303 mm x 266 mm x 31 mm (D x H x W)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The ICS Triplex T8402 is a high-density digital input interface module designed for fault-tolerant operation within the Trusted Safety Instrumented System (SIS) and critical process control platforms. The device interfaces with up to 60 field input devices, utilizing a One-Out-Of-Two D (1oo2D) voting architecture across all channels to provide comprehensive fault detection and tolerance. Each input line is duplicated and measured via sigma-delta ($\Sigma\Delta$) input circuits, enabling precise voltage conversion and real-time comparison against user-configurable threshold levels for contact state determination and open or short circuit line monitoring.

Features

60 duplicated input channels per module providing 1oo2D voting architecture.
Individual sigma-delta ($\Sigma\Delta$) analog-to-digital converters for each channel on every slice.
Selectable line monitoring per channel for open-circuit and short-circuit field wiring fault detection.
Integrated Sequence of Events (SOE) reporting with 1 ms event resolution and $\pm$10 ms time-stamp accuracy.
Configurable 50/60 Hz digital filtering to reduce field-induced electrical noise.
Hot-swappable online replacement via dedicated Companion Slot or SmartSlot configurations.
Front panel tri-color LED indicators for slice health, operational mode, and module status voting.
2500 V impulse withstand isolation barrier for field protection.

Applications

Emergency Shutdown Systems (ESD)
Fire and Gas Detection Systems (F&G)
Burner Management Systems (BMS)
Turbomachinery Control and Safety
High-Integrity Pressure Protection Systems (HIPPS)
Critical Industrial Process Automation and Safety Instrumented Functions (SIF)

Technical Specifications

Parameter	Specification
Manufacturer	Rockwell Automation / ICS Triplex
Model	T8402
Series	Trusted
Number of Channels	60 Channels
Backplane (IMB) Voltage	20 Vdc to 32 Vdc
Backplane Power	20 W
Maximum Power Dissipation	20 W
Field Common Insulation	50 V Reinforced (continuous), 250 V Basic (fault)
Test Withstand Voltage	Type tested at 2436 Vdc for 60 s
Measurement Range	0 Vdc to +40 Vdc
Maximum Withstanding Voltage	$\pm$50 Vdc
Safety Accuracy	0.5 Vdc Full Scale
Input Impedance (FTA)	5 kOhm
Expected Current Consumption	4.8 mA per channel @ 24 Vdc
Event Resolution (SOE)	1 ms
Time-stamp Accuracy	$\pm$10 ms
Operating Temperature	0 degC to +60 degC (+32 degF to +140 degF)
Storage Temperature	-25 degC to +70 degC (-13 degF to +158 degF)
Relative Humidity	10% to 95%, non-condensing
Dimensions (H x W x D)	266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12.0 in)
Weight	1.16 kg (2.6 lb)

Connections/Interfaces

Connector Pin	Function
A1 / B1 / C1	SmartSlot Link A / B / C
A2 / B2 / C2	Not Connected (NC)
A3 / B3 / C3	Chan 0 ABC / Chan 14 AB / Chan 28 BC
A4 / B4 / C4	Chan 0 ABC / Chan 54 C / Chan 48 A
A5 / B5 / C5	Chan 1 AB / Chan 15 AB / Chan 29 BC
A6 / B6 / C6	Chan 41 C / Chan 55 C / Chan 49 A
A7 / B7 / C7	Chan 2 AB / Chan 16 AB / Chan 30 BC
A8 / B8 / C8	Chan 42 C / Chan 56 C / Chan 50 A
A9 / B9 / C9	0V Common
A10 / B10 / C10	Chan 3 AB / Chan 17 AB / Chan 31 BC
A11 / B11 / C11	Chan 43 C / Chan 57 C / Chan 51 A
A12 / B12 / C12	Chan 4 AB / Chan 18 AB / Chan 32 BC
A13 / B13 / C13	Chan 44 C / Chan 58 C / Chan 52 A
A14 / B14 / C14	Chan 5 AB / Chan 19 AB / Chan 33 BC
A15 / B15 / C15	Chan 45 C / Chan 59 C / Chan 53 A
A16 / B16 / C16	Chan 6 AB / Chan 20 AB / Chan 34 BC
A17 / B17 / C17	Chan 46 C / Chan 60 C / Chan 54 A
A18 / B18 / C18	Chan 7 AB / Chan 21 BC / Chan 35 BC
A19 / B19 / C19	Chan 47 C / Chan 41 A / Chan 55 A
A20 / B20 / C20	0V Common
A21 / B21 / C21	Chan 8 AB / Chan 22 BC / Chan 36 BC
A22 / B22 / C22	Chan 48 C / Chan 42 A / Chan 56 A
A23 / B23 / C23	Chan 9 AB / Chan 23 BC / Chan 37 BC
A24 / B24 / C24	Chan 49 C / Chan 43 A / Chan 57 A
A25 / B25 / C25	Chan 10 AB / Chan 24 BC / Chan 38 BC
A26 / B26 / C26	Chan 50 C / Chan 44 A / Chan 58 A
A27 / B27 / C27	Chan 11 AB / Chan 25 BC / Chan 39 BC
A28 / B28 / C28	Chan 51 C / Chan 45 A / Chan 59 A
A29 / B29 / C29	Chan 12 AB / Chan 26 BC / Chan 40 BC
A30 / B30 / C30	Chan 52 C / Chan 46 A / Chan 60
A31 / B31 / C31	Chan 13 AB / Chan 27 BC / Chan 61 ABC
A32 / B32 / C32	Chan 53 C / Chan 47 A / Chan 61 ABC

Installation Guidelines

Visual Inspection: Inspect the unit housing and rear connector pins for mechanical damage prior to chassis insertion. Do not attempt to straighten bent pins.
Module Keying: Ensure polarising keying pins are configured according to system specifications. For model T8402, remove keying pins 1, 3, and 4 on the cable hood.
Insertion Procedure: Release ejector tabs using the release key, align the unit with the chassis slot guides, and slide in smoothly until seated. Close top and bottom ejector levers until fully locked.
Hot Swapping: Online replacement is supported using a dedicated Companion Slot or SmartSlot configuration. Verify SmartSlot interconnect wiring before performing standby swap operations.
Electrostatic Precaution: Static handling procedures must be maintained. Do not touch exposed pin connections or attempt disassembly of the module enclosure.

Compliance and Certifications

TÜV Certified IEC 61508 SIL 3

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the channel capacity of the module?

The module provides 60 duplicated digital input channels featuring a 1oo2D voting architecture for fault tolerance.

Does the device support line monitoring on input channels?

Yes, line monitoring for open-circuit and short-circuit detection can be configured independently on a per-channel basis.

What is the Sequence of Events (SOE) timestamp accuracy of the device?

The device provides on-board Sequence of Events reporting with an event resolution of 1 ms and a time-stamp accuracy of +/-10 ms.

Can the module be replaced without shutting down the system?

Yes, the module supports online hot replacement using either dedicated Companion Slot or SmartSlot configurations.
