Product Overview

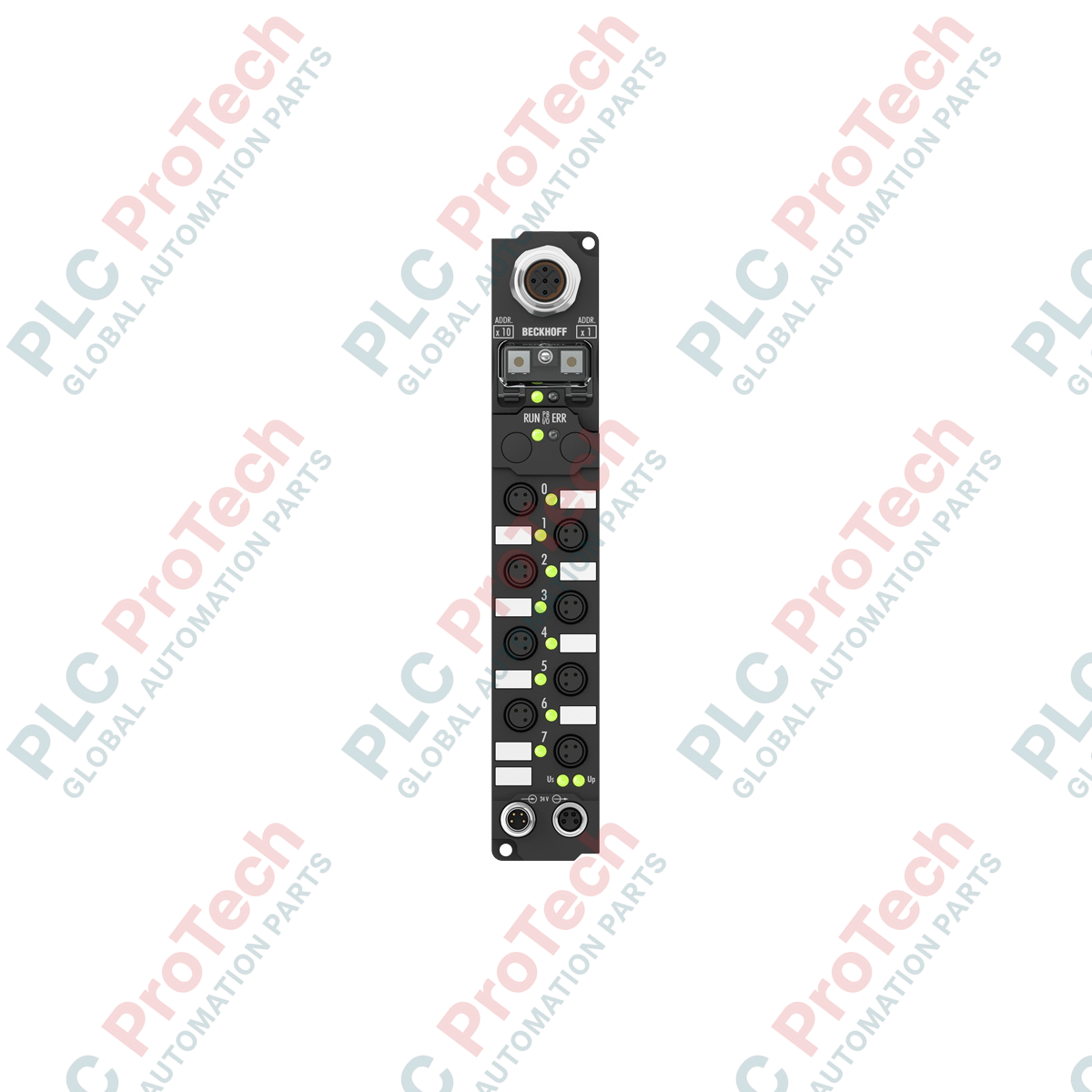

The IP1010-B310 (IP1010B310) is a high-performance Fieldbus Box designed for decentralized automation tasks without the need for a control cabinet. Featuring 8-channel digital inputs, this module interfaces directly with PROFIBUS DP networks to provide rapid signal acquisition in the field. Engineered for harsh industrial environments, it operates at 24 VDC and boasts a lightning-fast filter constant of 0.2 ms, making it ideal for high-speed counting, sensor monitoring, and discrete logic in conveyor systems, packaging machinery, and automotive assembly lines. Its IP67-rated housing ensures complete protection against dust and moisture, allowing for direct mounting on machines to reduce wiring overhead and system latency.

Communication & Hardware Architecture

The Beckhoff IP1010-B310 utilizes the PROFIBUS DP protocol for robust, deterministic communication with a master controller. The "B310" designation identifies its specific fieldbus interface, which supports high-speed data transmission rates up to 12 Mbaud. The module is equipped with eight Ø8 mm (M8) screw type connectors for digital inputs, ensuring a vibration-resistant connection in mobile or high-impact applications. The internal logic is powered via the fieldbus connection, while the sensors are supplied by the 24 VDC power line. This dual-supply architecture allows for the maintenance of bus communication even if the sensor power is interrupted, providing critical diagnostic feedback to the PLC.

Technical Specifications

Technical FAQs

How does the 0.2 ms filter constant impact high-speed applications?

The 0.2 ms input filter is designed to minimize signal propagation delay. This allows the IP1010-B310 to detect very short pulses from high-speed sensors, such as those used in rapid sorting or synchronization tasks, providing significantly higher precision than standard 3.0 ms industrial inputs.

What is the advantage of the M8 (Ø8 mm) connector type?

The Ø8 mm M8 connectors provide a compact yet rugged interface. This allows for a higher density of I/O in a small form factor compared to M12 connectors, while still maintaining the IP67 sealing required for machine-mount applications where exposure to cutting fluids or washdown is expected.

Does this module require a separate power feed for the PROFIBUS line?

The PROFIBUS communication is powered via the fieldbus cable; however, the 24 VDC sensor power must be supplied through the designated power port. This ensures that the sensors have sufficient current without loading the communication line.

Engineering & Installation Guide

• Connector Torque: When installing M8 sensor cables, use a torque wrench to tighten the Ø8 connectors to exactly 0.4 Nm. Over-tightening can damage the internal O-ring, while under-tightening can lead to signal loss or moisture ingress in IP67 environments.

• PROFIBUS Termination: If the IP1010-B310 is the last device on the PROFIBUS segment, a terminating resistor must be used. Ensure the termination is active to maintain signal integrity and prevent data reflections on the RS485 physical layer.

• Cable Routing: To avoid electromagnetic interference (EMI), route the 24 VDC power cables at least 10 cm away from high-voltage AC motor leads. Use shielded PROFIBUS cables to ensure reliable data transmission at 12 Mbaud.

Engineering Advantages

The IP1010-B310 is built for the "cabinet-free" automation philosophy. Its compact dimensions allow it to be tucked into small machine recesses, significantly reducing the amount of copper wiring required to bring signals back to a central PLC. The ruggedized housing is resistant to mechanical shocks and vibration, making it a staple in heavy-duty manufacturing. Furthermore, the module's seamless integration into the Beckhoff TwinCAT environment or any standard PROFIBUS GSD configuration ensures rapid commissioning and easy diagnostic mapping for maintenance personnel.
