Product Overview

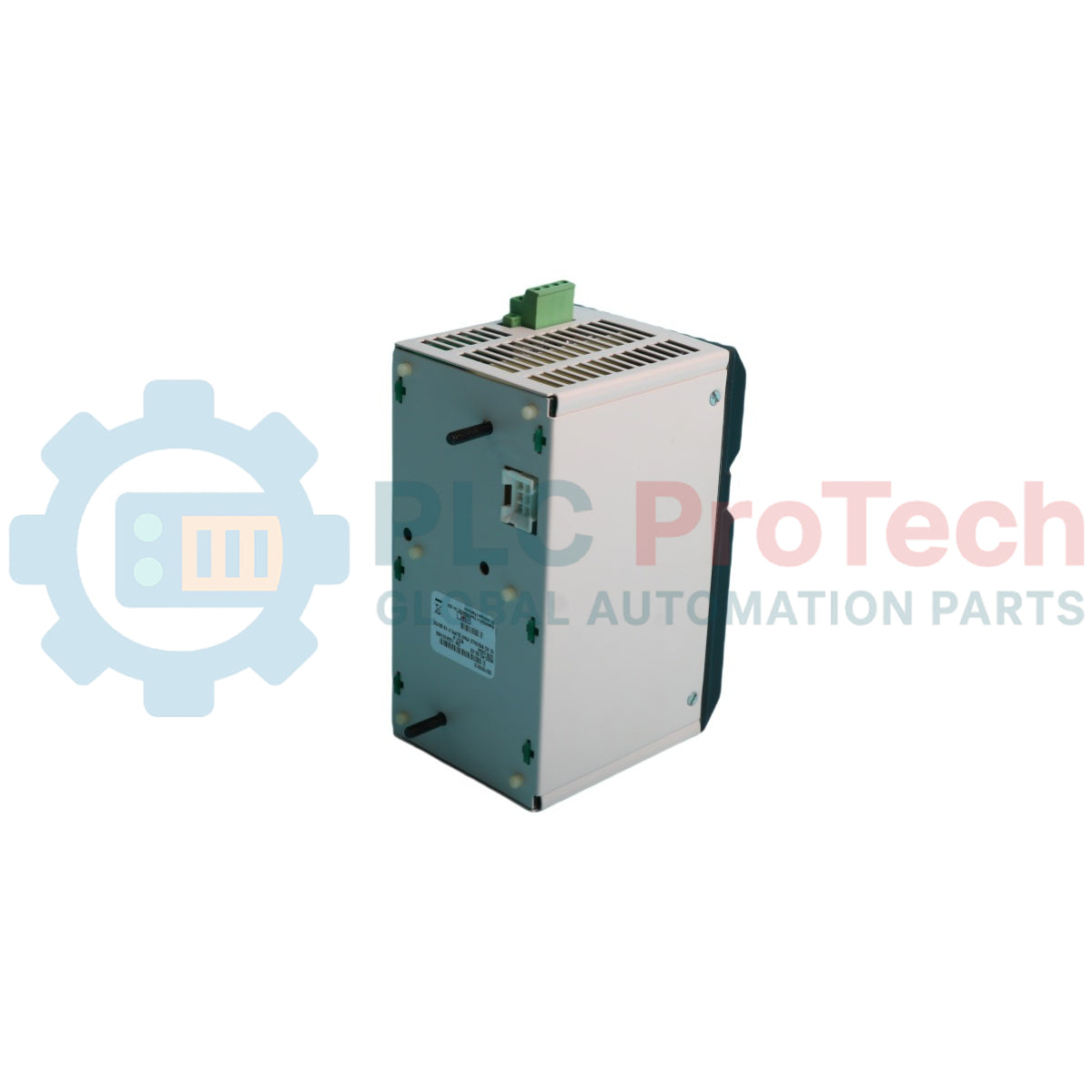

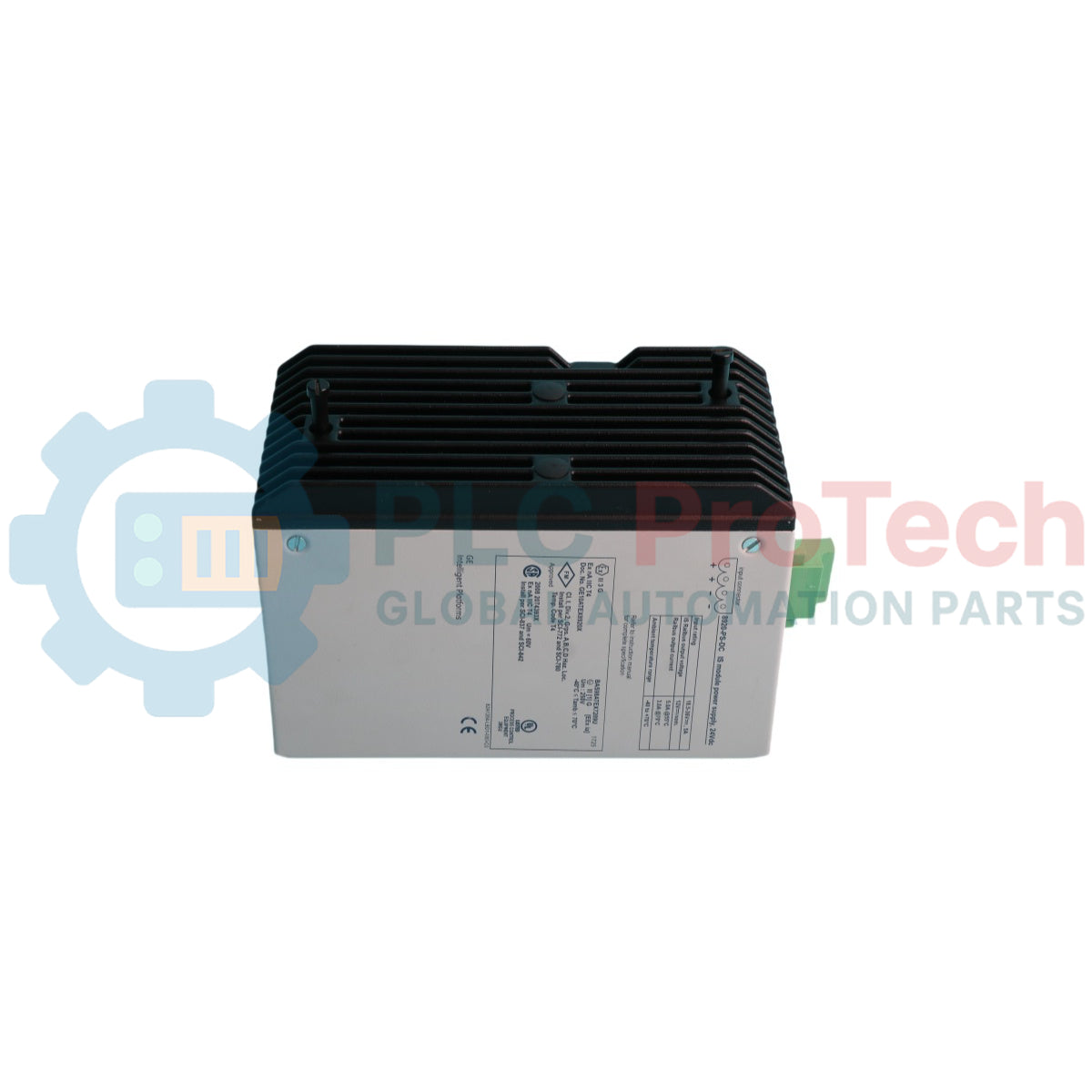

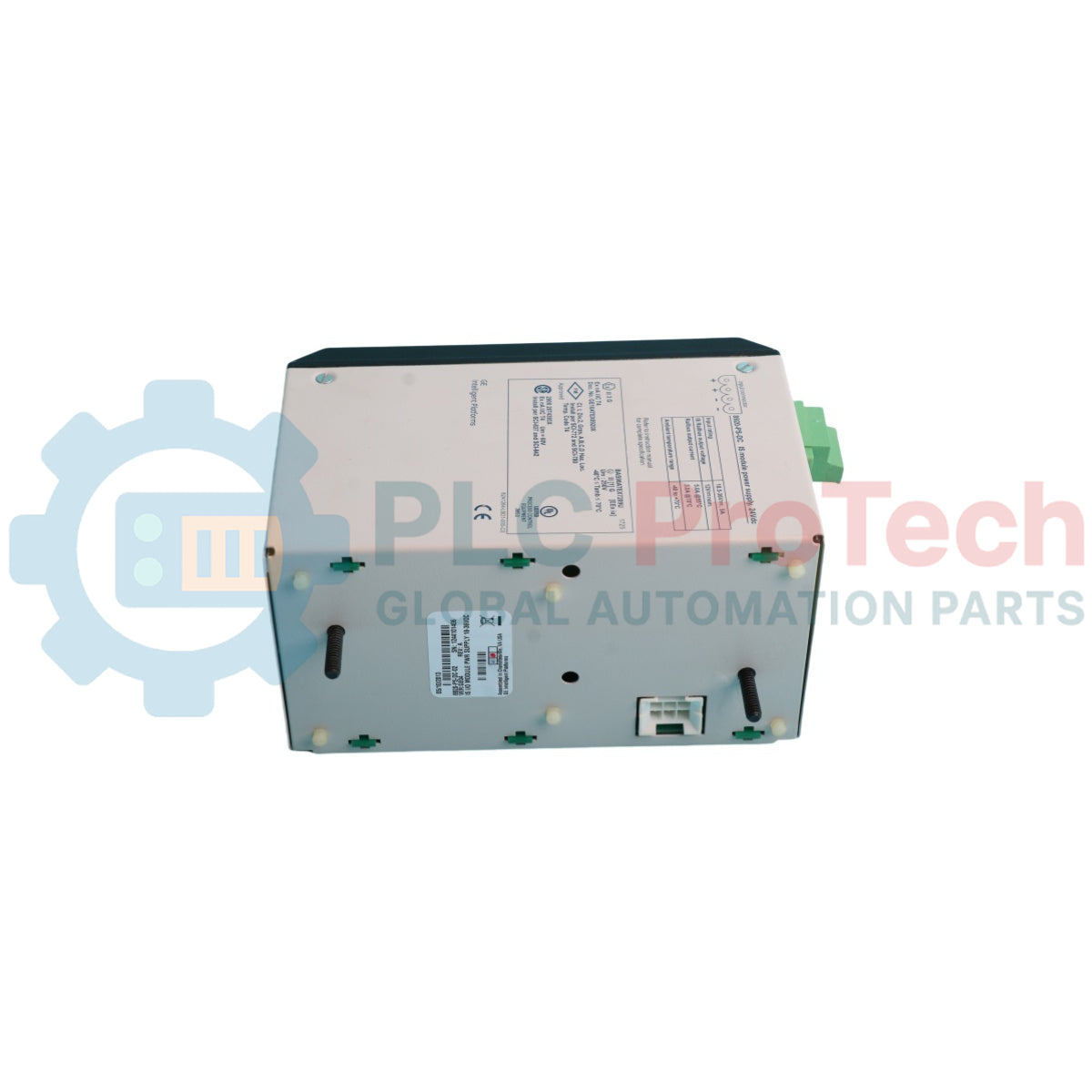

The MTL 8502-BI-DP (MTL8502BIDP) is a high-performance Bus Interface (BI) module designed to bridge the gap between Eaton’s MTL 8500 series I/O system and a PROFIBUS-DP master controller. This module acts as the "brain" of the I/O rack, managing communication between the field-side I/O modules and the higher-level DCS or PLC. It is specifically engineered for critical process automation applications in sectors such as power generation, oil and gas, and pharmaceutical manufacturing. By providing a reliable, high-speed gateway, the MTL 8502-BI-DP ensures that digitized field data is accurately reported to the control system, facilitating real-time monitoring and deterministic control of complex industrial processes.

Technical Configuration (Deep Dive)

The MTL 8502-BI-DP is built on a high-speed communication architecture that prioritizes data integrity and network resilience.

• PROFIBUS-DP Protocol Support: Full compliance with the PROFIBUS-DP standard, supporting baud rates from 9.6 kbps up to 12 Mbps. This allows the module to integrate seamlessly into existing industrial networks regardless of the master controller brand.

• I/O Scanning Logic: The module manages the scanning of up to 32 I/O modules on a single backplane. It collects analog and digital data, performs internal diagnostics, and packages the information into PROFIBUS telegrams.

• Redundancy Capabilities: When installed on a redundant backplane, two MTL 8502-BI-DP modules can operate in a primary/secondary configuration. If the primary module or its network link fails, the secondary module takes over communication instantly, preventing system-wide downtime.

• Galvanic Isolation: Features 500 V AC isolation between the PROFIBUS network and the internal I/O bus, protecting the backplane and field modules from potential network-side surges and common-mode noise.

Technical Specifications

Technical FAQs

Q1: How is the PROFIBUS address set on the MTL 8502-BI-DP?

A1: The module address can be set either via hardware rotary switches located on the front of the unit or through software configuration using the GSD file in the PROFIBUS master’s configuration tool.

Q2: Does the module support hot-swapping?

A2: Yes, the MTL 8502-BI-DP is designed for live insertion and removal. In a redundant setup, you can replace a faulty interface module without disrupting the communication between the I/O rack and the DCS.

Q3: What diagnostic information is available via the PROFIBUS network?

A3: The module provides comprehensive status data, including backplane power health, I/O module presence/failure, and network communication errors, allowing for granular troubleshooting from the control room.

Engineering & Installation Guide

• Network Termination: Ensure that the PROFIBUS-DP line is correctly terminated at both ends of the segment. If the MTL 8502-BI-DP is the last device on the network, use a PROFIBUS connector with an integrated, active termination switch set to "ON."

• GSD File Integration: Before commissioning, import the correct GSD (General Station Description) file into your PLC/DCS hardware configuration. This file contains the critical timing and parameter information required for the master to recognize the MTL 8500 system.

• Shielding Practices: Use only high-quality, shielded PROFIBUS (purple) cable. The shield must be continuously connected through all connectors and grounded at the point of entry into the control cabinet to minimize RFI/EMI interference.

Engineering Advantages

The MTL 8502-BI-DP stands out for its extreme reliability in high-vibration and high-temperature environments. Its ability to manage large I/O counts through a single PROFIBUS node significantly reduces the cost of network infrastructure. Furthermore, the module's transparency to advanced diagnostics enables predictive maintenance strategies, helping plant operators identify deteriorating field conditions before they lead to hardware failure.
