Product Overview

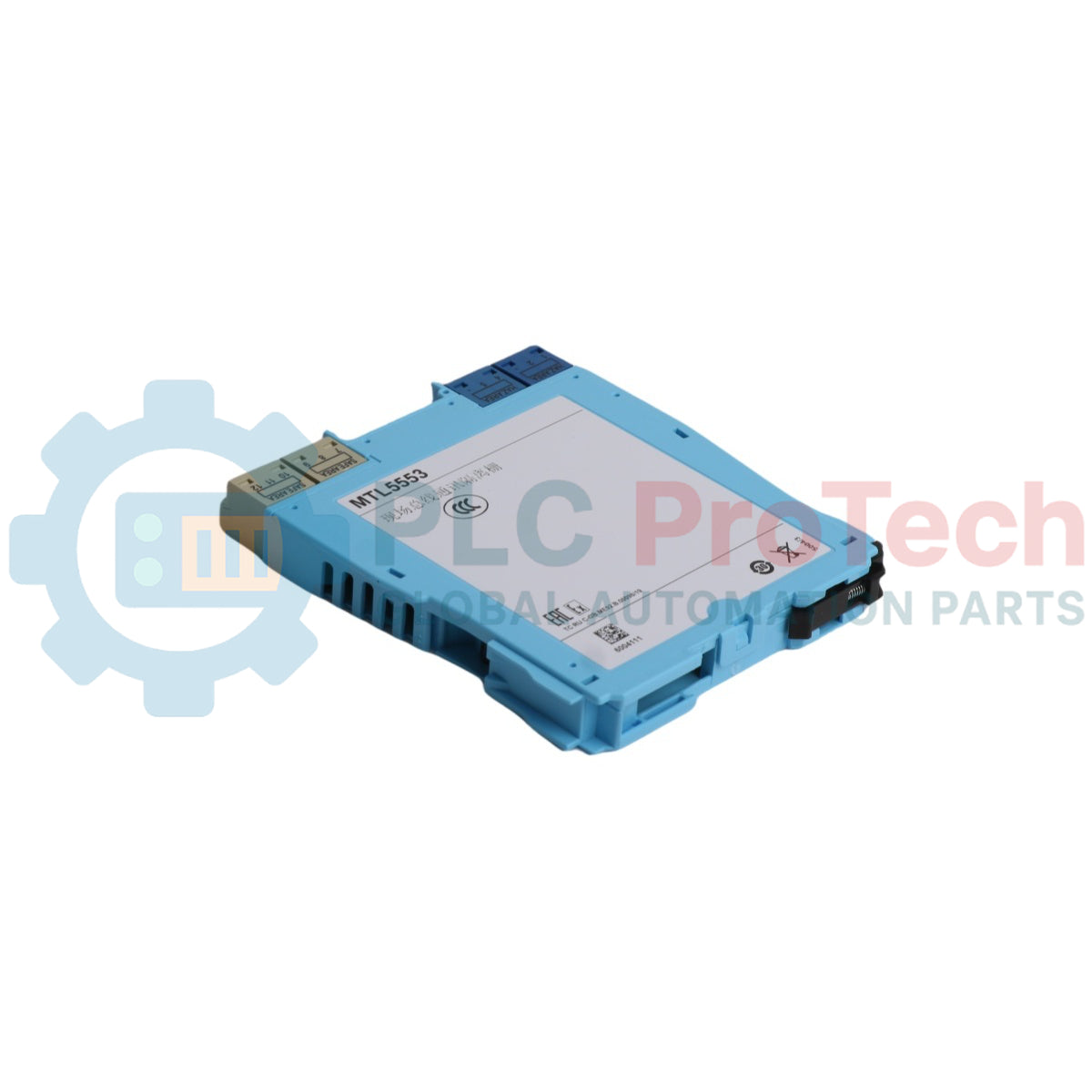

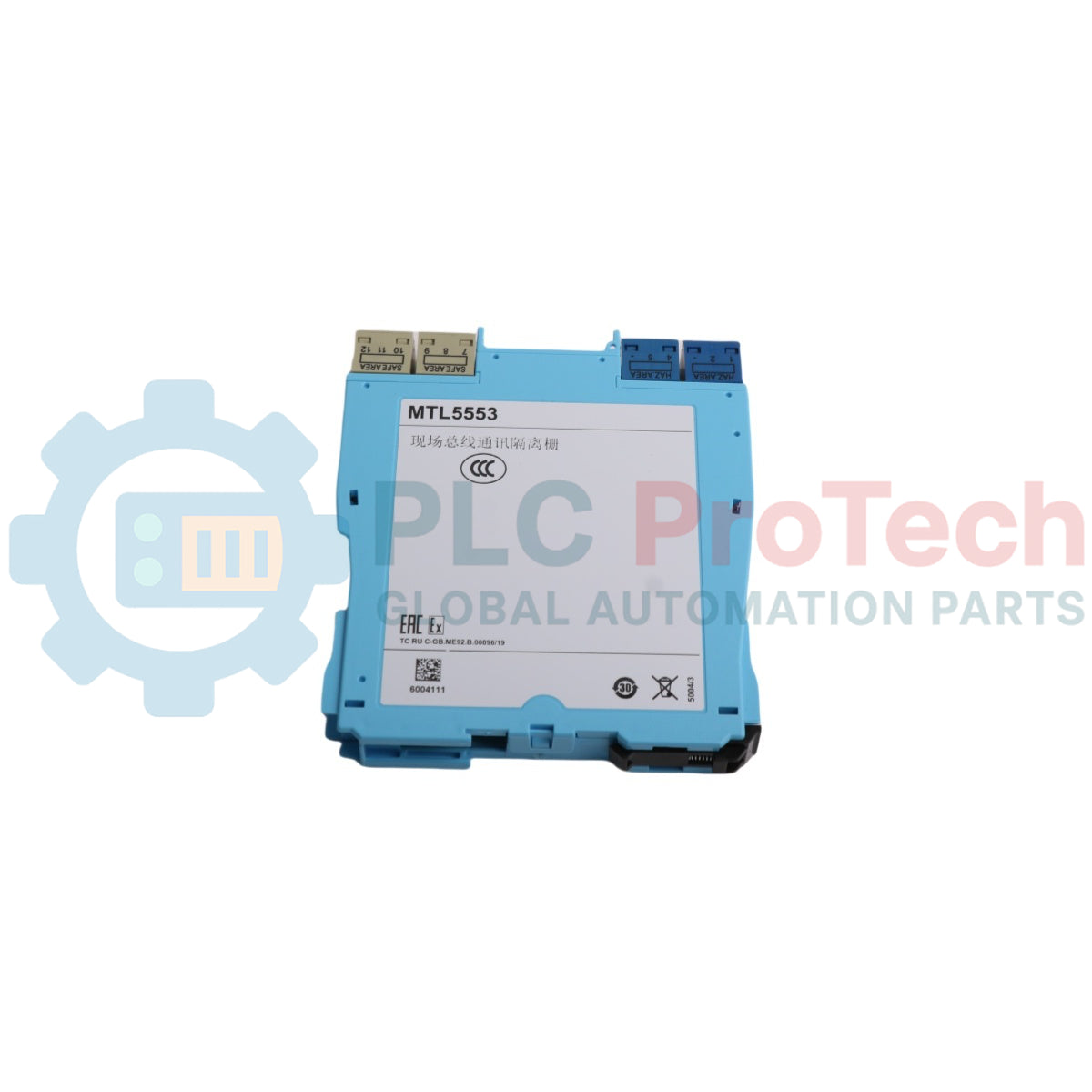

The MTL 5553 (MTL5553) is a high-performance, single-channel isolator and power supply module designed to interface with 2-wire 4-20 mA transmitters located in hazardous areas. As a vital component of the MTL5500 series, it provides the regulated DC power required for the field instrument while simultaneously isolating the 4-20 mA signal for the safe-area control system. This module is standard equipment in global oil refineries, chemical plants, and water treatment facilities where ground loop elimination and signal integrity are paramount. By providing 3-port isolation, the MTL 5553 ensures that electrical noise or faults on the field-side do not compromise the accuracy of the DCS or PLC, maintaining critical process variables within safe operating limits.

Technical Configuration (Deep Dive)

The MTL 5553 is designed for high-availability process loops, emphasizing galvanic separation and low-impedance signal transfer.

• 3-Port Isolation: The module provides complete electrical separation between the input (hazardous area), output (safe area), and the power supply. This architecture is essential for preventing common-mode voltage errors and protecting sensitive control-room electronics.

• HART Transparency: It is fully compatible with the HART (Highway Addressable Remote Transducer) protocol. This allows the FSK digital signal to pass through the isolator without attenuation, enabling remote configuration and monitoring of smart transmitters via a handheld terminal or PC software.

• Transmitter Drive: Specifically optimized for 2-wire transmitters, the unit provides a minimum of 16.5 VDC at 20 mA. This ensures that field devices with high internal impedance or long cable runs receive sufficient voltage to operate across the entire 4-20 mA range.

• Signal Transfer Logic: The circuit utilizes high-linearity transformers to mirror the field current to the safe area with a transfer accuracy better than 16 uA, ensuring that the process data remains high-fidelity.

Technical Specifications

Technical FAQs

Q1: How does the MTL 5553 handle a short circuit in the hazardous area?

A1: The module includes integrated current-limiting circuitry. If a short circuit occurs in the field wiring, the unit limits the output current to a safe level, protecting the internal components and preventing damage to the power supply carrier.

Q2: Can this module be used for 3-wire current sources?

A2: The MTL 5553 is primarily optimized for 2-wire transmitters where the power and signal share the same pair. For 3-wire current sources, the MTL 5541 or similar repeater power supplies are generally more appropriate for the wiring topology.

Q3: Is the MTL 5553 compatible with a 250 Ohm load on the DCS side?

A3: Yes, the safe-area output can drive a maximum load resistance of 600 Ohms, making it fully compatible with standard 250 Ohm resistors used to convert the 4-20 mA signal into a 1-5 V signal for the PLC.

Engineering & Installation Guide

• Backplane Mounting: Ensure the module is properly seated on the MTL5500 series backplane. The "Safe" and "Hazardous" side terminal locations are fixed by the backplane design to maintain the necessary 50 mm physical separation between IS and non-IS circuits.

• Line Resistance: When commissioning long cable runs, verify that the total loop resistance (cable resistance + transmitter minimum operating resistance) does not exceed the drive capability provided by the 16.5 VDC supply.

• Power Supply Decoupling: Use a stabilized 24 VDC power source for the backplane. While the module accepts up to 35 VDC, operating near 24 VDC minimizes heat dissipation and extends the MTBF (Mean Time Between Failures) of the internal capacitors.

Engineering Advantages

The MTL 5553 is favored by site engineers for its slim 16 mm profile, which allows for extremely high packing density in marshaling cabinets. Its high isolation rating (up to 250 V rms) provides peace of mind in plants with high electromagnetic interference or unstable grounding systems. Furthermore, the module's transparency to digital signals ensures that it is ready for Industry 4.0 and IIoT applications where field device data is increasingly used for predictive maintenance and asset management.
