Description

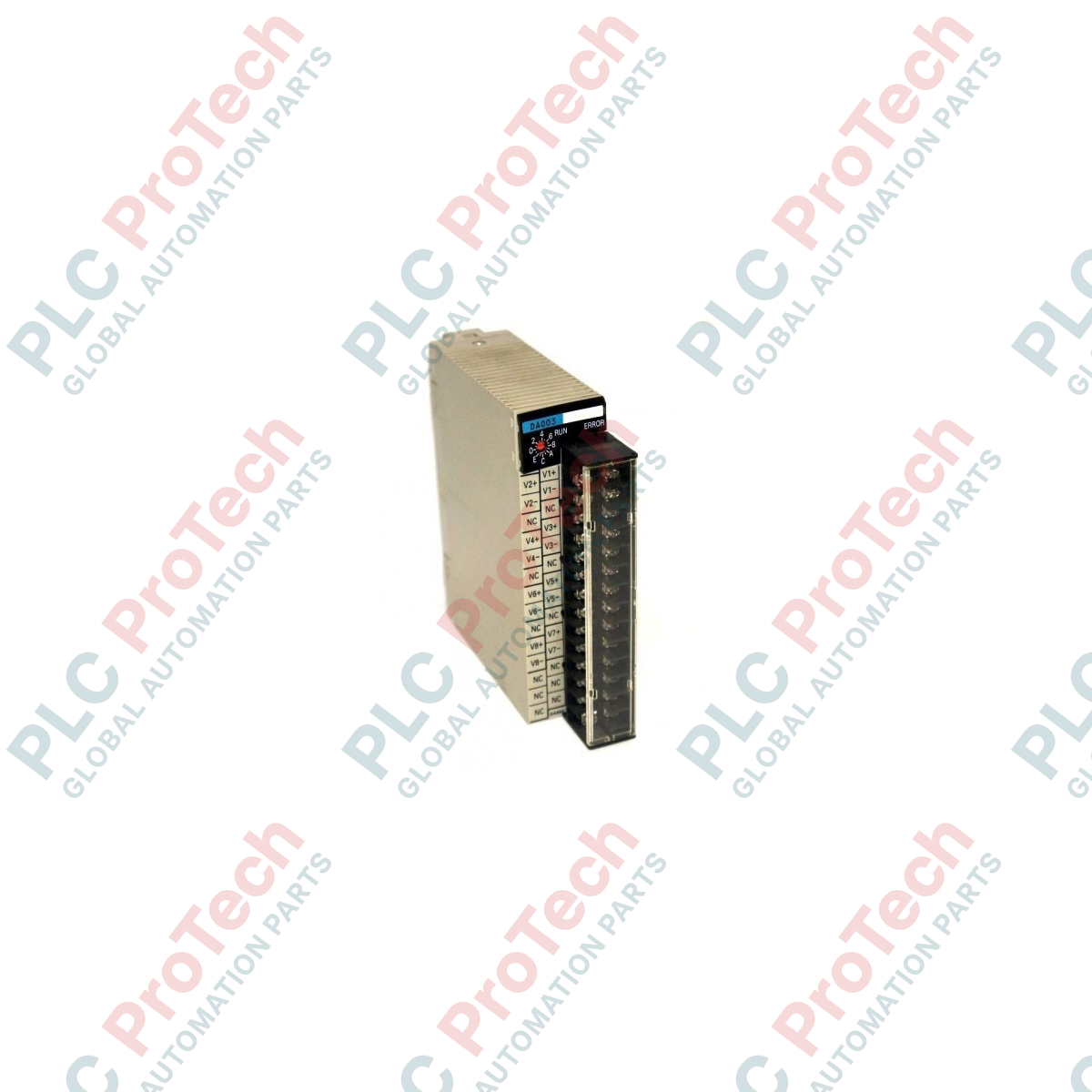

Optimized for high-density data acquisition, the Omron C200H-AD003 serves as a dedicated multi-channel analog input interface within legacy SYSMAC C200H, C200HS, and C200HX/HG/HE control architectures. This industrial module converts continuous analog signals from field transmitters, sensors, and instrumentation into precise digital values for direct processing by the PLC central unit. Engineered for robust performance in demanding electrical environments, it features integrated phototransistor isolation between field terminals and internal logic circuitry to protect the backplane from voltage spikes and common-mode electrical noise.
Features
-
Multi-Channel Density: Eight independent, single-ended analog input channels housed within a single-slot module width.
-
Flexible Input Ranges: Direct support for standard industrial signal ranges, including 1 to 5 VDC, 0 to 10 VDC, -10 to +10 VDC, and 4 to 20 mA current loops.
-
High-Resolution Conversion: 12-bit analog-to-digital conversion provides a clean 1/4000 full-scale resolution for highly accurate process variable reproduction.
-
System-Level Protection: Photocoupler isolation ensures galvanic separation of up to 500 VAC between field wiring terminals and the PLC internal bus.
-
Direct Rack Integration: Mounts directly onto any standard C200H CPU, Expansion, or Remote I/O backplane without requiring external conversion adapters.
Applications
-
Process Industry Monitoring: Real-time temperature, pressure, and level sensor monitoring in chemical processing and water treatment facilities.
-
Factory Automation: Interfacing with laser displacement sensors, encoders, and thickness gauges on manufacturing assembly lines.
-
HVAC Systems Control: Feedback processing from environmental sensors, relative humidity transmitters, and air-flow transducers in commercial building control.
-
Legacy Machinery Retrofits: Seamless integration with existing Omron SYSMAC systems for performance-critical signal monitoring.
Technical Specifications Table
| Parameter |
Specification Value |
| Manufacturer |
Omron Automation and Safety |
| Model / Part Number |
C200H-AD003 |
| Compatible Series |
SYSMAC C200H / C200HS / C200HX / C200HG / C200HE |
| Number of Analog Inputs |
8 channels |
| Input Signal Options (Voltage) |
1 to 5 VDC, 0 to 10 VDC, -10 to +10 VDC |
| Input Signal Options (Current) |
4 to 20 mA |
| A/D Resolution |
12-bit (1/4000 of full scale) |
| Conversion Time |
Max. 1.0 ms per channel (8.0 ms cycle for all active channels) |
| Overall Accuracy |
+/-0.5% of full scale (voltage inputs), +/-0.6% of full scale (current inputs) at 25 degC |
| Isolation Resistance |
20 MOhm minimum at 250 VDC between input terminals and PLC ground |
| Internal Power Consumption |
5 VDC at 0.10 A max; 26 VDC at 0.10 A max |
| Mounting Method |
Direct backplane slot mounting with locking screws |
| Country of Origin |
Japan |
| Shipping Weight (Calculated) |
1.0 kg |
| Package Dimensions (Calculated) |
150 mm x 130 mm x 45 mm |
Empirical Engineering Insights
Alternative Models & Compatibility
The C200H-AD003 is backward-compatible across standard C200H chassis installations. When migrating legacy platforms to contemporary CS/CJ series, note that direct physical slot migration is not supported. You must utilize a CS1W-BC series backplane with specialized bus converters, or rewrite the analog configuration registers within CX-Programmer to target native CS1W-AD series analog input units.
Application Pitfalls & Engineering Notes
This module uses a single-ended design with shared internal analog grounds (AG). It is highly susceptible to ground loops if field-side transmitters operate on different ground potentials. To prevent measurement drift or absolute offset errors, utilize external loop isolators for active transmitters that do not share a common zero-volt reference with the PLC system power supply.
Commissioning & Wiring Tips
Always route analog input cables using twisted-pair, shielded instrumentation cables. Ground the shield at the PLC-side ground terminal (GR) only; do not ground both ends of the shield to avoid induced electromagnetic currents. Keep all analog paths separated from high-current AC motor leads by a minimum distance of 200 mm.
Installation Guidelines
CRITICAL WARNING:
Never insert or remove the C200H-AD003 module from the backplane while the PLC power supply is switched on. Hot-swapping will damage the system's internal bus driver chips and invalidate hardware warranties. Prior to physical installation, ensure all supply lines are fully isolated and check for residual capacitive charges.
-
1
Isolate PLC Main Power: Shut down and tag out the primary AC or DC supply supplying power to the rack chassis assembly. Verify that the PLC power LED indicator is completely dark.
-
2
Address Configuration: Adjust the hardware rotary switches located on the front bezel of the module to assign the designated unit number in accordance with your software memory allocation map.
-
3
Physical Mount: Align the module hooks with the upper slot groove of the C200H backplane, tilt the unit down, and press firmly until the bottom connector seats fully into the backplane receiver.
-
4
Fasten Unit Screws: Secure the upper mounting and lower locking screws to ensure vibration-proof installation in industrial enclosures.
-
5
Terminal Block Hookup: Terminate your shielded field cables directly onto the detachable 20-point terminal assembly. Tighten terminal connection screws to a recommended torque of 0.5 N-m.
