Description

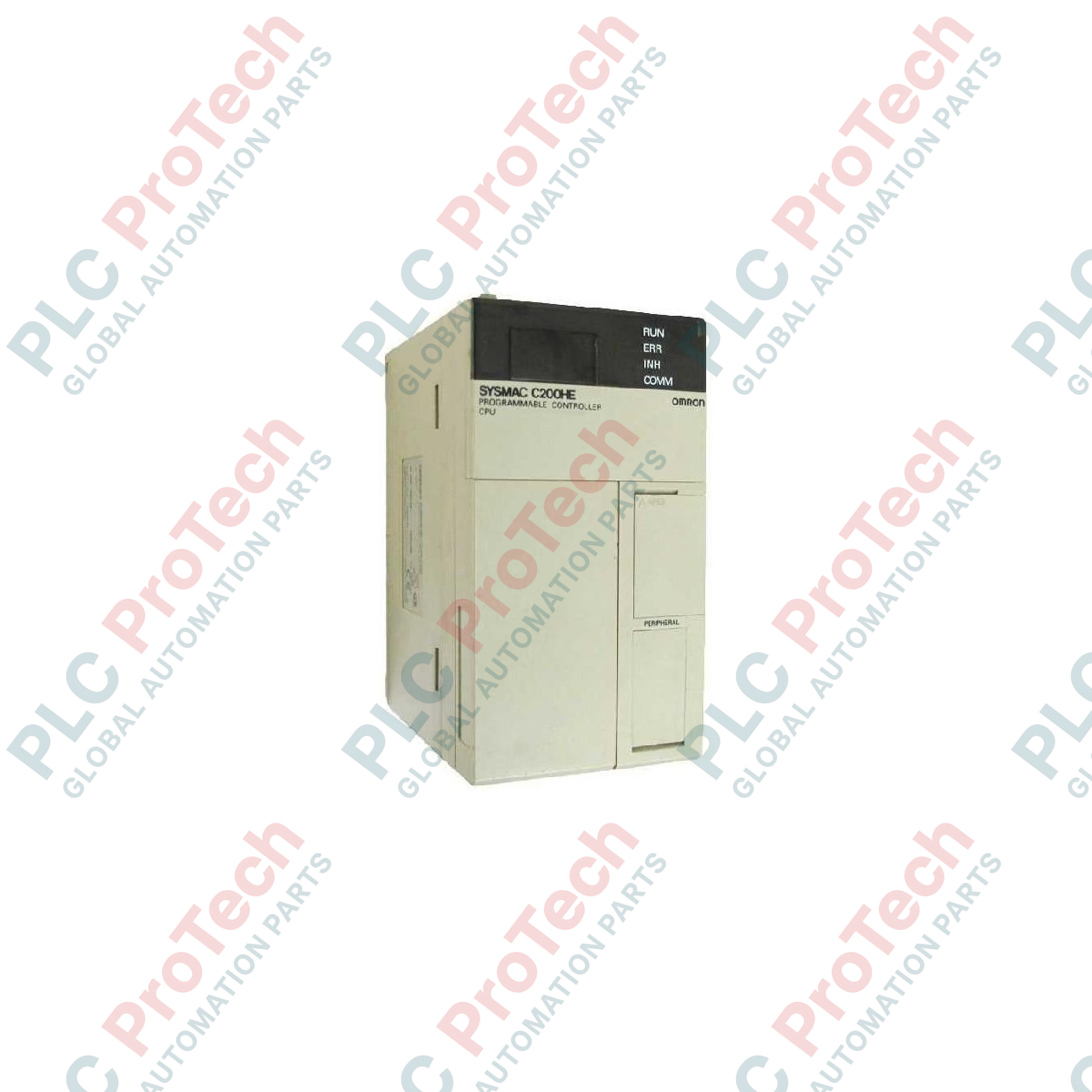

Executing central execution and logical control within legacy industrial assemblies, the Omron C200HE-CPU42-E is a high-reliability central processing unit engineered for the SYSMAC C200HX/HG/HE platform. This controller manages medium-scale discrete manufacturing processes, coordinating inputs and outputs across localized and distributed racks. It features a built-in RS-232C serial port, enabling native host link communication, operator interface connections, and direct programming connectivity without requiring separate communications modules. Its robust processing architecture and extensive instruction set make it a staple in classic assembly, packaging, and material handling automation networks.

Features

• Integrated Communications: Standard built-in RS-232C port alongside a dedicated peripheral port simplifies configuration and SCADA system integration.
• Substantial Execution Speed: Fast basic instruction execution time optimized for deterministic machine control.
• Configurable Memory Architecture: Supports program and data memory storage to sustain comprehensive sequence instructions and logging variables.
• Modular Flexibility: Designed for slide-in installation on standard SYSMAC C200HW backplanes, easing deployment and repair cycles.
• Battery-Backed Memory Protection: Active RAM backup preserves user program and data register states during system power down cycles.

Applications

• Automated Packaging Lines: Real-time coordination of high-speed filling, sealing, and labeling apparatus.
• Material Handling Systems: Managing complex conveyor sorting systems, diverters, and automated guided vehicles (AGVs).
• Automotive Assembly Sub-stations: Direct control of mechanical lifters, part feeders, and pneumatic clamping fixtures.
• Water Treatment Plant Monitoring: Managing decentralized pump controllers, valve actuators, and instrumentation arrays.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

When migrating legacy networks, understand that the C200HE series replaces the older C200H series controllers (e.g., C200H-CPU01/11). Program migration from standard C200H blocks to the C200HE platform can be executed seamlessly in CX-Programmer, though memory maps must be carefully cross-checked, as certain DM registers and holding relays have expanded allocations. Ensure that any specialized high-speed counter or motion modules used on the backplane are registered in the I/O table configuration tool of the new CPU to prevent initialization faults.

Application Pitfalls & Engineering Notes

A common failure point in legacy setups is low-voltage battery degradation. If the module sits de-energized for extended periods, the C200H-BAT09 backup battery can deplete, leading to complete clearing of RAM memory (user logic and Retentive DM areas). It is highly recommended to log or write critical machine operational recipes to an external EEPROM memory cassette (such as the C200HW-ME432) to prevent program loss during sudden maintenance outages.

Commissioning & Wiring Tips

For reliable host serial communications over the built-in RS-232C port, standard commercial DB9 null-modem cables are often non-functional due to Omron's specific internal pin jumper requirements. You must construct or obtain a cable where Pin 4 (RTS) and Pin 5 (CTS) are shorted on the PLC side, or configure the CPU dip switches to override standard hardware handshaking, ensuring smooth serial transmission without timeout timeouts.
