Description

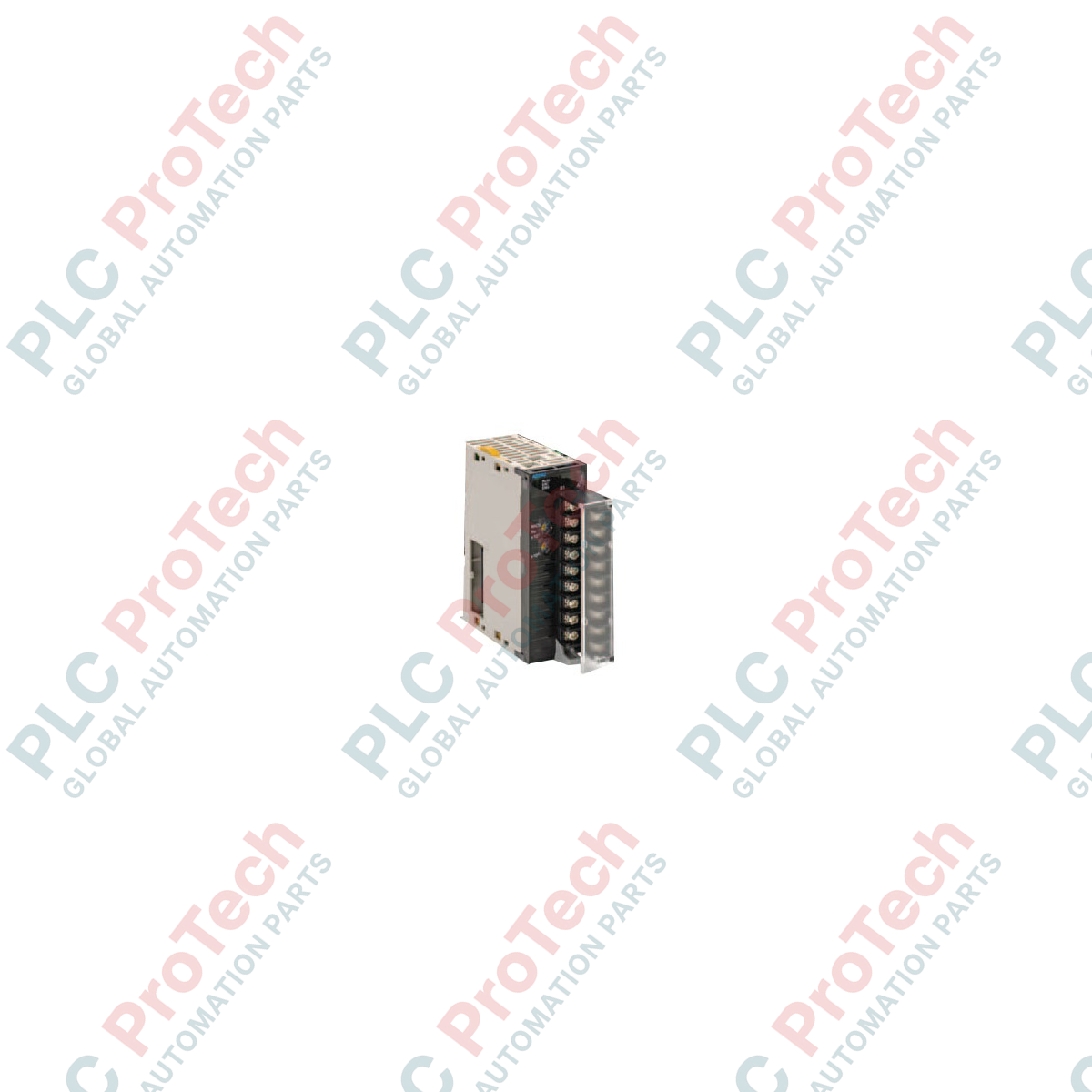

For versatile process monitoring and multi-signal data acquisition, the Omron CJ1W-AD04U provides direct connection of multiple sensor types to Omron CJ-series programmable logic controller (PLC) systems. Designed with four high-precision input channels, this unit delivers individual channel-to-channel isolation, effectively mitigating electrical noise, ground loops, and signal degradation in harsh industrial environments.

The CJ1W-AD04U universal input module accommodates a broad range of signal types, including thermocouples, resistance temperature detectors (RTDs), DC voltage, and DC current. Each channel can be configured independently, allowing engineers to consolidate different process measurements onto a single physical module, maximizing rack space and lowering system costs.

Features

• Four isolated-type universal input channels with robust channel-to-channel electrical isolation.
• Supports a wide array of temperature sensors, including Pt100, JPt100, Pt1000, and thermocouple types K, J, T, L, R, S, and B.
• Compatible with standard DC analog signals, including 0 to 5 V, 1 to 5 V, 0 to 10 V, 0 to 20 mA, and 4 to 20 mA.
• Independent configuration of signal range and sensor type for each individual input channel.
• High-speed conversion processing at 250 ms for all four inputs.
• Removable terminal block simplifies system wiring, commissioning, and module replacement.
• Direct integration within the CJ-series backplane, allocating a single unit number.

Applications

• Industrial furnace and oven temperature monitoring.
• Chemical and petrochemical process control systems.
• Food processing and pasteurization thermal logging.
• Water and wastewater flow and pressure data logging.
• HVAC and environmental chamber monitoring.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the PLC rack power is completely switched off before mounting or removing the module from the CJ-series backplane.
• Wiring: Route analog input signal cables separately from high-voltage AC power lines and motor drive cables to prevent electromagnetic interference.
• Shielding: Use shielded twisted-pair cabling for all analog inputs, grounding the shield at the PLC end only.
• Terminal Block: Ensure the removable terminal block is fully seated and the retention screws are tightened to prevent accidental disconnection.
