Functional Overview

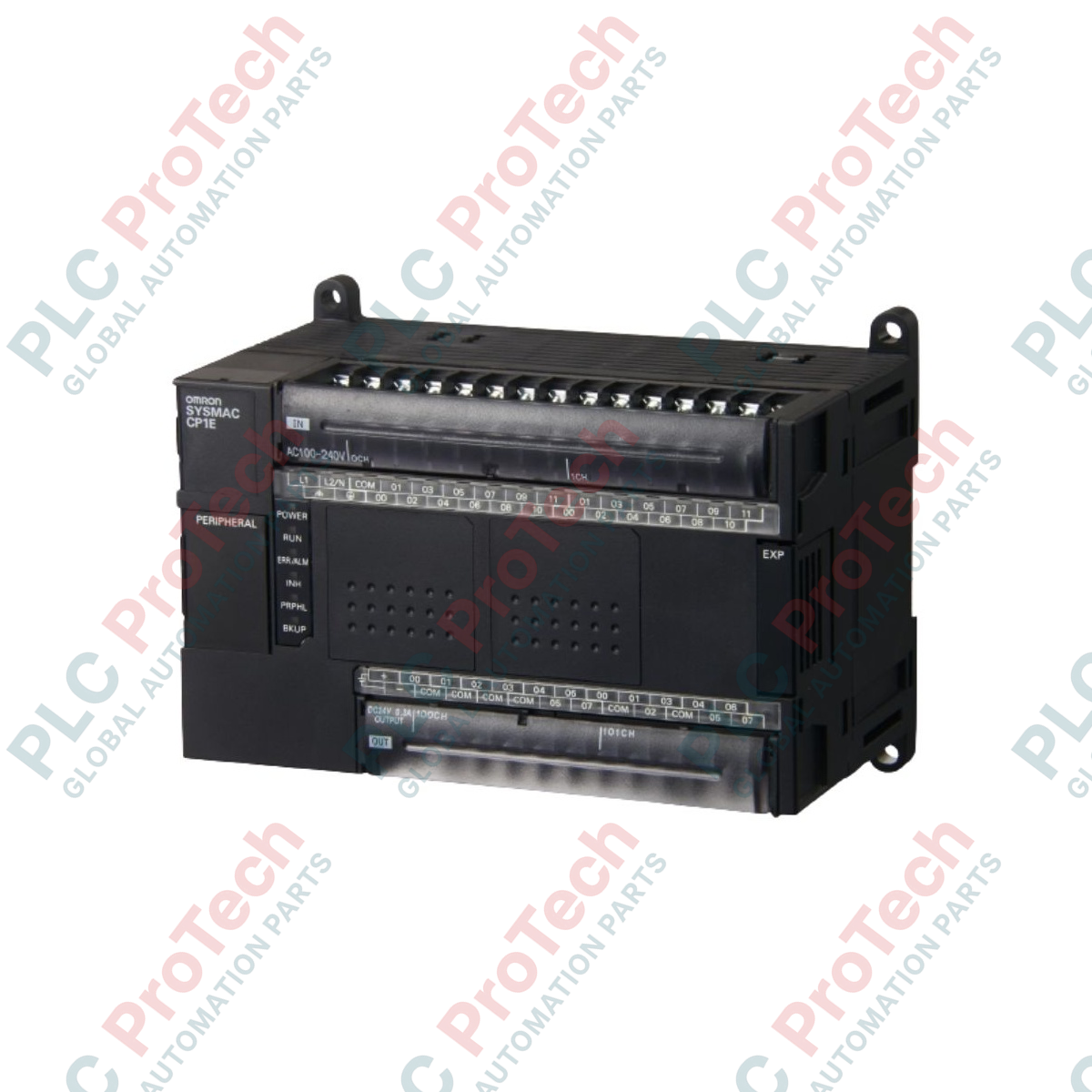

The CP1E-N40DR-A is a highly compact, network-type programmable logic controller (PLC) engineered for cost-effective yet high-performance industrial automation. In standard engineering applications such as municipal water pumping, conveyor material handling, commercial HVAC systems, and packaging machinery, system stability and field communications are vital to preventing unprogrammed downtime. This processor features built-in RS-232C and USB ports, allowing seamless integration with human-machine interfaces (HMIs) and variable frequency drives (VFDs). Utilizing optimized logic execution algorithms, this CPU handles complex digital control sequences with speed and high precision.

Architecture & Communication Topology

The controller utilizes an all-in-one hardware architecture that embeds 40 local I/O points within a single compact chassis. The input stage consists of 24 points of 24 VDC digital inputs, including 6 high-speed counter inputs capable of resolving multi-axis rotary encoder feedback up to 100 kHz. The output block provides 16 robust electromechanical relay outputs designed to directly switch heavy inductive solenoids, contactor coils, and low-power actuators without external isolation relays. Powered by a wide-range 100 to 240 VAC line, the internal power supply module generates stable 24 VDC sensor power for external field devices. The CPU structure supports expansion up to three CP1W series I/O modules, enabling rapid system scale-up for growing industrial applications.

Equipment Specifications

Hardware FAQs

What are the primary differences between the CP1E E-Type and the CP1E N-Type processors?
The N-Type model (such as the N40DR-A) is the advanced "Application" variant. Unlike the basic E-Type, the N-Type includes a built-in RS-232C port, a built-in real-time clock (RTC), higher-speed input counters (up to 100 kHz instead of 10 kHz), and supports optional memory or communication boards for modular expansion.

Can this specific PLC drive high-frequency stepper motor pulse trains?
No. The CP1E-N40DR-A is equipped with electromechanical relay outputs ("R" designation), which have mechanical limits and cannot toggle at high speeds. For high-frequency pulse output control (such as driving servo or stepper systems), you must specify the transistor output version, the CP1E-N40DT-A or CP1E-N40DT1-A.

How do you protect the internal relay contacts from high-voltage inductive kicks?
When switching inductive field loads such as solenoids or contactors, you must install external surge suppressors. For AC loads, wire a resistor-capacitor (RC) surge absorber across the load. For DC loads, wire a commutating diode across the load to suppress inductive back-EMF spikes.

Field Installation & Wiring Directives

• DIN Rail Mounting and Grounding: Snap the PLC securely onto a standard 35 mm DIN rail inside a sealed industrial enclosure. Wire a dedicated 2 mm square copper grounding line from the functional ground (FG) terminal directly to the main cabinet ground busbar to shield the microprocessor from electromagnetic noise.
• Inductive Load Separation: Route all low-voltage DC input sensor lines through independent wire ducts. Maintain a physical clearance of at least 300 mm from high-voltage AC motor drive cables and main power distribution wiring to prevent inductive cross-talk on the 100 kHz high-speed counter lines.
• External Power Supply Overload: The built-in 24 VDC external service output terminal provides a maximum of 300 mA. Do not overload this output with high-current sensors or external indicators. If the total field sensor power draw exceeds 300 mA, install a separate, isolated external 24 VDC power supply.
• Thermal Clearances: Mount the PLC strictly in a horizontal orientation to facilitate optimum convective air cooling. Leave a minimum clearance gap of 50 mm above and below the PLC housing to ensure ambient operating temperatures around the plastic chassis stay below 55 deg C under full load.
