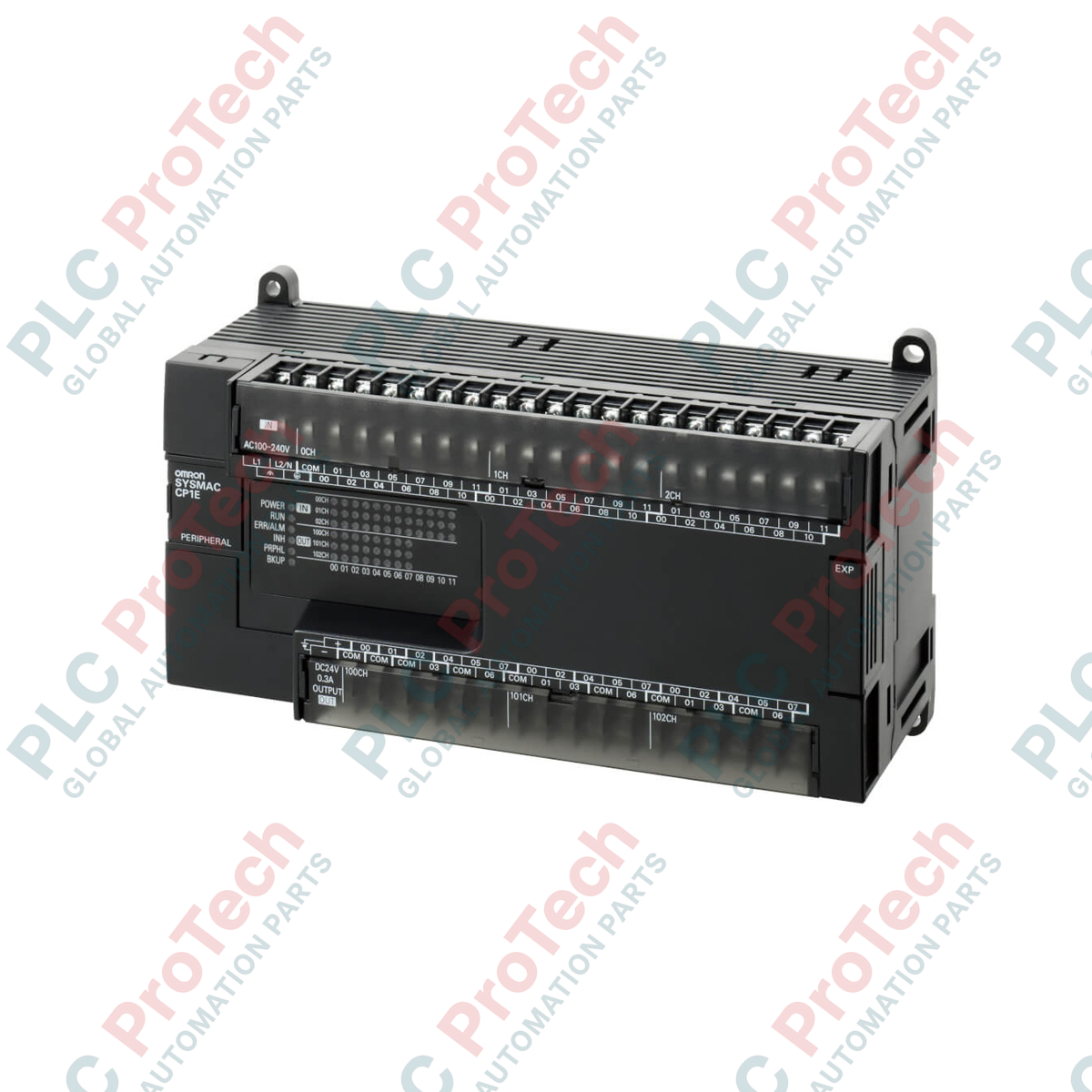

Designed for cost-effective standalone machine automation, the Omron CP1E-E60SDR-A delivers high-density control with integrated physical inputs and outputs in a unified footprint. This basic-type CPU unit simplifies small-scale processes by incorporating 36 DC inputs and 24 relay outputs, minimizing the need for immediate expansion hardware. Equipped with an integrated USB programming interface, this controller is engineered for straightforward commissioning and reliable performance across industrial machinery applications requiring robust, entry-level logic processing.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model / SKU | CP1E-E60SDR-A |
| Controller Series | CP1E (Basic E-type, Renewal S-type) |
| Supply Voltage | 100 to 240 VAC (50/60 Hz) |
| Operating Voltage Range | 85 to 264 VAC |
| Total I/O Points | 60 (36 inputs, 24 outputs) |
| Input Type | 24 VDC inputs (compatible with sink or source sensors) |
| Output Type | Relay outputs (2 A max per point) |
| Programming Interface | USB 2.0 (Type-B connector) |
| Unit Dimensions | 190 mm x 90 mm x 78 mm |
| Net Unit Weight | 0.85 kg |
| Shipping Weight (Calculated) | 2.00 kg |
The CP1E "E" suffix designates a Basic-type architecture. Unlike the "N" (Application) series (such as the CP1E-N60SDR-A), this E-type module lacks built-in RS-232C or RS-485 serial communication ports, option board slots, and analog processing options. Ensure your network requirements do not require serial Modbus or master/slave topologies before deploying this Basic-type variant.
Be aware that the CP1E-E60SDR-A does not feature an internal Real-Time Clock (RTC). Logistical steps, automated daily operations, or event logging with standard time-of-day execution cannot be processed natively on this controller. Additionally, when switching highly inductive elements (such as solenoid coils or contactors), external surge suppression (RC snubbers for AC, flyback diodes for DC) must be installed to prevent premature contact wear on the integrated 2 A relays.
Verify the connection configuration of your DC inputs. The common terminal can be wired as either sink (NPN) or source (PNP) depending on the 24 VDC polarization. Always earth-ground the Functional Ground (FG) terminal and the Protective Ground (GR) terminal separately to prevent electric noise on the USB connection during online program editing, which can otherwise trigger communications timeouts in CX-Programmer.
