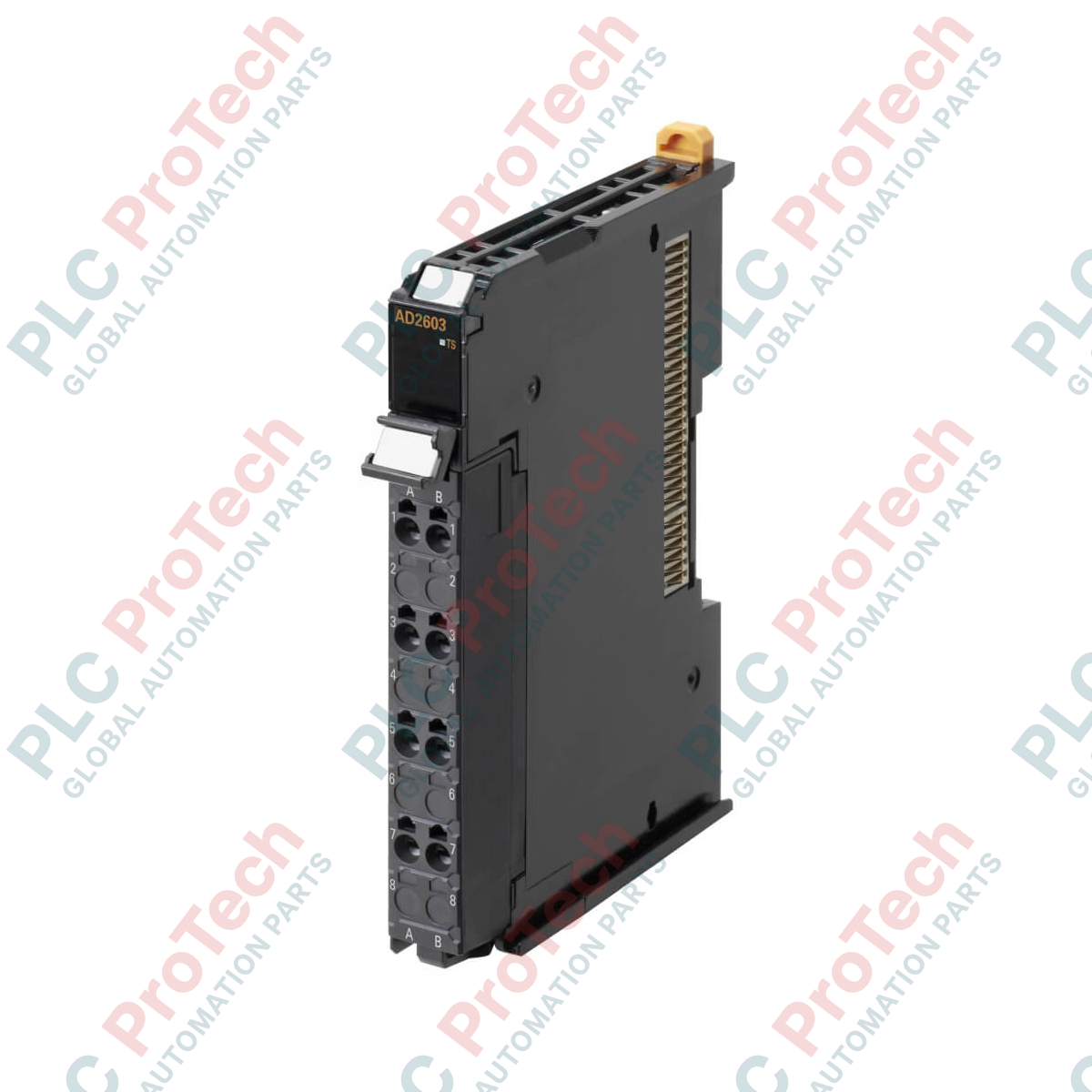

The NX-AD2603 is a high-precision Analog Input Unit from Omron’s NX-series, designed for high-speed, reliable data acquisition in industrial control systems. This module features 2 input points utilizing single-ended input technology, capable of processing voltage signals within the -10 to +10 V range. With a resolution of 1/8000 and a conversion range extending from -5% to 105% of the full scale, it provides accurate signal monitoring for a wide variety of industrial transducers and sensors. The module utilizes Free-Run refreshing to ensure consistent data updates, making it an ideal choice for stable process control and monitoring applications within the modular Omron NX-series I/O ecosystem.

Features

• 2 analog input points with single-ended configuration
• High-resolution signal processing (1/8000)
• Voltage input range: -10 to +10 V
• Extended conversion range (-5 to 105% of full scale)
• Free-Run refreshing method for continuous data acquisition
• Lightweight, compact design (0.070 kg) for space-efficient cabinet integration
• Robust absolute maximum rating of ±15 V

Applications

• Analog sensor signal monitoring (pressure, flow, temperature)
• Process control loop integration
• High-speed data logging in automated machinery
• Modular I/O expansion for NX-series PLC systems

Technical Specifications

Installation Guidelines

• Mounting: Snap the NX-AD2603 onto the NX-series I/O bus coupler or adjacent I/O units on a 35 mm DIN rail. Ensure the side connector is fully engaged to establish the internal bus communication.
• Wiring: Connect your analog sensors to the terminal block. Given the single-ended input method, ensure that the signal and the reference ground are properly connected to prevent ground loop noise.
• Input Protection: Although the module is rated for an absolute maximum of ±15 V, always use signal conditioners or surge protection if the field environment is subject to high-voltage spikes.
• Configuration: Use the Omron Sysmac Studio software to configure the scaling and filtering parameters of the input points to match your specific field sensor requirements.
