Description

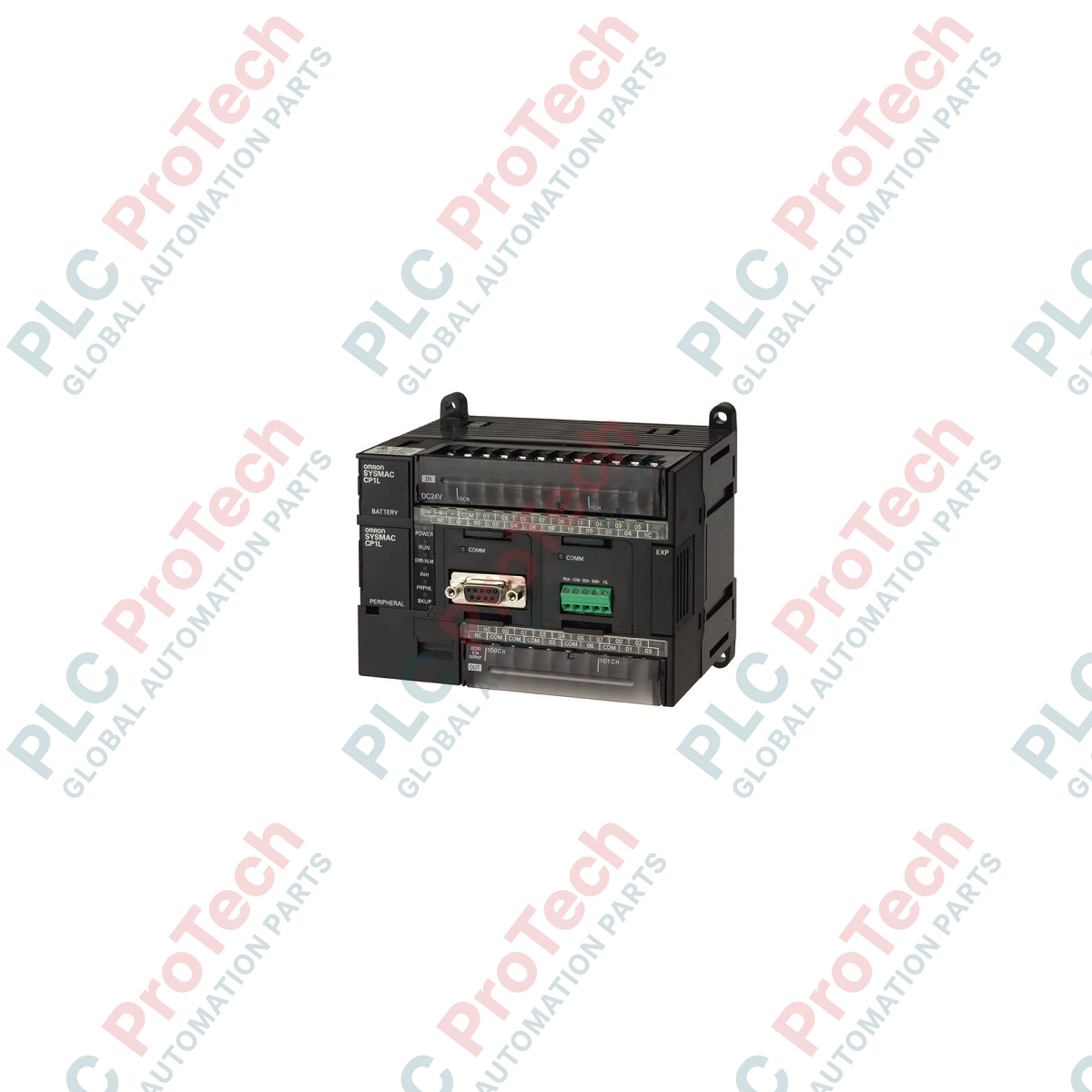

Designed for compact machine control, the Omron CP1L-L20DT-D micro programmable logic controller offers high-performance positioning and execution capabilities within the CP1L Series platform. This DC-powered controller integrates 12 inputs and 8 NPN transistor outputs, providing a highly responsive solution for localized automation tasks, packaging machinery, and conveyor control. With standard built-in pulse outputs and high-speed counter functionality, it serves as an efficient engine for multi-axis motion and position feedback configurations without requiring additional specialty expansion modules.

The unit features an integrated USB peripheral port for simplified programming, debugging, and commissioning. It also accommodates optional plug-in boards to easily expand communication capabilities via RS-232C, RS-485, or Ethernet protocols, enabling smooth integration with human-machine interfaces (HMIs) and supervisory control systems.

Features

• High-speed counter inputs: Supports 4 axes at 100 kHz (single phase) for precise position monitoring.
• Pulse outputs: Built-in 2 axes at 100 kHz (transistor outputs) for high-precision motor and drive control.
• Generous memory capacity: Configured with 5K steps of program memory and 10K words of data memory.
• Integrated programming port: Built-in USB 2.0 Type-B port allows direct programming without requiring specialized cables.
• Expandability: Easily expandable using CP-series expansion I/O units and communication option boards.
• Fast execution: Processing speeds designed for highly cyclic industrial applications.

Applications

• Packaging machinery and labeling systems
• Conveyor systems and general material handling
• Multi-axis small-scale positioning systems
• HVAC and pump control panels
• Textile machinery and processing equipment

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount horizontally on standard 35mm DIN rail or secure directly to a back panel using screws. Ensure there is at least 50mm of clearance above and below the unit for proper heat dissipation.
• Grounding: Connect the Functional Ground (FG) terminal to an independent ground point with a resistance of 100 ohms or less.
• Wiring: Isolate input/output wiring from high-voltage AC power lines to prevent electromagnetic interference. Ensure appropriate external fuses are used on the output circuits to protect against overcurrent.
