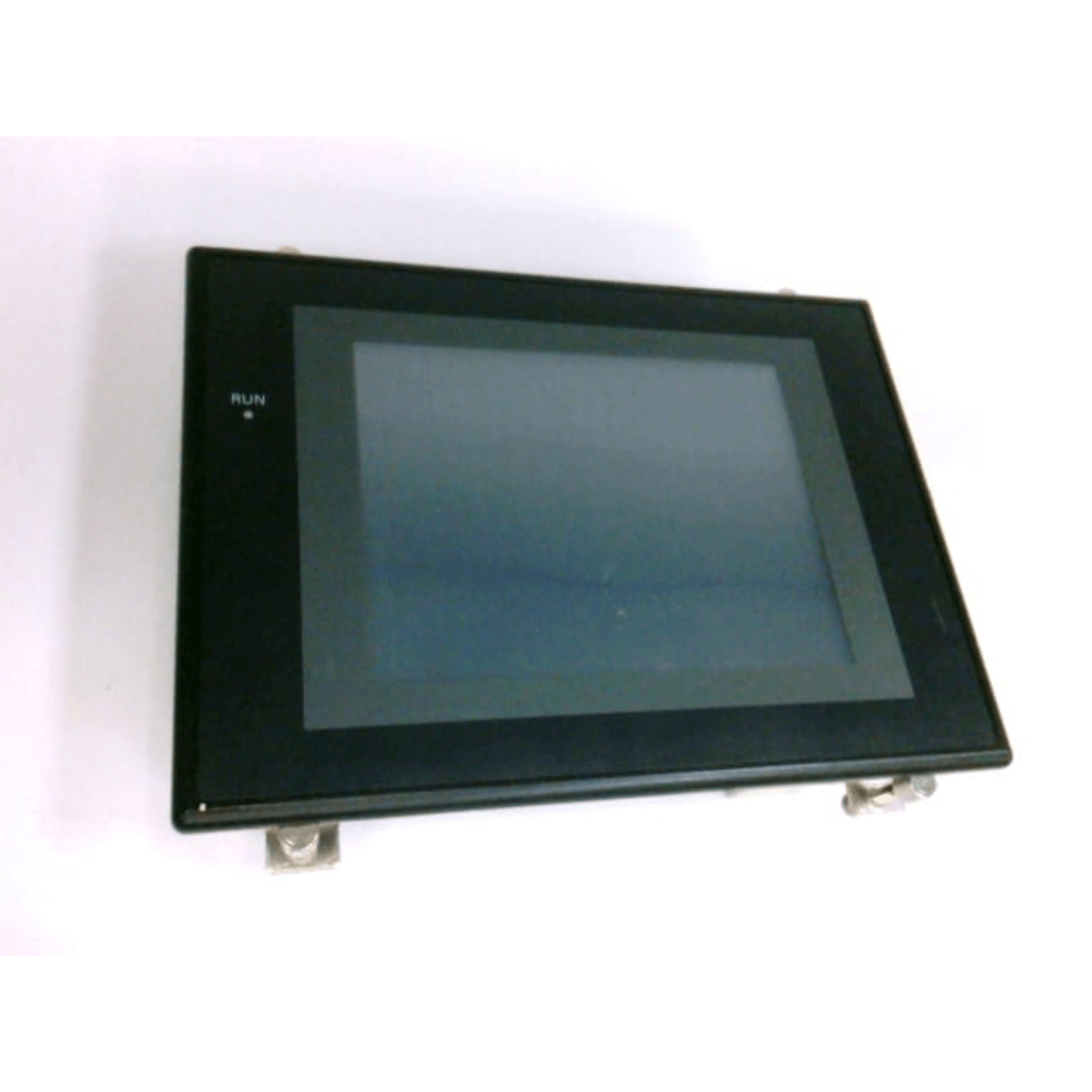

Serving as an interactive visualization node, the NS5-MQ10B-V2 functions within the Omron NS series ecosystem to provide reliable control and monitoring interfaces. This 5.7-inch HMI touchscreen terminal displays process diagnostics and machine parameters on a high-contrast STN monochrome screen. Designed primarily for compact control panels where space optimization is critical, this operator panel features a robust black bezel housing and relies on dedicated serial interfaces for controller communications, keeping configuration straightforward and secure.
The unit integrates smoothly with Sysmac automation platforms, enabling rapid screen design and tag sharing. Its analog resistive touch screen offers flexible layout options without being restricted by traditional matrix grid limitations, providing precise control inputs in challenging industrial environments.
| Manufacturer | Omron |
| Part Number / Model | NS5-MQ10B-V2 |
| Display Type | STN monochrome LCD |
| Display Size | 5.7 inches (115.2 x 86.4 mm active area) |
| Resolution | 320 x 240 pixels |
| Power Supply Voltage | 24 VDC |
| Allowable Voltage Range | 20.4 to 27.6 VDC |
| Power Consumption | 15 W maximum |
| Case Color | Black |
| Ethernet Port | None |
| Serial Ports | 1x RS-232C (Port A), 1x RS-232C (Port B) |
| Operating Temperature | 0 to 50 degC |
| Storage Temperature | -20 to 60 degC |
| Front Panel Protection | IP65 equivalent, UL Type 4 (indoor use only) |
| Interface Connection | Functional Assignment |
|---|---|
| Serial Port A (RS-232C) | Host Link / NT Link communication (9-pin female D-Sub) |
| Serial Port B (RS-232C) | Host Link / NT Link / Barcode Reader connection (9-pin female D-Sub) |
| USB Slave Port | Screen data transfer and programming (Type B connector) |
| Expansion Interface | Reserved for functional extension boards |
| Power Supply Terminal Block | 24 VDC input and functional ground connections |
