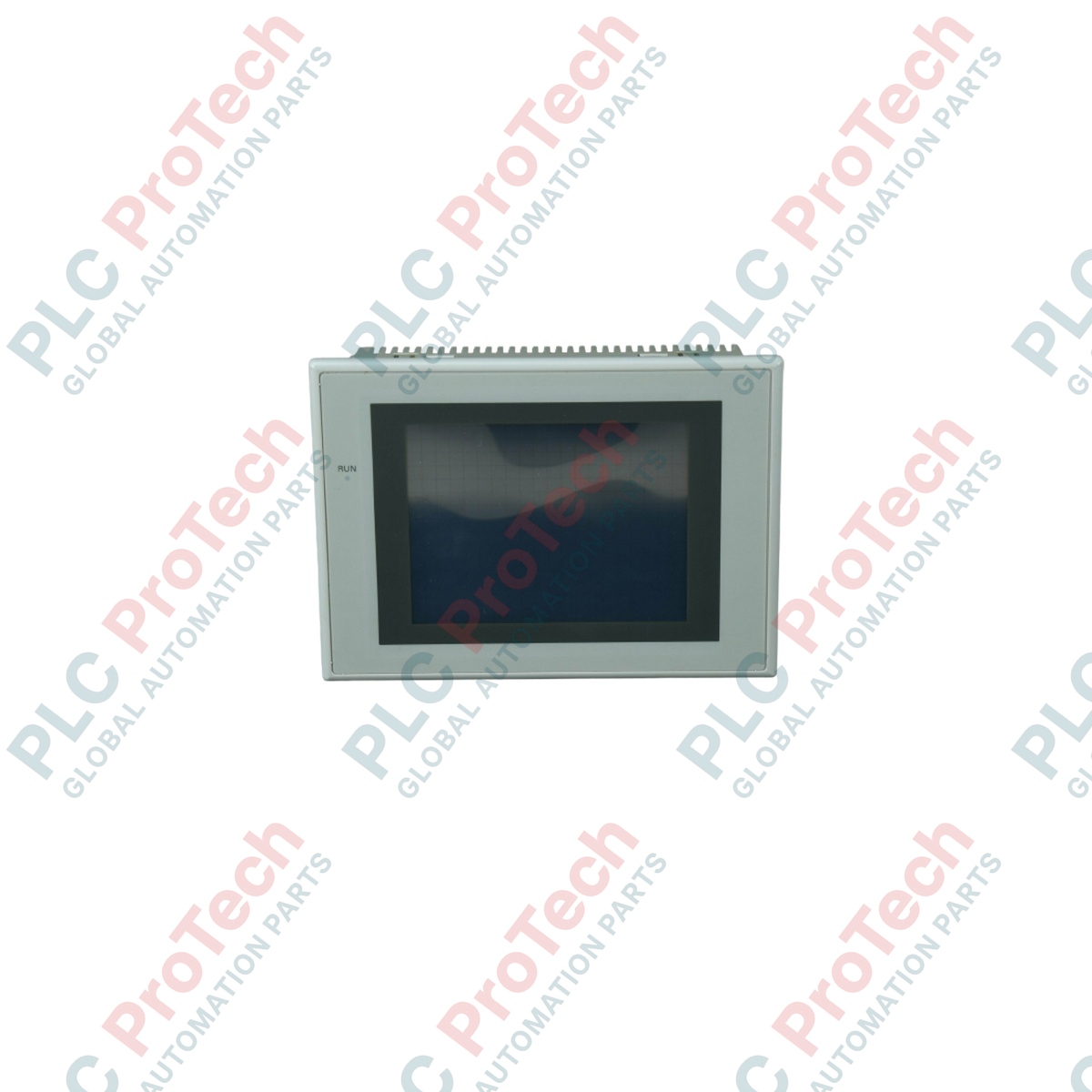

Engineered to deliver highly reliable human-machine interface (HMI) visualization within industrial automation architectures, the Omron NS5-SQ01B-V2 provides dynamic display and control capabilities in a compact footprint. This unit is optimized for seamless integration with Sysmac-compatible controllers, offering an efficient interface for monitoring machine telemetry and adjusting system parameters in real time. Operating on a standard 24 VDC input, the device minimizes energy overhead while maintaining high display clarity in demanding manufacturing environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Omron |
| Model Number | NS5-SQ01B-V2 |
| Series | NS Series HMI |
| Input Voltage | 24 VDC |
| Power Consumption | 15 W maximum |
| Display Size & Type | 5.7-inch STN Color LCD |
| Resolution | 320 x 240 pixels |
| Frame Color | Black |
| Memory Backup Battery Life | 5 years typical (SRAM retention) |
| Ambient Operating Temperature | 0 to 50 degC |
| Net Weight | 1.0 kg |
| Shipping Weight (Calculated) | 1.8 kg |
| Port / Connection | Functional Assignment |
|---|---|
| Serial Port A | RS-232C interface for high-speed PLC or controller connection. |
| Serial Port B | RS-232C interface for peripheral devices, temperature controllers, or bar code readers. |
| USB Slave Port | Type-B port dedicated to CX-Designer programming upload and download. |
| Expansion Interface | Supports optional controller link or video input expansion modules. |
The NS5-SQ01B-V2 is the direct functional replacement for the older NS5-SQ01-V2 (which utilizes an ivory bezel) and can drop directly into existing 5.7-inch panel cutouts without physical modifications. For installations requiring direct Ethernet-based communication, the NS5-SQ11B-V2 represents the identical form-factor alternative featuring an integrated RJ45 network port instead of relying solely on serial links.
When designing enclosures, ensure localized convective cooling keeps the surrounding air temperature within the 0 to 50 degC operating envelope. In environments subject to high levels of electromagnetic interference (EMI), ensure the display frame ground is securely connected to a dedicated low-impedance ground point to mitigate touch-matrix jitter or unexpected reset sequences.
When configuring communications via CX-Designer, ensure the baud rate settings of Serial Port A or B match the host PLC's hardware configuration. To preserve critical operational logs, recipe memories, and system clocks, track the HMI backup battery lifecycle; a low battery alarm indicates that the internal 3V lithium battery (CJ1W-BAT01) must be swapped while power is applied to the panel to avoid losing volatile SRAM data.
CRITICAL WARNING:
Isolate and lock out all 24 VDC power sources prior to physical installation or terminal wiring. Verifying de-energization prevents electrical shocks and structural damage to internal communication transceivers.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: NS5-SQ01B-V2
Country of origin:Japan
Product Type: HMI Touch Screen Panels
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
