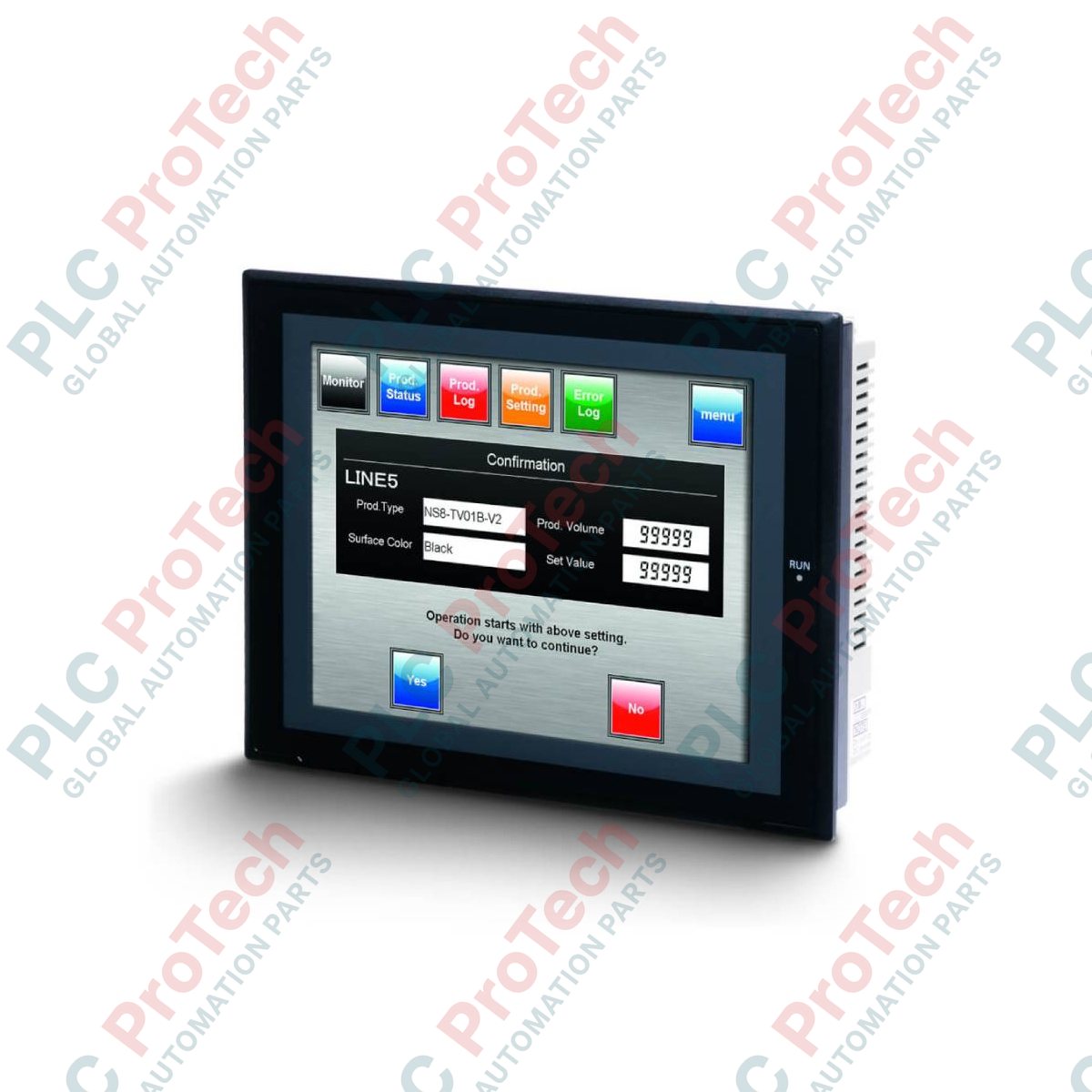

Omron NS8-TV00B-V2 NS Series Programmable Terminal HMI

SKU NS8-TV00B-V2

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: NS8-TV00B-V2
Origin Japan
Product Type: HMI Operator Panels
Payment: T/T, Western Union
Weight: 2.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

For machine-level monitoring and user control, the Omron NS8-TV00B-V2 serves as a robust operator terminal within the NS Series lineup. This unit offers visualization through an 8.4-inch TFT color display featuring VGA resolution, making it suitable for complex automated panels and manufacturing floor configurations. By using resistive touch technology, operators can execute precise adjustments and command overrides even when wearing industrial work gloves.

Features

High-Visibility Display: Equipped with a vibrant 8.4-inch TFT active-matrix color LCD with wide viewing angles.
VGA Resolution: High-density 640 x 480 dot matrix ensures clean text rendering and sharp graphical representation of control loops.
Resistive Touch Panel: High-durability analog resistive screen allows for flexible layout design without grid boundaries.
Dual Serial Ports: Two standard RS-232C communication channels facilitate simultaneous connection to PLCs, temperature controllers, or peripheral printers.
Robust Protective Bezel: Industrial black casing rated for demanding shop floor environments.

Applications

High-speed packaging machinery and sorting line interfaces.
Automotive assembly cell visualization and monitoring stations.
Water treatment facilities and chemical process control terminals.
Custom test benches and environmental chamber management.

Technical Specifications

Parameter	Value
Manufacturer	Omron
Model Number	NS8-TV00B-V2
Display Technology	TFT Active Matrix Color LCD
Screen Size	8.4 inches
Resolution	640 x 480 dots (VGA)
Onboard Ethernet	No
Case Color	Black
Input Voltage	24 VDC
Standards	cULus, CE
Product Weight	2.0 kg
Shipping Weight (Calculated)	8.0 kg (with protective packaging)

Connections and Interfaces

Connector / Port	Specification & Purpose
Serial Port A	RS-232C (D-sub 9-pin female) for Host/PLC connection
Serial Port B	RS-232C (D-sub 9-pin female) for peripheral/PLC connection
USB Client Port	Type-B connector for screen data transfer from CX-Designer
Expansion Slot	Supports optional Ethernet (NS-ETN21) or Controller Link communication boards

Empirical Engineering Insights

Alternative Models & Compatibility

The NS8-TV00B-V2 serves as a direct upgrade to the legacy non-V2 or V1 NS8 screens. When importing existing programs via CX-Designer, verify that the target system configuration is updated to the correct V2 software engine. To migrate to an Ethernet-enabled architecture without adding an expansion module, consider the NS8-TV01B-V2 as a drop-in alternative.

Application Pitfalls & Engineering Notes

Because this display relies on passive convection cooling, it is critical to ensure proper air clearance within closed control enclosures. Operating temperatures must not exceed 50 degC. Avoid placing the resistive touchscreen panel in direct sunlight, as localized heat accumulation can cause localized expansion of the protective film, leading to inaccurate touch coordinates or false button triggers.

Commissioning & Wiring Tips

During initial commissioning via the USB Type-B port, make sure the Omron USB device driver is pre-installed within the Windows OS prior to connection. To prevent serial data transmission errors over long RS-232C cable runs, use double-shielded twisted-pair cables and connect the functional ground (FG) terminal directly to a low-impedance earth ground (less than 100 Ohms).

Installation Guidelines

CRITICAL WARNING: Disconnect all incoming primary power feeds before installing or removing this unit. Verify zero-energy state with a calibrated test instrument to prevent electrical shock, arc-flash injury, or physical hardware destruction.

Prepare Panel Cutout: Verify that the enclosure opening matches the exact 8.4-inch template dimensions. De-burr all metal edges to prevent tearing the sealing gasket.

Inspect Waterproof Gasket: Ensure the continuous-molded waterproof seal is seated securely in the bezel channel before sliding the terminal into the cutout to guarantee IP65 protection.

Secure Mounting Brackets: Uniformly tighten the standard mounting brackets around the perimeter to the specified torque. Do not over-tighten, as excess force can deform the front bezel.

Power Connection: Wire the dedicated 24 VDC supply terminal, paying close attention to polarity markings to prevent input fuse damage.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Can I add Ethernet connectivity to the NS8-TV00B-V2 HMI?

Yes. While this model does not feature native onboard Ethernet, an optional Ethernet expansion board (such as the NS-ETN21) can be installed in the rear expansion slot.

What programming software is required for this model?

This terminal is programmed using CX-Designer, which is part of the standard Omron CX-One software integration package.

How does the V2 model differ from older non-V2 legacy versions?

The V2 revision features expanded screen data memory and higher-performance processing, while keeping the same mounting dimensions and backward project compatibility.
