Description

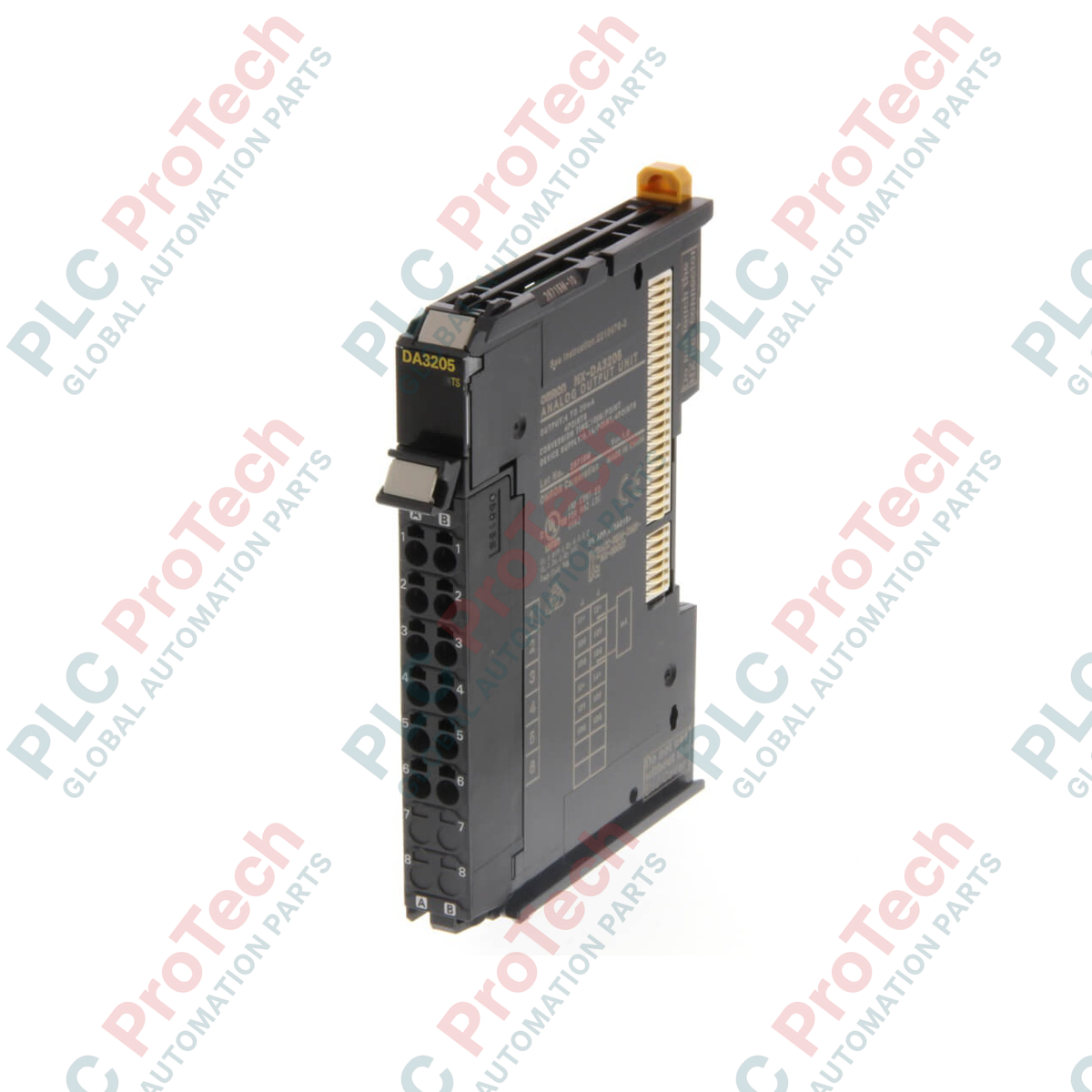

Engineered for high-density distributed control environments, the Omron NX-DA3205 Analog Output Unit provides four high-precision analog output channels within a compact 12 mm slice form factor. Operating on the high-speed NX I/O Bus, this module enables precise current-loop control with a 15-bit resolution and synchronous I/O refreshing, making it highly suited for precise positioning, proportional valve modulation, and variable speed drive integration in Sysmac Studio architectures.
Key Features
-
Four high-precision analog outputs supporting standard 4 to 20 mA current loops.
-
15-bit digital-to-analog conversion resolution ensures exceptional control granularity.
-
Synchronous I/O refreshing synchronizes output timing with the primary EtherCAT master cycle.
-
Ultra-fast conversion time of 0.04 ms per unit for dynamic, real-time application responses.
-
Tool-free Push-In Plus wiring technology reduces panel assembly time and prevents loose connections caused by vibration.
Industrial Applications
-
Proportional Valve Control: Smooth, repeatable modulation of hydraulic and pneumatic flow rates.
-
Motor Speed Regulation: Accurate frequency commands sent directly to variable speed drives (VFDs).
-
Process Control Loops: Setpoint transmission to remote regulatory controllers and actuators.
-
Heating Element Modulation: Interfacing with analog power regulators for precise temperature profiling.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
Omron |
| Model Number |
NX-DA3205 |
| Series |
NX Series I/O System |
| Module Type |
Analog Output Unit |
| Number of Outputs |
4 channels |
| Output Range |
4 to 20 mA |
| Resolution |
15-bit (1/30,000 full scale) |
| Conversion Time |
0.04 ms per unit |
| Signal Processing Mode |
Synchronous I/O refreshing |
| I/O Connection Type |
Push-In Plus terminal block (8 terminals) |
| Degree of Protection |
IP20 |
| Dimensions (W x H x D) |
12 mm x 100 mm x 71 mm |
| Net Weight |
0.07 kg (70 grams) |
| Shipping Weight (Calculated) |
0.25 kg (including standard protective packaging) |
Empirical Engineering Insights
Alternative Models & Compatibility
If system specifications allow for fewer outputs, the NX-DA2205 serves as a direct 2-channel alternative. Note that standard 4 to 20 mA signals require correct programming of the upper and lower limit scaling within the Sysmac Studio configuration environment. Ensure that your NX Coupler Unit (e.g., NX-ECC201 or NX-ECC202) has firmware version 1.0 or later to ensure seamless communication with this analog slice.
Application Pitfalls & Engineering Notes
To maintain the integrity of the 15-bit D/A conversion, always route analog output lines away from high-voltage AC cables and motor feeder cables. Shielded twisted-pair (STP) cabling is strongly recommended to protect current signals from high-frequency electrical noise emitted by adjacent motor drives.
Commissioning & Wiring Tips
The Push-In Plus terminal block accepts solid wire or stranded wire terminated with ferrules. Avoid using bare stranded wire to ensure long-term physical stability in heavy vibration zones. Terminal block release keys can be depressed with a standard 2.5 mm flathead screwdriver to remove wires if necessary.
Installation Guidelines
CRITICAL WARNING: De-energize all primary system power supplies, including field power supplied to the NX bus, before inserting or removing the terminal block or changing the module configuration. Hot-swapping modules or working on active current-loop wiring can cause permanent hardware damage to the analog circuitry or field equipment.
-
1
Mount the NX-DA3205 unit directly onto a standard 35 mm DIN rail by clicking the unit’s locking hook securely onto the rail track.
-
2
Slide adjacent NX Series modules together until the internal side-connector interface pins are completely engaged.
-
3
Insert 4 to 20 mA loop wires directly into the designated Push-In Plus terminal points. Keep wire stripping length between 8 mm and 10 mm.
-
4
Connect the cable shield to a functional ground terminal point on the machine panel for optimal electromagnetic compatibility.
