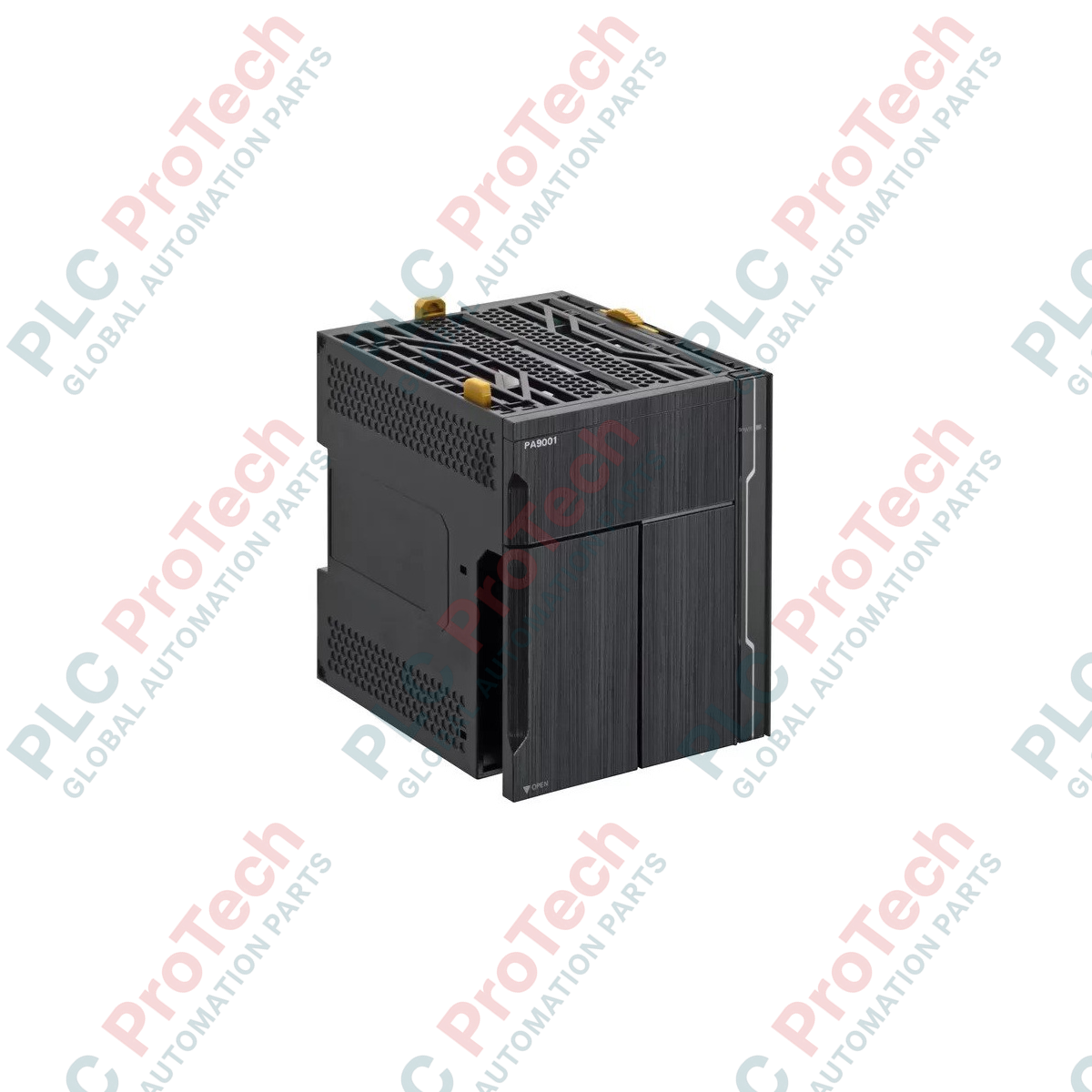

Omron NX-PA9001 NX-Series Power Supply Unit

SKU NX-PA9001

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: NX-PA9001
  • Origin Japan
  • Product Type: Power Supply Units
  • Payment: T/T, Western Union
  • Weight: 0.57 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

NX-Series Power Supply Units
Quantità
Call sales Contact

Product Description

Description

Designed for stable system operation within high-performance automation configurations, the Omron NX-PA9001 serves as a robust AC power supply unit for the NX-series controllers. This module converts wide-range utility input power into regulated internal power, ensuring reliable backplane voltage distribution for connected I/O and CPU modules. Operating on a wide-range input voltage, the unit accommodates global industrial power grids while providing structural system stability and integrated RUN output contact relay functionality.

Features

  • Wide-range AC input capability supporting nominal voltages from 100 to 240 VAC.
  • Integrated RUN output SPST-NO contact for system status signaling and external interlock control.
  • Robust electrical isolation between external AC terminals and the ground (GR) terminal.
  • High-capacity 90 W power delivery to support multi-module NX-series expansions.

Applications

  • Industrial factory automation platforms utilizing Omron NX-series Sysmac controllers.
  • Packaging, material handling, and assembly line control panels.
  • Water treatment facilities, municipal infrastructure, and general machine control networks.

Technical Specifications

Manufacturer Omron
Part Number / Model NX-PA9001
Series NX-Series
Rated Power Supply Voltage 100 to 240 VAC (Operating range: 85 to 264 VAC)
Input Frequency 50/60 Hz (Operating range: 47 to 63 Hz)
Power Consumption 150 VA maximum
Inrush Current (Cold Start) 20 A max. at 100 VAC (8 ms max.); 40 A max. at 200 VAC (8 ms max.)
Output Capacity 90 W maximum
RUN Output Contact Configuration SPST-NO
RUN Output Switching Capacity 250 VAC, 2 A (resistive load); 120 VAC, 0.5 A (inductive load); 24 VDC, 2 A (resistive load)
Insulation Resistance 20 MOhm minimum (at 500 VDC) between AC external and GR terminals
Dielectric Strength 2,300 VAC 50/60 Hz for 1 minute between AC external and GR terminals (Leakage current: 5 mA max.)
Weight 0.57 kg

Connections and Interfaces

Terminal Name Function Description
L / N AC Power Input Terminals (100 to 240 VAC input)
GR Ground Terminal (Grounding resistance of 100 Ohms or less)
RUN (Contact) SPST-NO Dry Contact output status relay; closes when CPU is in RUN mode

Installation Guidelines

  • Mounting: Mount securely onto a 35 mm DIN rail inside a dust-free, enclosed industrial control cabinet.
  • Grounding: Connect the GR (Ground) terminal directly to a dedicated functional ground point with a grounding resistance of 100 Ohms or less to mitigate electromagnetic noise.
  • Wiring: Use appropriate wire gauges matching the rated current and voltage demands of the AC input line. Ensure crimp terminals are fully secured on the terminal block.
  • Cooling and Ventilation: Maintain specified clearance gaps above and below the NX-PA9001 module to ensure sufficient natural convection cooling during operation.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the total output capacity of the Omron NX-PA9001?
The Omron NX-PA9001 power supply unit has a maximum output capacity of 90 W to power connected system modules.
Does the NX-PA9001 unit include a service supply output?
No, a service supply output terminal is not provided on the NX-PA9001 module.
What is the contact configuration and rating of the RUN output?
The RUN output features an SPST-NO contact configuration with a switching capacity of 250 VAC at 2 A (resistive load), 120 VAC at 0.5 A (inductive load), and 24 VDC at 2 A (resistive load).
What input voltage ranges are supported by the NX-PA9001?
The unit supports a nominal input voltage range of 100 to 240 VAC at 50/60 Hz, with a physical operating range of 85 to 264 VAC and 47 to 63 Hz.
Reviews

More from this brand

Omron NA5-12W101S-V1 | Omron | NA5-V1 Series HMI
NA5-12W101S-V1Omron NA5-12W101S-V1 | Omron | NA5-V1 Series HMI
Omron XWT-ID16 16-Point Digital Input Expansion Module
XWT-ID16Omron XWT-ID16 16-Point Digital Input Expansion Module
Omron G3PE-225B-3N | Omron | Solid State Contactors for Three-phase Heaters
G3PE-225B-3NOmron G3PE-225B-3N | Omron | Solid State Contactors for Three-phase Heaters
Omron NX-ECC202 | Omron | NX-series EtherCAT Coupler Unit
NX-ECC202Omron NX-ECC202 | Omron | NX-series EtherCAT Coupler Unit

NX-PA9001

Stock & lead time on request

Call
  • NX-PA9001
1 1

Omron NX-PA9001 NX-Series Power Supply Unit

Only 4 item(s) left in stock

  • Manufacturer: Omron

  • Product No.: NX-PA9001

  • Country of origin:Japan

  • Product Type: Power Supply Units

  • Payment: T/T, Western Union

  • Weight: 570g

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Designed for stable system operation within high-performance automation configurations, the Omron NX-PA9001 serves as a robust AC power supply unit for the NX-series controllers. This module converts wide-range utility input power into regulated internal power, ensuring reliable backplane voltage distribution for connected I/O and CPU modules. Operating on a wide-range input voltage, the unit accommodates global industrial power grids while providing structural system stability and integrated RUN output contact relay functionality.

Features

  • Wide-range AC input capability supporting nominal voltages from 100 to 240 VAC.
  • Integrated RUN output SPST-NO contact for system status signaling and external interlock control.
  • Robust electrical isolation between external AC terminals and the ground (GR) terminal.
  • High-capacity 90 W power delivery to support multi-module NX-series expansions.

Applications

  • Industrial factory automation platforms utilizing Omron NX-series Sysmac controllers.
  • Packaging, material handling, and assembly line control panels.
  • Water treatment facilities, municipal infrastructure, and general machine control networks.

Technical Specifications

Manufacturer Omron
Part Number / Model NX-PA9001
Series NX-Series
Rated Power Supply Voltage 100 to 240 VAC (Operating range: 85 to 264 VAC)
Input Frequency 50/60 Hz (Operating range: 47 to 63 Hz)
Power Consumption 150 VA maximum
Inrush Current (Cold Start) 20 A max. at 100 VAC (8 ms max.); 40 A max. at 200 VAC (8 ms max.)
Output Capacity 90 W maximum
RUN Output Contact Configuration SPST-NO
RUN Output Switching Capacity 250 VAC, 2 A (resistive load); 120 VAC, 0.5 A (inductive load); 24 VDC, 2 A (resistive load)
Insulation Resistance 20 MOhm minimum (at 500 VDC) between AC external and GR terminals
Dielectric Strength 2,300 VAC 50/60 Hz for 1 minute between AC external and GR terminals (Leakage current: 5 mA max.)
Weight 0.57 kg

Connections and Interfaces

Terminal Name Function Description
L / N AC Power Input Terminals (100 to 240 VAC input)
GR Ground Terminal (Grounding resistance of 100 Ohms or less)
RUN (Contact) SPST-NO Dry Contact output status relay; closes when CPU is in RUN mode

Installation Guidelines

  • Mounting: Mount securely onto a 35 mm DIN rail inside a dust-free, enclosed industrial control cabinet.
  • Grounding: Connect the GR (Ground) terminal directly to a dedicated functional ground point with a grounding resistance of 100 Ohms or less to mitigate electromagnetic noise.
  • Wiring: Use appropriate wire gauges matching the rated current and voltage demands of the AC input line. Ensure crimp terminals are fully secured on the terminal block.
  • Cooling and Ventilation: Maintain specified clearance gaps above and below the NX-PA9001 module to ensure sufficient natural convection cooling during operation.
Key Features:
#NX-Series #Power Supply Units

What is the total output capacity of the Omron NX-PA9001?
The Omron NX-PA9001 power supply unit has a maximum output capacity of 90 W to power connected system modules.

Does the NX-PA9001 unit include a service supply output?
No, a service supply output terminal is not provided on the NX-PA9001 module.

What is the contact configuration and rating of the RUN output?
The RUN output features an SPST-NO contact configuration with a switching capacity of 250 VAC at 2 A (resistive load), 120 VAC at 0.5 A (inductive load), and 24 VDC at 2 A (resistive load).

What input voltage ranges are supported by the NX-PA9001?
The unit supports a nominal input voltage range of 100 to 240 VAC at 50/60 Hz, with a physical operating range of 85 to 264 VAC and 47 to 63 Hz.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.
