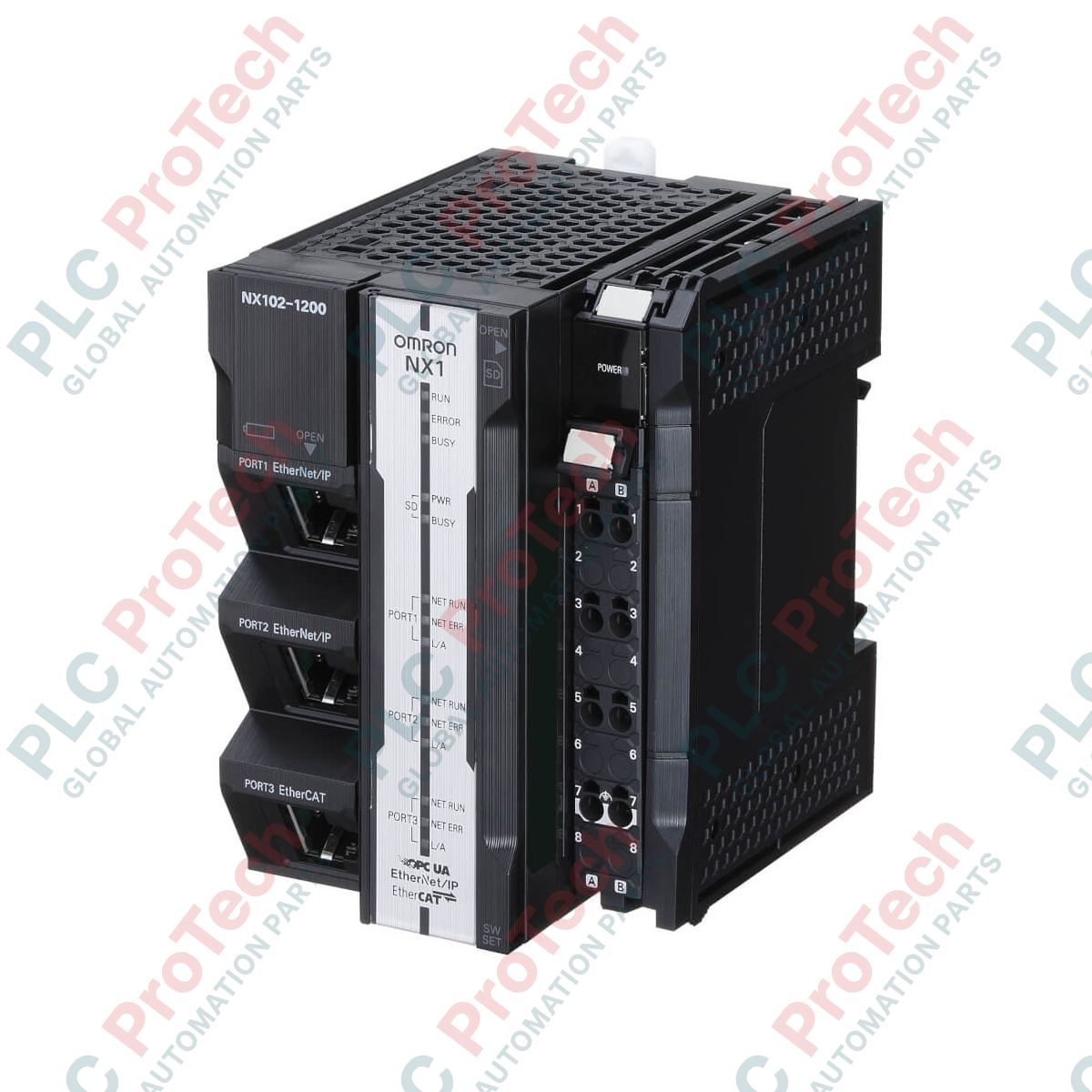

Omron NX102-1120 Sysmac NX1 Modular CPU

SKU NX102-1120

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: NX102-1120
Origin Japan
Product Type: Modular CPUs
Payment: T/T, Western Union
Weight: 2.0 kg
Dimensions: 100 mm x 66 mm x 100 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for high-speed machine control and seamless factory automation integration, the NX102-1120 controller brings database connectivity, motion control, and multi-network capabilities to the Sysmac NX1 platform. This modular CPU allows for real-time synchronization of physical axes while simultaneously managing sequence control, motion pathways, and secure vertical communication.

Equipped with native database connection functionality, this controller streamlines data logging and traceability by communicating directly with SQL servers. It functions as a secure bridge between production-floor hardware and enterprise-level IT infrastructure, offering reliable operations in high-throughput industrial environments.

Features

Supports synchronized control of up to 4 motion axes and 4 point-to-point (PTP) axes.
Direct SQL database connectivity for automated data collection and storage without intermediate PCs.
Integrated OPC UA server functionality for secure, standardized communication with SCADA and MES systems.
Dual EtherNet/IP ports and a dedicated EtherCAT Master port to handle high-bandwidth industrial networks.
Scalable local architecture supporting up to 32 local NX-series expansion I/O units.

Applications

Automotive assembly lines requiring precise multi-axis synchronization.
High-speed packaging machinery requiring synchronized motion and database logging.
Semiconductor fabrication processes.
Water treatment and environmental monitoring systems.

Technical Specifications

Manufacturer	Omron
Model/Part Number	NX102-1120
Series	Sysmac NX1
Program Memory	5 MB
Variables Memory	33.5 MB
Primary Task Cycle Time	1 ms
Max. Synchronous Axes	4 axes
Max. PTP Axes	4 axes
Max. Total Axes (including virtual)	15 axes
Communication Ports	EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
Optional Communications	Serial RS-232C, RS-422, RS-485 (via option boards)
Max. Remote I/O Nodes	64 nodes
Local I/O System	NX I/O Bus
Max. Local Expansion Units	32 units
Dimensions (H x W x D)	100 mm x 66 mm x 100 mm
Approximate Weight	2 kg (Shipping weight)

Connections and Interfaces

Interface Type	Function/Purpose
EtherCAT Port	High-speed, real-time control of servo drives, remote I/O, and vision sensors.
EtherNet/IP Ports	Dual-port hub for secure network configuration, SQL server access, and host PC communication.
USB Port	Peripheral connection for local configuration and engineering tools.
Option Board Slot	Dedicated slot for auxiliary serial communication interfaces.

Installation Guidelines

Mounting: Install on standard 35 mm DIN rail in a vertical orientation to maintain adequate convection cooling.
Clearance: Maintain at least 20 mm of clear space above and below the unit.
Grounding: Use a dedicated ground connection with a ground resistance of 100 ohms or less.
Shielding: Use double-shielded twisted-pair cables for all EtherCAT and EtherNet/IP network connections to mitigate electromagnetic interference.

Compliance and Certifications

CE
cULus
KC (Korean Communications Commission)
RCM (Regulatory Compliance Mark)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What are the primary motion control capabilities of the Omron NX102-1120?

The NX102-1120 supports up to 4 synchronized motion axes, 4 PTP axes, and up to 15 total axes (including virtual axes) with a primary task cycle time of 1 ms.

Does this controller support direct database connectivity?

Yes, the NX102-1120 includes integrated database connection functionality, allowing it to communicate directly with SQL databases without the need for intermediate gateway PCs or software.

What communication protocols are natively supported on the NX102-1120 CPU?

It features built-in EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, and USB interfaces. Serial protocols (RS-232C, RS-422, or RS-485) can be added via expansion option boards.
