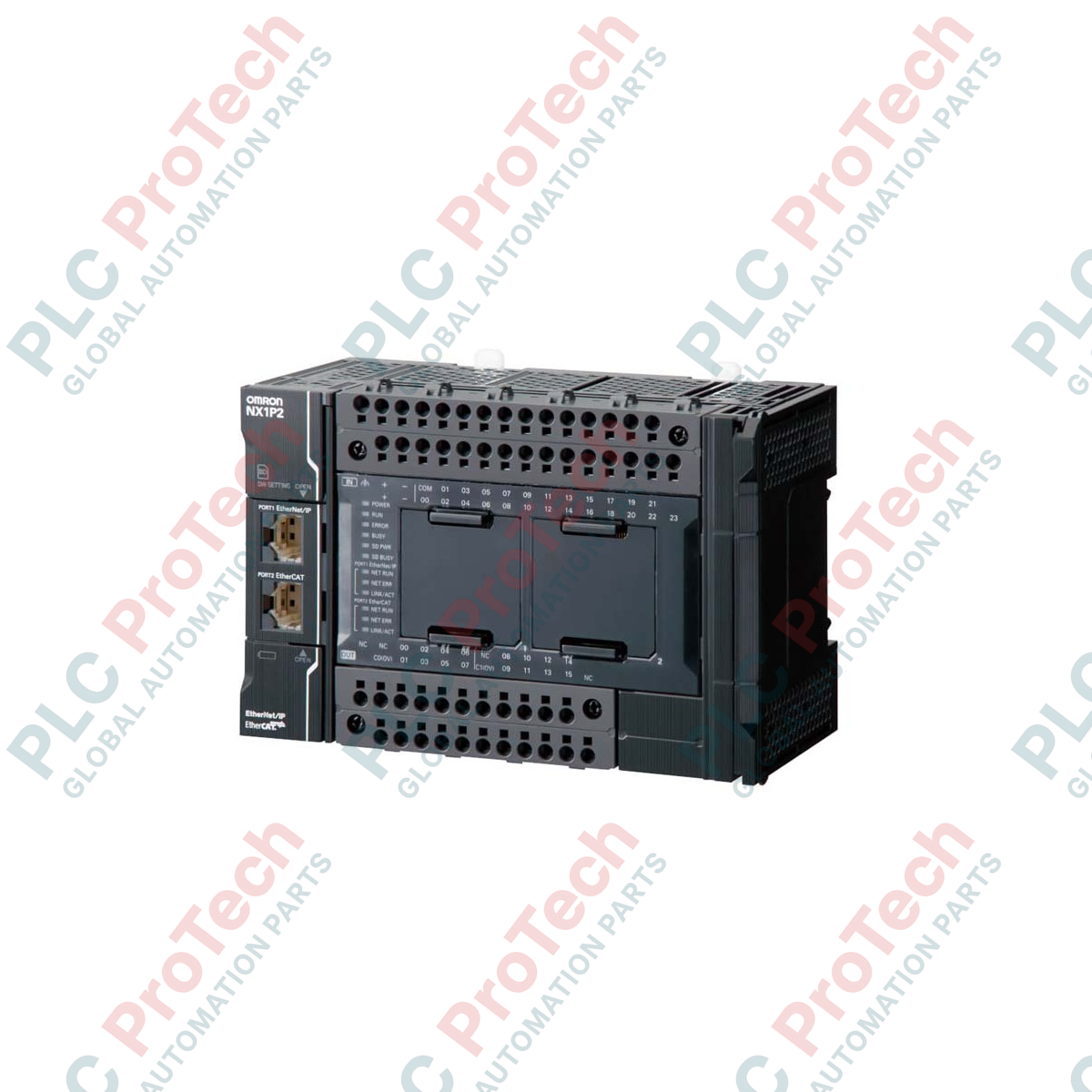

Designed for integrated control of small-scale motion and sequence applications, the Omron NX1P2-1140DT1 execution platform delivers advanced processing within the Sysmac automation architecture. By incorporating built-in I/O, EtherCAT network control, and EtherNet/IP communications in a compact housing, this controller serves as a highly deterministic automation hub. Engineered for real-time responsiveness, it executes its primary task cycle in 2 ms, utilizing 1.5 MB of program memory and 2 MB of variables memory to execute sophisticated control algorithms without lag. The integrated I/O configuration features 40 terminal points configured with PNP sourcing output logic, facilitating direct interface with modern industrial field devices.
| Manufacturer | Omron |
| Model Number | NX1P2-1140DT1 |
| Control Series | Sysmac NX1P |
| Primary Task Cycle Time | 2 ms |
| Program Memory | 1.5 MB |
| Variables Memory | 2 MB |
| Communication Interfaces | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Built-in I/O Configuration | 40 Points: 24 Inputs, 16 Outputs (Transistor, PNP Sourcing) |
| Supply Voltage Range | 20.4 to 28.8 VDC |
| Net Weight | 0.66 kg |
| Shipping Weight (Calculated) | 3.00 kg |
| Dimensions (L x W x H) | 7.1 cm x 14.8 cm x 10.0 cm |
| Country of Origin | Japan |
| Port / Terminal Group | Functional Assignment |
|---|---|
| EtherCAT Port | RJ45 connection to servo drives, remote I/O couplers, and vision sensors. |
| EtherNet/IP Port | RJ45 connection for HMI, SCADA, database connectivity, and configuration. |
| Power Supply Terminal | Direct connection for 24 VDC main controller system power. |
| Input Terminals | 24 points, compatible with standard 24 VDC sinking or sourcing sensors. |
| Output Terminals | 16 points, PNP sourcing transistor configuration requiring external common. |
The "DT1" suffix indicates that this controller utilizes PNP sourcing transistor outputs. For applications requiring NPN sinking outputs, you must select the alternate "DT" model. Upgrading from older CP-series controllers requires a full migration in Sysmac Studio. Ensure your IDE is updated to version 1.17 or higher to guarantee seamless device catalog identification and parameter programming for this hardware revision.
To maintain high operational reliability, observe thermal clearance requirements inside the electrical cabinet. Ensure at least 30 mm of air gap above and below the module housing when operating near the upper ambient temperature range. Do not route high-voltage AC cables in parallel with the low-voltage DC lines supplying the built-in I/O to avoid electromagnetic interference and false transitions on the high-speed input interrupts.
Prior to commissioning the unit, confirm that the external I/O power supply voltage is regulated to standard VDC parameters and matches the common reference of the output terminals. Always utilize double-shielded Cat5e STP cabling for the EtherCAT ring to guarantee signal integrity under high-frequency electromagnetic noise. If utilizing the built-in encoder inputs, route differential signal lines through separate conduits directly to the terminals.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: NX1P2-1140DT1
Country of origin:Japan
Product Type: PLC CPU Modules
Payment: T/T, Western Union
Weight: 660g
Dimensions: 7.1 cm x 14.8 cm x 10.0 cm
Shipping port: Xiamen
Warranty: 12 months
