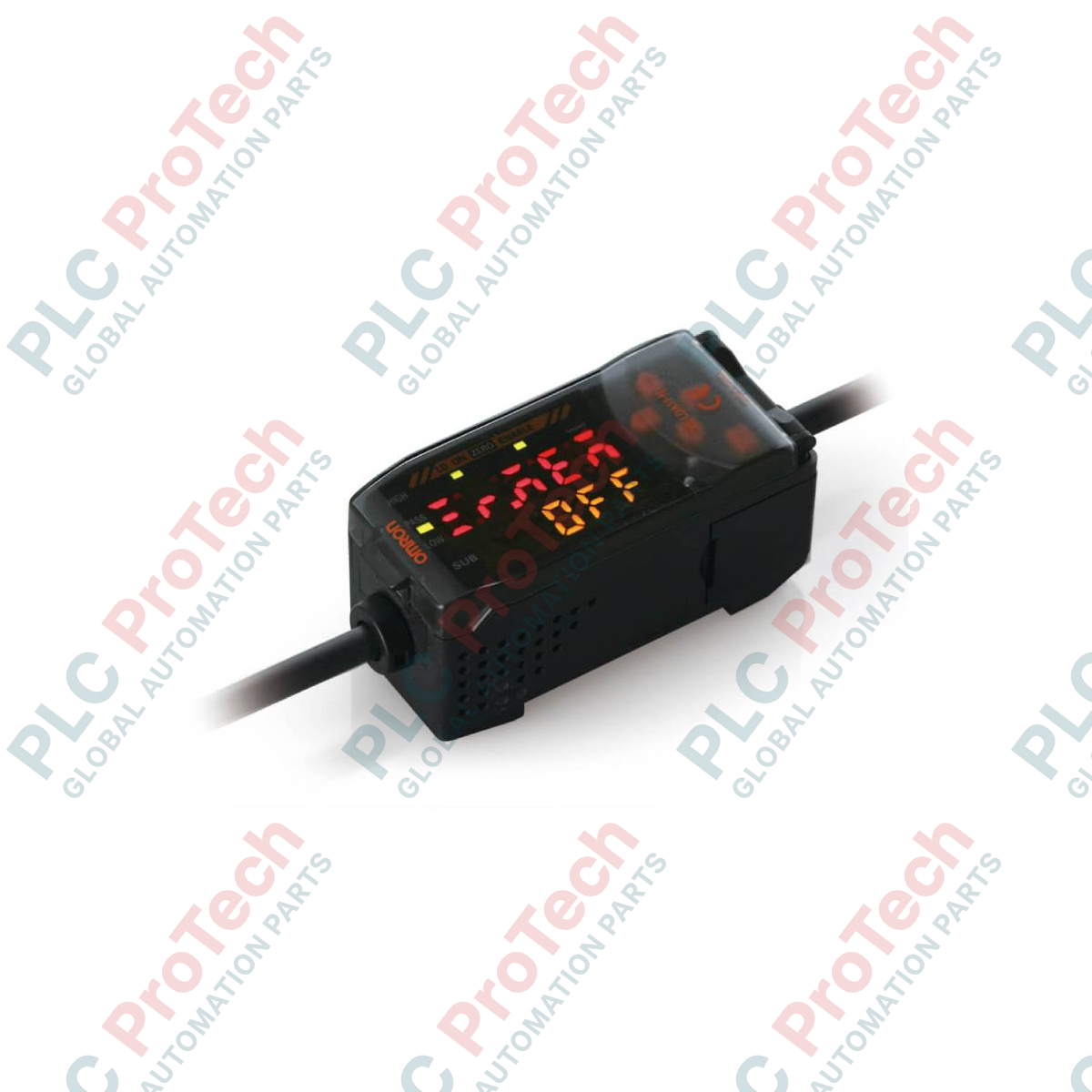

Designed to deliver high-speed, high-resolution processing in precision displacement applications, the Omron ZX-LDA11-N 2M coordinates laser sensor head inputs into reliable industrial control signals. This premium-grade amplifier unit features a rapid 150 microsecond measurement cycle, allowing for real-time tracking of rapid surface alterations, dynamic runout, and micro-level dimensions. Operating on a 12 to 24 VDC power supply, the unit supports versatile linear analog outputs (both voltage and current loops) alongside standard NPN control outputs, facilitating seamless integration with high-speed PLC and industrial PC acquisition architectures.
| Parameter | Technical Value / Specification |
|---|---|
| Manufacturer | Omron |
| Model Number | ZX-LDA11-N 2M |
| Output Type | NPN |
| Power Supply Voltage | 12 to 24 VDC plus/minus 10%, Ripple (p-p): 10% max. |
| Current Consumption | 140 mA max. (at 24 VDC with Sensor connected) |
| Measurement Period | 150 microseconds |
| Average Count Settings | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, or 4096 |
| Linear Current Output | 4 to 20 mA (Maximum load resistance: 300 Ohms) |
| Linear Voltage Output | plus/minus 4 V, plus/minus 5 V, or 1 to 5 V (Impedance: 100 Ohms) |
| Temperature Characteristic | Reflective Head: 0.01% FS/degC; Through-beam Head: 0.1% FS/degC |
| Insulation Resistance | 20 M-Ohms minimum at 500 VDC |
| Dielectric Strength | 1,000 VAC, 50/60 Hz for 1 minute |
| Connection Method | Pre-wired (Standard cable length: 2 meters) |
| Housing Materials | Case: PBT (Polybutylene Terephthalate); Cover: Polycarbonate |
| Ambient Operating Temperature | 0 to 50 degC (no icing or condensation) |
| Ambient Operating Humidity | 35% to 85% RH |
| Net Weight | Approx. 0.35 kg |
The ZX-LDA11-N 2M utilizes NPN output logic. If your system requires source logic, verify compatibility and specify the ZX-LDA41-N (PNP) version instead. This unit is fully backward-compatible with legacy Omron ZX-LD series sensor heads, but always verify firmware compatibility if integrating with older manufacturing dates.
When resolving sub-micron deviations, be mindful that using high digital average counts (up to 4,096) introduces a mathematical propagation delay. To compute total output lag, multiply the measurement period (150 microseconds) by your selected average count. For applications involving high-speed line speed changes, keep the average count as low as possible to prevent signal aliasing.
Ensure that the 2-meter analog output line is routed away from high-power alternating current (AC) lines and variable frequency drives (VFDs) to prevent electromagnetic interference. Ground the sensor shield properly on the controller end to keep noise floor levels below the analog threshold of your PLC card.
CRITICAL WARNING:
Disconnect all primary power sources before mounting the amplifier or plugging in the laser sensor head. Hot-plugging or unplugging the sensor head under load can result in permanent damage to the delicate optoelectronic receiving components inside the system.
Mount the amplifier unit securely onto a standard 35mm DIN-rail. Ensure sufficient space is left on both sides of the unit to facilitate convective thermal cooling.
Carefully insert the laser sensor head connector into the side-facing socket on the amplifier until the mechanical latch clicks into place.
Connect the pre-wired 2m cable according to standard NPN wiring conventions: Blue wire to 0 VDC, Brown wire to +12/24 VDC, and Black/Pink wires to corresponding NPN load and Analog inputs respectively.
Apply power to the unit and use the integrated display keypads to configure the required average count settings and scale the linear analog outputs.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: ZX-LDA11-N 2M
Country of origin:Japan
Product Type: Laser Sensor Amplifier Units
Payment: T/T, Western Union
Weight: 0g
Shipping port: Xiamen
Warranty: 12 months
Designed to deliver high-speed, high-resolution processing in precision displacement applications, the Omron ZX-LDA11-N 2M coordinates laser sensor head inputs into reliable industrial control signals. This premium-grade amplifier unit features a rapid 150 microsecond measurement cycle, allowing for real-time tracking of rapid surface alterations, dynamic runout, and micro-level dimensions. Operating on a 12 to 24 VDC power supply, the unit supports versatile linear analog outputs (both voltage and current loops) alongside standard NPN control outputs, facilitating seamless integration with high-speed PLC and industrial PC acquisition architectures.
| Parameter | Technical Value / Specification |
|---|---|
| Manufacturer | Omron |
| Model Number | ZX-LDA11-N 2M |
| Output Type | NPN |
| Power Supply Voltage | 12 to 24 VDC plus/minus 10%, Ripple (p-p): 10% max. |
| Current Consumption | 140 mA max. (at 24 VDC with Sensor connected) |
| Measurement Period | 150 microseconds |
| Average Count Settings | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, or 4096 |
| Linear Current Output | 4 to 20 mA (Maximum load resistance: 300 Ohms) |
| Linear Voltage Output | plus/minus 4 V, plus/minus 5 V, or 1 to 5 V (Impedance: 100 Ohms) |
| Temperature Characteristic | Reflective Head: 0.01% FS/degC; Through-beam Head: 0.1% FS/degC |
| Insulation Resistance | 20 M-Ohms minimum at 500 VDC |
| Dielectric Strength | 1,000 VAC, 50/60 Hz for 1 minute |
| Connection Method | Pre-wired (Standard cable length: 2 meters) |
| Housing Materials | Case: PBT (Polybutylene Terephthalate); Cover: Polycarbonate |
| Ambient Operating Temperature | 0 to 50 degC (no icing or condensation) |
| Ambient Operating Humidity | 35% to 85% RH |
| Net Weight | Approx. 0.35 kg |
The ZX-LDA11-N 2M utilizes NPN output logic. If your system requires source logic, verify compatibility and specify the ZX-LDA41-N (PNP) version instead. This unit is fully backward-compatible with legacy Omron ZX-LD series sensor heads, but always verify firmware compatibility if integrating with older manufacturing dates.
When resolving sub-micron deviations, be mindful that using high digital average counts (up to 4,096) introduces a mathematical propagation delay. To compute total output lag, multiply the measurement period (150 microseconds) by your selected average count. For applications involving high-speed line speed changes, keep the average count as low as possible to prevent signal aliasing.
Ensure that the 2-meter analog output line is routed away from high-power alternating current (AC) lines and variable frequency drives (VFDs) to prevent electromagnetic interference. Ground the sensor shield properly on the controller end to keep noise floor levels below the analog threshold of your PLC card.
CRITICAL WARNING:
Disconnect all primary power sources before mounting the amplifier or plugging in the laser sensor head. Hot-plugging or unplugging the sensor head under load can result in permanent damage to the delicate optoelectronic receiving components inside the system.
Mount the amplifier unit securely onto a standard 35mm DIN-rail. Ensure sufficient space is left on both sides of the unit to facilitate convective thermal cooling.
Carefully insert the laser sensor head connector into the side-facing socket on the amplifier until the mechanical latch clicks into place.
Connect the pre-wired 2m cable according to standard NPN wiring conventions: Blue wire to 0 VDC, Brown wire to +12/24 VDC, and Black/Pink wires to corresponding NPN load and Analog inputs respectively.
Apply power to the unit and use the integrated display keypads to configure the required average count settings and scale the linear analog outputs.
