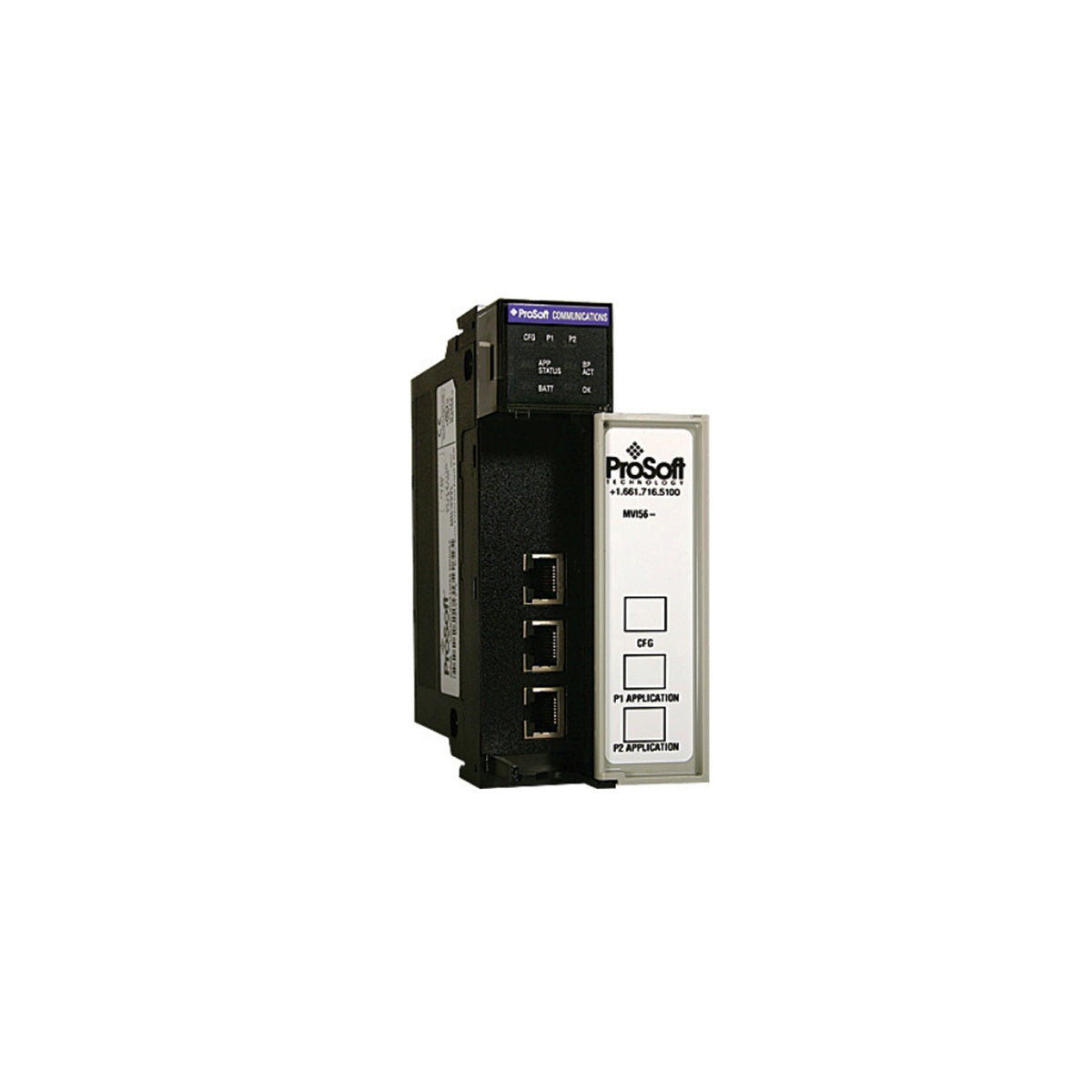

Integrating Modbus serial connectivity into Rockwell Automation ControlLogix systems is simplified using the MVI56-MCM Modbus Master/Slave Communication Module. This high-performance backplane-compatible module allows ControlLogix processors to interface seamlessly with Modbus RTU and Modbus ASCII protocols. Operating as either a Master or a Slave, the module facilitates direct high-speed data transfer across the ControlLogix backplane, eliminating the need for external protocol gateways and optimizing industrial automation networks.
The MVI56-MCM features dual independent serial ports, providing highly flexible configuration options for complex multi-device networks. By utilizing user-defined data tables and dedicated system memory, it enables robust supervisory control and data acquisition across diverse industrial environments.
| Manufacturer | ProSoft Technology |
| Model / Part Number | MVI56-MCM |
| Product Type | Modbus Communication Module |
| Platform Compatibility | ControlLogix Chassis |
| Backplane Current Load | 800 mA @ 5 VDC, 3 mA @ 24 VDC |
| Operating Temperature | 0 to 60 degC (32 to 140 degF) |
| Storage Temperature | -40 to 85 degC (-40 to 185 degF) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock (Operational) | 30g |
| Shock (Non-Operational) | 50g |
| Vibration | 5 g @ 10 to 150 Hz |
| Approximate Shipping Weight | 3 kg |
Before installing the module, ensure the ControlLogix chassis power supply is completely switched off. Insert the MVI56-MCM into any available slot in the chassis, ensuring the module connector pins align perfectly with the backplane. Secure the module by tightening the mounting screws.
To prevent electrical interference and preserve communication integrity, use high-quality shielded twisted-pair cables for all RS-232, RS-422, or RS-485 serial connections, and verify that the shield is properly grounded at a single point.
