Description

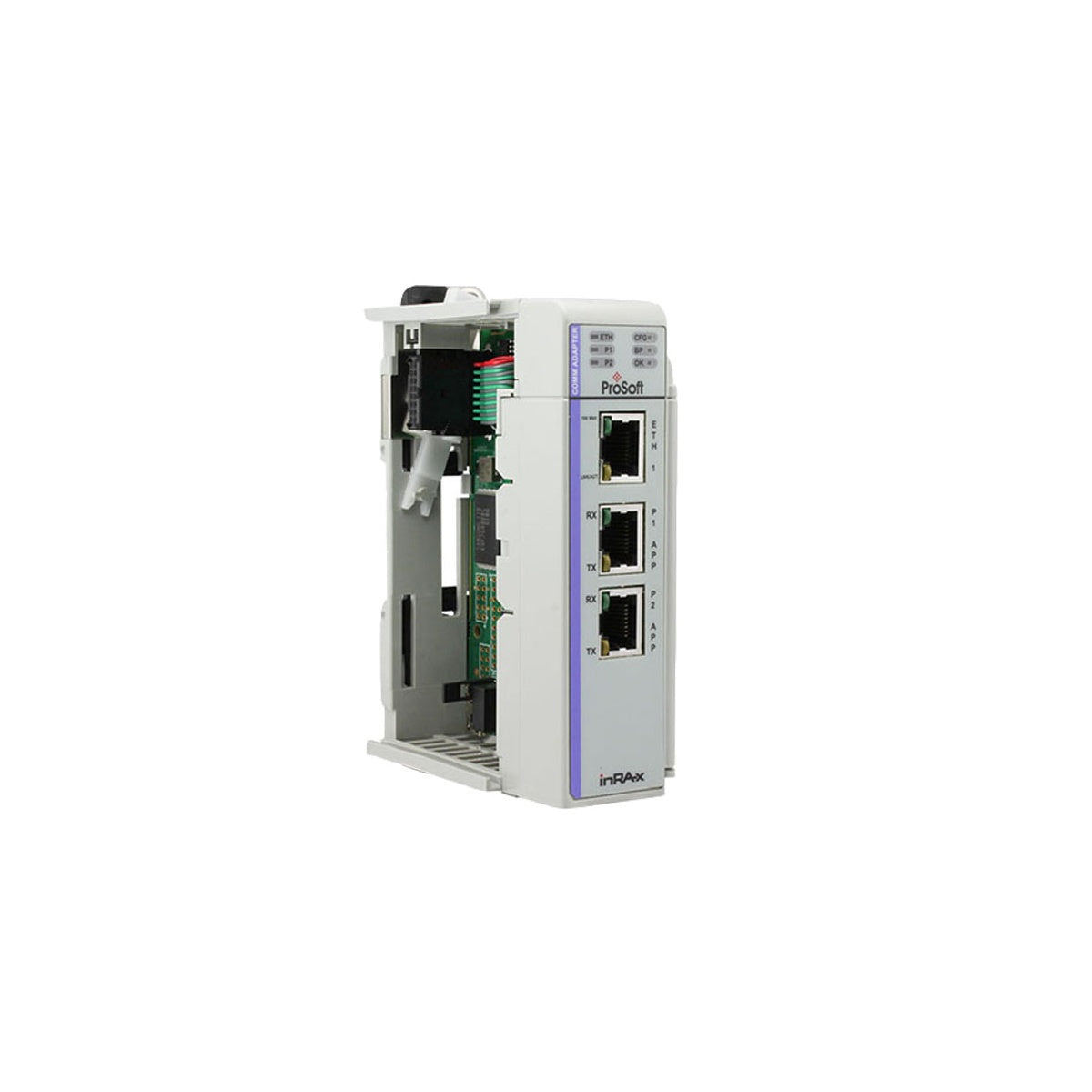

Designed to facilitate seamless serial communication within Rockwell Automation CompactLogix control platforms, the ProSoft MVI69E-MBS provides high-speed integration of Modbus RTU and ASCII protocol devices. By acting as a direct interface module on the 1769 backplane, this module enables CompactLogix processors to interface easily with up to two independent Modbus networks. The device functions as either a Modbus Master or Slave, utilizing user-defined memory mapping to transfer up to 240 words of register data per direction. Configuration is managed via the dedicated ProSoft Configuration Builder utility, allowing field engineers to define baud rates, parity, and data transfer offsets without writing complex ladder logic.

Key Features

• Dual Isolated Serial Ports: Supports independent configuration for RS-232, RS-422, or RS-485 serial standards.
• Flexible Memory Allocations: Adjustable input/output database size options of 60, 120, or 240 16-bit integers to match controller memory capacities.
• Multi-Protocol Support: Integrates both Modbus RTU (binary with CRC-16) and Modbus ASCII (with LRC error checking) operation modes.
• Onboard Diagnostics: Detailed error codes, network counters, and port status registers are mapped directly to controller tags.
• Software-Selectable Addressing: Full software selection of master or slave node addresses ranging from 1 to 247.

Applications

• Interfacing CompactLogix systems with Variable Frequency Drives (VFDs) and motor control centers (MCCs).
• Connecting legacy flow computers, SCADA systems, and Human Machine Interfaces (HMIs).
• Integrating multi-parameter power monitors, protection relays, and RTU devices on factory floors.
• Distributed telemetry systems and remote municipal automation installations.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The MVI69E-MBS serves as an upgraded alternative to the legacy MVI69-MCM module. While physical footprints are identical, the 'E' series utilizes Add-On Instructions (AOI) rather than traditional ladder-logic based block transfers. Existing legacy system conversions require updating the controller tag structures within Studio 5000 and downloading the latest .L5X files from ProSoft.

Application Pitfalls & Engineering Notes

Observe the 1769 power supply distance rating when planning system layouts. The module has a distance rating of 4, meaning it cannot be installed more than 4 slots away from the power supply module. Exceeding this distance limit will result in intermittent backplane communication failures and module startup issues.

Commissioning & Wiring Tips

Always utilize the provided RJ45-to-DB9 terminal adapters to guarantee pin alignment for RS-485 multi-drop topologies. If you are constructing custom RJ45 cables, maintain proper shielding practices and terminate long RS-485 runs with 120-ohm resistors across Rx/Tx terminals to mitigate signal reflections.

Installation Guidelines

1. 1
   Ensure the controller and power supply modules are securely fastened to the DIN rail prior to installation.
2. 2
   Align the tongue-and-groove slots of the MVI69E-MBS with the adjacent module and slide the unit into place.
3. 3
   Engage the upper and lower latch locks on the side panel to secure the backplane connection.
4. 4
   Connect the serial interfaces utilizing the proper RJ45-to-DB9 cabling adapters, securing any necessary strain reliefs.
