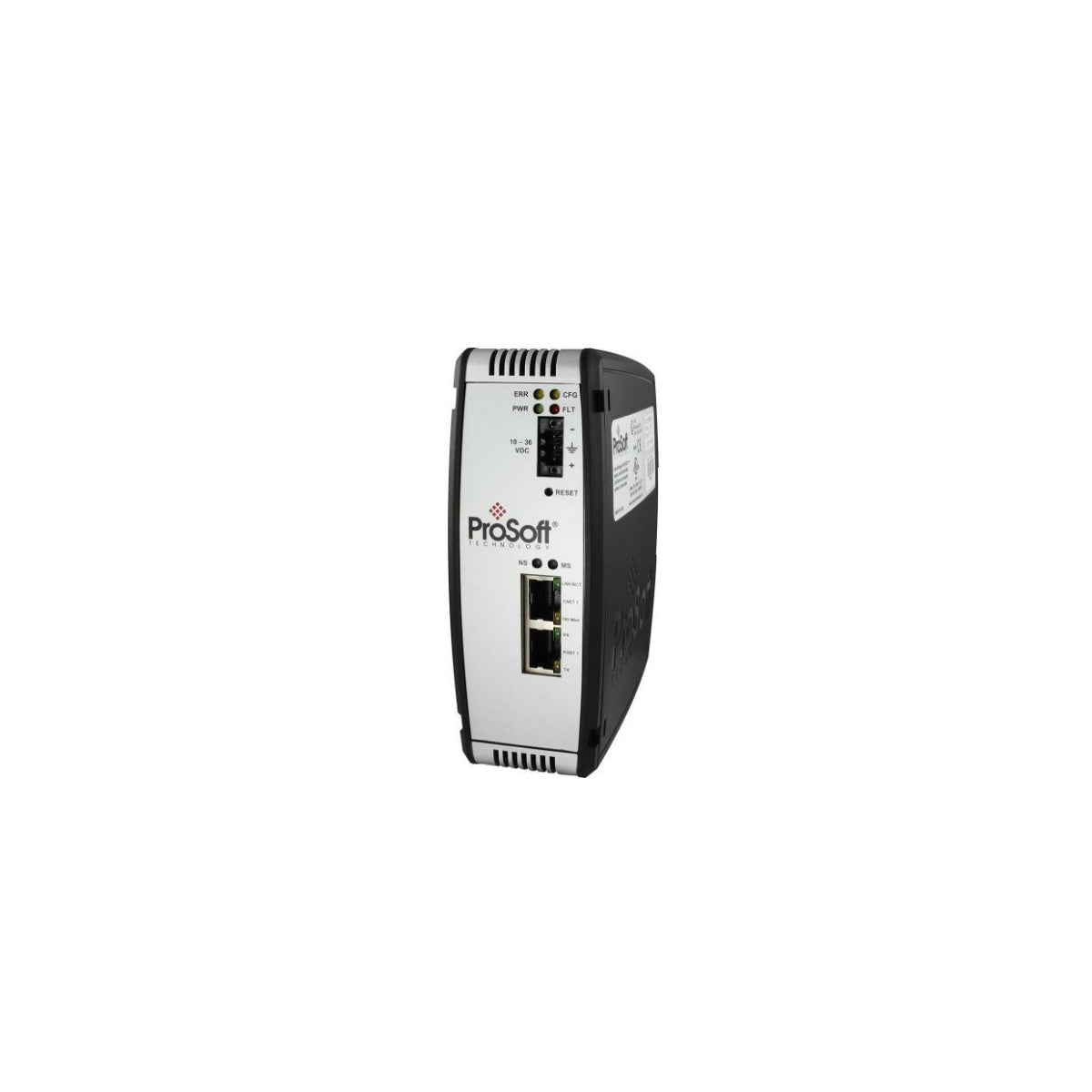

The ProSoft PLX31-MBTCP-MBS is a high-performance industrial gateway designed for seamless communication between Modbus TCP/IP and Modbus Serial (RTU/ASCII) networks. It allows a Modbus TCP/IP Client to control Modbus Serial devices, or vice versa, acting as a bridge between Ethernet-based systems and legacy serial infrastructure.
| Category | Specification |
| Manufacturer | ProSoft Technology |
| Model Number | PLX31-MBTCP-MBS |
| Product Type | Modbus TCP/IP to Modbus Serial Gateway |
| Power Supply | 24 VDC nominal (10 to 36 VDC) |
| Power Consumption | 24 VDC @ 100 mA |
| Operating Temp | -25°C to 70°C (-13°F to 158°F) |
| Feature | Capacity |
| Supported Clients | Up to 10 |
| Supported Servers (MBAP) | Up to 5 |
| Supported Servers (Encapsulated) | Up to 5 |
| Command List | Up to 160 fully configurable Client commands |
| Feature | Capacity |
| RS Interface | RS-232, RS-422, and RS-485 (Hardware selectable) |
| Baud Rate | 110 baud to 115.2 kbps |
| Parity | None, Even, Odd |
| Data Size | 7 or 8 bits |
| Node Address | 1 to 247 (Software selectable) |
| Command List | Up to 100 commands per Master port |
| RTS On/Off Delay | 0 to 65535 milliseconds |
| Item | Data |
| Dimensions (L x W x H) | 5.05 cm x 11.13 cm x 13.67 cm |
| Unit Weight | 0.5 kg |
| Shipping Weight | 1.5 kg |
Power Wiring:
The unit requires a 24 VDC power source. Ensure the polarity is correct when wiring the terminal block to avoid damaging the internal circuitry.
Serial Port Selection:
The serial port is versatile (RS-232/422/485). Ensure the jumpers or software settings match your physical wiring. For RS-485 long-distance runs, ensure proper 120-ohm termination is applied at the end of the line.
Network Configuration:
Use the ProSoft Configuration Builder (PCB) software to set the IP address. Ensure the gateway is on the same subnet as your Modbus TCP/IP Master (Client).
Mounting:
The unit is designed for standard DIN-rail mounting. Ensure adequate clearance for airflow, especially in high-temperature environments.
Q1: Can this gateway support both Modbus RTU and Modbus ASCII?
A: Yes. The serial port can be configured for either RTU or ASCII messaging, depending on your field device requirements.
Q2: What is the difference between MBAP and Encapsulated servers?
A: MBAP (Modbus Application Protocol) is the standard header used over TCP/IP (Port 502). Encapsulated Modbus refers to standard serial packets wrapped in a TCP/IP envelope, often used by legacy software drivers.
Q3: How many serial devices can I connect to one PLX31-MBTCP-MBS?
A: In RS-485 mode, you can connect up to 32 devices (standard load) to the serial port, provided they all use the same baud rate and parity settings.
Q4: Is the configuration stored if power is lost?
A: Yes. The configuration is stored in non-volatile memory and is automatically reloaded upon power-up.
Q5: What diagnostic tools are available?
A: The unit features front-panel LEDs for Power, Ethernet Link/Activity, and Serial Transmit/Receive status. Additionally, the ProSoft Configuration Builder provides a "Diagnostic" window for real-time traffic monitoring.
Global Express Shipping
Returns & Warranty
Manufacturer: ProSoft
Product No.: PLX31-MBTCP-MBS
Country of origin:United States
Product Type: ModBus TCP/IP
Payment: T/T, Western Union
Weight: 1500g
Dimensions: 5.05cm x 11.13cm x 13.67cm
Shipping port: Xiamen
Warranty: 12 months
