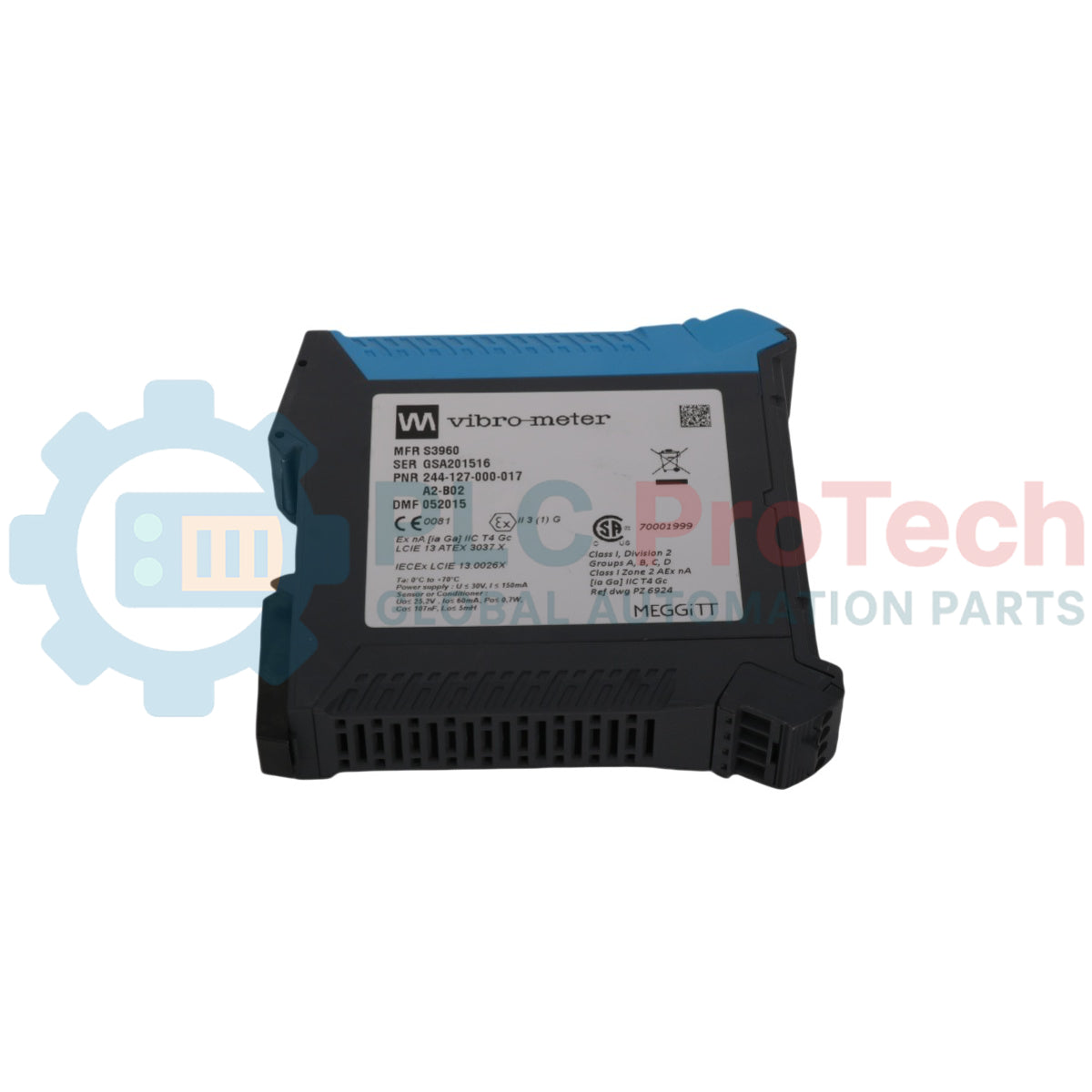

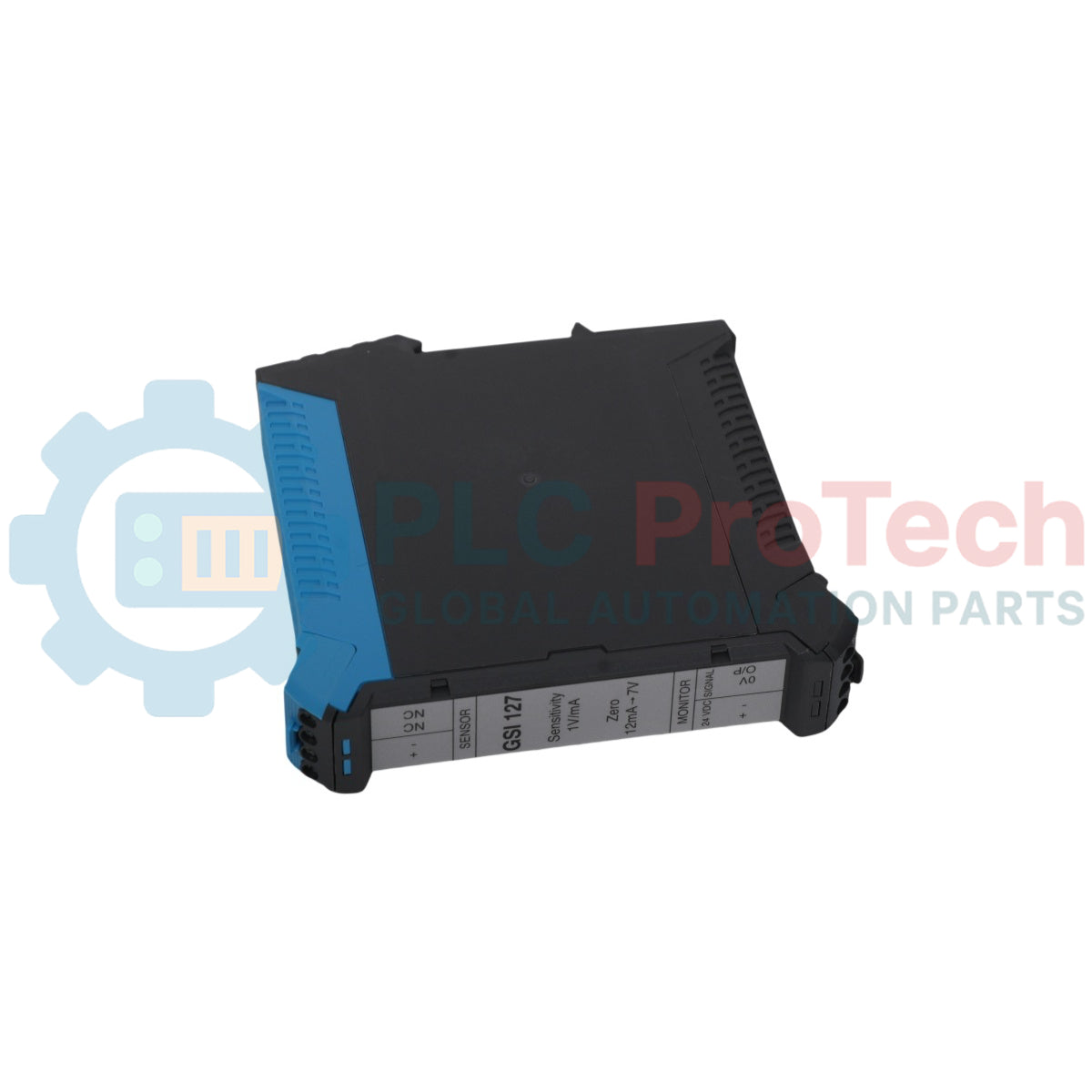

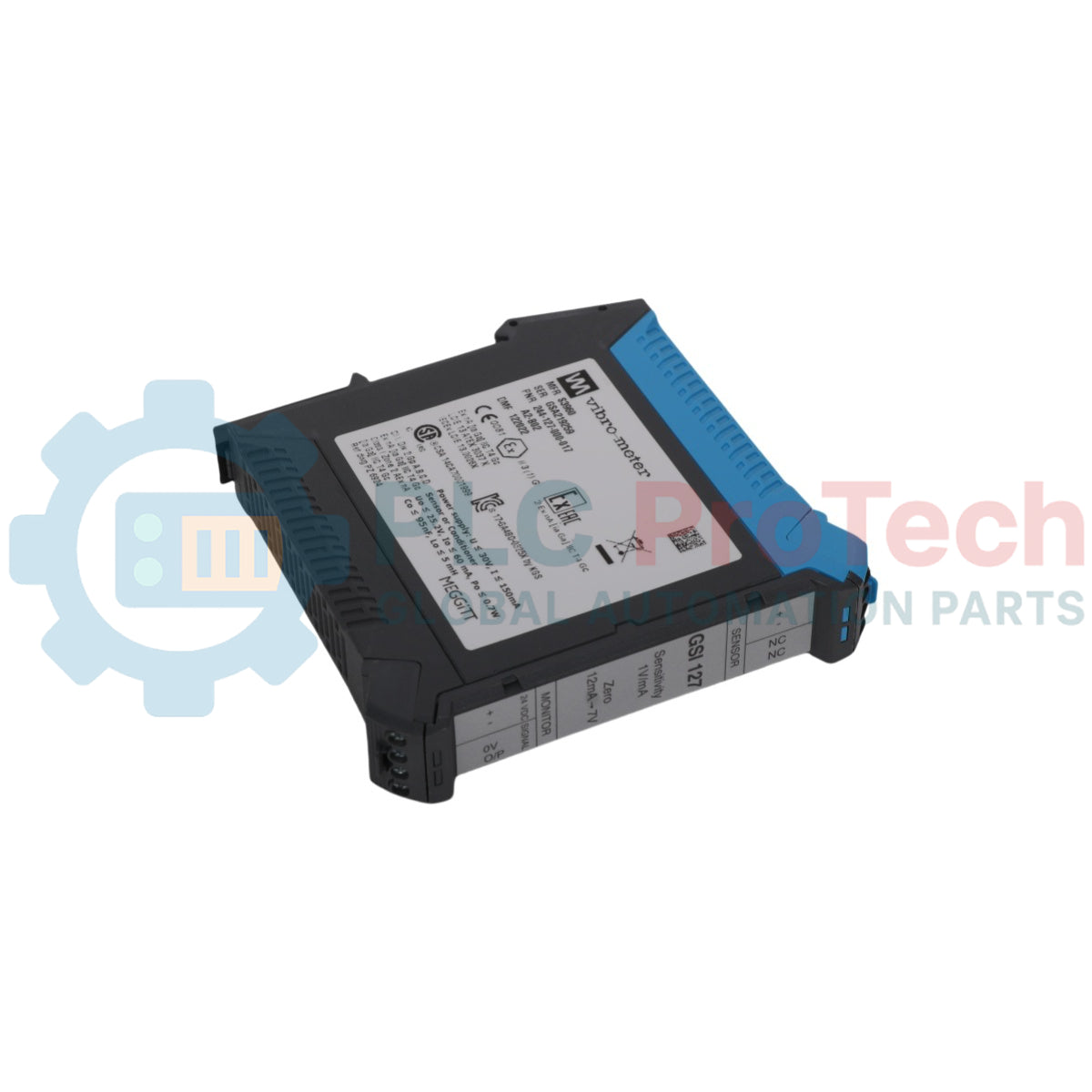

The S3960 244-127-000-017 (S3960) is a specialized signal interface and galvanic separation unit within the Vibro-Meter VM600 ecosystem. Engineered for high-integrity TSI (Turbine Supervisory Instrumentation) applications, this unit provides the essential electrical isolation and signal conditioning required to transmit vibration data from harsh field environments to the control room. The S3960 is specifically designed to handle the high-frequency dynamic signals from accelerometers and proximity probes, ensuring that ground loops and electromagnetic interference do not compromise the accuracy of machinery protection logic in power plants, refineries, and offshore platforms.
The 244-127-000-017 designation represents a high-spec version of the S3960 series, often cross-compatible with GSI 127 series specifications for modularity.
Three-Way Galvanic Isolation: This unit provides independent isolation between the input (sensor side), output (rack side), and the power supply. This architecture is critical for protecting VM600 MPC4 cards from field-side electrical surges.
Signal Fidelity: Optimized for wideband frequency response, the S3960 maintains phase linearity from DC up to 20 kHz, making it suitable for both slow-speed shaft position monitoring and high-frequency gear-mesh vibration analysis.
Explosion Protection: Operates as an "Associated Apparatus," meaning it can be installed in a safe area to interface with intrinsically safe (Ex i) transducers located in Zone 0 or Zone 1 hazardous locations.
Power Management: Regulates and filters the 24 VDC supply to provide "clean" power to the field signal conditioners (e.g., IQS 450), minimizing the noise floor of the measurement chain.
| Parameter | Specification Details |
| Model | S3960 244-127-000-017 |
| Brand | Vibro-Meter (Meggitt) |
| Origin | Switzerland |
| Isolation Strength | 4000 Vrms |
| Input Signal Type | Voltage or Current (Transducer dependent) |
| Supply Voltage | 24 VDC (+/- 10%) |
| Operating Temp | -20 to 70 deg C |
| Mounting Style | DIN Rail 35 mm |
| Dimensions | Compact modular housing (approx. 110 x 22 x 100 mm) |
How does the S3960 244-127-000-017 differ from a standard industrial isolator?
Standard isolators are often limited to 4-20 mA DC signals. The S3960 is a "high-speed" interface capable of passing dynamic AC waveforms (vibration signals) without attenuation or phase shift, which is mandatory for diagnostic tools like Orbit Analysis.
Can I use the S3960 for both vibration and temperature signals?
While primarily designed for dynamic signals (vibration/displacement), the S3960 can be used for quasi-static signals if the input voltage ranges are compatible. However, for RTD or Thermocouple inputs, a dedicated temperature transmitter is usually preferred.
What is the significance of the A2-B02 suffix often associated with this part?
The A2-B02 suffix indicates the specific calibration of the output gain and the mechanical mounting kit. It ensures the unit is a "drop-in" replacement for existing GSI 127 or S3960 installations in standardized cabinets.
Separation of Wiring: Maintain a minimum distance of 50 mm between the blue intrinsically safe wiring (sensor side) and the black/grey non-intrinsically safe wiring (rack side). Use separate cable ducts to comply with ATEX/IECEx safety standards.
Shield Grounding: The sensor cable shield should be terminated at the S3960 unit's designated shield terminal. Ensure the DIN rail is bonded to the master instrument ground to provide an effective path for high-frequency EMI.
Voltage Drop Considerations: When calculating the maximum cable run between the S3960 and the field sensor, account for the internal voltage drop of the unit (typically around 1V). For very long runs (>300m), ensure the supply voltage at the field conditioner remains within the specified -18 to -30 VDC range.
The S3960 244-127-000-017 is preferred by site engineers for its MTBF (Mean Time Between Failure) rating, which exceeds 500,000 hours. In the context of a "Trip-Multiply" or "Danger" alarm logic, the reliability of this interface card is paramount. Its passive-style cooling and absence of internal software make it immune to the firmware bugs or processor hangs that can plague cheaper, digital isolators, providing a "pure hardware" safety path for critical machinery.
