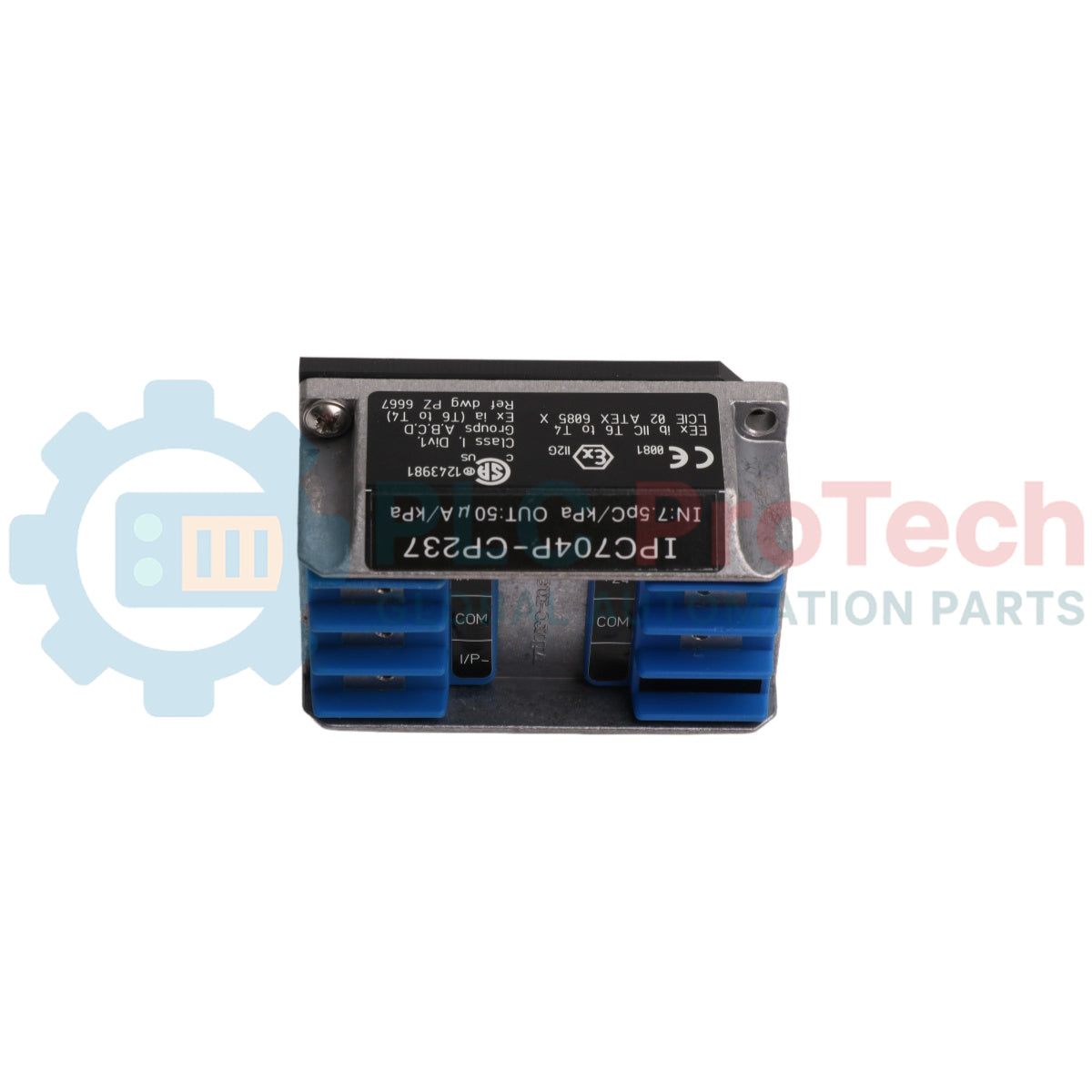

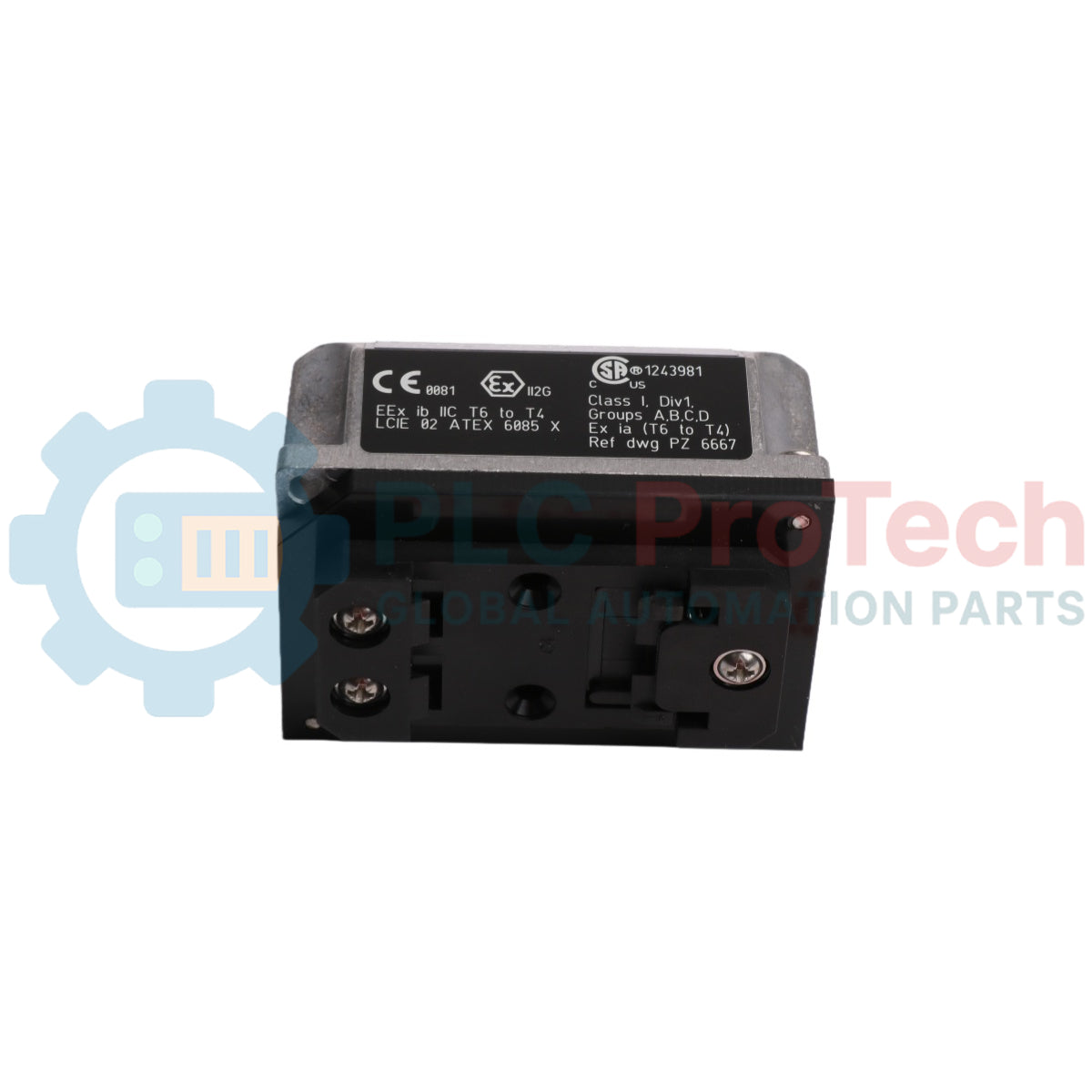

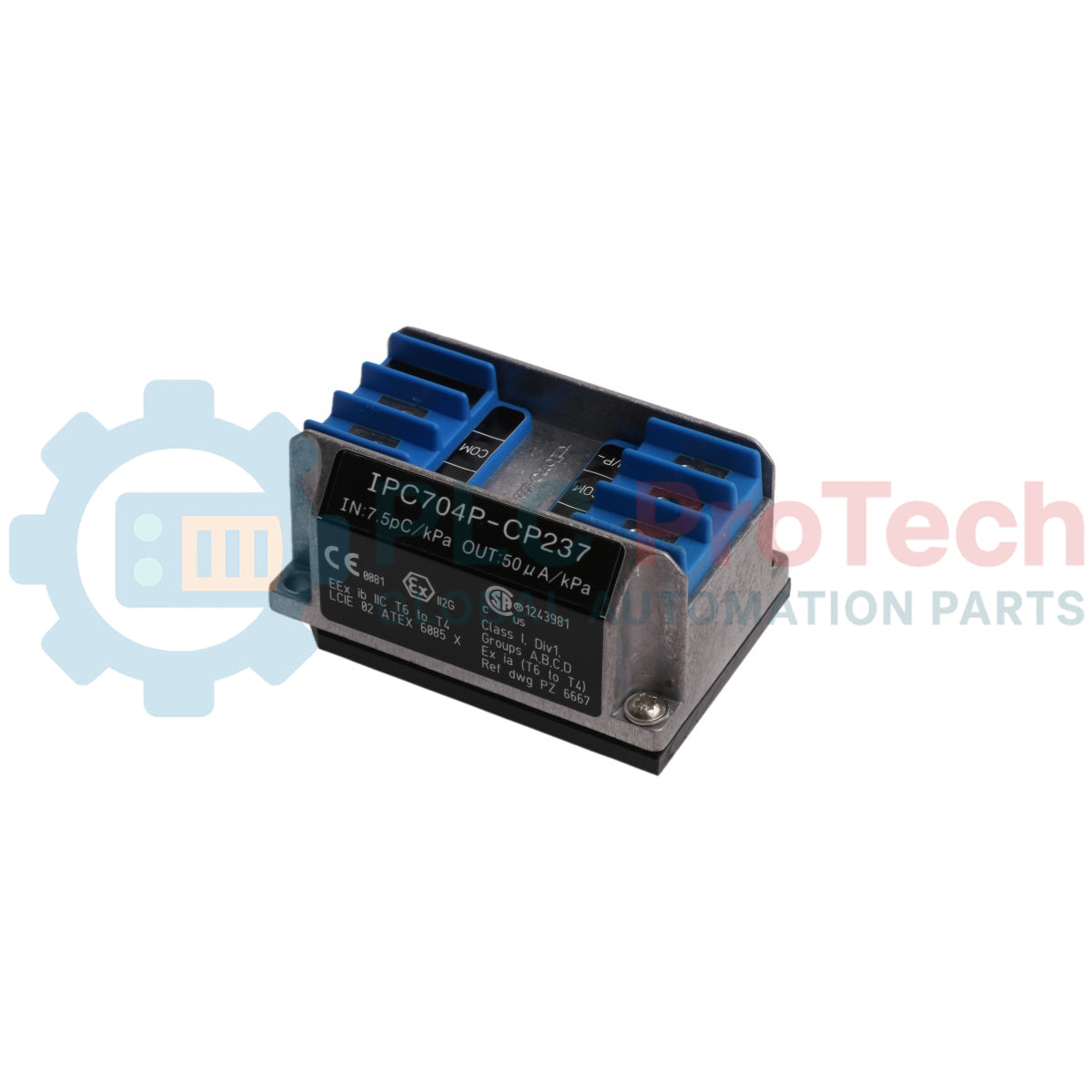

The IPC 704 (244-704-000-042) is a high-precision signal conditioner specifically designed to interface with CA xxx piezoelectric accelerometers and CP xxx dynamic pressure sensors. As a core component of the Vibro-Meter product line, it converts high-impedance charge-based signals into stable current or voltage outputs. This conversion is vital for TSI (Turbine Supervisory Instrumentation) and condition monitoring, as it allows for reliable signal transmission over distances up to 1 km using standard cabling, effectively shielding critical data from the electromagnetic interference common in power plant and industrial environments.
The 244-704-000-042 configuration represents a versatile hardware build intended for extreme industrial reliability.
Charge Amplification: The unit functions as a high-gain charge amplifier that accepts signals in picocoulombs (pC) and provides a low-impedance output.
Filtering Architecture: It features configurable high-pass and low-pass filters to narrow the frequency band to the specific mechanical signatures of interest, such as blade pass frequencies or bearing wear.
Optional Integration: This model can be configured with an internal integrator, allowing it to convert acceleration data into velocity units (mm/s or in/s) directly before transmission.
Signal Transmission: It utilizes a current modulation technique, which is inherently more resistant to voltage drops and electrical noise than traditional voltage-based systems.
RFI/EMI Protection: The moulded aluminium enclosure acts as a Faraday cage, while internal RFI filters protect the I/O stages against radio-frequency interference.
| Parameter | Specification Details |
| Model | IPC 704 (244-704-000-042) |
| Brand | Vibro-Meter (Meggitt) |
| Origin | Switzerland |
| Input Compatibility | CA xxx (Accelerometers), CP xxx (Pressure) |
| Frequency Range | 0.5 Hz to 20 kHz |
| Output Type | 2-wire current or 3-wire voltage |
| Operating Temp | -35 to 85 deg C |
| Enclosure Material | Moulded Aluminium |
| Hazardous Area Cert | ATEX, IECEx, NEPSI, cCSAus |
How does the current modulation benefit long-distance monitoring?
By using current modulation, the IPC 704 ensures that signal accuracy is not degraded by the resistance of long cables. This allows the conditioner to be placed in a junction box near the machine while the processing electronics (like a VM600 rack) are located up to 1,000 meters away in a control room.
Is a galvanic separation unit required for this conditioner?
Yes, when using the current transmission configuration, a GSI galvanic separation unit is required to provide the necessary power and isolation to the loop, ensuring protection against ground loops.
What is the function of the "Sensor OK" check in the IPC 704?
The conditioner monitors the bias voltage of the connected transducer. If the sensor or the input cable is shorted or open-circuited, the IPC 704 will drive its output to a predefined error level, allowing the monitoring system to trigger a "Sensor Fault" alarm instead of a false vibration trip.
Input Cable Requirements: Because piezoelectric sensors produce high-impedance signals, the cable between the sensor and the IPC 704 must be a specialized low-noise coaxial or mineral-insulated (MI) cable. Standard industrial wiring in this segment will cause significant signal noise due to the triboelectric effect.
Filter Configuration: Before commissioning, verify the jumper or solder-link settings for the high-pass and low-pass filters. For typical gas turbine vibration, a high-pass setting of 10 Hz is often used to eliminate low-frequency thermal "washout."
Enclosure Grounding: The aluminium housing must be securely bonded to the local instrument ground. If mounting on a DIN rail, ensure the rail itself has a low-resistance path to the earth to maximize the effectiveness of the internal RFI filters.
The IPC 704 244-704-000-042 is distinguished by its High Dynamic Range. It is capable of processing minute pressure pulsations in combustion chambers and violent structural vibrations simultaneously without saturating the amplifier. Its Swiss-engineered circuitry provides a "Cold Start" capability, reaching stabilized measurement accuracy within seconds of power-up, which is critical for monitoring assets that undergo rapid start-up cycles.
Global Express Shipping
Returns & Warranty
Manufacturer: VIBRO-METER
Product No.: IPC704 244-704-000-042
Country of origin:United States
Product Type: Signal Conditioner
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 320g
Dimensions: 3.2cm x 10.6cm x 13cm
Shipping port: Xiamen
Warranty: 12 months
